Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Create new product file

Import all electrically define connectors (Connector and bundle connection point must be define before import)

Place all compenent at pre-define places (in Assembly Design Workbench)

Switch to Electrical Harness Assembly

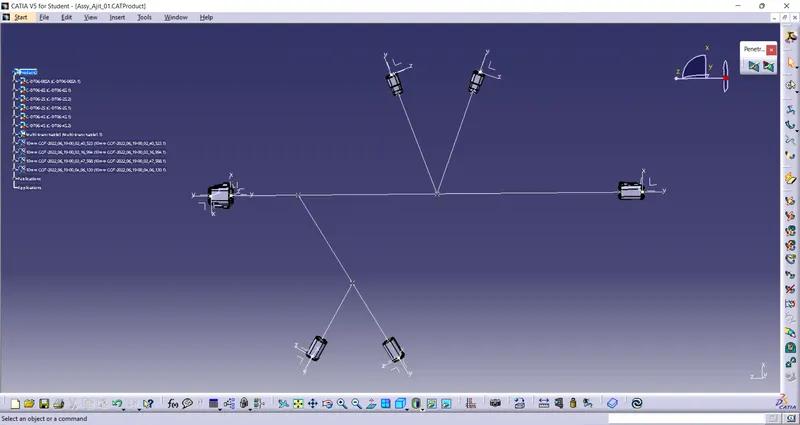

Use Geometrical Bundle tool to define assembly as a electrical assembly

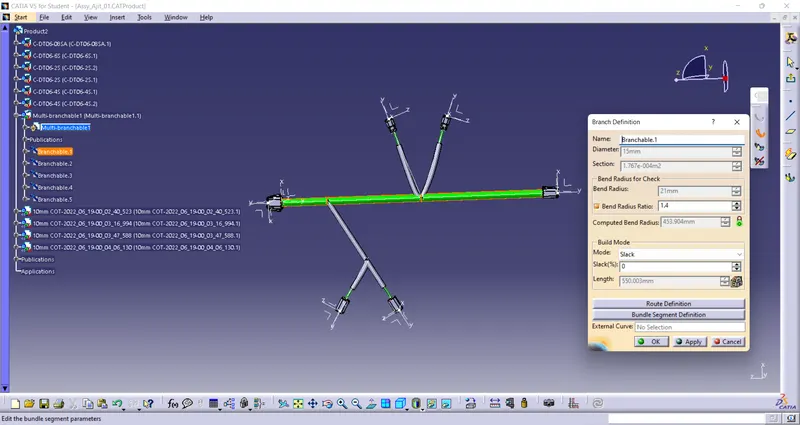

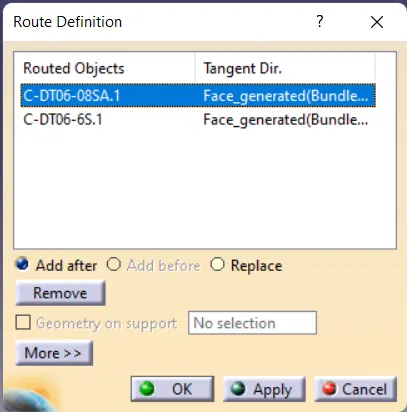

Use MultiBranchable Document tool to add different branches between electrical components

Use Add Branch Point tool to add sub-branch at desired locations

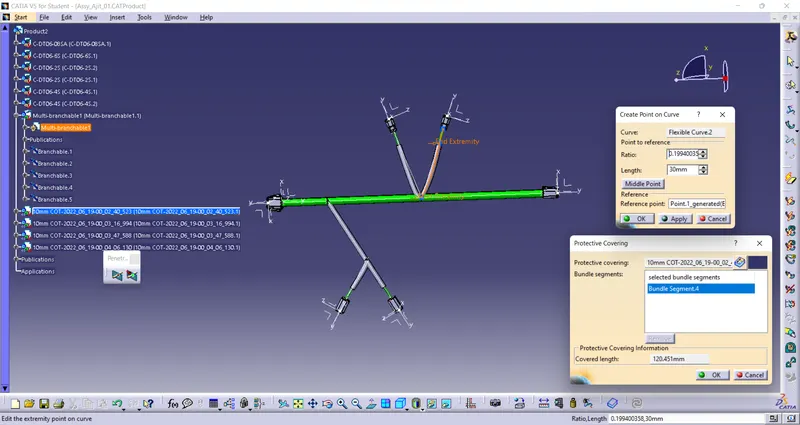

Add Corrugated Tubes/Tapes by using Protective Covering Tool
