Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

• THE CONNECTOR IS FIRST UPLOADED IN THE PART DESIGN WORKBENCH.

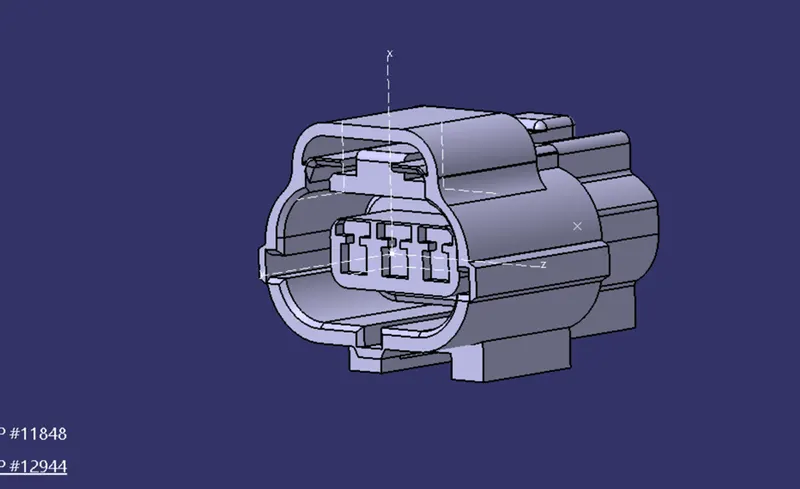

• WE DEFINE THE POINTS FOR CONNECTOR CONNECTION AND BUNDLE CONNECTION.

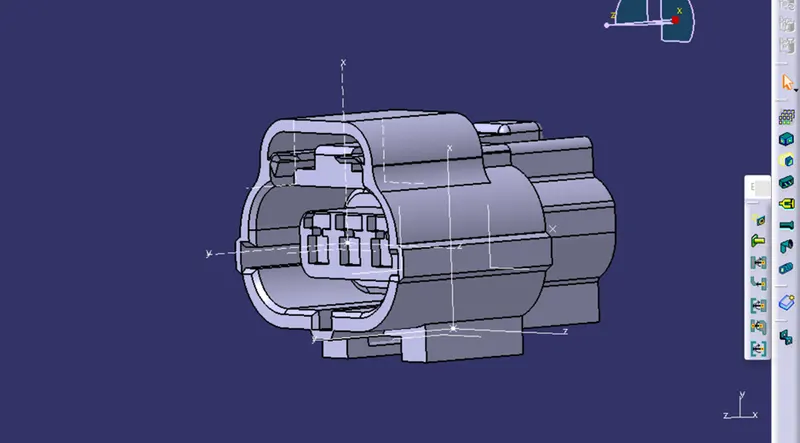

• THE AXIS SYSTEMS ARE PLACED ON THE CONNECTOR CONNECTION AND CAVITY CONNECTION POINTS.

• THE ORIENTATION OF THE AXIS SYSTEM IS NOT SPECIFIC; WE JUST NEED TO FOLLOW A SIMILAR ORIENTATION FOR ALL THE
  PARTS.

• HERE THE Y-AXIS IS IN THE DIRECTION OF THE CONNECTION. Z-AXIS ALONG WITH THE CLIP MOUNTING AND X-AXIS ALONG BOTTOM TO TOP.

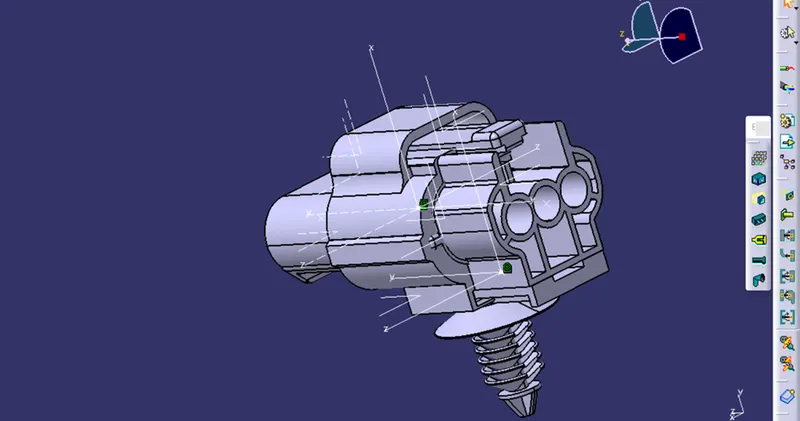

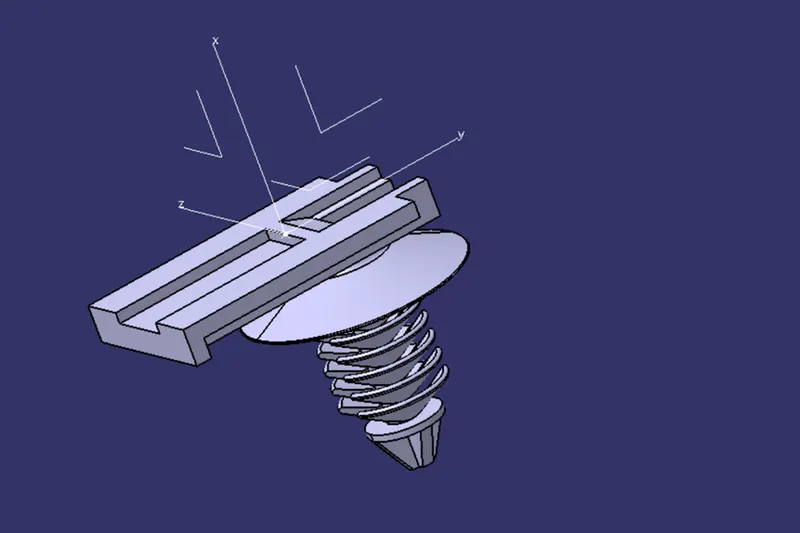

• WE INCLUDE CONNECTOR CAVITY CONNECTION POINT TO FIX THE CLIP ON TO THE CONNECTOR.

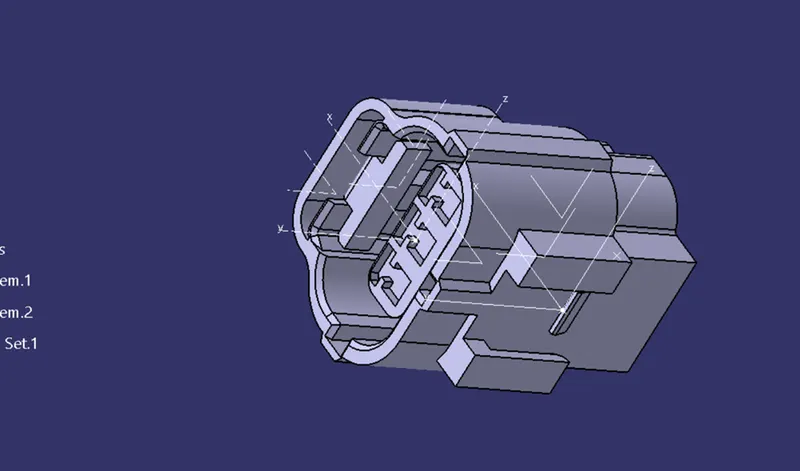

• NOW WE DEFINE THIS PART AS AN ELECTRICAL CONNECTOR WITH THE NUMBER OF TERMINALS.

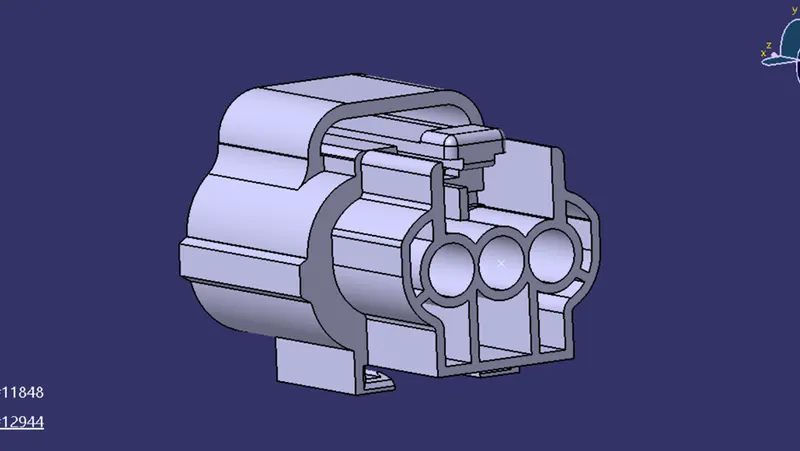

• DEFINE BUNDLE CONNECTION POINT, CONNECTOR CONNECTION POINT AND CAVITY CONNECTION POINT.

• ASSEMBLY IS DONE IN THE ELECTRICAL ASSEMBLY DESIGN WORK BENCH.

CONCLUSION:

THE CONNECTOR IS MODELLED SUCCESFULLY IN CATIA V5 AND THE SAME IS ADDED TO THE CATALOG FOR FURTHER REFERENCES.
