Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Electrical Part design

The provided Connectors are downloaded and converted to CATParts.

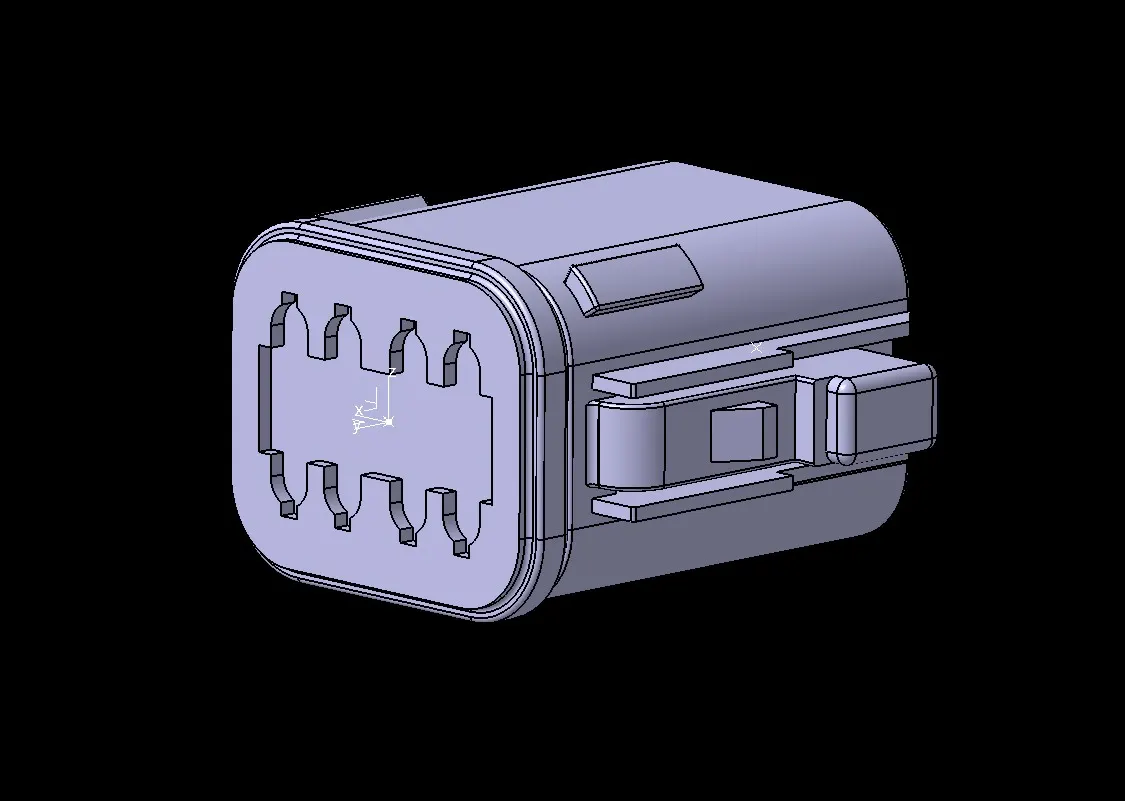

DT06-08SA

The connector is downloaded from the provided website and opened in Catia V5

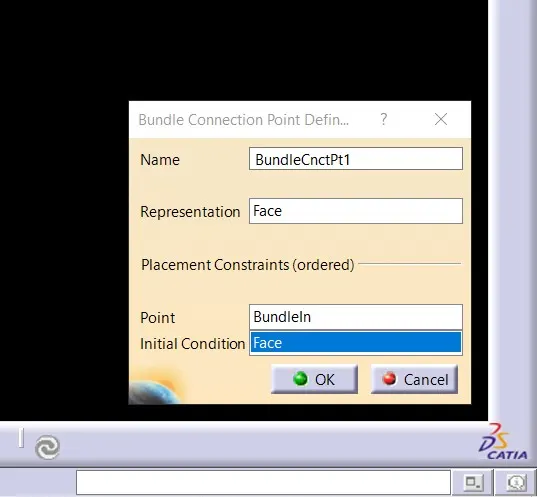

Reference points and axis system were added for bundle points, connector points and cavity joints

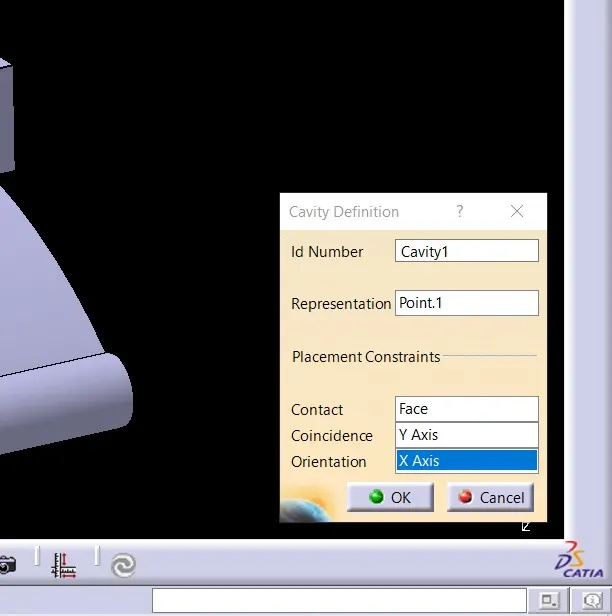

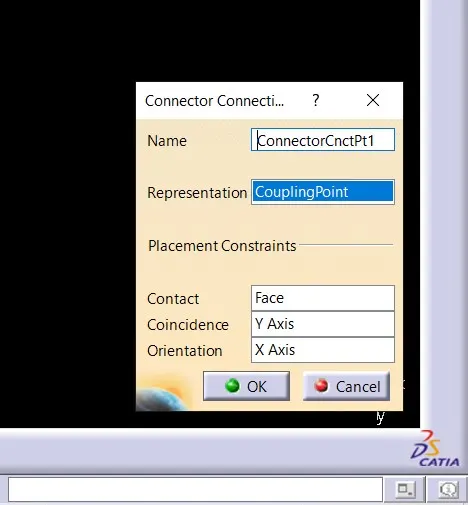

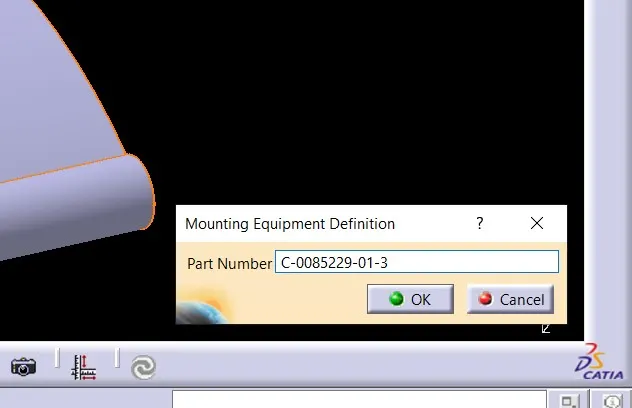

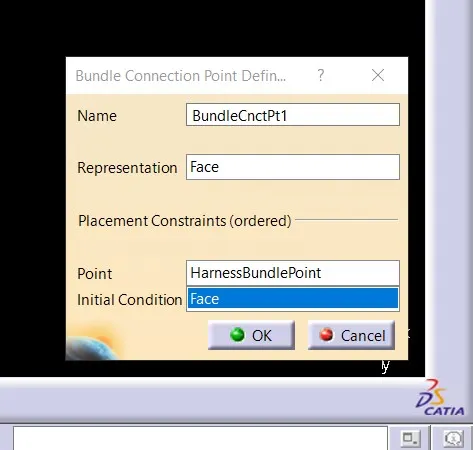

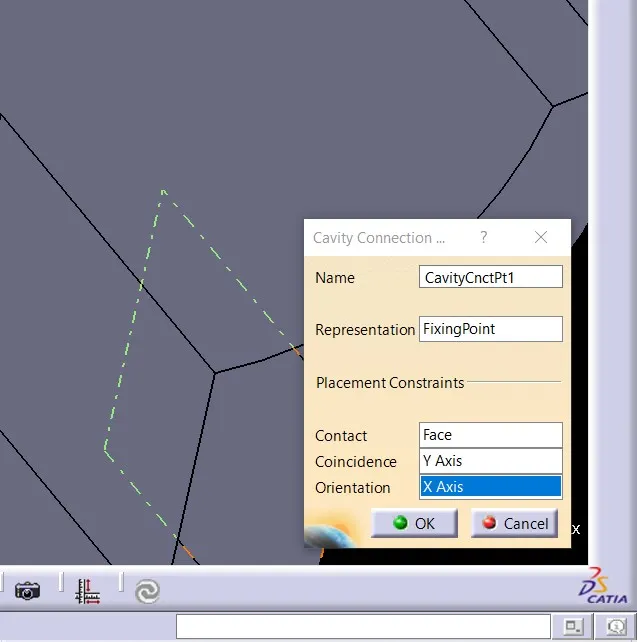

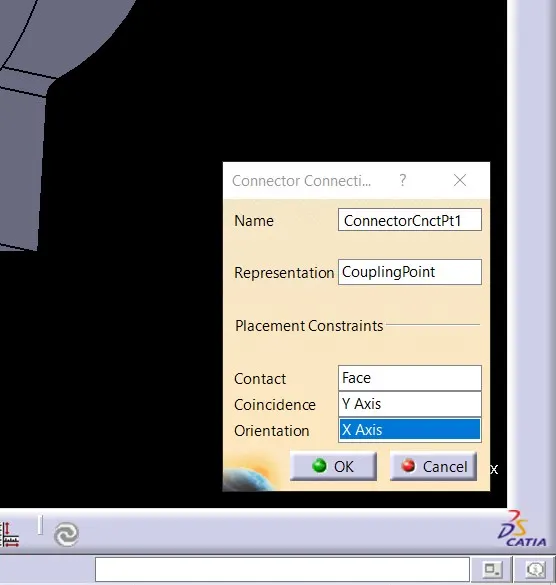

First, the part was defined as a connector followed by defining the Bundle, connector and cavity connection

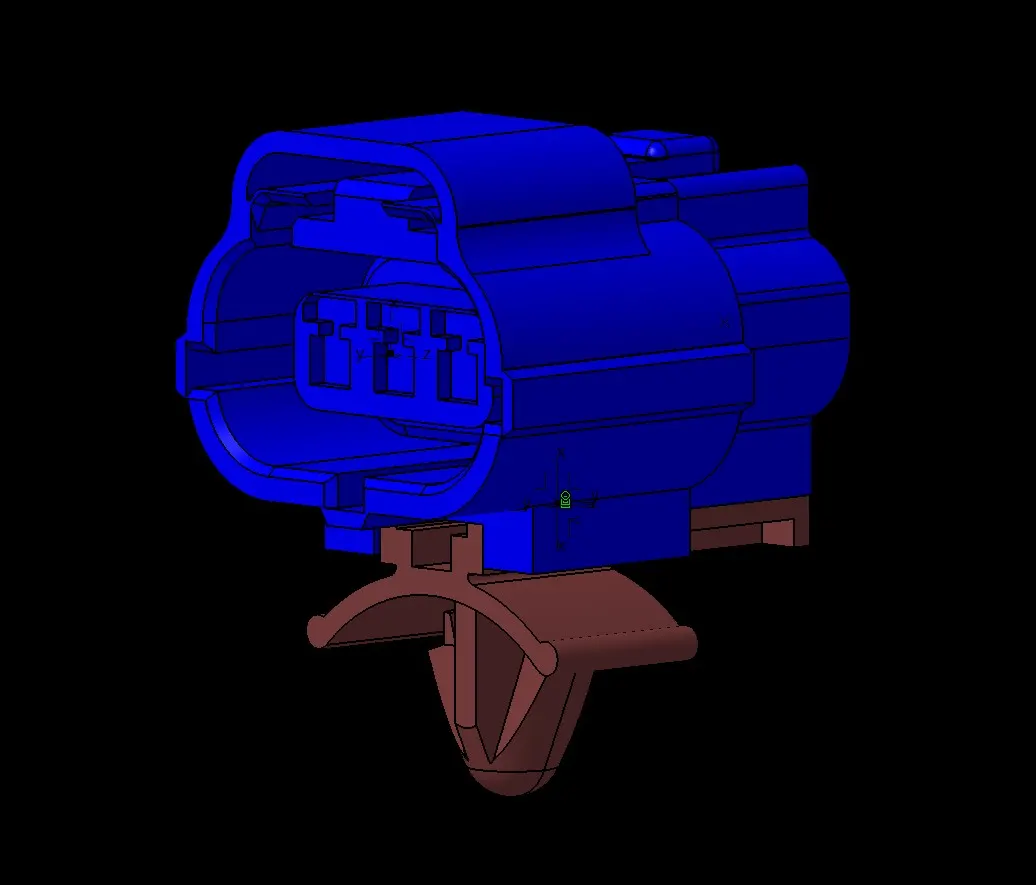

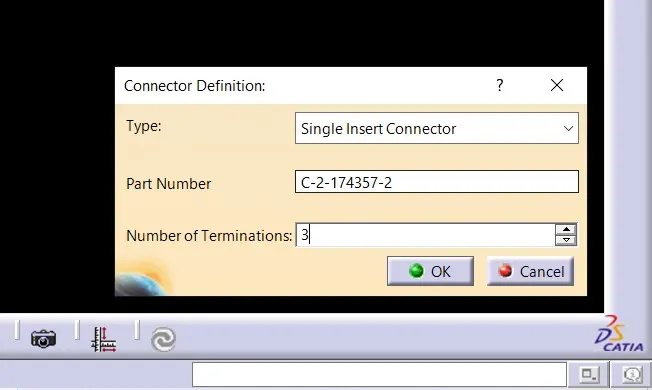

Tyco 174357-2

Assembled
