Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Wiring harness design Challenge 2

Connector 1

First, I loaded the model from the given link.

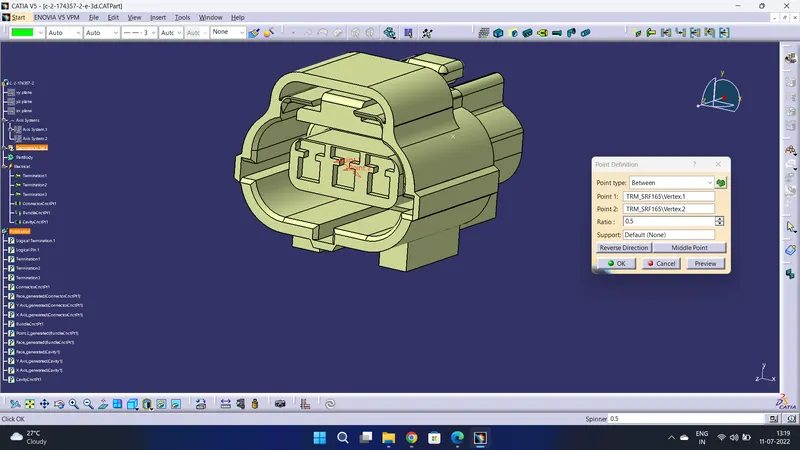

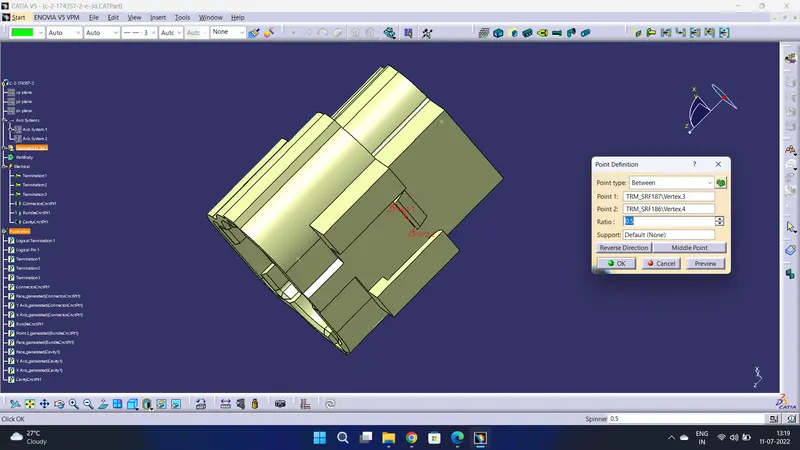

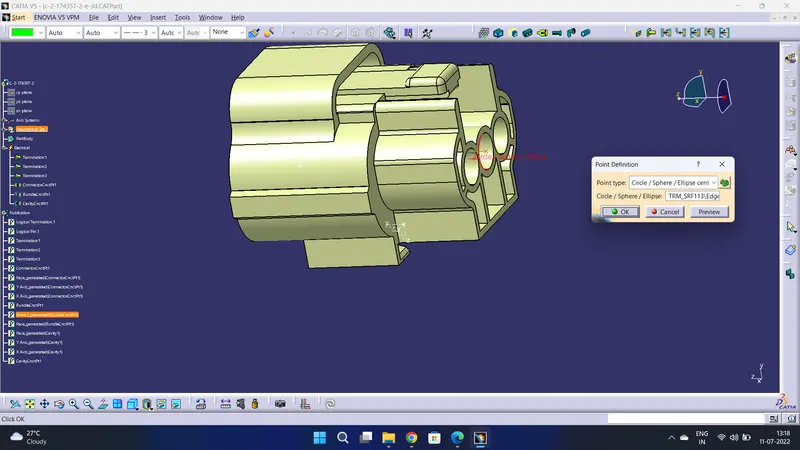

Open Mechanical Design -> Part Design in part design given a Center point with help of Between point.

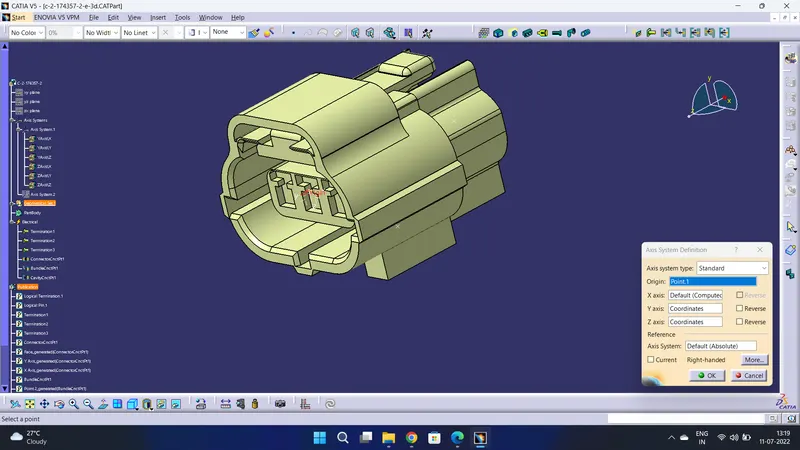

Given Axis System connector connection side.

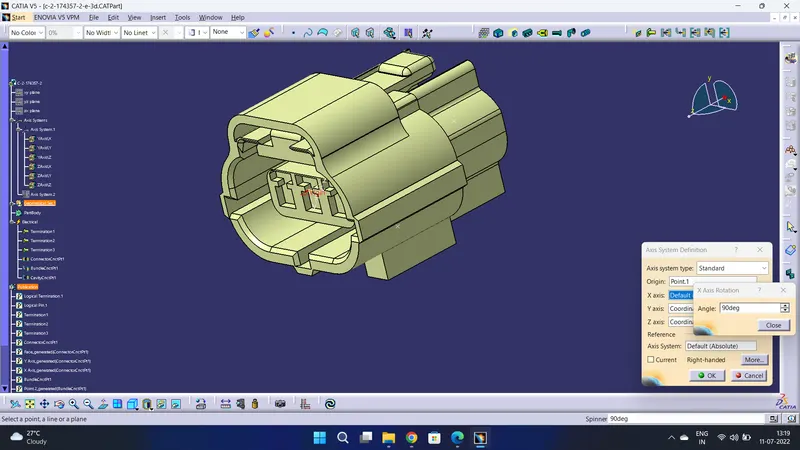

In the Axis system X-axis rotated 90 degrees to make Y-Axis Coincidence for Assembly purposes.

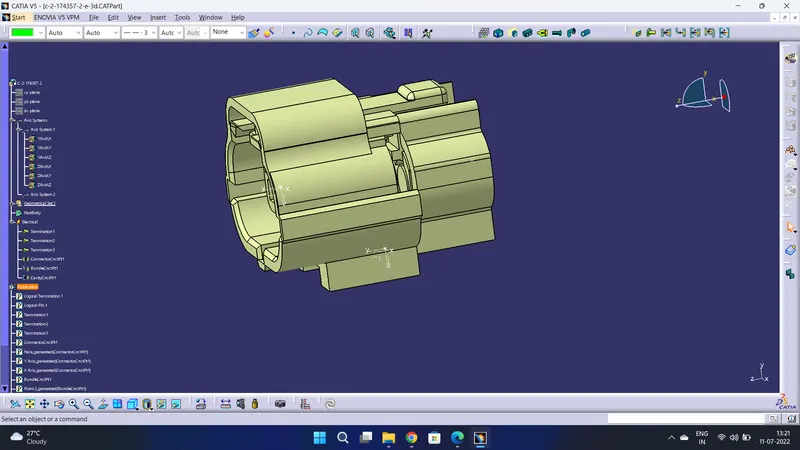

Part Changed to Electrical part design Then model defines as a 3-terminal connector.

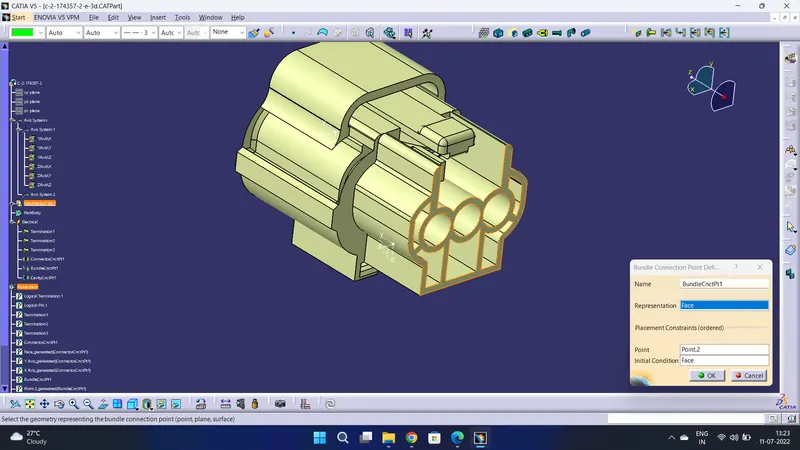

Then Bundle connection point is defined on the Bundle connector side.

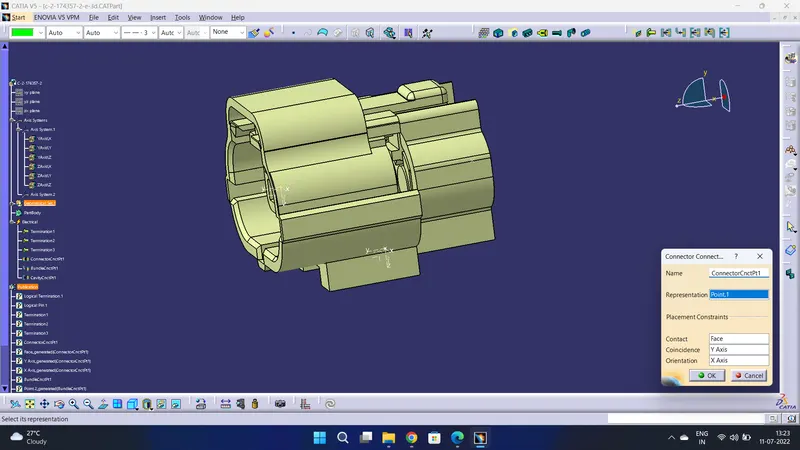

The connector connection side is defined as the connector connection point.

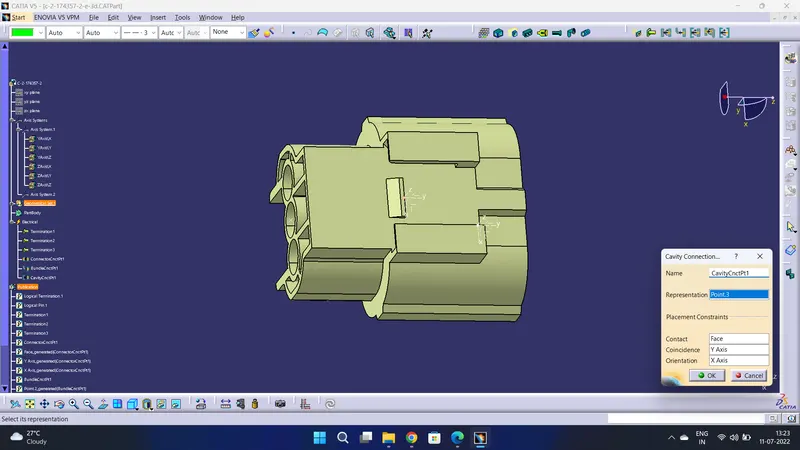

The cavity connection side is defined as a Cavity connection point.

Connector 2

First, I loaded the model from the given link.

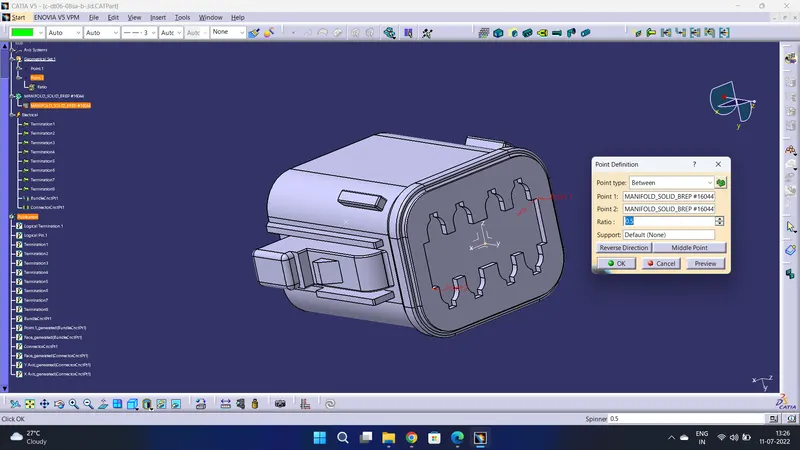

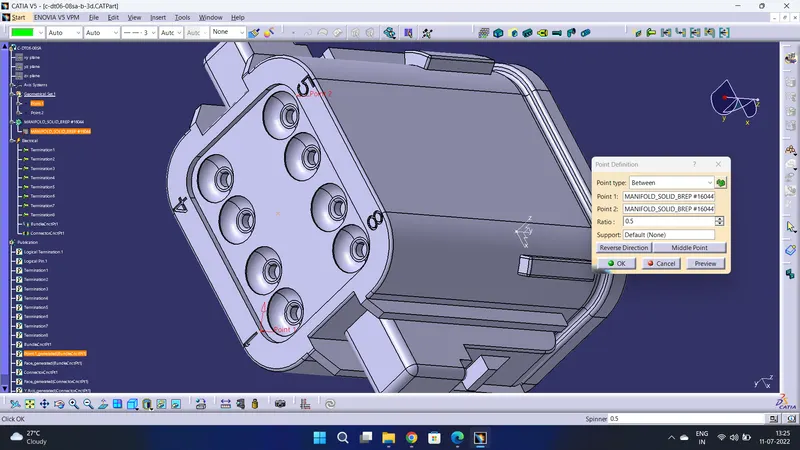

Open Mechanical Design -> Part Design in part design given a Center point with help of Between point.

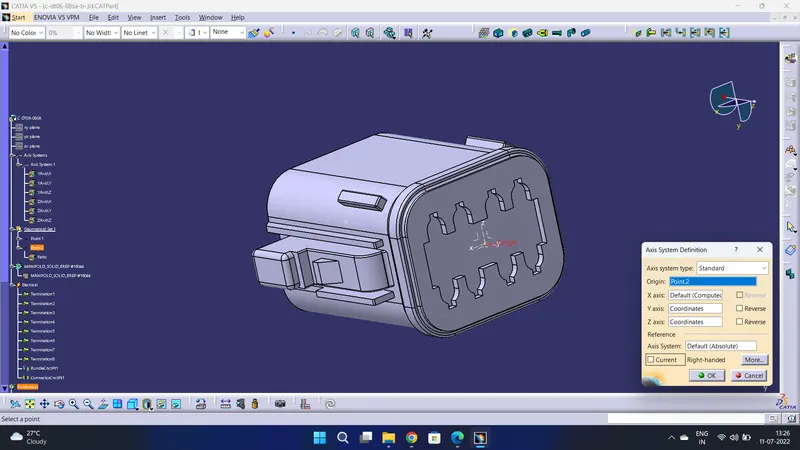

Given Axis System connector connection side.

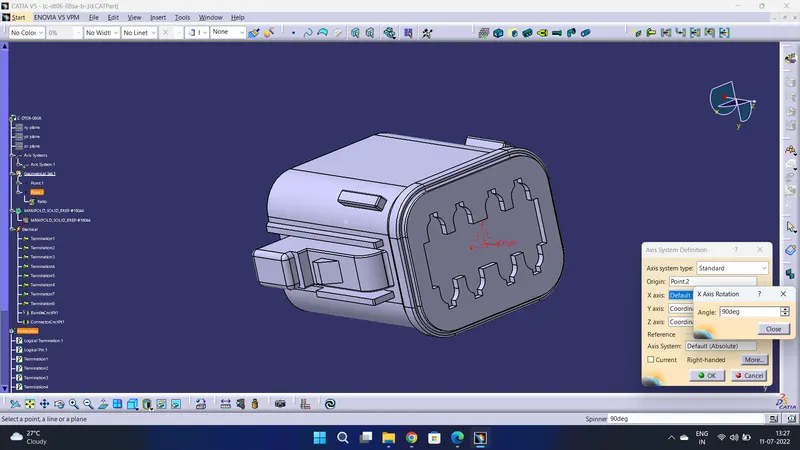

In the Axis system X-axis rotated 90 degrees to make Y-Axis Coincidence for Assembly purposes.

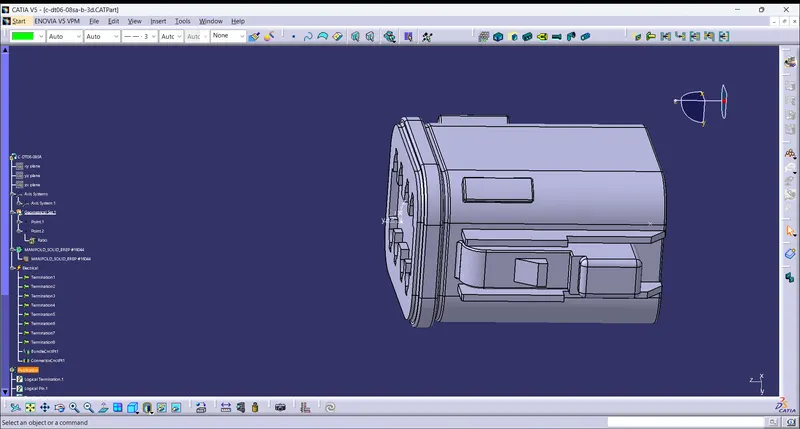

Part Changed to Electrical part design Then model defines as an 8-terminal connector.

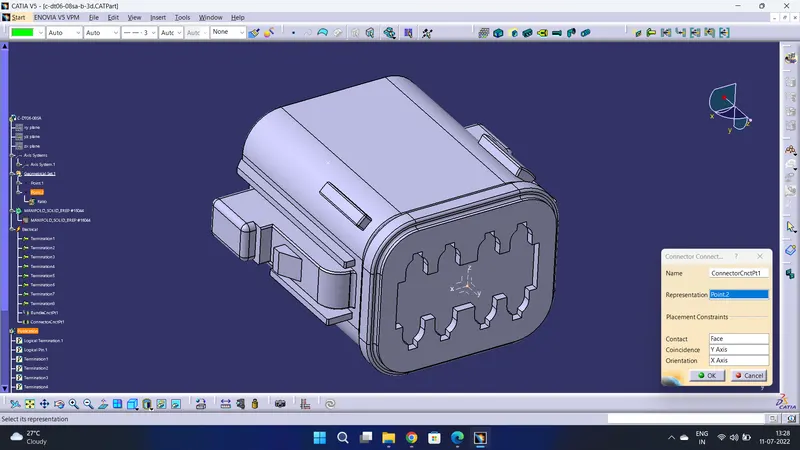

The connector connection side is defined as the connector connection point.

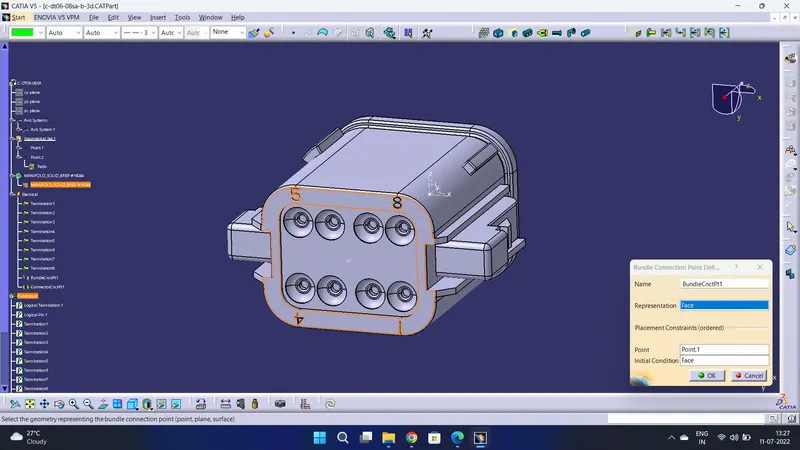

Then Bundle connection point is defined on the Bundle connector side.

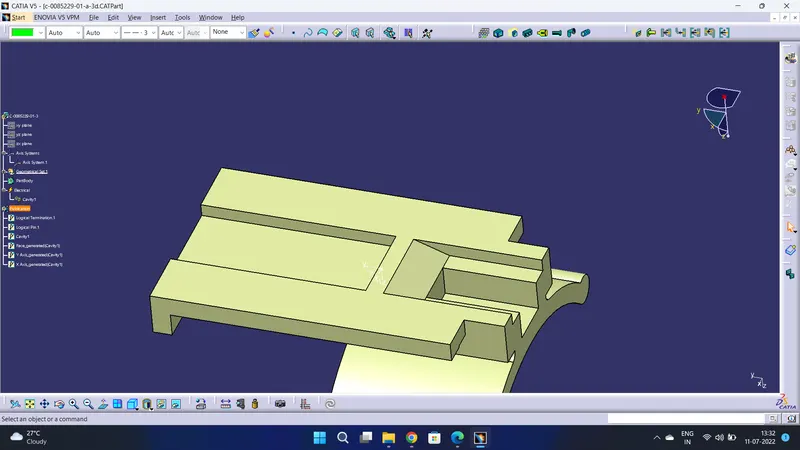

Mounting Clip

First, I loaded the model from the given link.

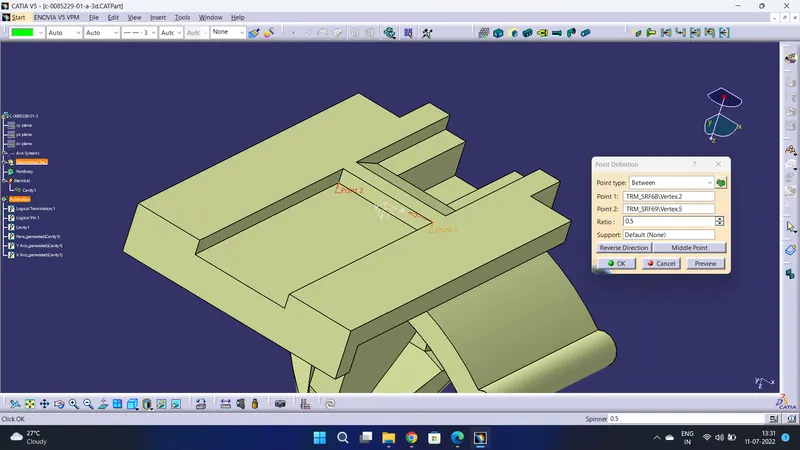

Open Mechanical Design -> Part Design in part design given a Center point with help of Between point.

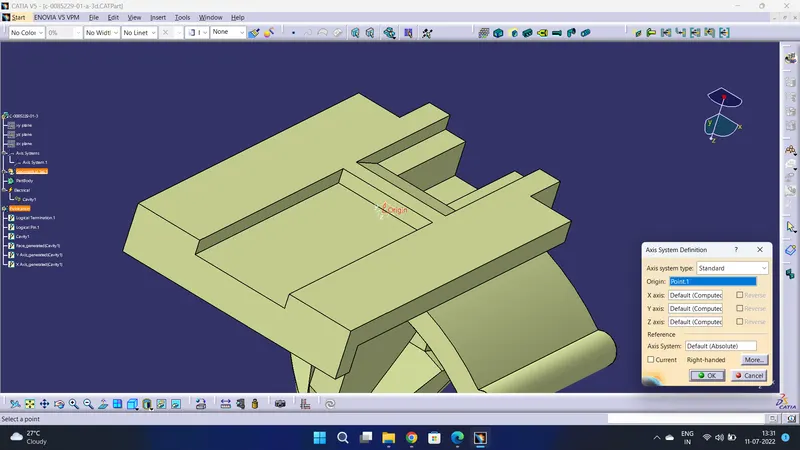

Given the Axis System Mounting side.

Part Changed to Electrical part design Then model defines as an Equipment.

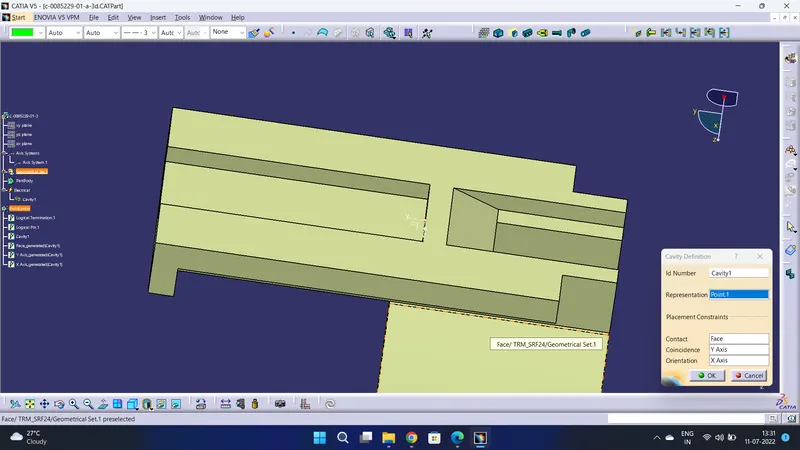

The mounting Side is defined as cavity definition.

Now create an electrical assembly design product file import the connector 1 and mounting clip part drawings.

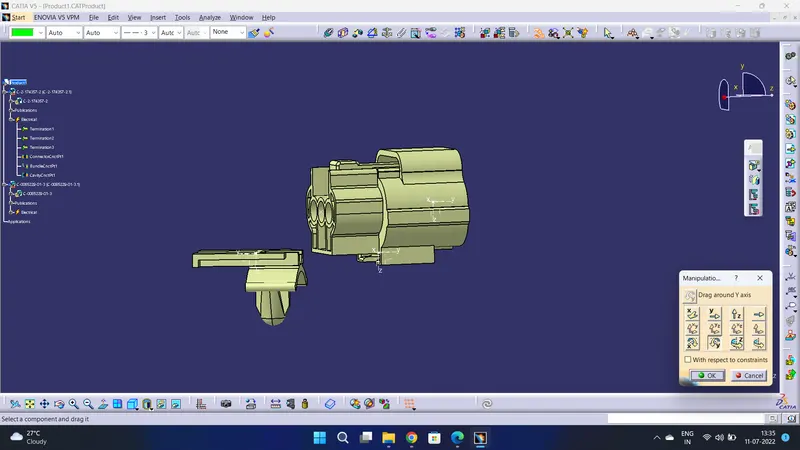

Then connect electrical devices connector 1 and mounting clip before that we need to do manipulation in Mechanical Design ->Assembly design.

Rotate the mounting clip along the x-direction to match the connector 1.

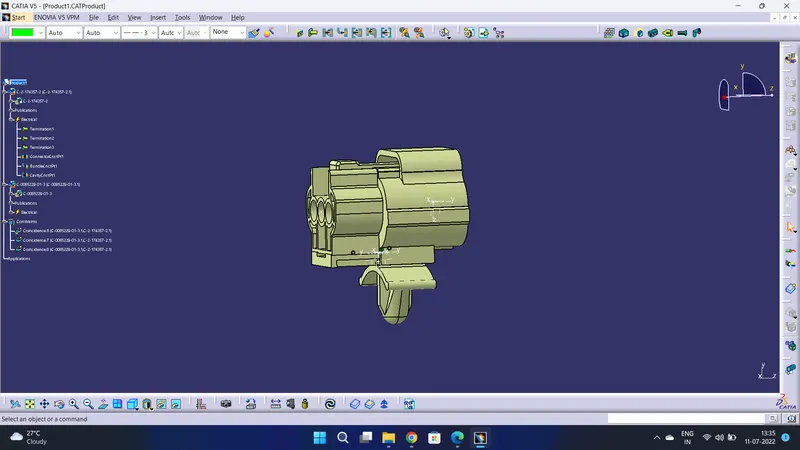

Now click on connect electrical devices command and select the two parts. The parts are connected specified direction.
