Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

• Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
• Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
• Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

INTRODUCTION TO WIRE HARNESS

DEFINIG ELECTRIC PARAMETER FLOW CHART

CONNECTOR DEFINATIONS IN CATIA V5

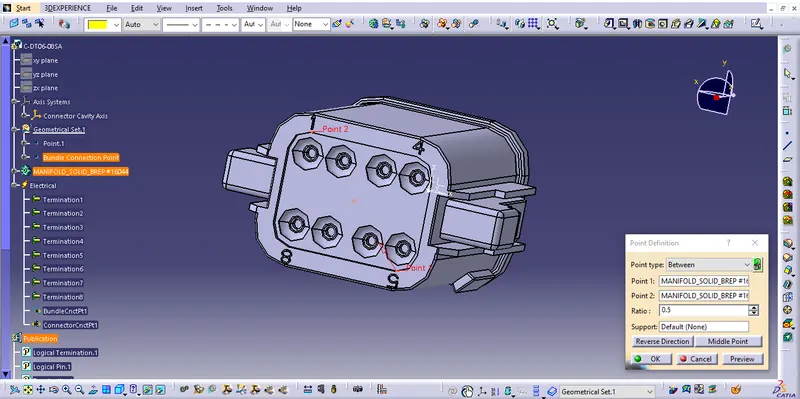

1. Deutsch DT06 – 08SA

Connector connection point:

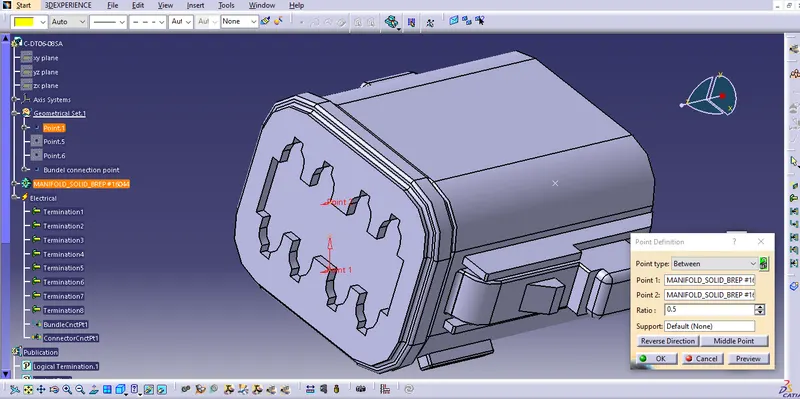

Create midpoint on the contact face which will be normal to wire bunddle insertion.

Bundle connection point:

Switch to 'Electric Part Design'

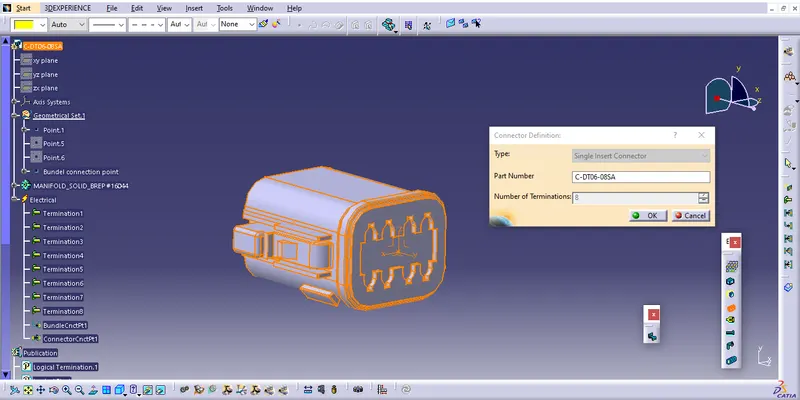

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

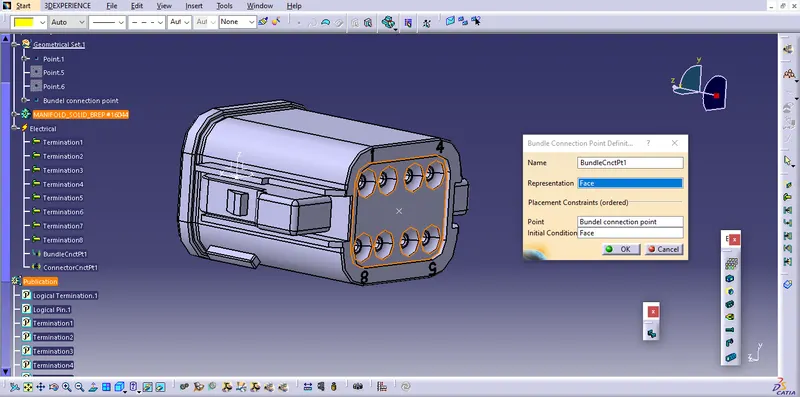

Define Bundle connection point

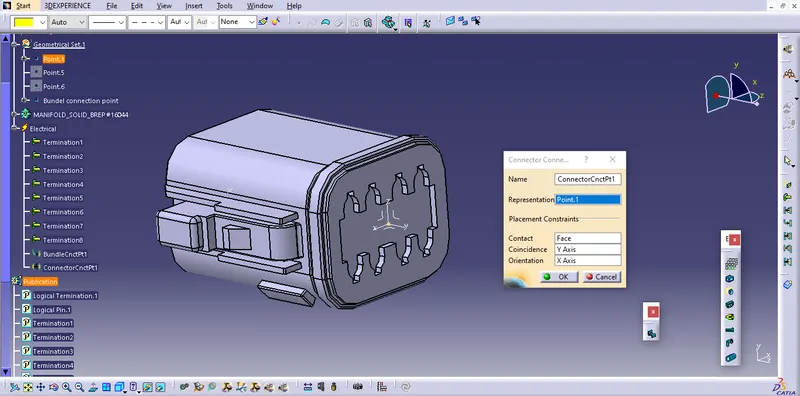

Define connector connection point

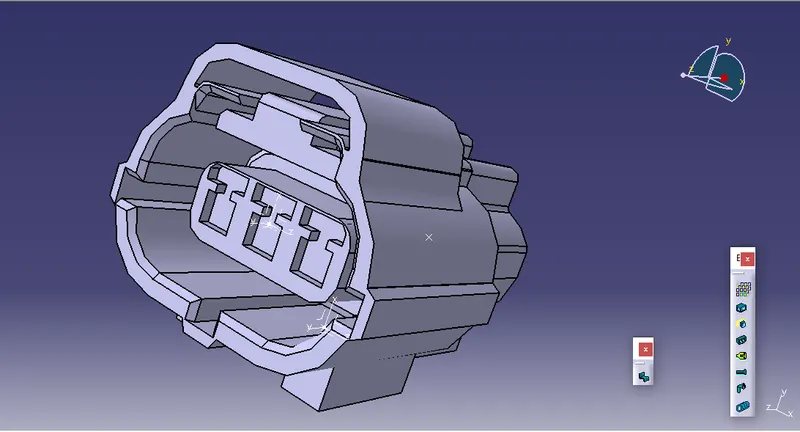

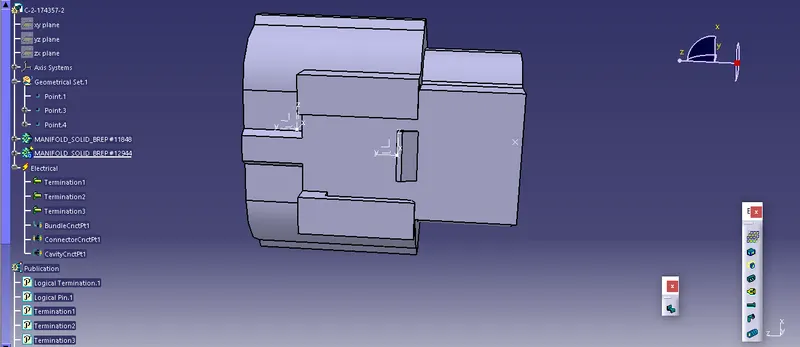

2.Tyco 174357-2 :

• Create midpoint
• create Connector connection point

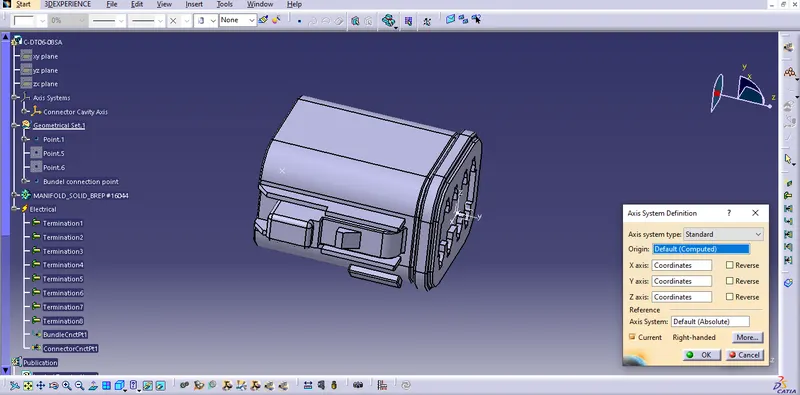

• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

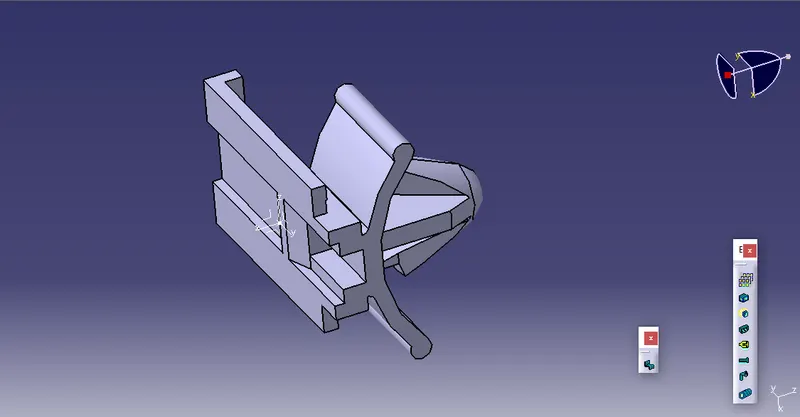

3. Tyco 85229-1 :

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point

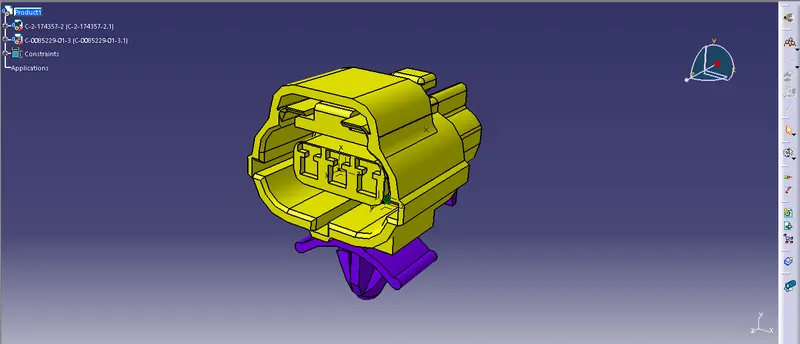

Elctric Assembly Design

• Import Connector and cavity / mounting clip.
• Select Defing Eelectric connection
• select cavity and then connector.
