Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

REPORT :

AIM : Define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

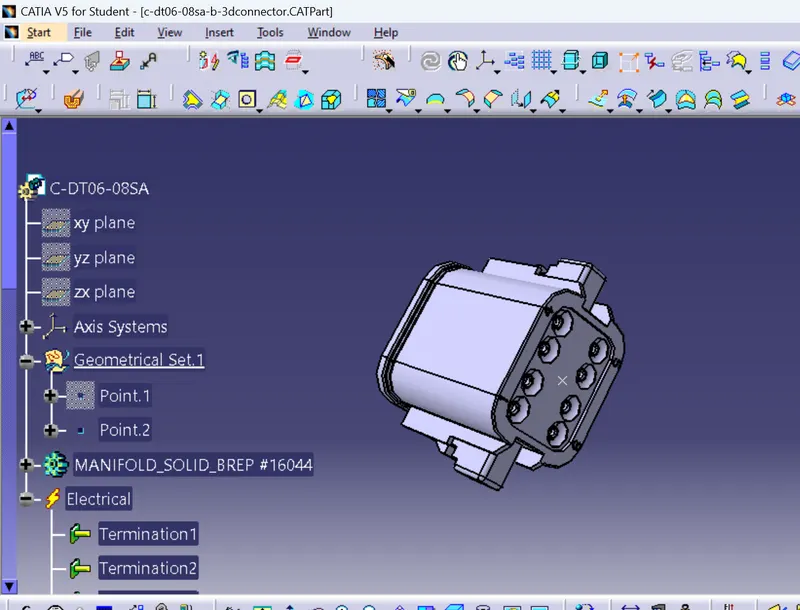

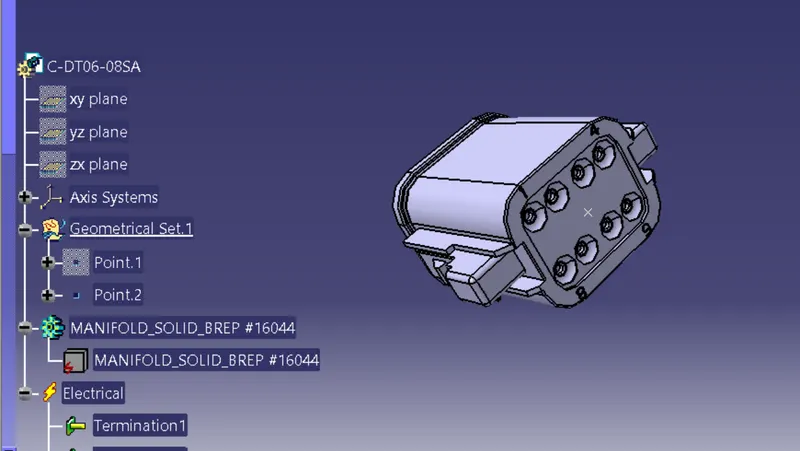

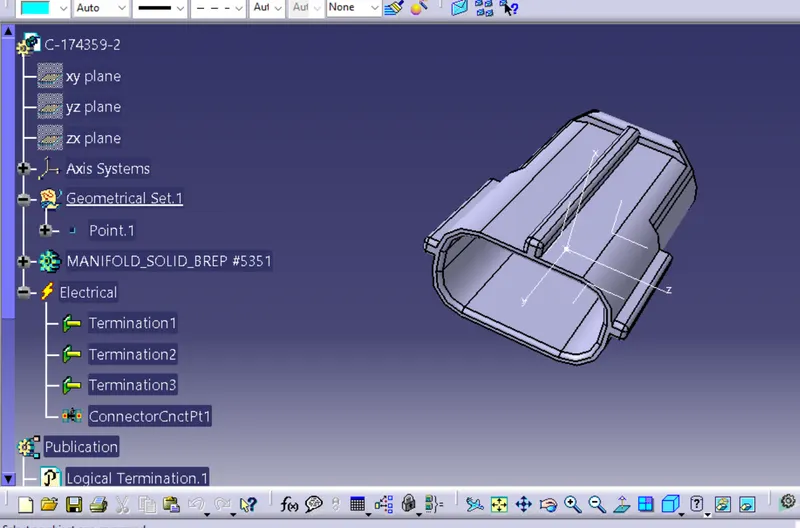

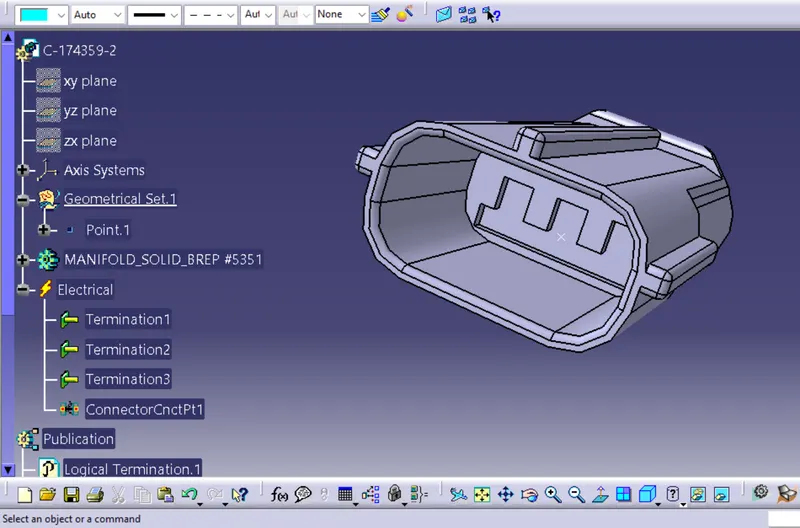

1. DEFINE GEOMETRICAL PARAMETER TO THE PART :

2. DEFINE THE BUNDLE ENTRY POINT :

3. DEFINE BUNDLE EXIT POINT :

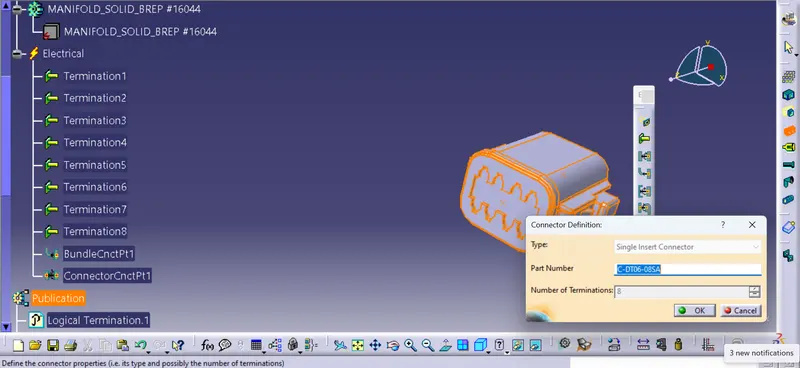

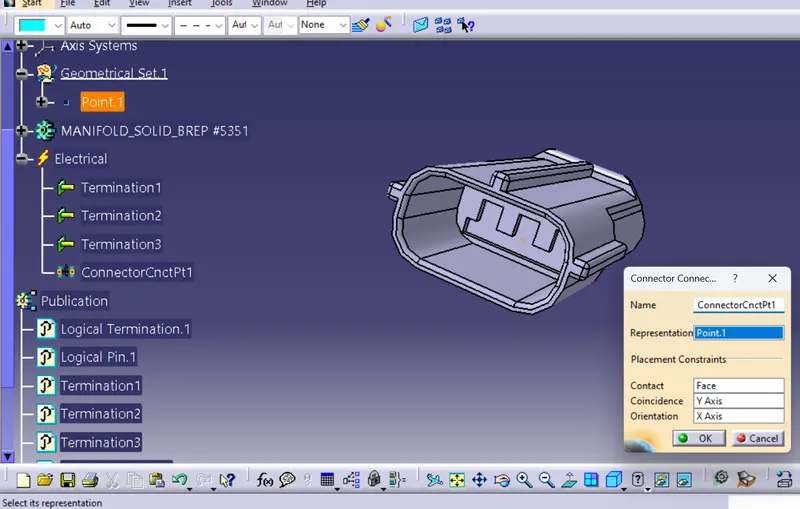

4. DEFINE THE PART AS CONNECTION PART:

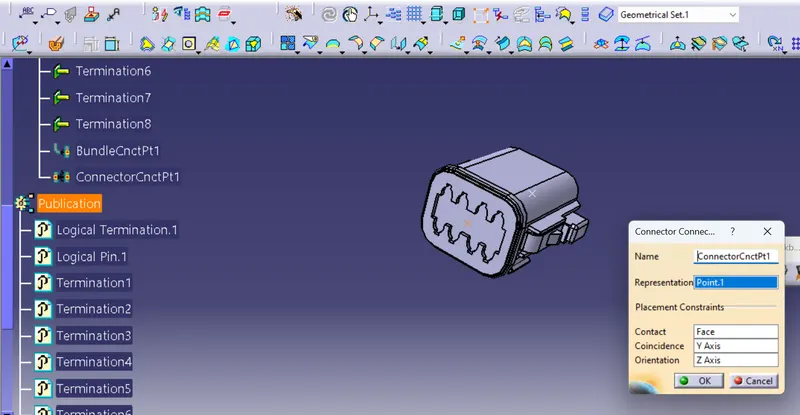

5. DEFINE BUNDLE CONNECTION POINTS :

6. DEFINE CONNECTOR CONNECTION POINT :

2.

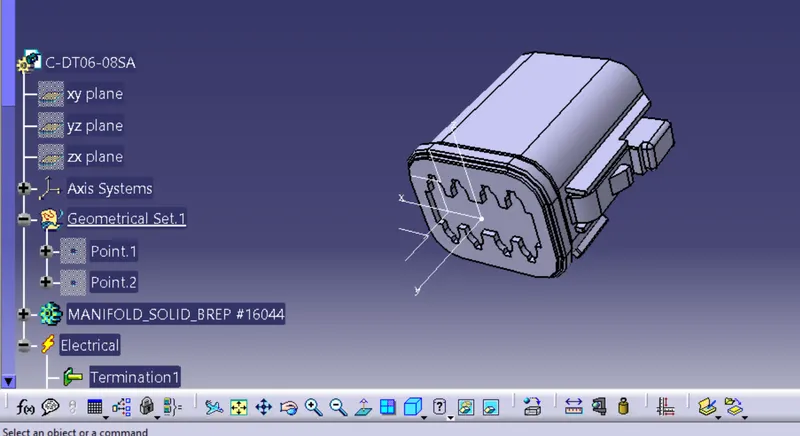

1. DEFINE PART HAS GEOMETRICAL PART :

2. DEFINE THE BUNDLE ENTRY POINT :

3. DEFINE BUNDLE EXIT POINT :

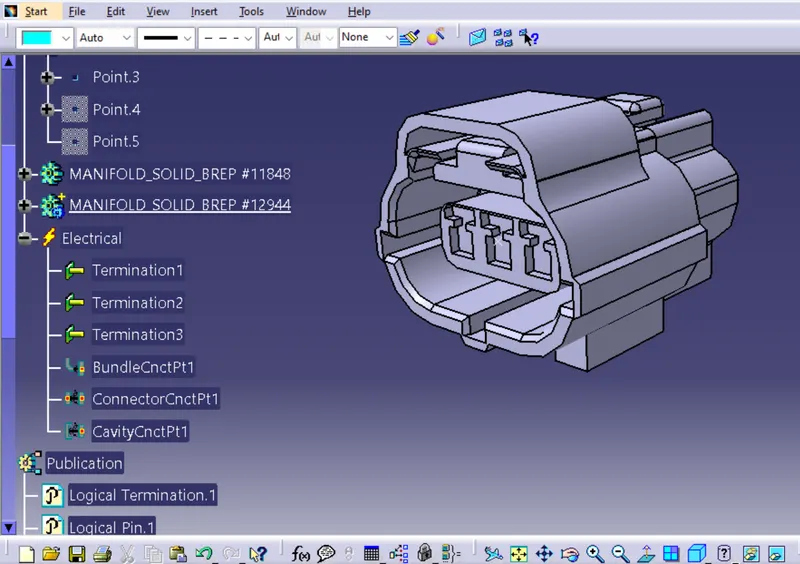

4.DEFINE THE GEOMETRICAL PART FOR THE CLIP OR CAVITY :

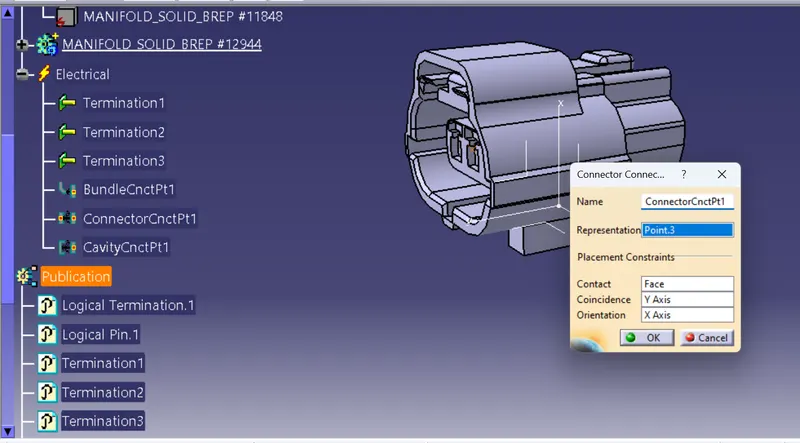

5.DEFINE THE PART HAS CONNECTOR :

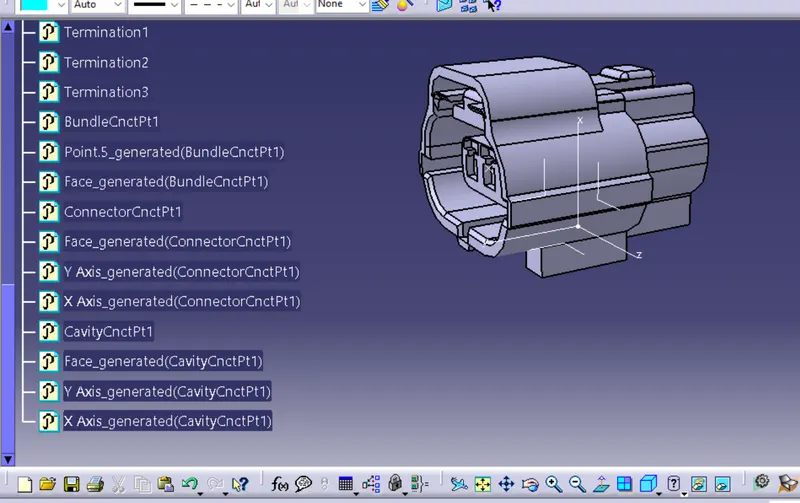

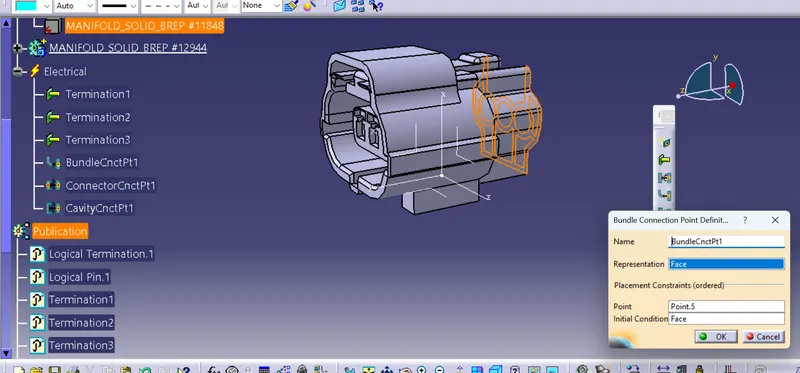

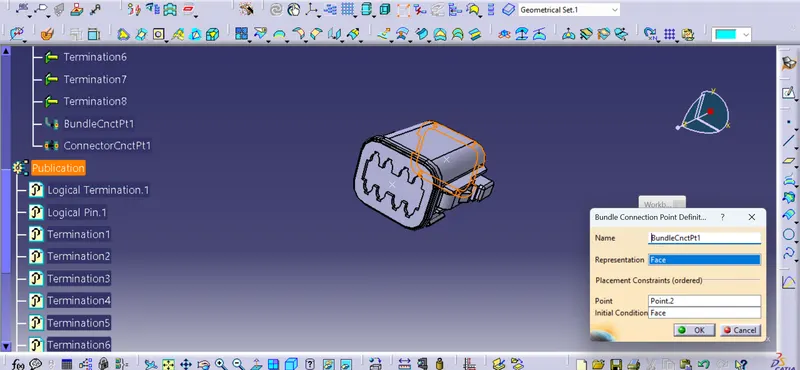

6.DEFINE BUNDLE CONNECTION POINT :

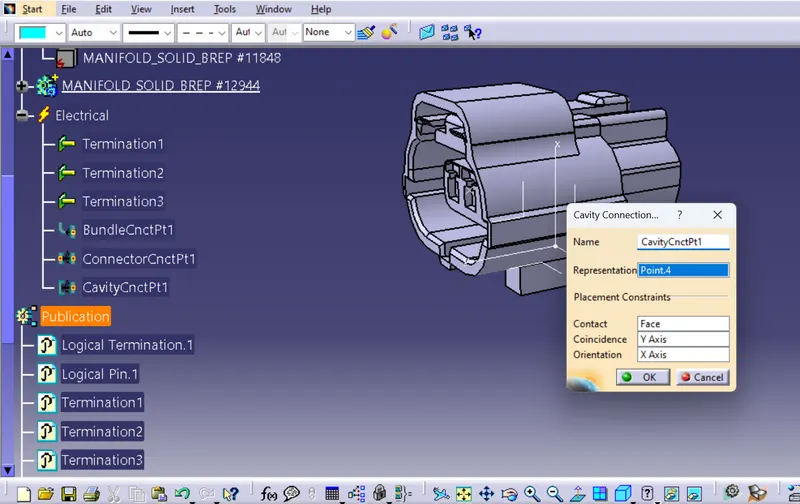

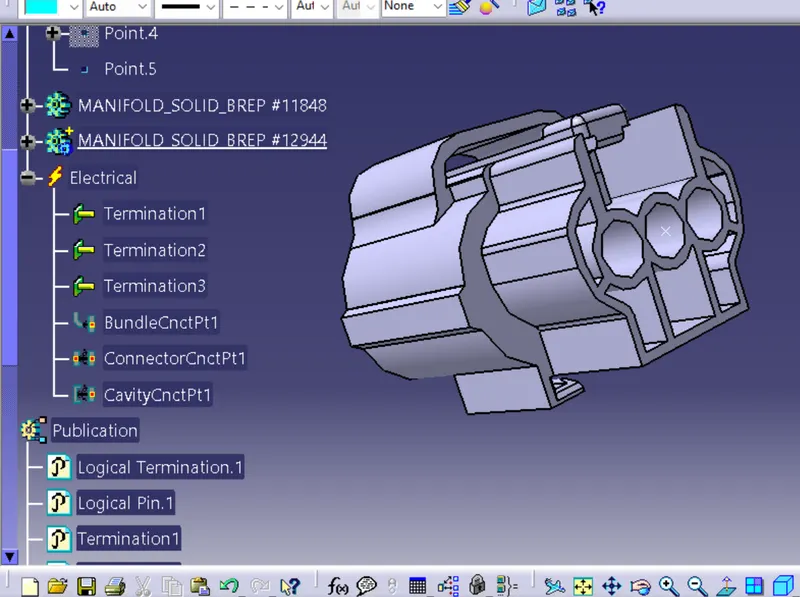

7.DEFINE CAVITY CONNECTION POINT :

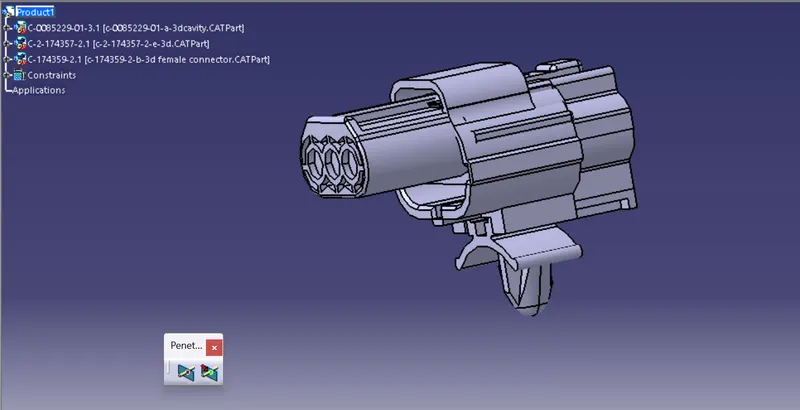

First connect C-0085299 with C-217494357 electrically with the connect electrical devices option then the parts are connected

3.

1.DEFINE PART HAS GEOMETRICAL PART :

2.DEFINE ENTRY POINT :

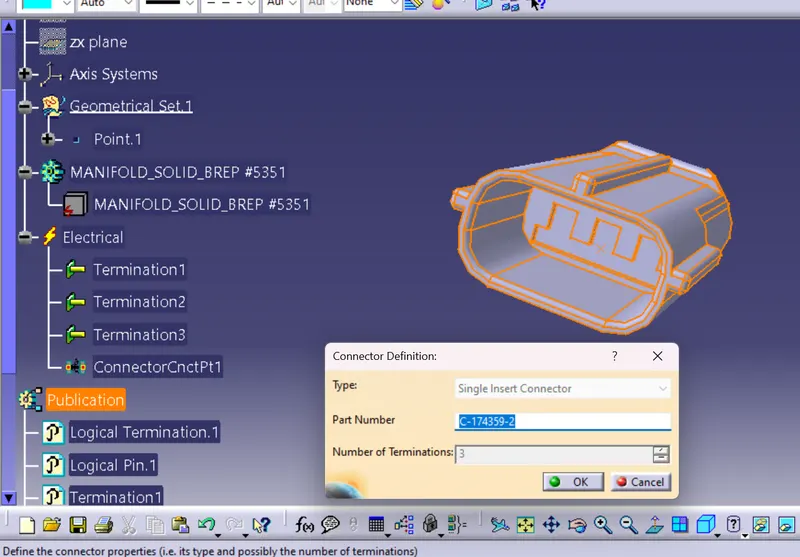

3.DEFINE CONNECTOR :

4.DEFINE CONNECTION POINT :

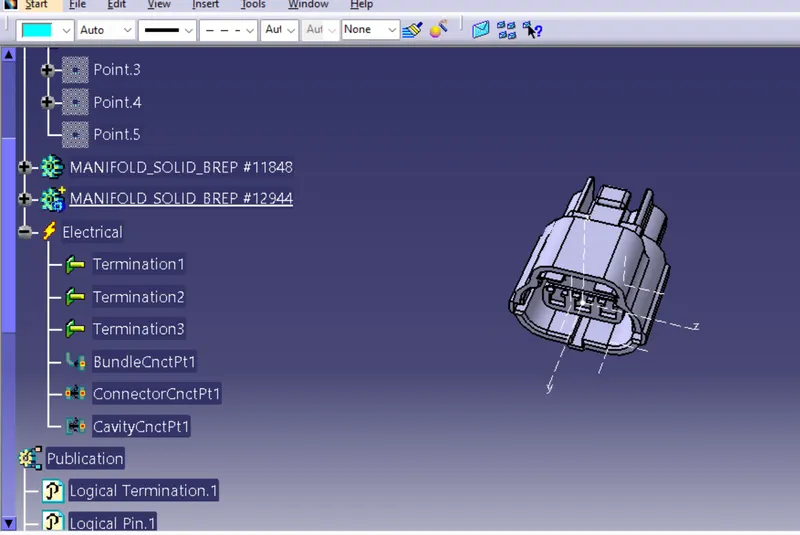

After the first electrical connection now connect with the C-174359-2 then the total assembly is now figured has per the question.

CONCLUSION: Therefore the given electrical connector using electrical part design workbench is defined.
