Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Connector defination in CATIYA V_5

1. Deutsch DT06 – 08SA

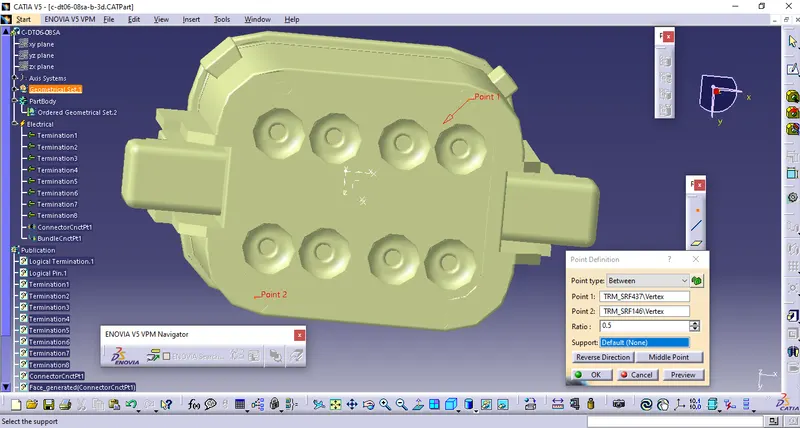

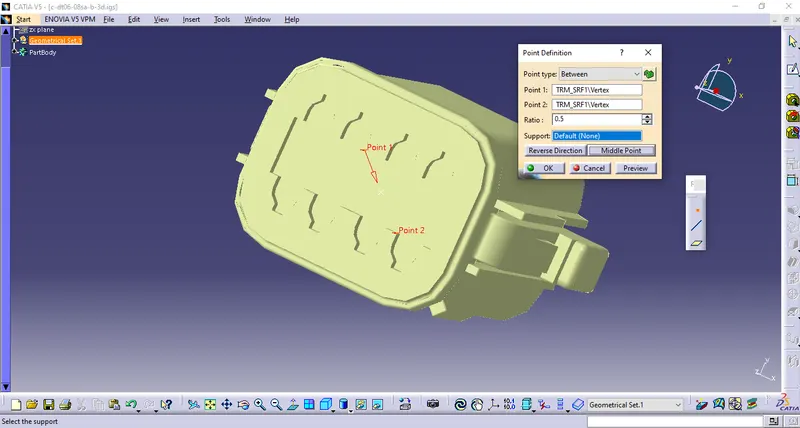

Create a points of connectors which we have to connect ,

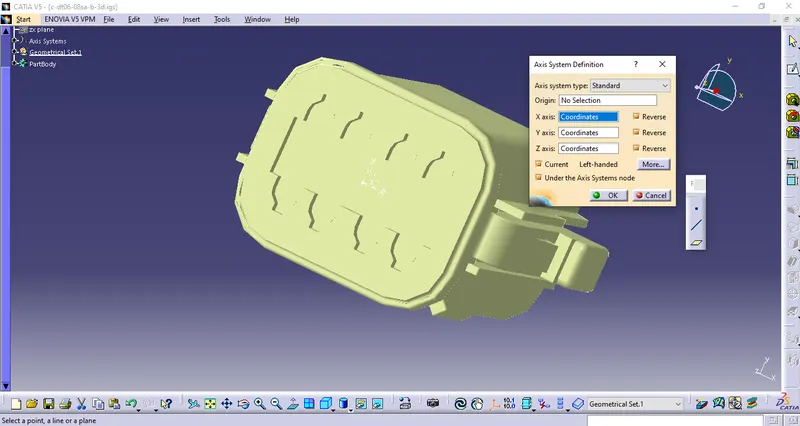

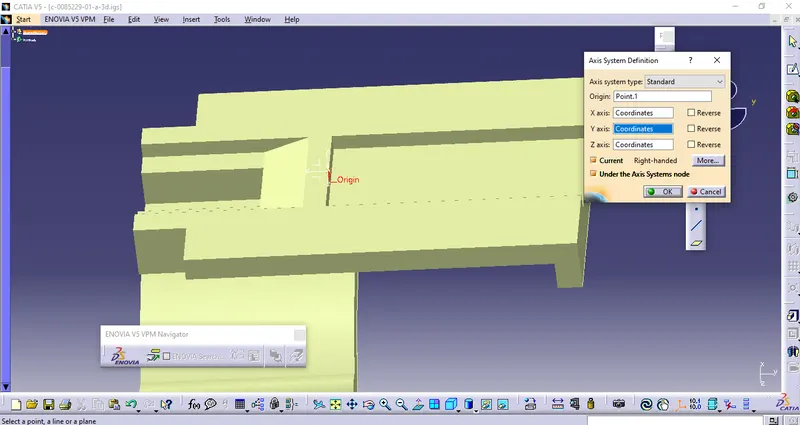

Create a geometrical axis for connection ,

Bundle connectoin point ,

Now switch to electrical part design

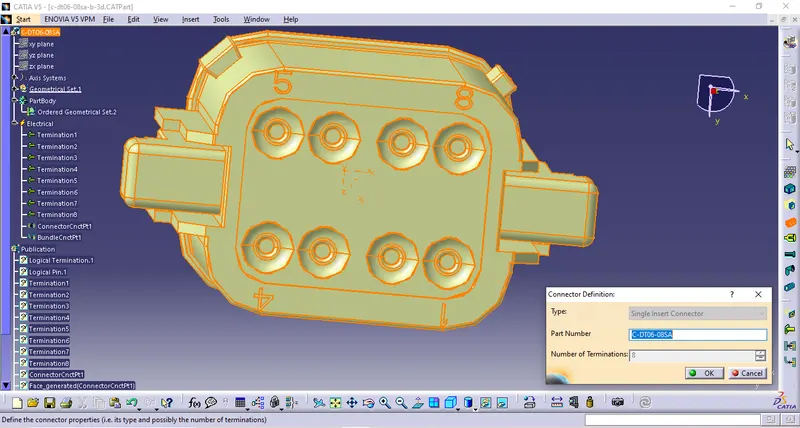

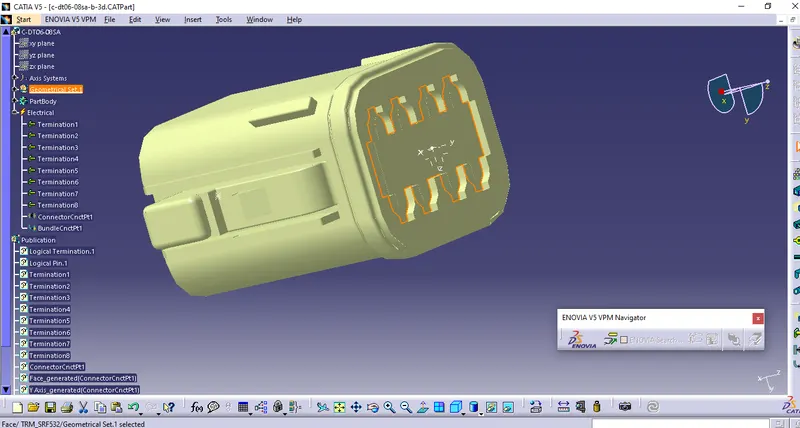

Define the connector , connector connection points in catiya no termination is given as 8 because our connector having 8 points of wire entry ,

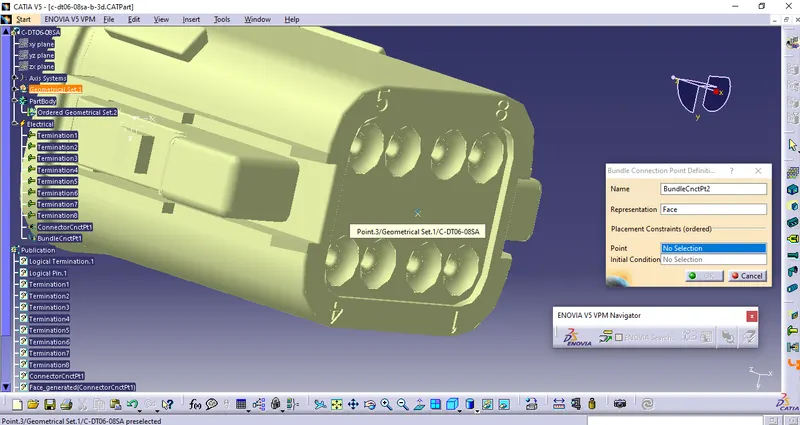

Define bundle connection point ,

Define connector connection point ,

Now , our connector is ready to connect.

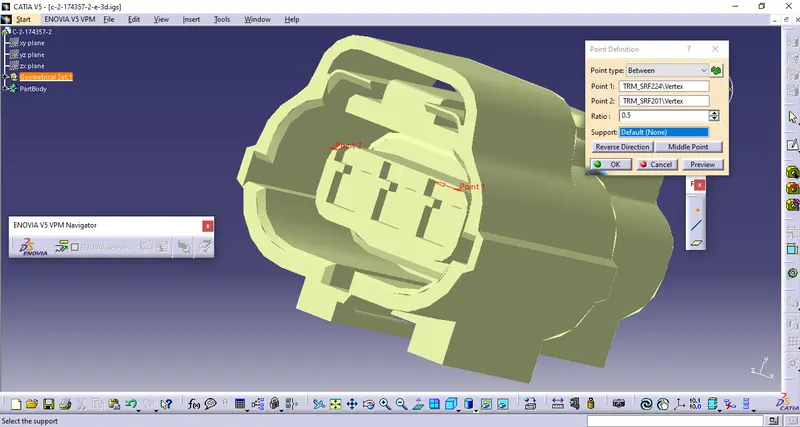

2. Tyco 174357-2

Define goemetrical parameter to the part ,

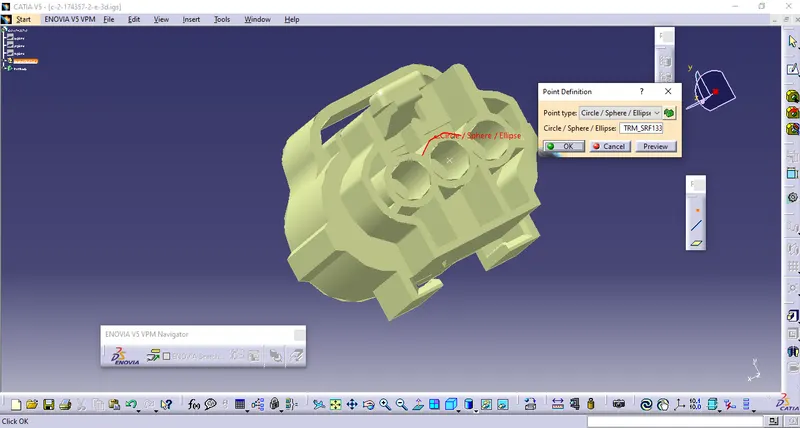

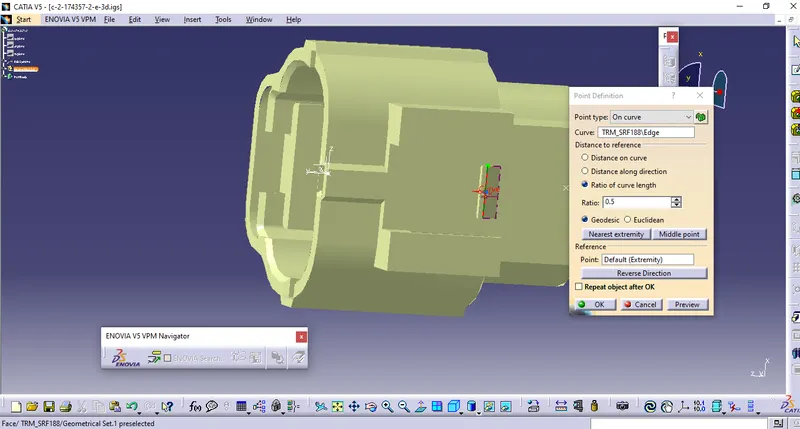

Define bundle entry point ,

Defining the Geometrical Parameter for clip or cavity attachment ,

Now switch to electrical part design

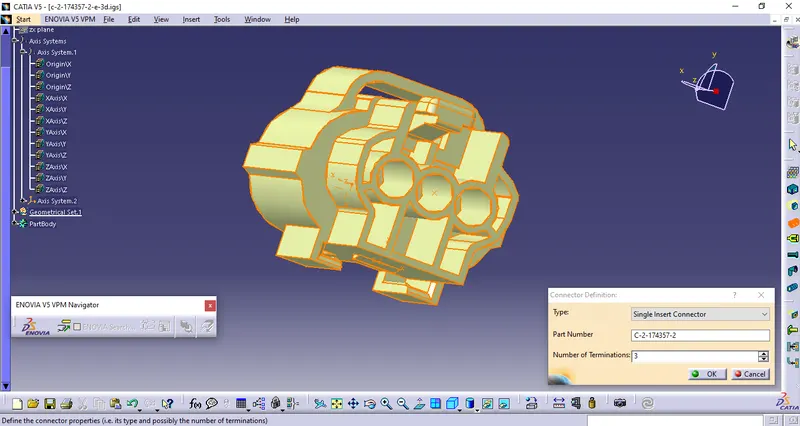

Define the connector , connector connection points in catiya no termination is given as 3 because our connector having 3 points of wire entry

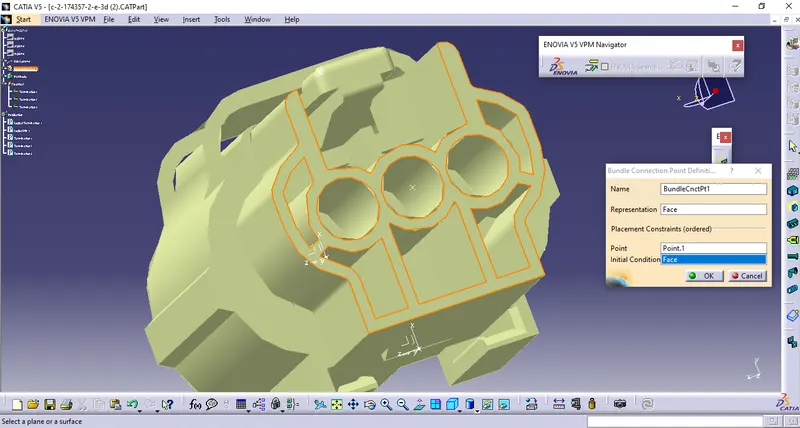

Defining bundle connection point ,

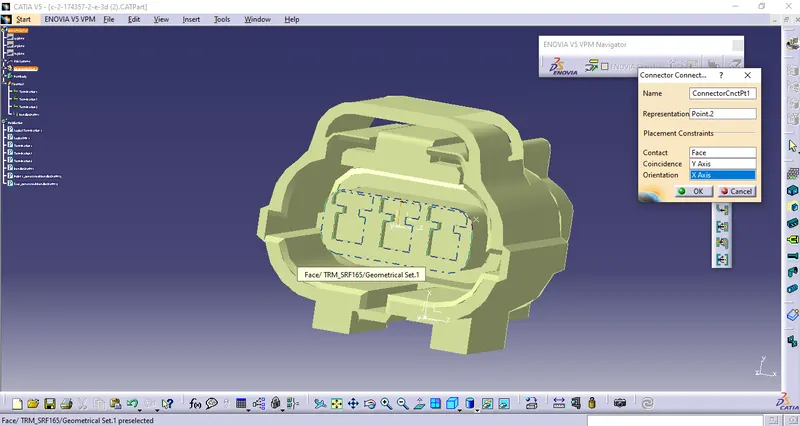

Defining Connector Connecting Point ,

3. Tyco 85229-1

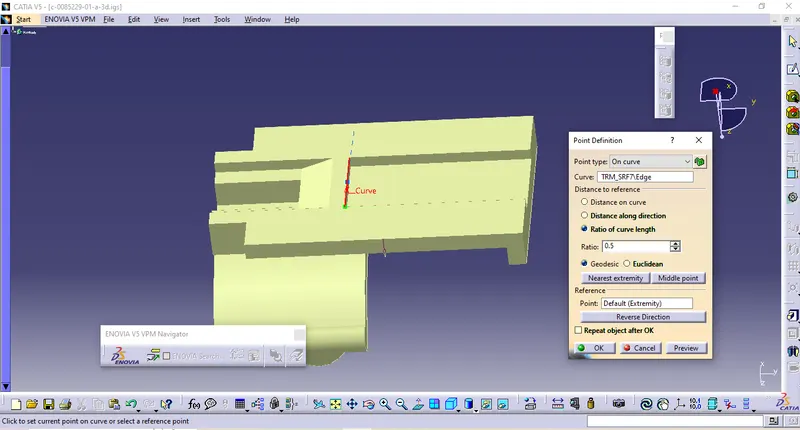

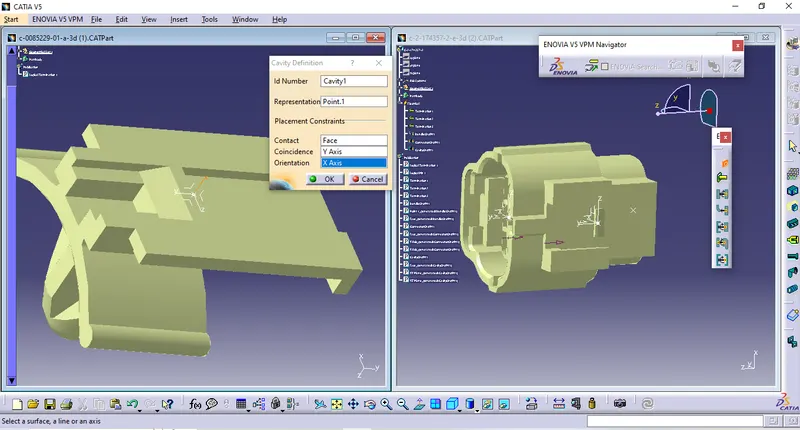

Defining a point of mounting clip or cavity

Now , move towards Electrical part design

Defining part as cavity ,

Move towards electrical assembly design

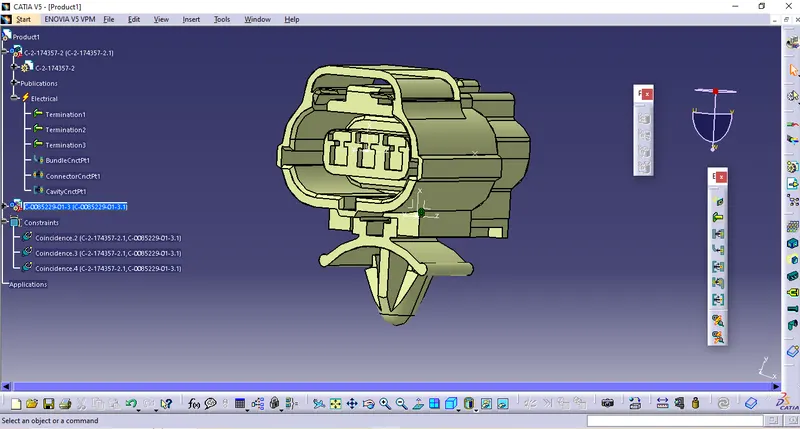

connecting the connector & Cavity clip ,

Conclusion :-

• Both the connector & connector clip are define as electrical connector & electrical mounting equipment.
• All necessary geometrical properties are given to parts.
