Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM- Define the given cad data as Electrical Connector using Electrical Part design Workbench and also define all the necessary properties to Connectors & Clip.

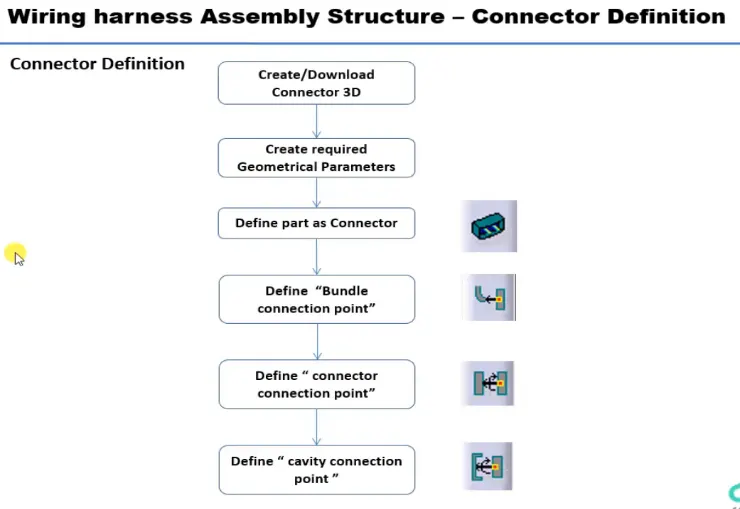

For define the given connector as electriacal by following some steps.

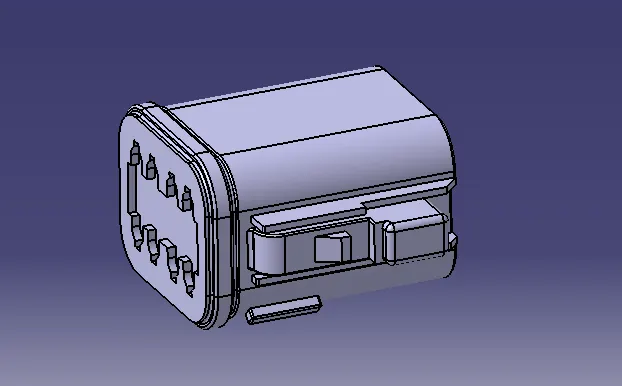

1) Deutsch DT06 – 08SA CONNECTOR

• Dowload the connector from the given link and open in part design workbench of Catia V5 Software.

• Create the bundle and connector connection point.

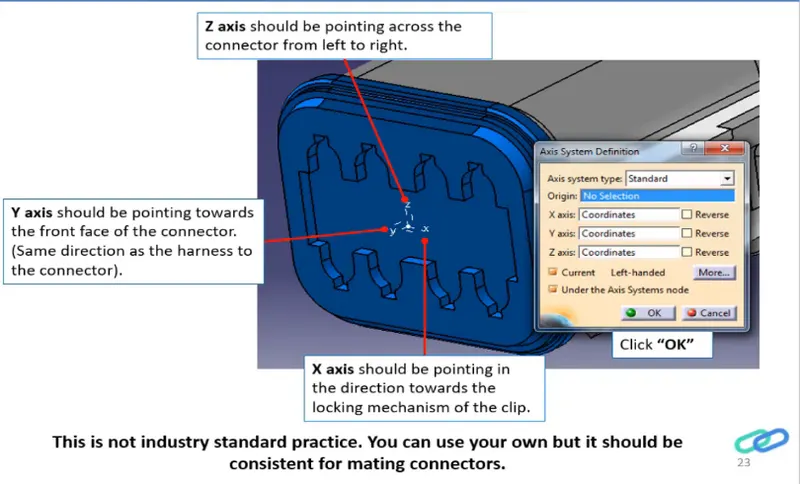

• Create a axis system in connector connection point, the orientation of the axis system is mention below

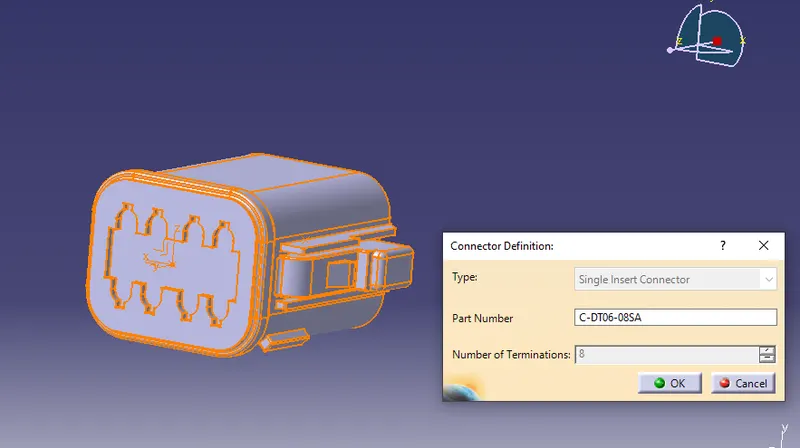

• Define the part as electrical element or connector with the number terminals

Here it has 8 terminals and we defining the part as connector using the electrical part design workbench of Catia V5 and also define the points.

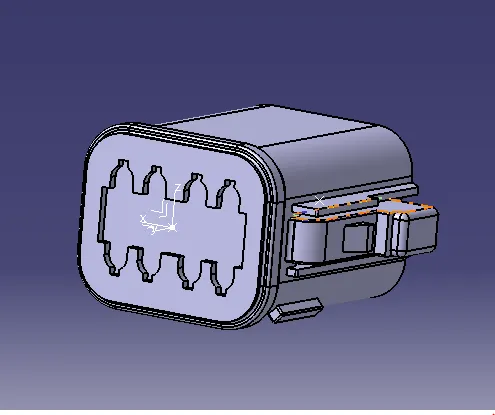

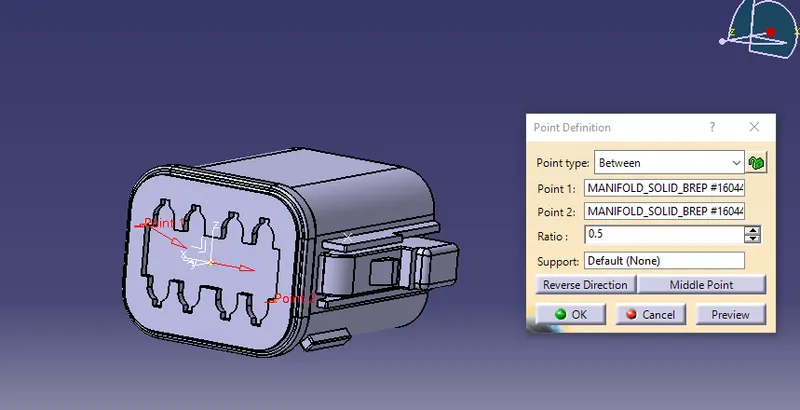

Define connector connection point

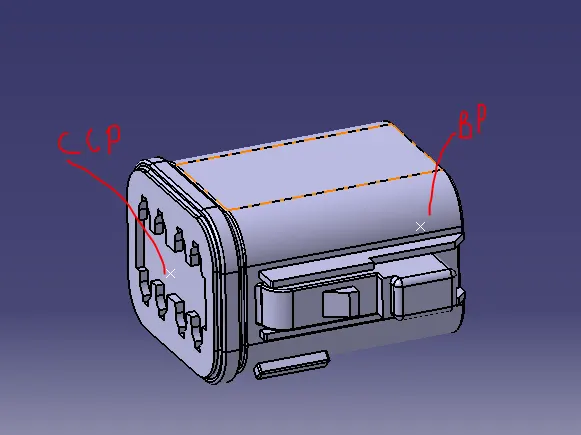

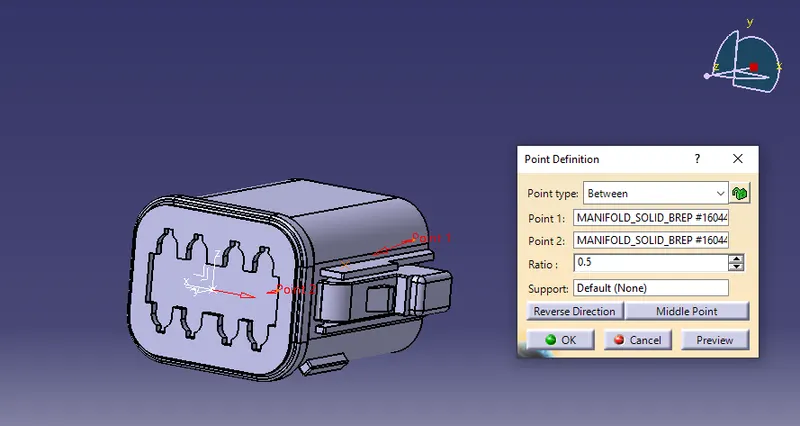

Define Bundle connection point

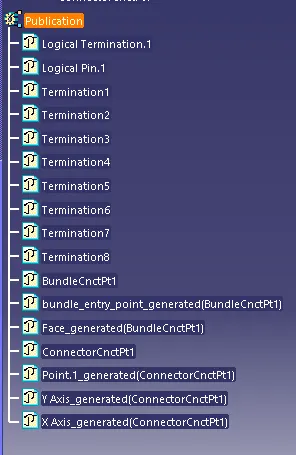

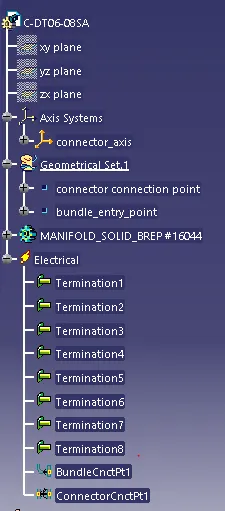

The tree structure of the defined connector

2)Tyco 174357-2 CONNECTOR

The same process was followed for the second connector, here we need to include the connector cavity connection point. It is for fixing the clip on to the connector.

Steps -

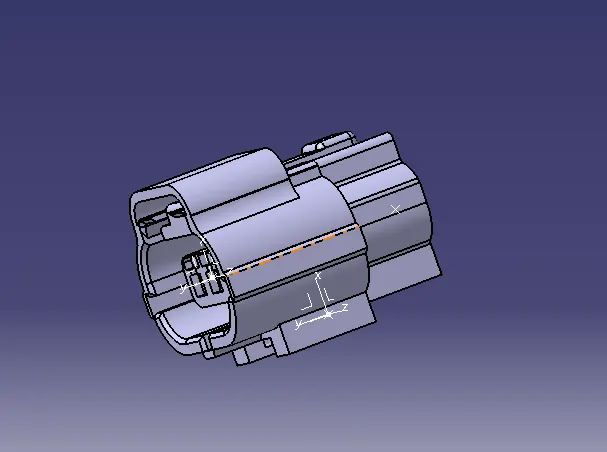

• Create Bundle connection point.
• Create Connector connection point.
• Create Connector connection axis system.
• Create cavity connection point.
• Create cavity connection axis system.
• Switch to Electric part design and define part as connector.
• Define Connector connection point, Bundle connection point and cavity connection point.

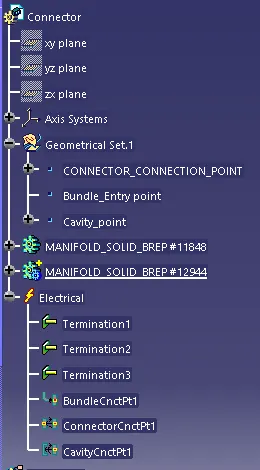

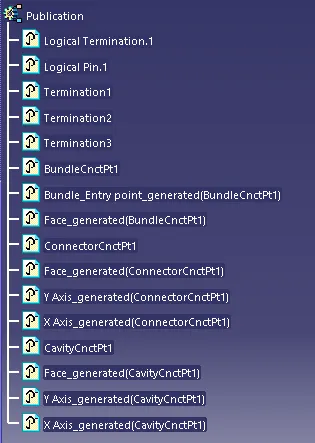

Tree structure

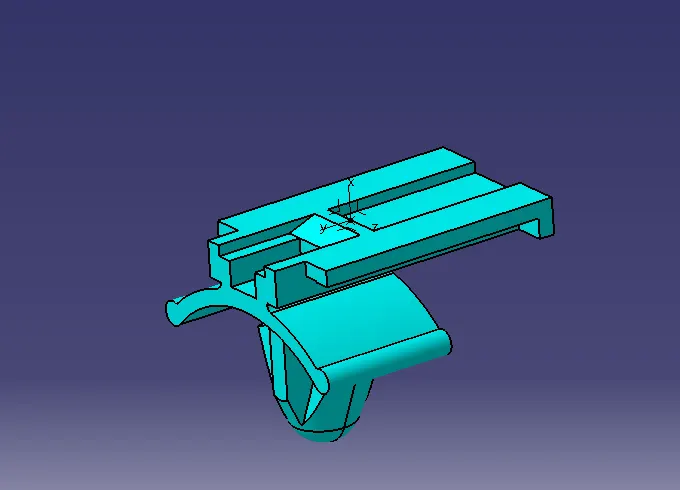

3) Tyco 85229-1 CLIP

STEP -

• Create cavity connection point.
• Create cavity connection axis system and orientation should be same as in connector.
• Define part as Mounting Equipment.
• Define cavity connection point.

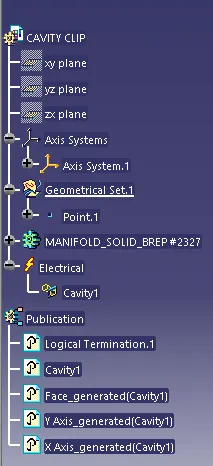

Tree structure

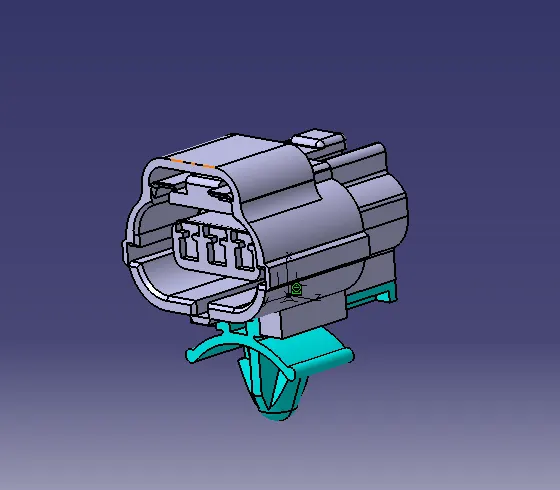

ASSEMBLY

The defined Connector and mounting Clip is assembled using the Electrical Assembly Design workbench. Select the connect electrical devices, first select mounting clip and then connector.

Tree Structure

Conclusion

The given data is defined as Electrical Connector using Electrical Part design Workbench and also defined all the necessary properties to Connectors & Clip.
