Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

TO Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

M:

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

• Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
• Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
• Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

Objective:

Download the following connectors & connector clip cad data from the given link & define it as Electrical Connector using the Electrical Part Design Workbench. Define all the necessary properties of Connectors & Clip.

Procedure:

Creating a catalog for connectors:

Go to File>New>CatalogDocument

CONNECTOR DEFINATIONS IN CATIA V5

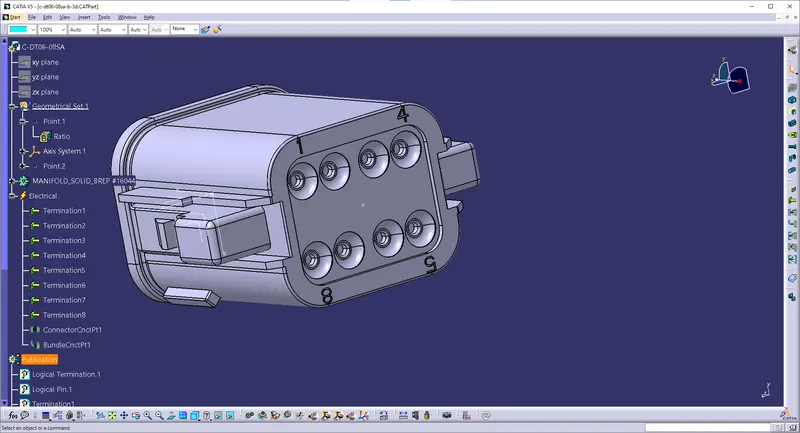

1. Deutsch DT06 – 08SA

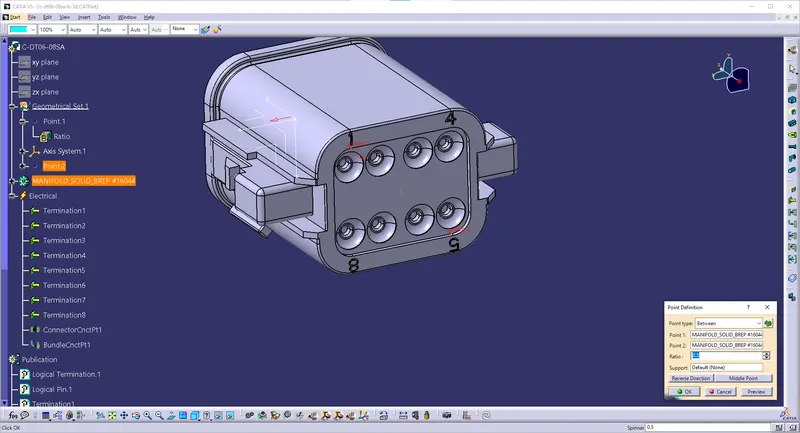

Connector connection point:

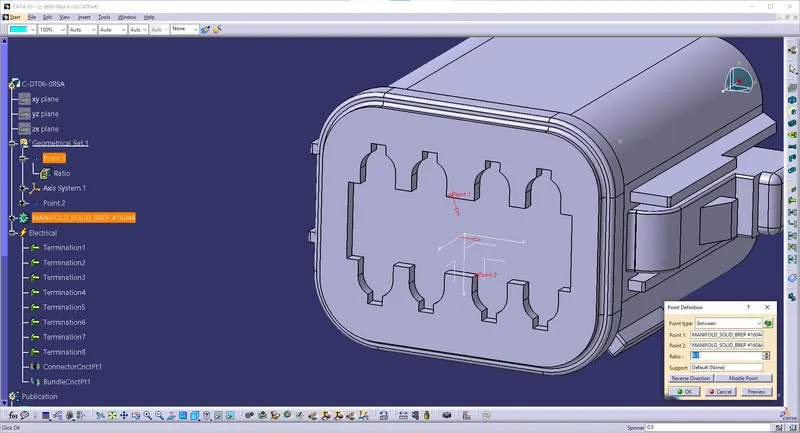

Create midpoint on the contact face which will be normal to wire bunddle insertion.

Create a point on the mating surface.

Create an axis on the point.

Create a point at the back as the bundle entry point.

Craete Axis System with respect to the point which we have created and defining the axis direction.

Creating Axis system:

• Z axis should be pointing across the connector from left to right.
• Y axis should be pointing towards the front face of the connector.

X axis should be pointing in the direction towards the locking mechanism of the clip.

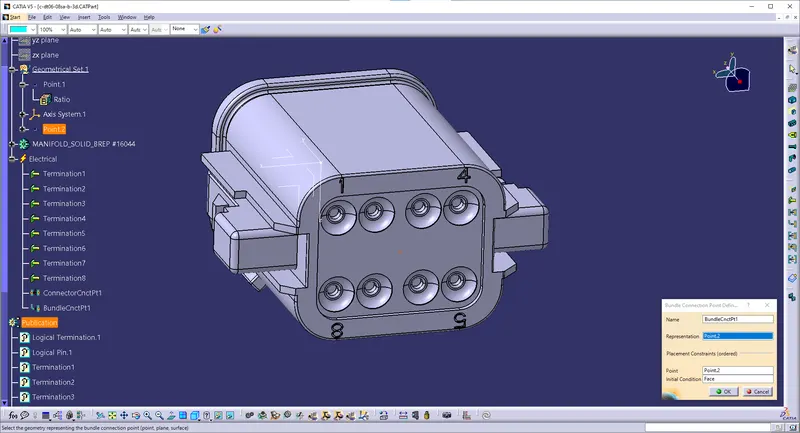

Bundle connection point:

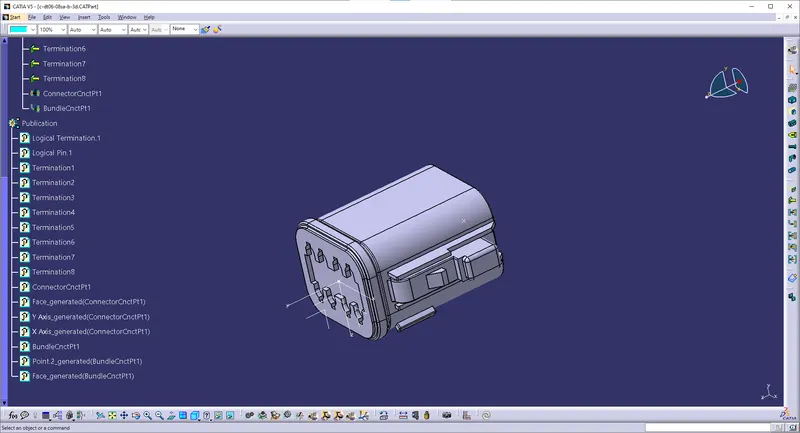

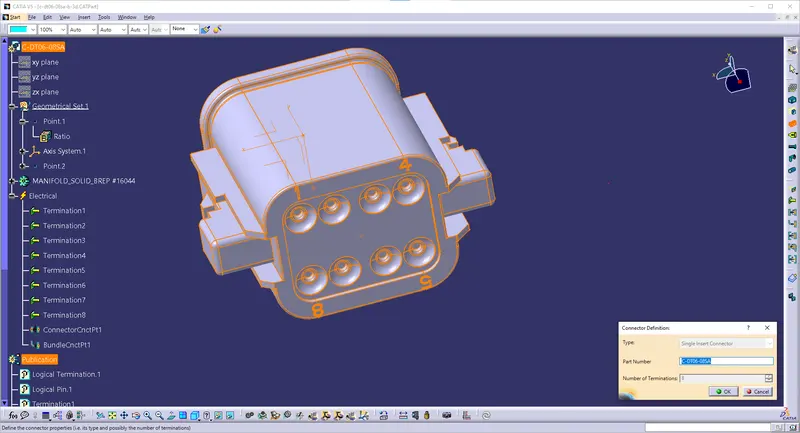

Now define the part as a connector with 8 terminations.

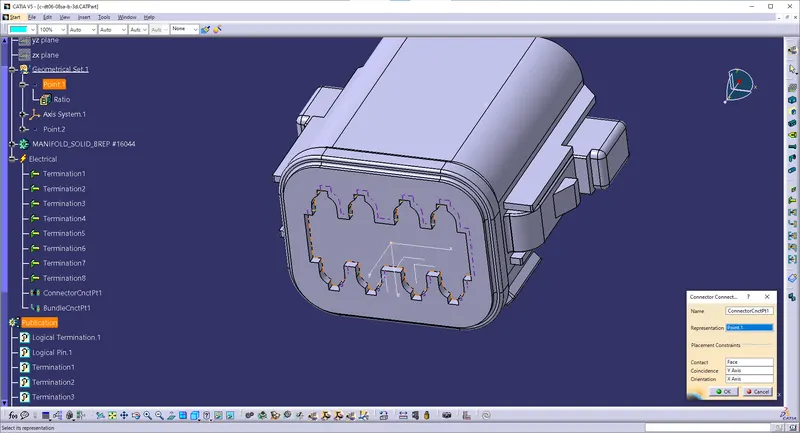

Define CONNECTER Connection Point.

Define Bundle Connection Point.

2)Second Connector:

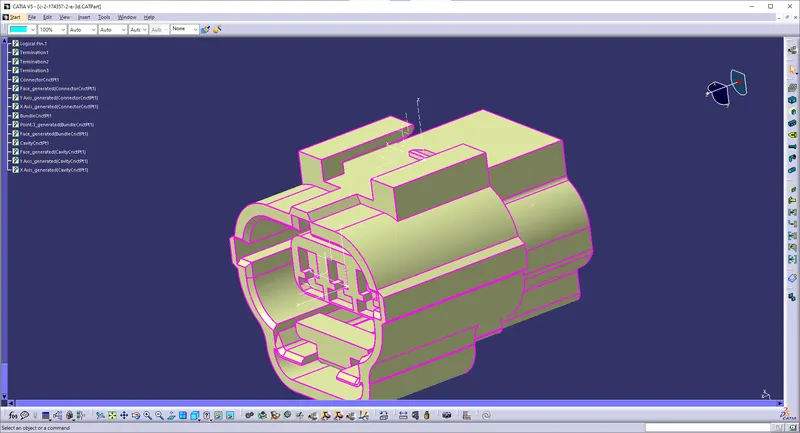

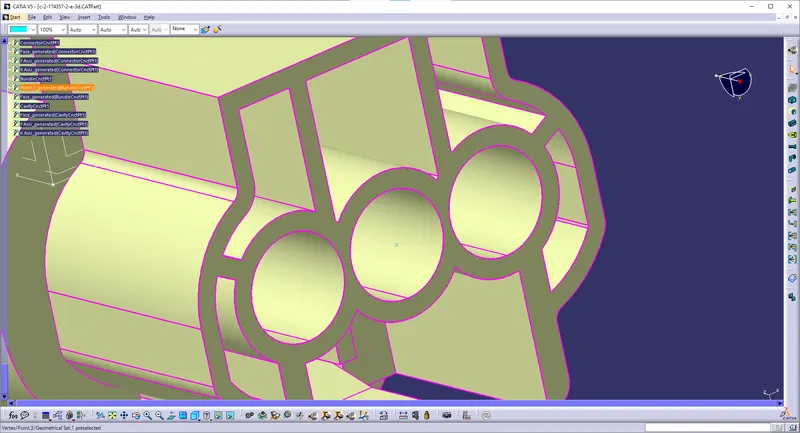

2.Tyco 174357-2 :

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point.

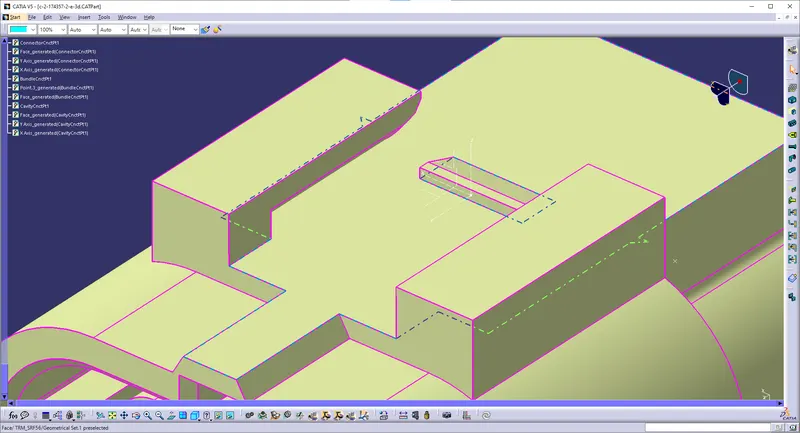

CREATE A CONNECTOR POINT

CREATE A CAVITY POINT

CREATE A BUNDLE POINT

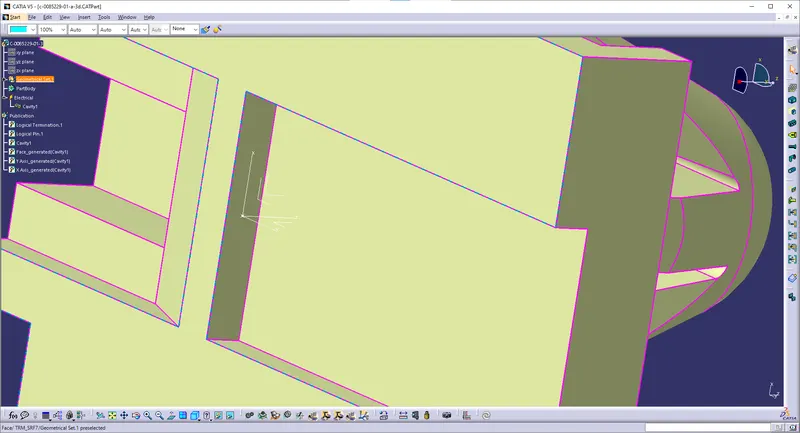

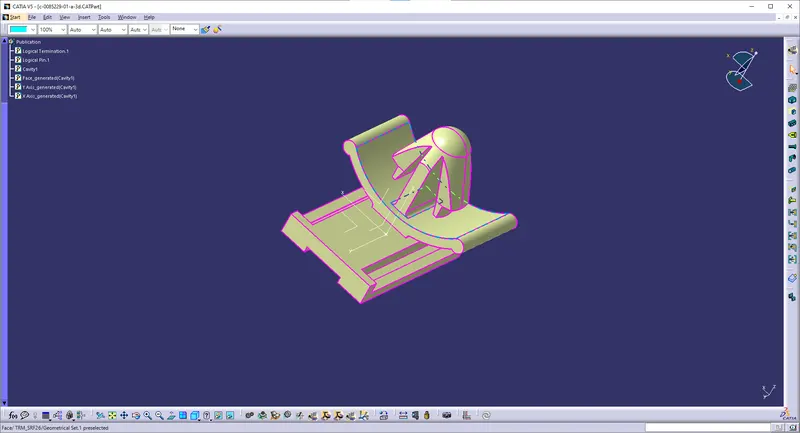

3. Tyco 85229-1 :

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point.
