Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

To Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

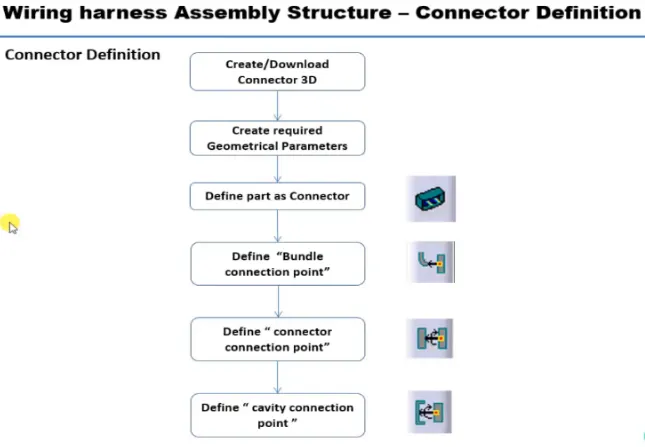

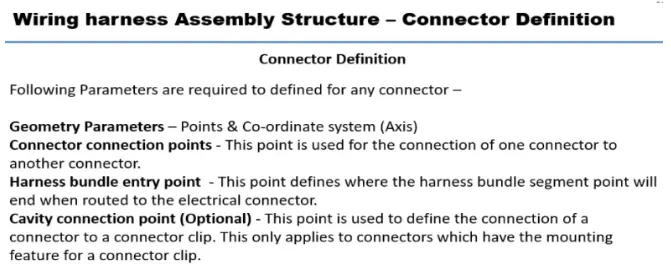

CONNECTOR DEFINITION:

CONNECTOR DEFINATIONS IN CATIA V5:

1)Deutsch DT06 – 08SA

Connector connection point:

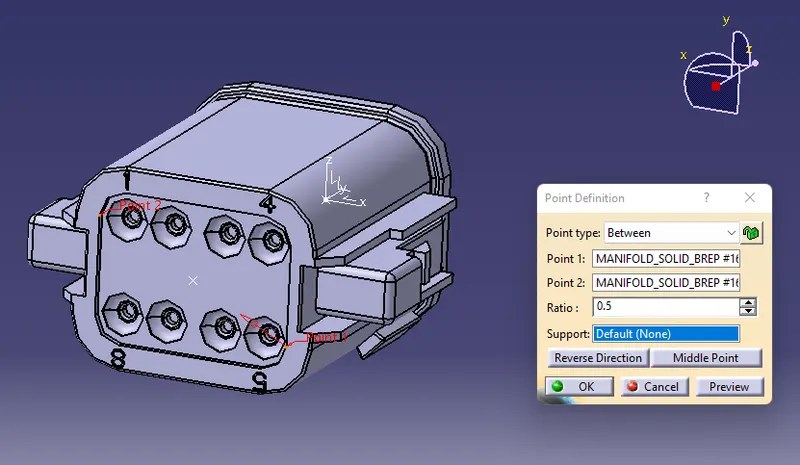

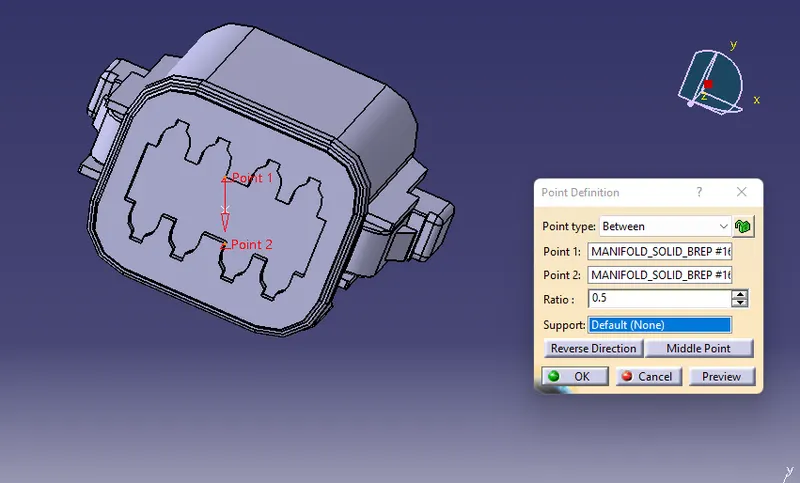

• Create midpoint on the contact face which will be normal to wire bundle insertion in part workbench.

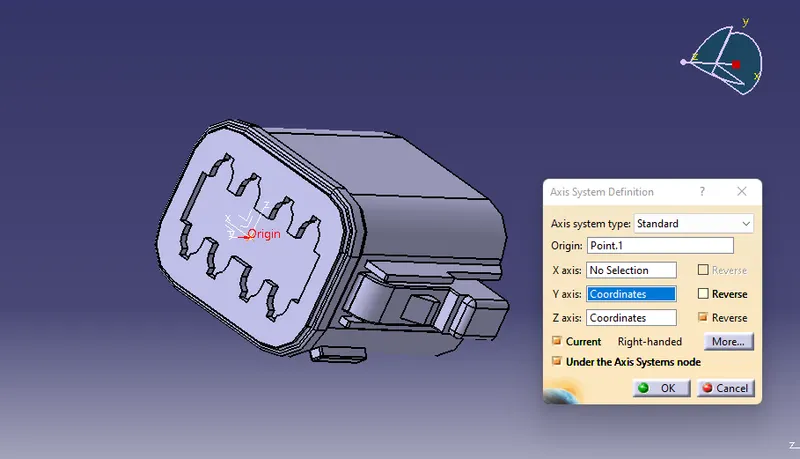

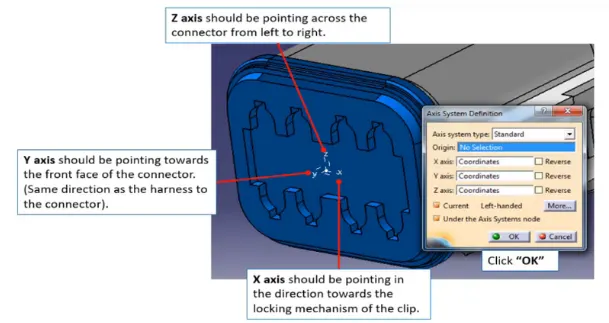

• Craete Axis System with respect to the point which we have created and defining the axis direction as shown below.

Bundle connection point:

Switch to 'Electric Part Design'

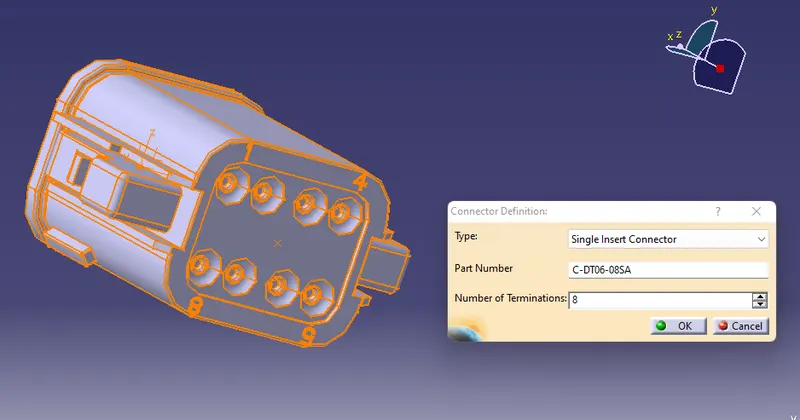

• Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

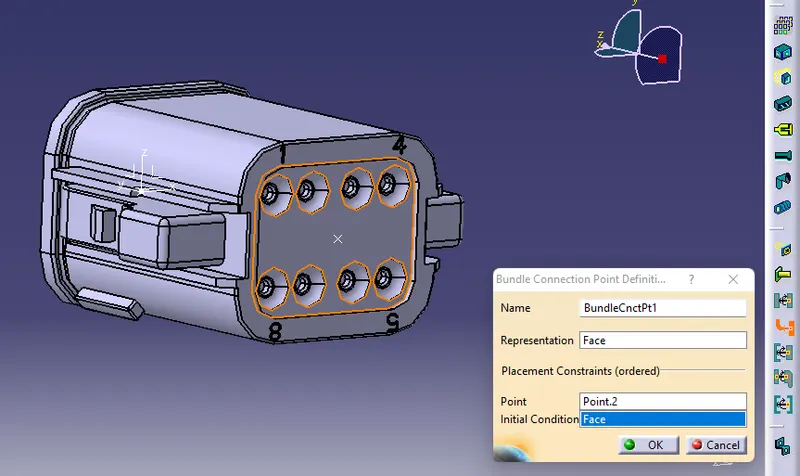

• Define Bundle connection point

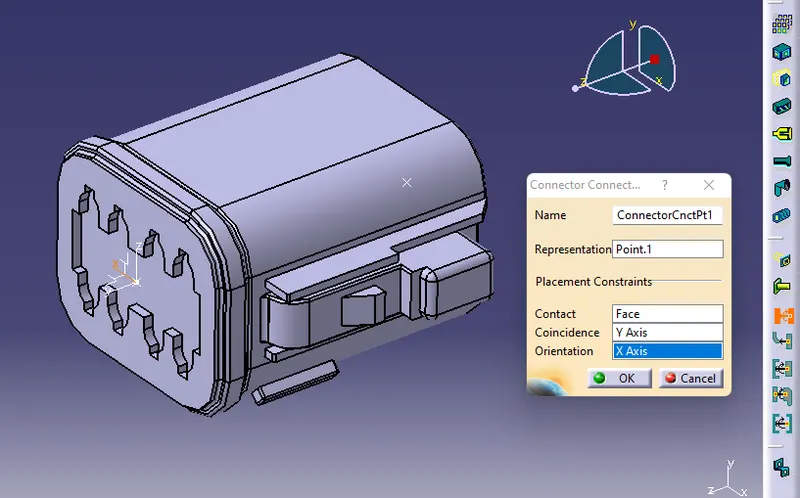

• Define connector connection point

2.Tyco 174357-2:

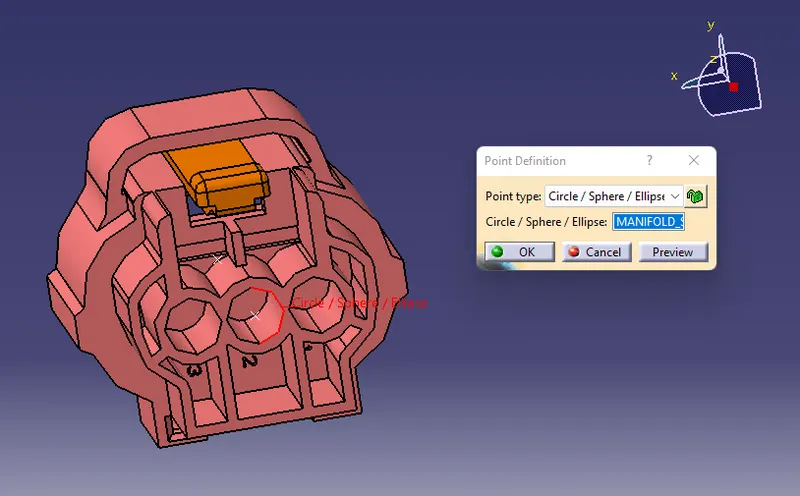

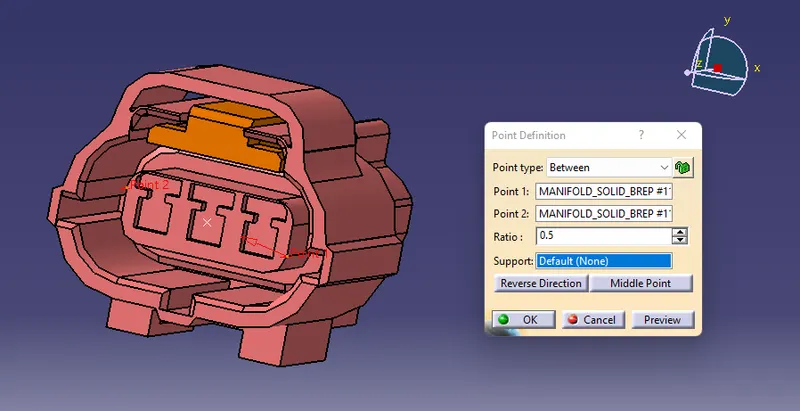

• Create midpoint

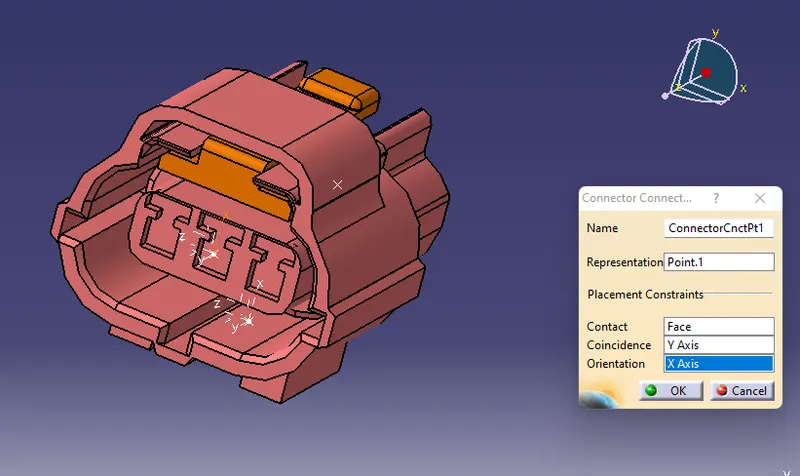

• create Connector connection point

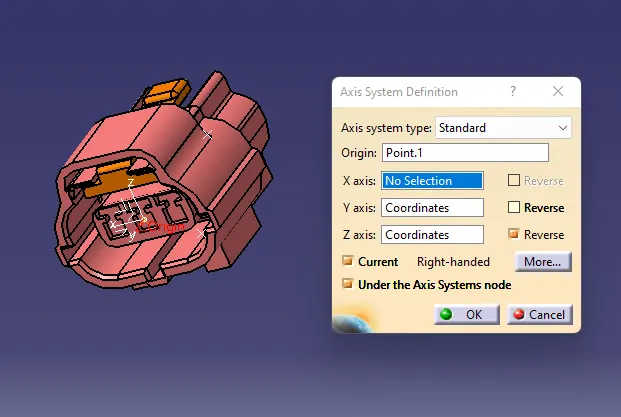

• create Connector connection axis system
• create cavity connection point

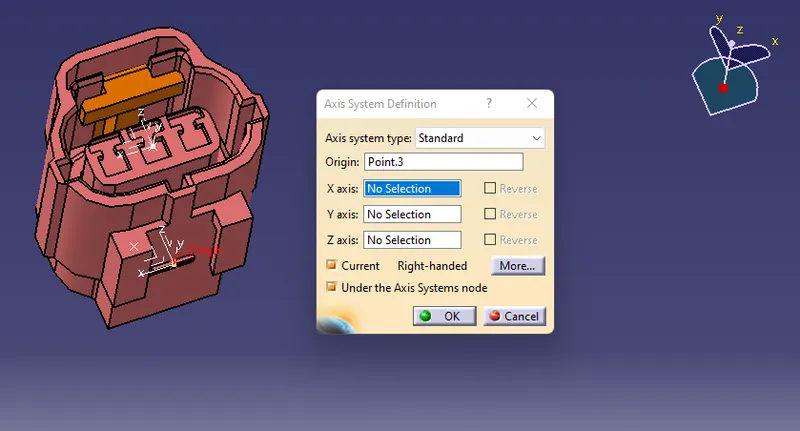

• create cavity connection axis system

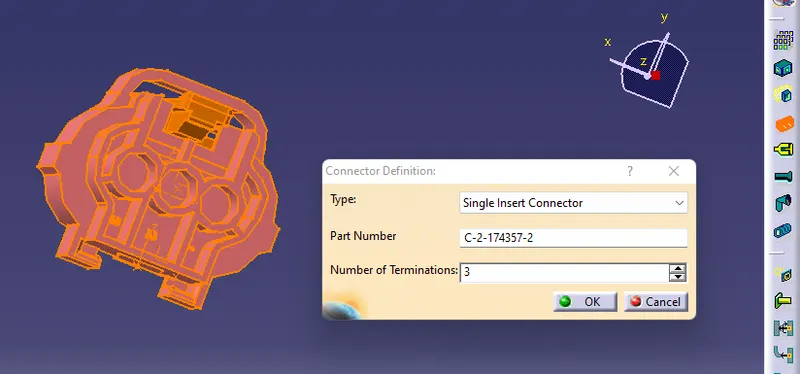

• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point.

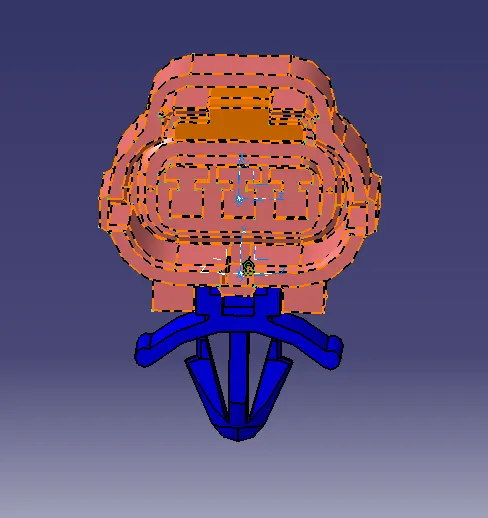

3. Tyco 85229-1:

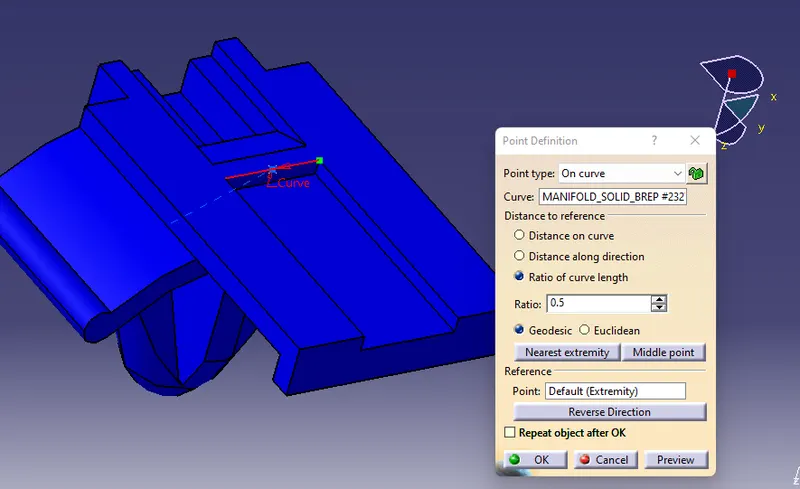

• Create midpoint
• create cavity connection point

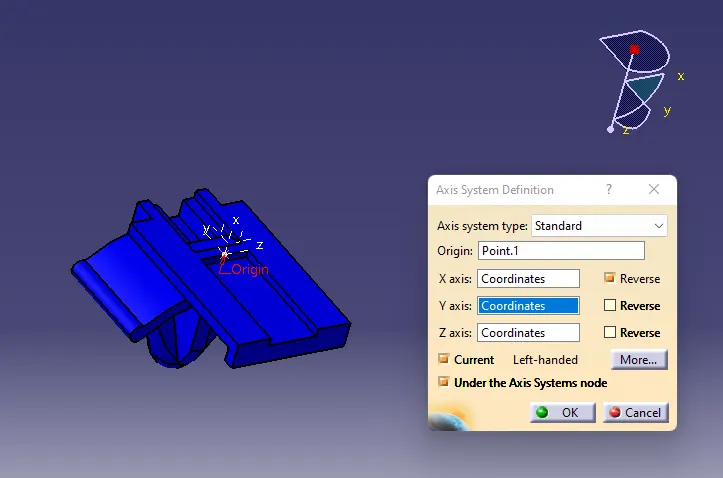

• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point.

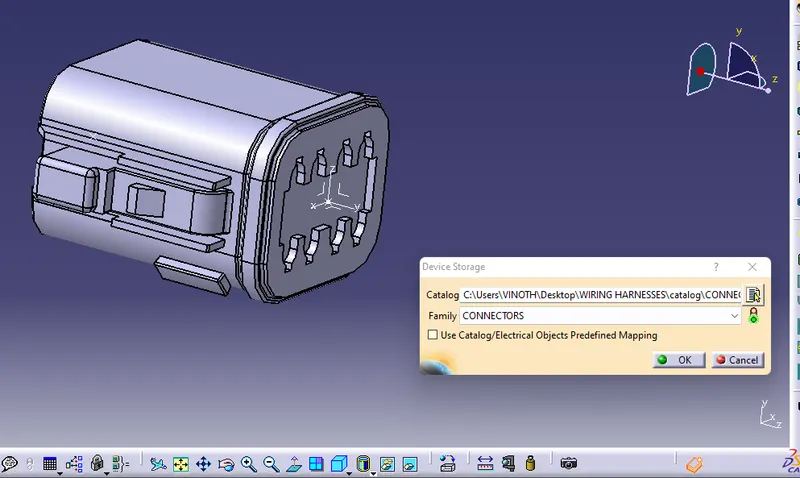

Creating a catalogue for the components:

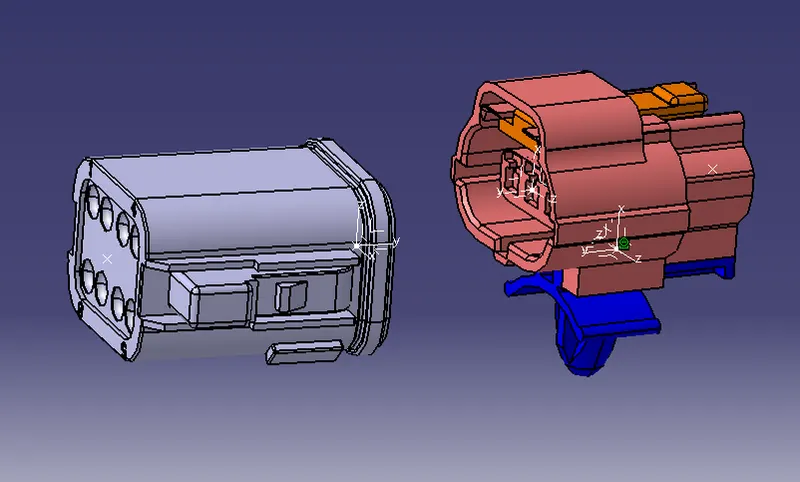

Electrical Assembly Design:

• Import Connector and cavity / mounting clip.
• Select Define Electrical connection
• select cavity and then connector.
