Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM : Define given connectors & connector clip as an electrical connector and add their necessary properties using Electrical part design workbench in CATIA V5.

OBJECTIVE : Objective of this project is to first download the given file from TE.com and define all of them as an electrical connector and give all the required electrical properties to them using the electrical part design workbench in CATIA v5.

These are the steps required to do this project:

1. Create the required geometrical parameters for connector
2. Create a bundle entry point
3. If connector accommodates clip then define a geometrical parameter for the clip
4. Select the electrical part design workbench
5. Define part as an connector
6. Create bundle connection point
7. Create a connector connection point
8. Create a cavity connection point if there is a clip given

GIVEN DATA :

• Deutsch DT06 – 08SA is a Connector.
• Tyco 174357-2 is a Connector.
• Tyco 85229-1 is a Clip.

CONNECTOR DT06-08SA (WITHOUT CLIP)

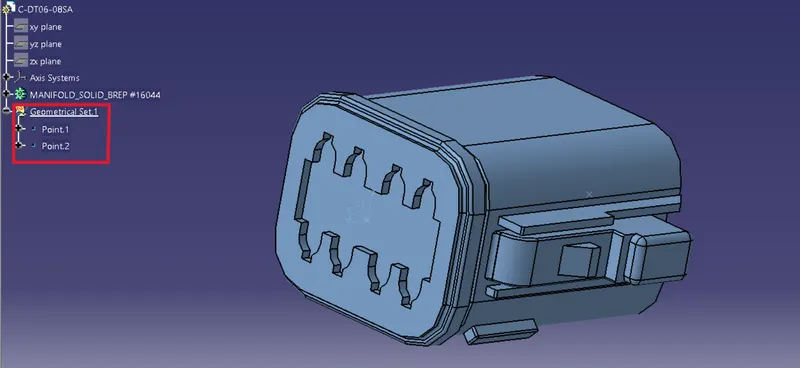

Figure-1: Defining the Geometrical parameter for the Deutsch connector

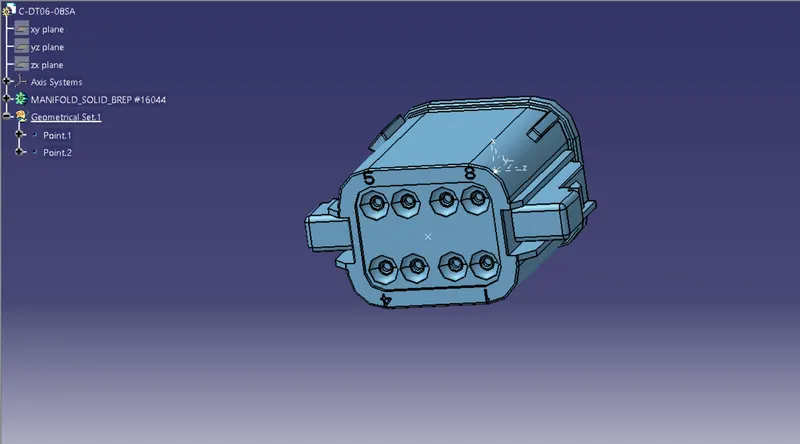

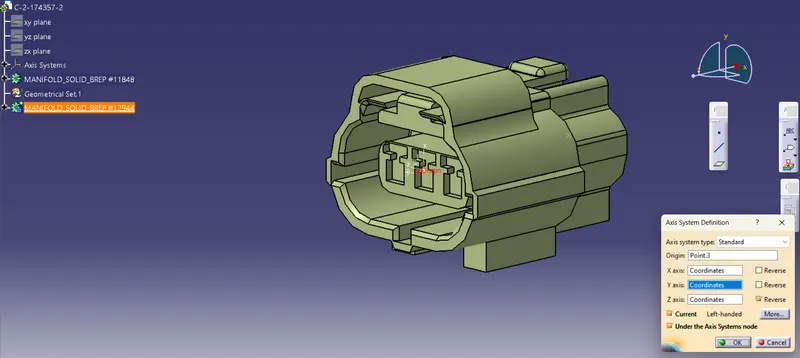

Figure-2: Define Axis System

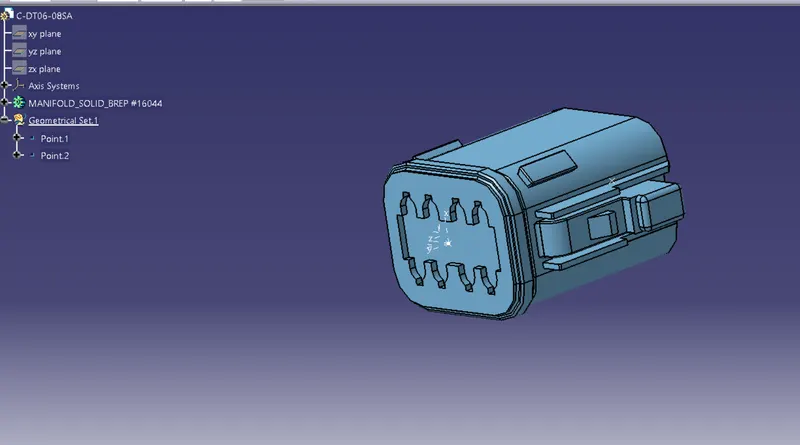

Figure-3: Defining Bundle Entry Point

Figure-4: Defining Part as a connector

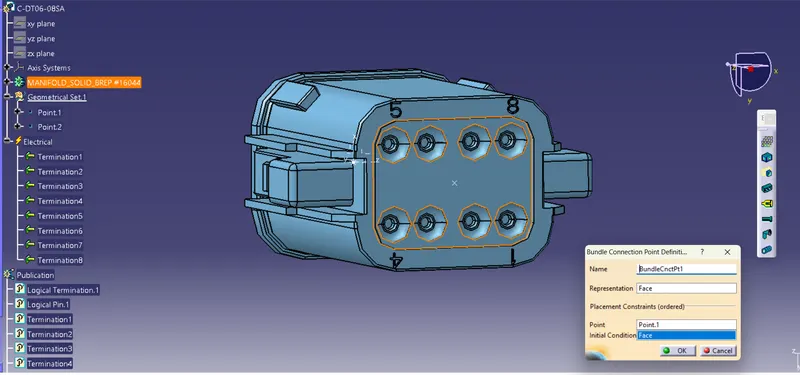

Figure-5: Defining Bundle Connection Point

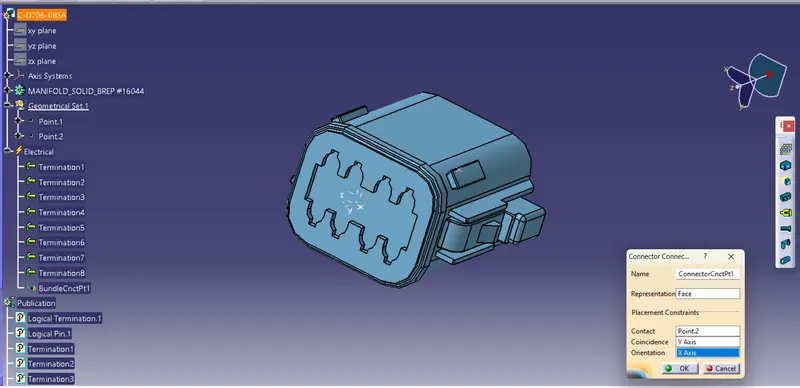

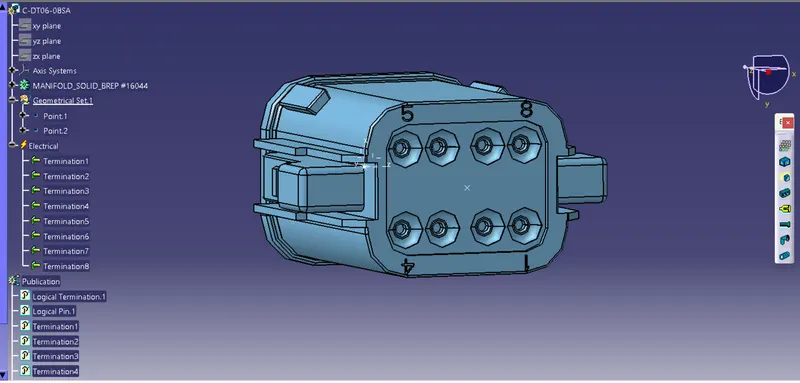

Figure-6: Defining Connector Connection Point

CONNECOR - WITH CLIP ATTACHMENT Tyco 174357-2

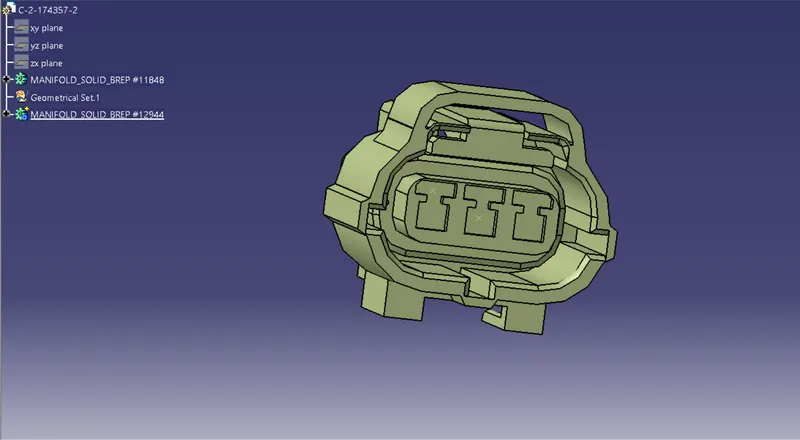

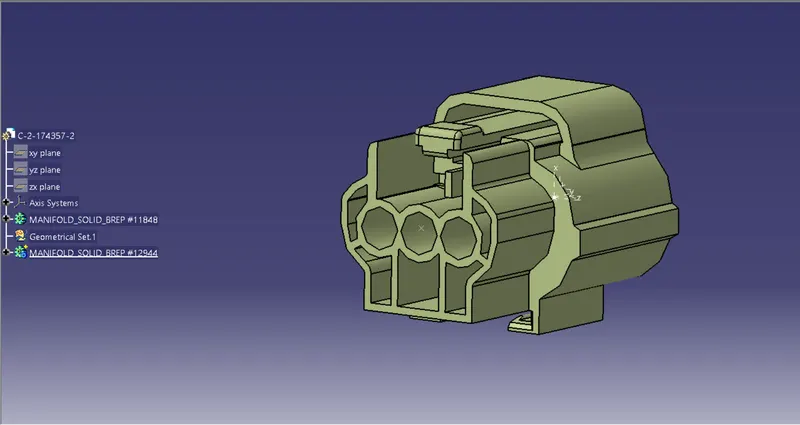

Figure 1: Defining Geometrical parameter for the Tyco connector

Figure 2: Define Axis system

Figure 3: Defining Bundle entry point

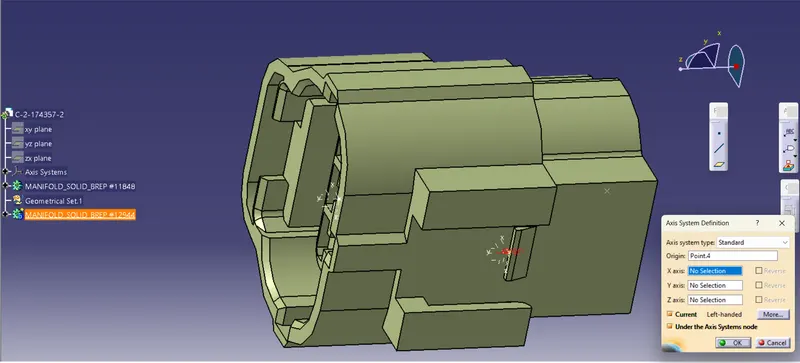

Figure 4: Defining geometrical parameter for the clip or cavity attachment

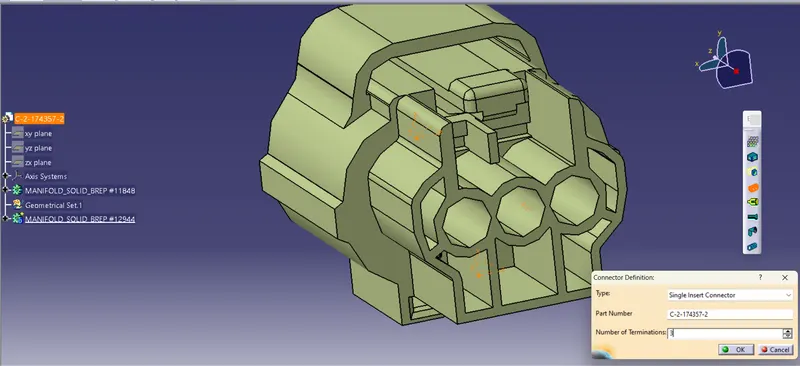

Figure 5: Defining Part as a Connector

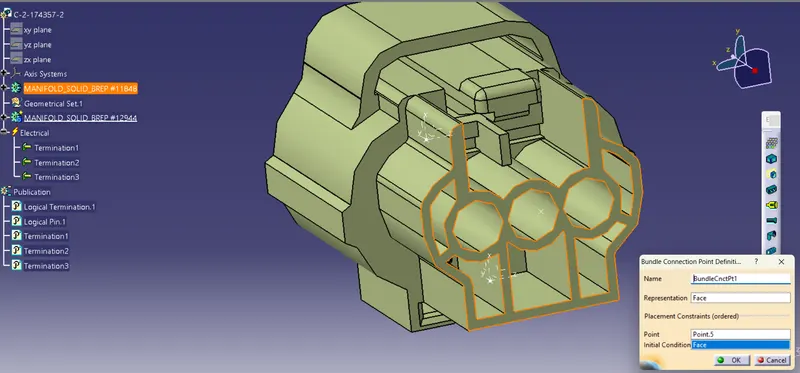

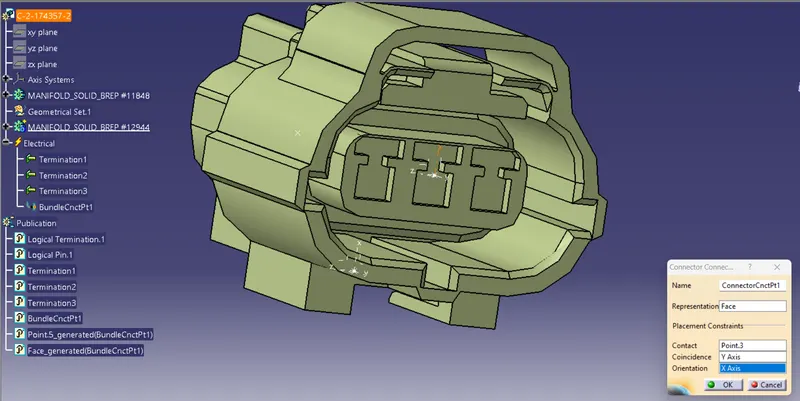

Figure 6: Defining Bundle Connection point

Figure 7: Defining Connector Connection point

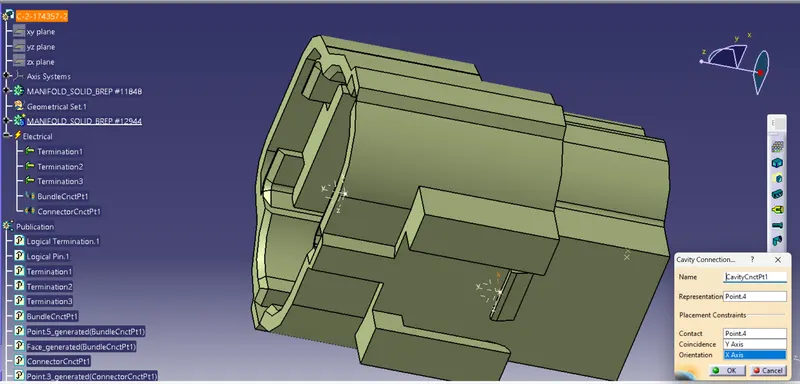

Figure 8: Defining Cavity Connection Point

CLIP (Tyco 85229-1)

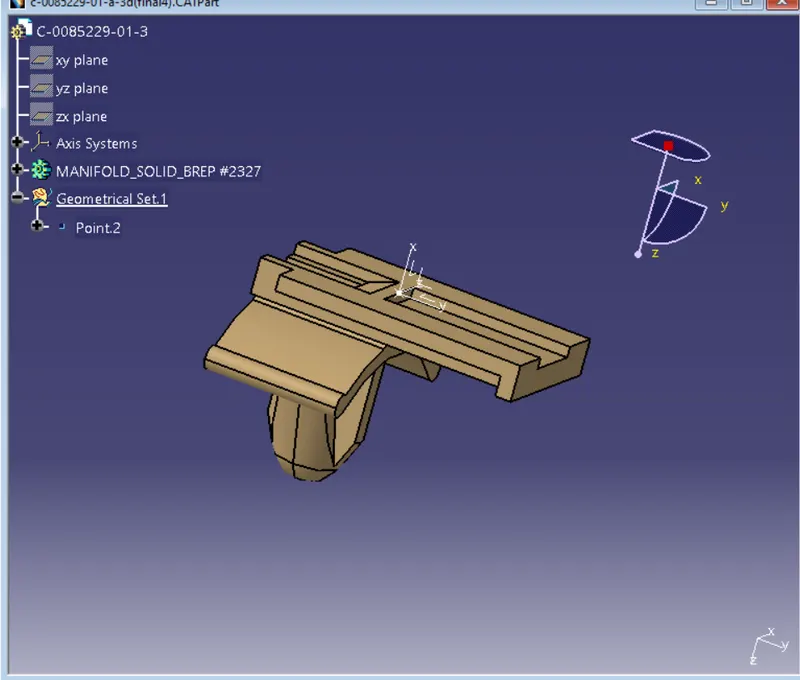

Figure 1: Defining Geometrical parameter for clip

Figure 2: Defining Part as a mounting equipment

Figure 3: Defininig Cavity point

NOW

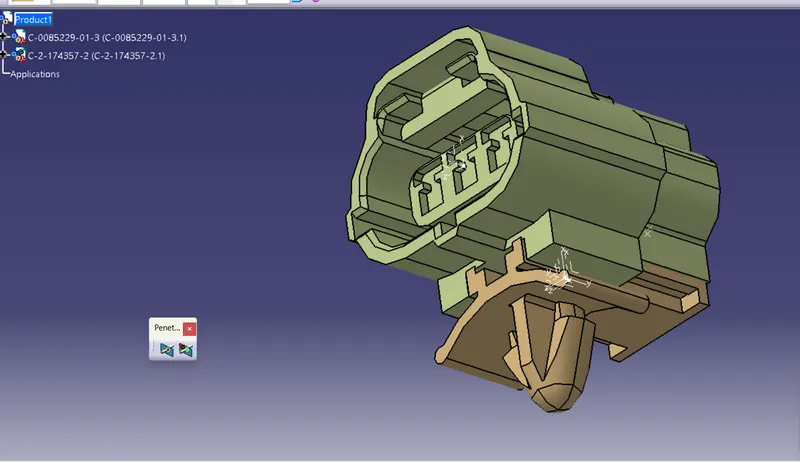

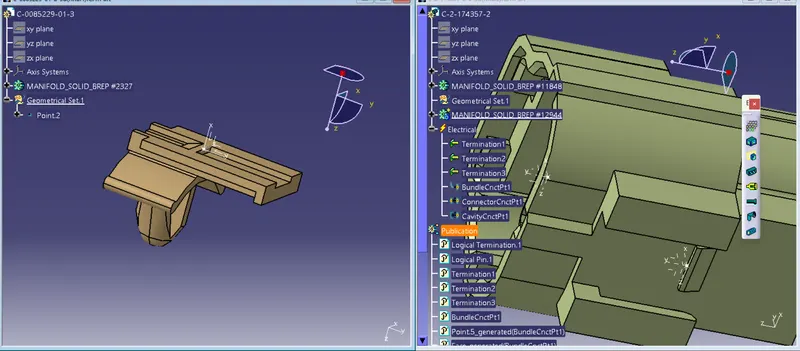

CLIP AND CONNECTOR ELECTRICAL ASSEMBLY

CONCLUSION : Both the connectors and the clip were defined as an electrical connector and electrical mounting equipment respectively. All the necessary electrical and geometrical properties were given to the parts.
