Q1. Download the following connectors & Connector clip cad data from the given link & define it as Electrical Connector using the Electrical Part Design Workbench. Define all the necessary properties of Connectors & clips.

1. Deutsch DT06 – 08SA (https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

CONNECTOR DEFINITIONS IN CATIA V5

1. Deutsch DT06 – 08SA

• Connector connection point:

• It is the point at which two mating surfaces of the plug and connector are connected.
• To create such a connector connection point, follow the below steps:
• Switch to part design,

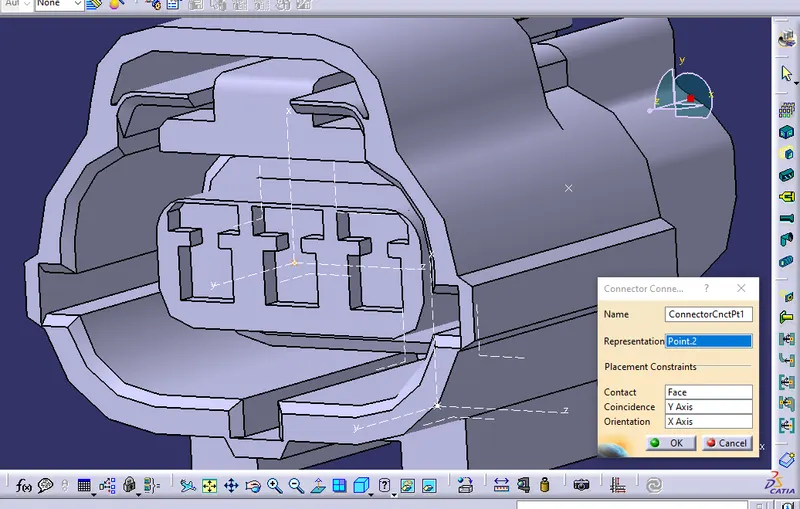

• Create a midpoint on the contact face which will be normal to wire bundle insertion.
• Create Axis System with respect to the point which we have created and define the axis direction as shown below,
• Switch to 'Electric Part Design'

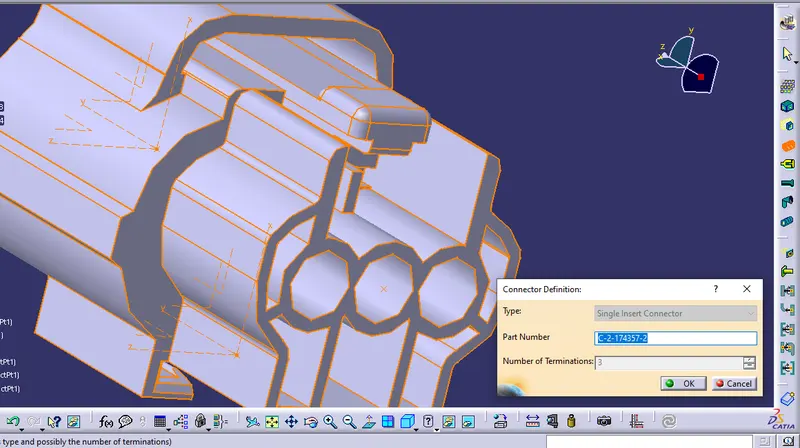

• Define the part as the connector in CATIA V5, and give the no. of termination as 3 because we have 3 entry points for wire.
• Define connector connection point.

• Bundle connection point:

• The bundle connection point is used to specify the position and the direction of the bundle segment connected to the connector or the equipment.
• To create such a connector connection point, follow the below steps:
• Switch to part design,
• Create a midpoint on the contact face which will be normal to wire bundle insertion.

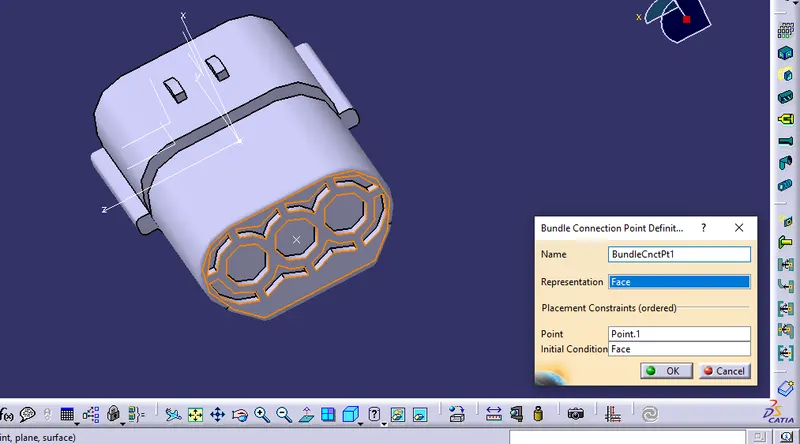

• Create Axis System with respect to the point which we have created and define the axis direction as shown below
• Switch to 'Electric Part Design'
• Since we had already defined the component as connector.

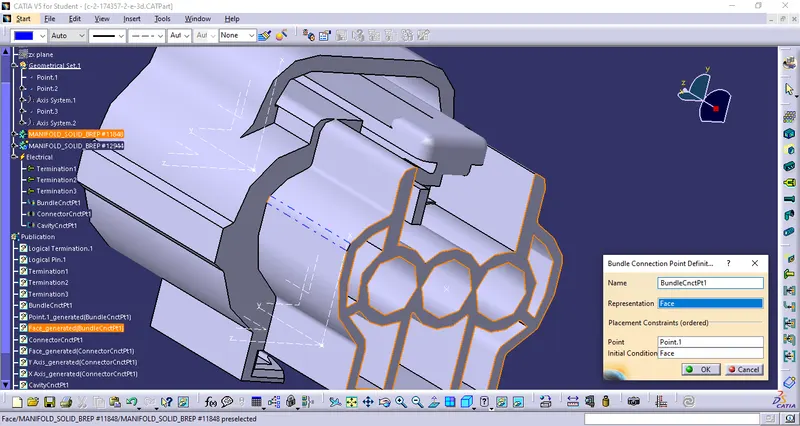

• so, Define Bundle connection point

2. Tyco 174357-2:

• Create midpoint
• create a Connector connection point
• create a Connector connection axis system
• make a cavity connection point
• make a cavity connection axis system

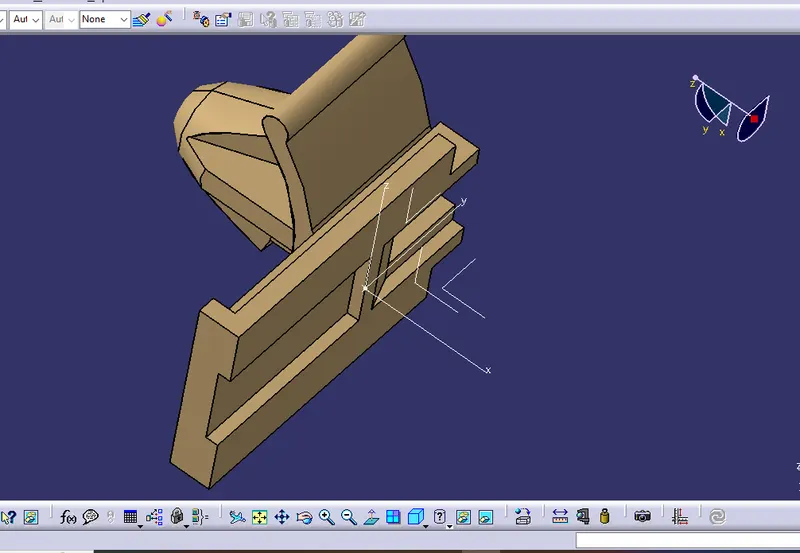

• Switch to an Electric part design and define the part as a mounting equipment
• Define the cavity connection point

3. Tyco 85229-1:

• Connector connection point:

• It is the point at which two mating surfaces of the plug and connector are connected.
• To create such a connector connection point, follow the below steps:
• Switch to part design,
• Create a midpoint on the contact face which will be normal to wire bundle insertion.

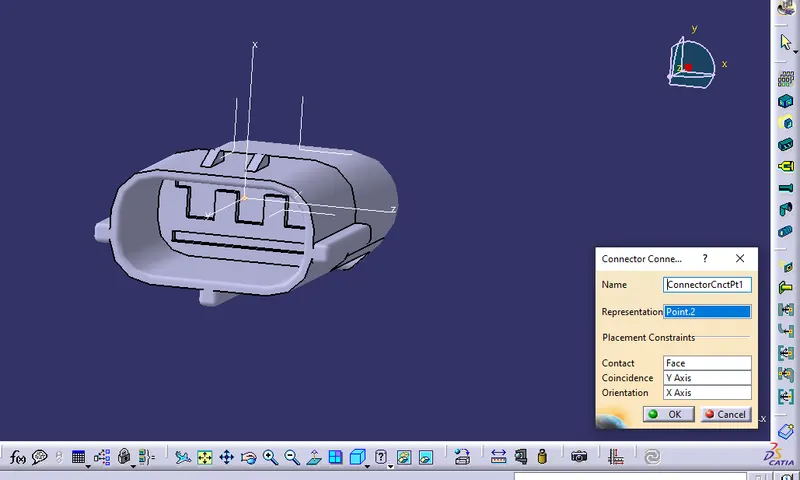

• Create Axis System with respect to the point which we have created and define the axis direction as shown below,
• Switch to 'Electric Part Design'

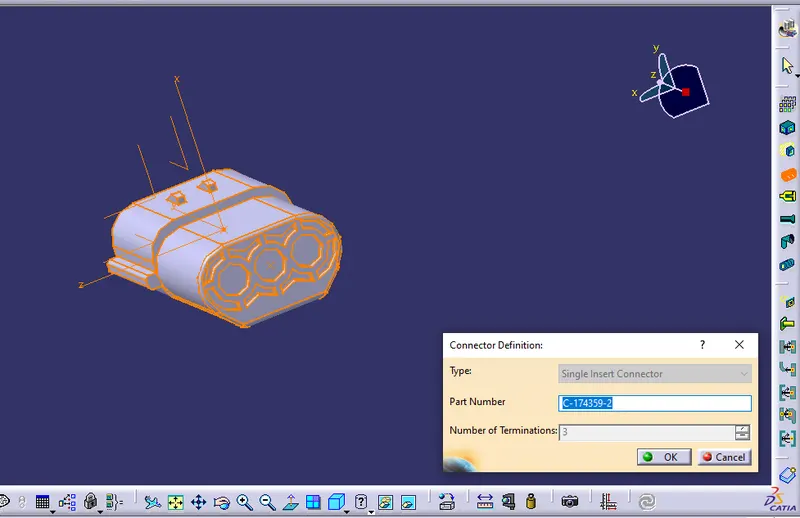

• Define the part as the connector in CATIA V5, and give the no. of termination as 3 because we have 3 entry points for wire.
• Define connector connection point.

• Bundle connection point:

• The bundle connection point is used to specify the position and the direction of the bundle segment connected to the connector or the equipment.
• To create such a connector connection point, follow the below steps:
• Switch to part design,
• Create a midpoint on the contact face which will be normal to wire bundle insertion.
• Create Axis System with respect to the point which we have created and define the axis direction as shown below
• Switch to 'Electric Part Design'
• Since we had already defined the component as a connector.
• so, Define Bundle connection point

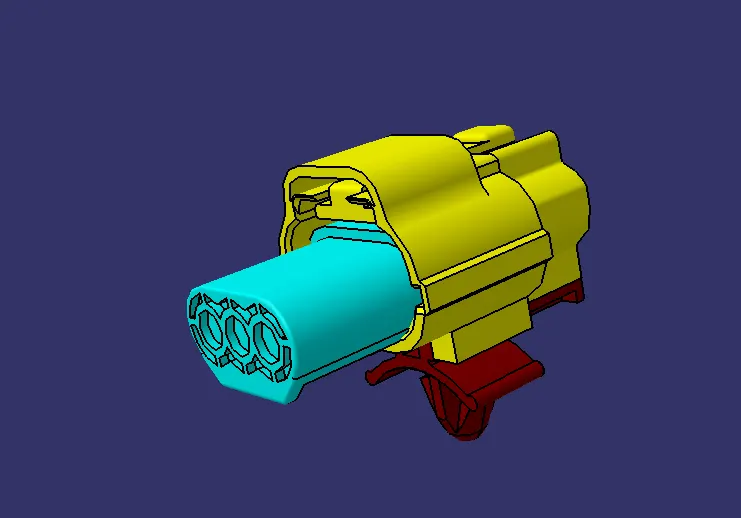

Electric Assembly Design

• Import Connectors and cavity/mounting clip.
• Select Defining Electric connection
• select cavity and then connector.
