Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
- First i open catia v5 software
- Then downloaded files from website and opened the required .stp files
- open the first connector file
- For the connector define its electrical properties like define connector

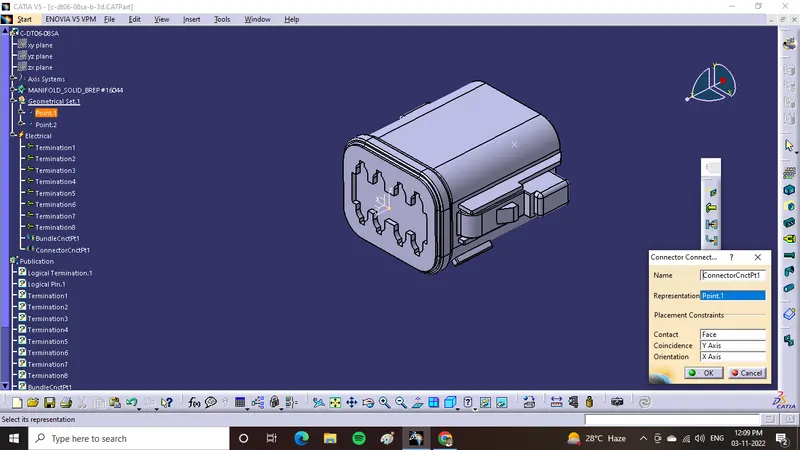

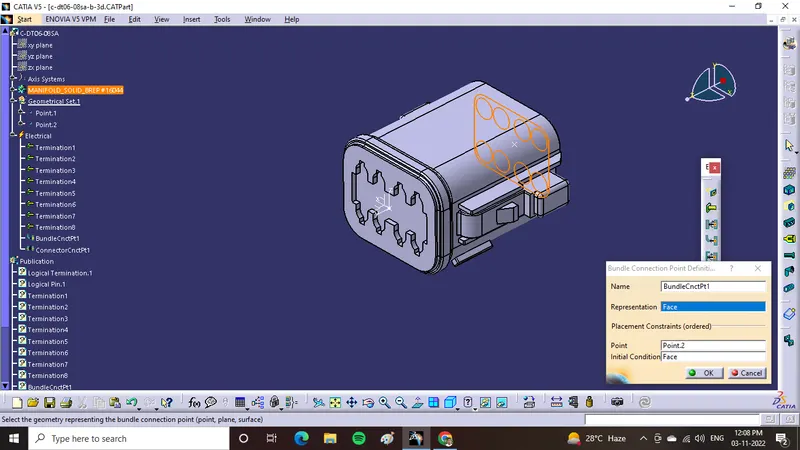

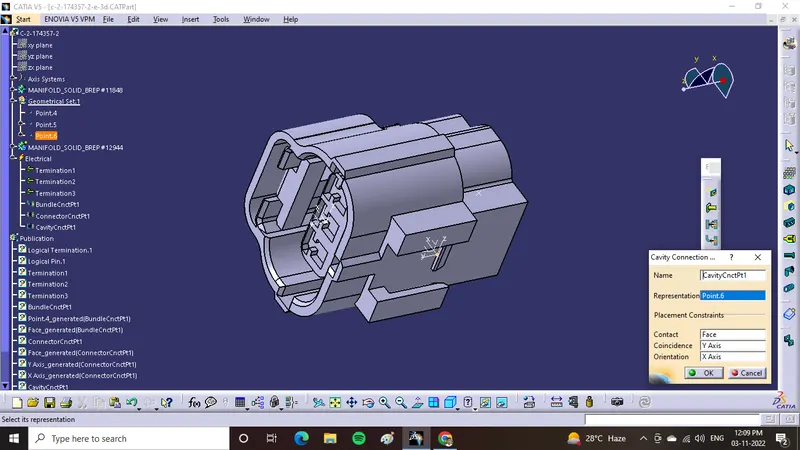

- Then define connector connction point, bundle connection point , cavity connection point
- Before selecting above electial points create points and axis in the part work bench
- X axis as orientation and Y axis as mating direction

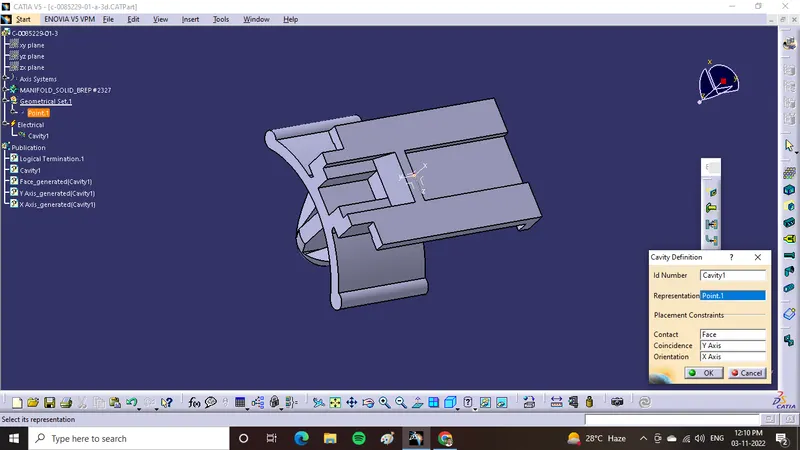

- For the mounting clip define it as a cavity.
