Week 9 - Project - Master Section Development

AAswin Asok16 Jun 2022

AIM

To create a solid body of B pillar cover including ribs and locators using catia v5 tool using given A class surface and master section and adding thickness.

PROCEDURE

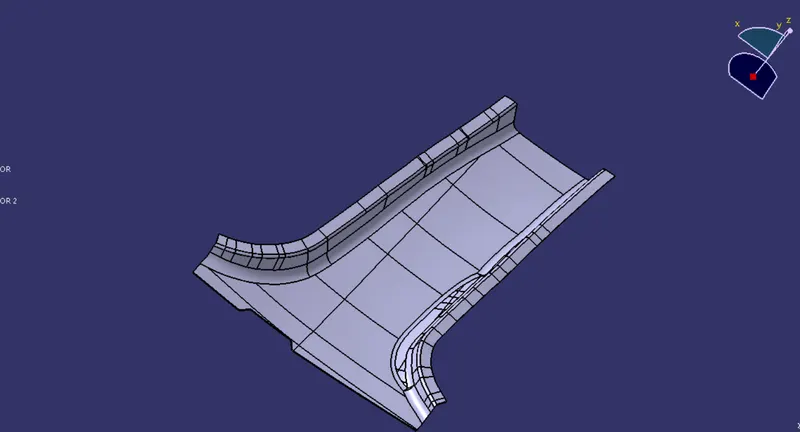

CLASS A SURFACE

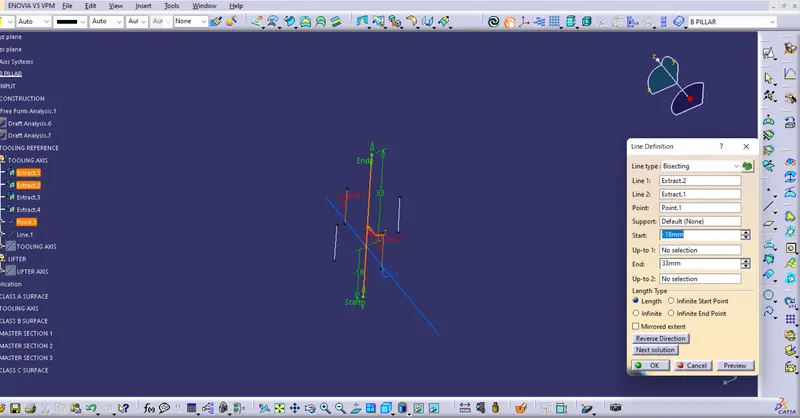

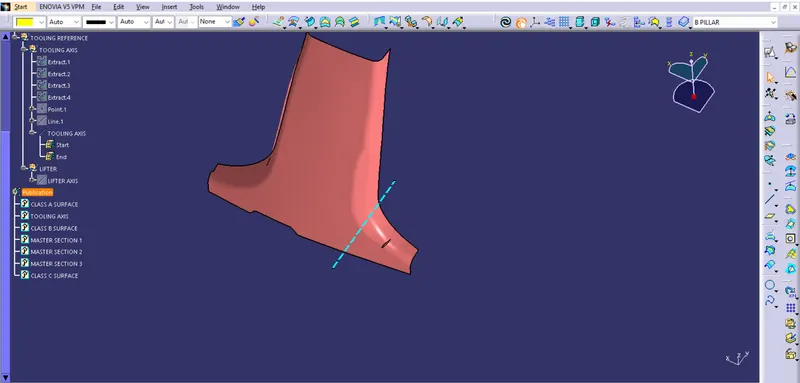

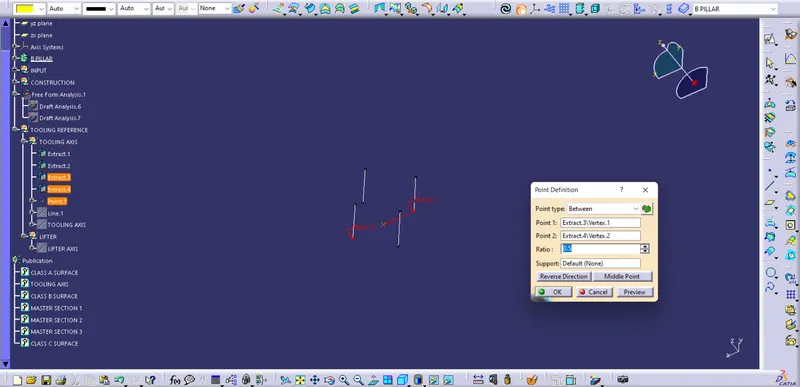

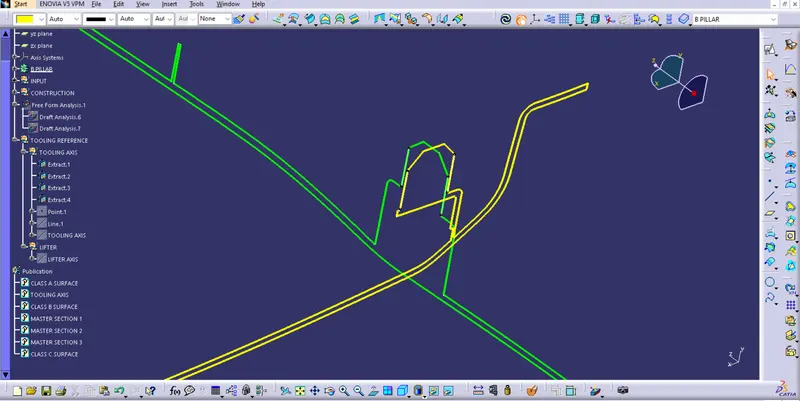

TOOLING AXIS CREATION

Firest extracting the side edges from master sections.

Creating a point on the center of it.

Creating a line through the point refrence point.

Bisecting the obtained two lines tooling axis is formed

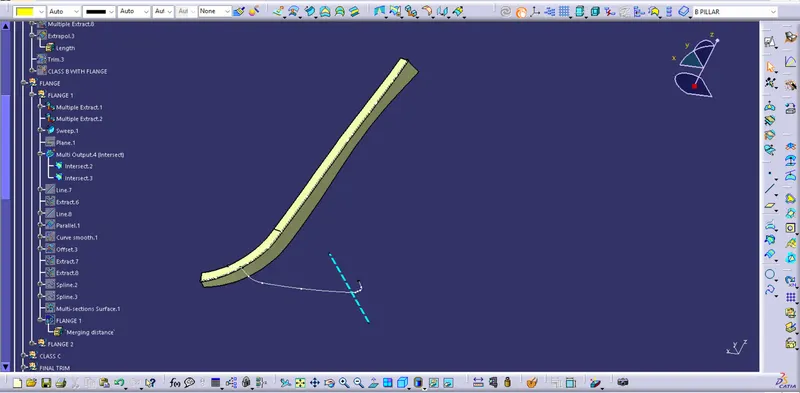

FLANGE CREATION ON CLASS A

Multiple extracted the edge and side wall of Class A surface . Sweep the edge with reference surface as side wall at angle of 90 degree. Intersecting line are drawn adjust the sweep angle to get required flange size.

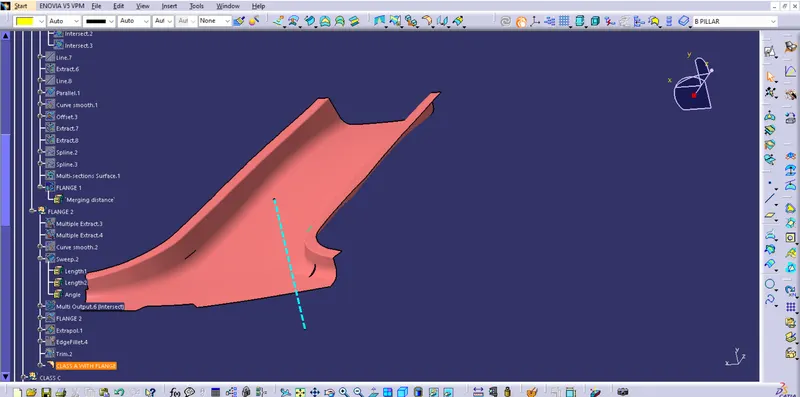

The flange in thw other also created as above process at last the 2 flanges where trimmed with the class A surface . Sides are extra plited for trim.

DRAFT ANALYSIS ON CLASS A SURFACE

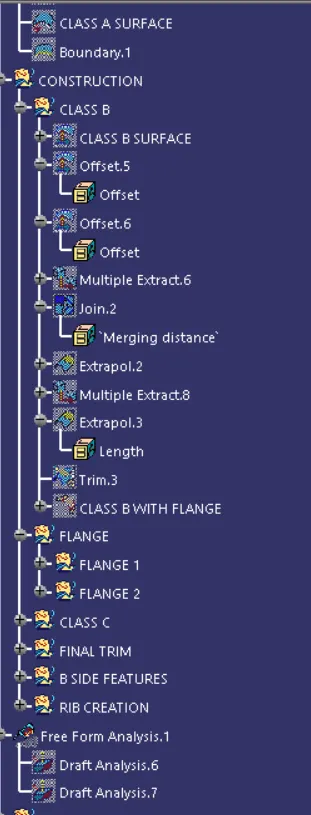

CLASS B CREATION

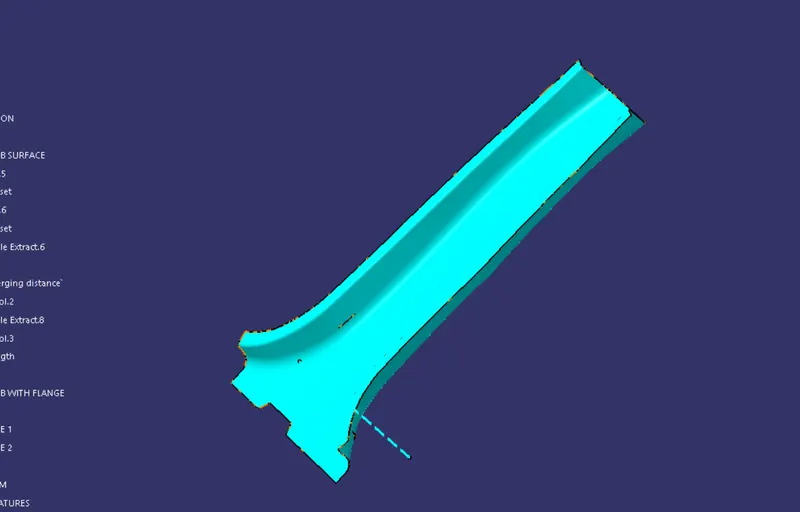

Just offsetting the class A surface with flange will give the class b surface.

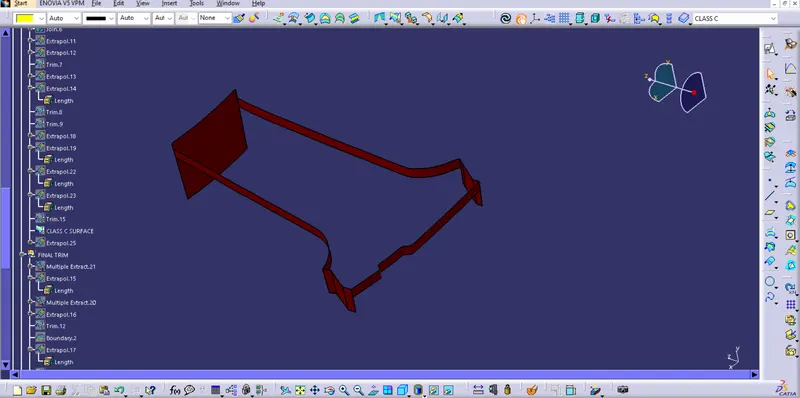

CLASS C CREATION

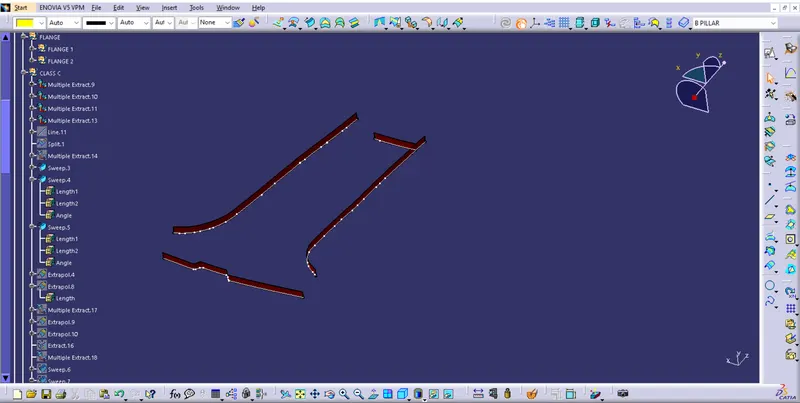

Using multiple extract side edges of Class a surface are extracted sweep is applied to it with draft angle 3 degree.

The c surface not forming with sweep is created using multi section surface tool. Finally all sweeped C surfeces are joined together using join tool.

CLASS A , CLASS B AND CLASS C surface trimmed together to form closed surface.

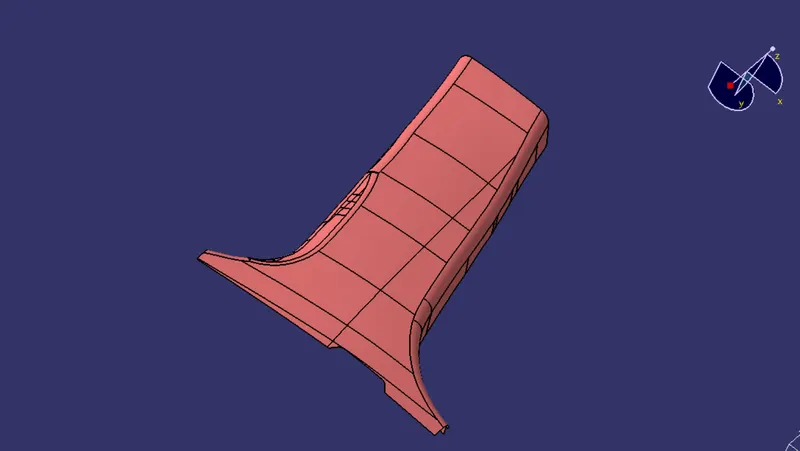

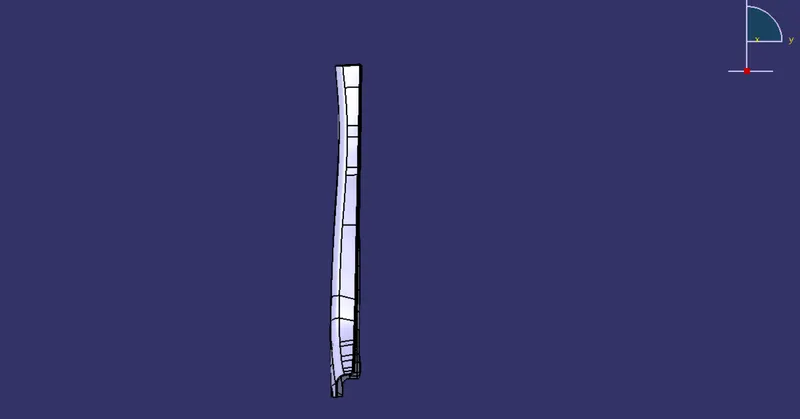

Using close surface tool solid body is created.

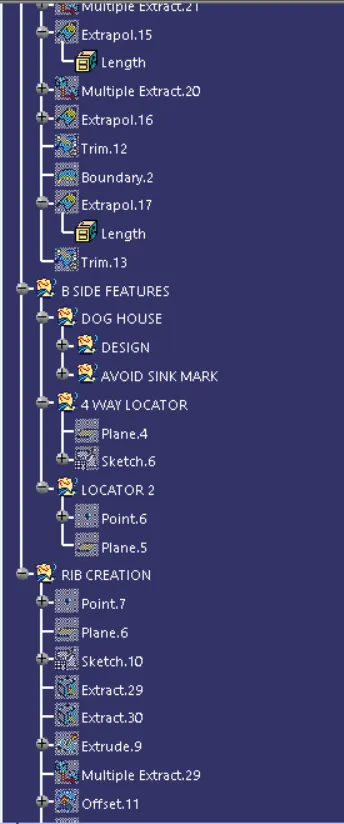

CREATING B SIDE FEATURESSS

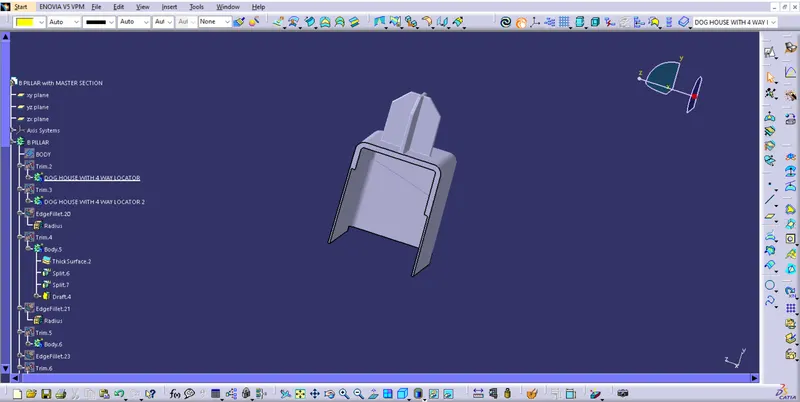

DOG HOUSE CREATION

Creating a sketch using master section it is extrudeed then. its trimmed with sides to get proper shape . The surface converted in to solid using thick surface tool.

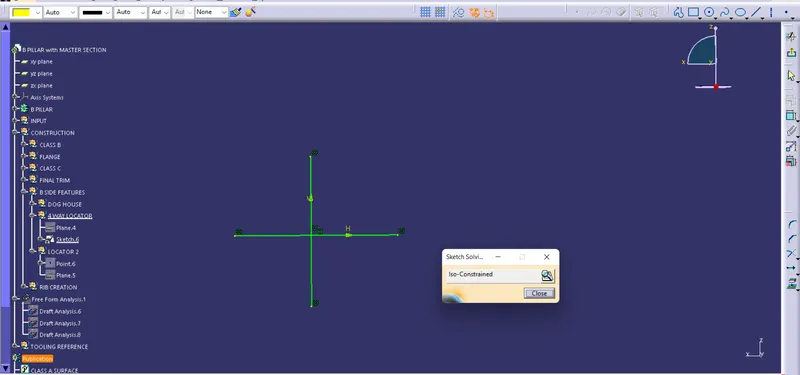

To create 4 way locator first the sketch is drawn

The drawing is paded with thicking draft is applied to the thickened surface . Finally the dog house and 4 way locator are joined together.

LIFTER CREATION FOR DOG HOUSE

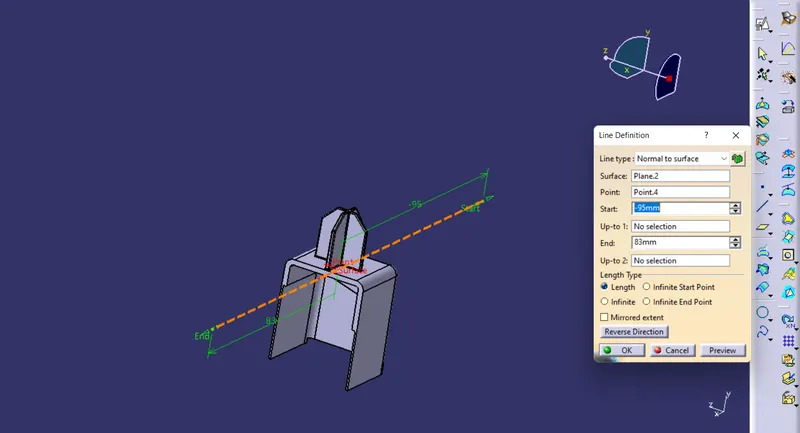

The lifter is perpenticular to the surface created using line tool.

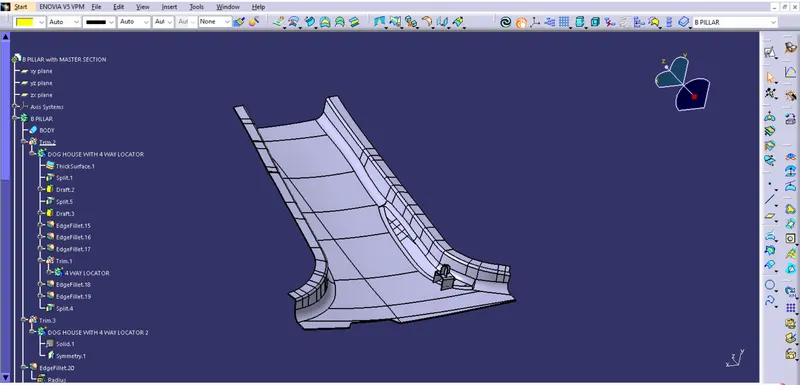

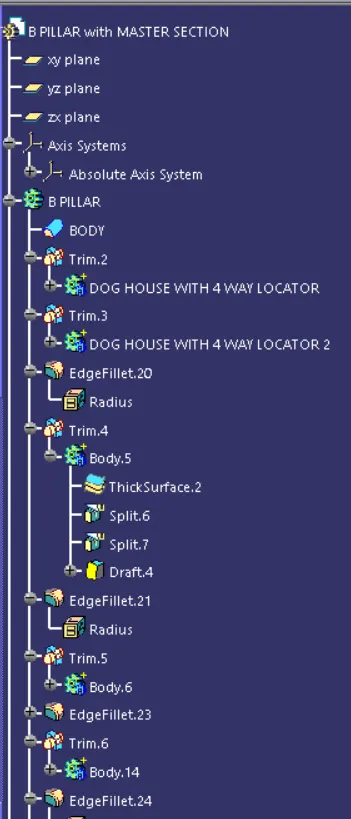

Using union trim the dog house with 4 way locator is attached to the b pillar

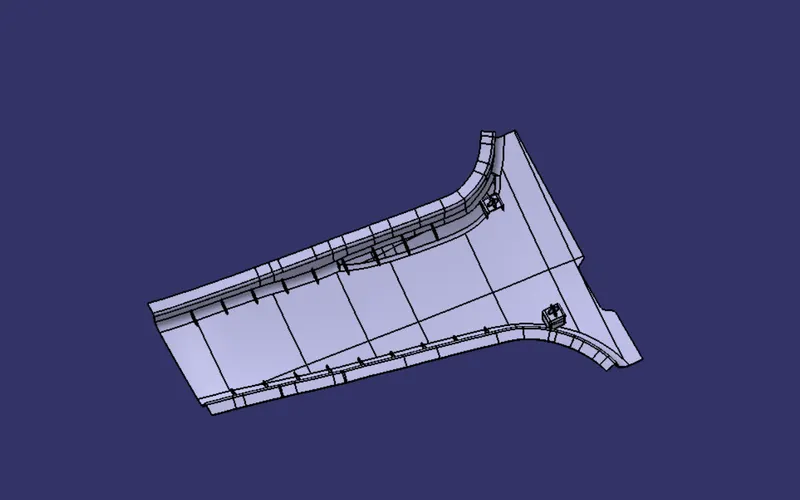

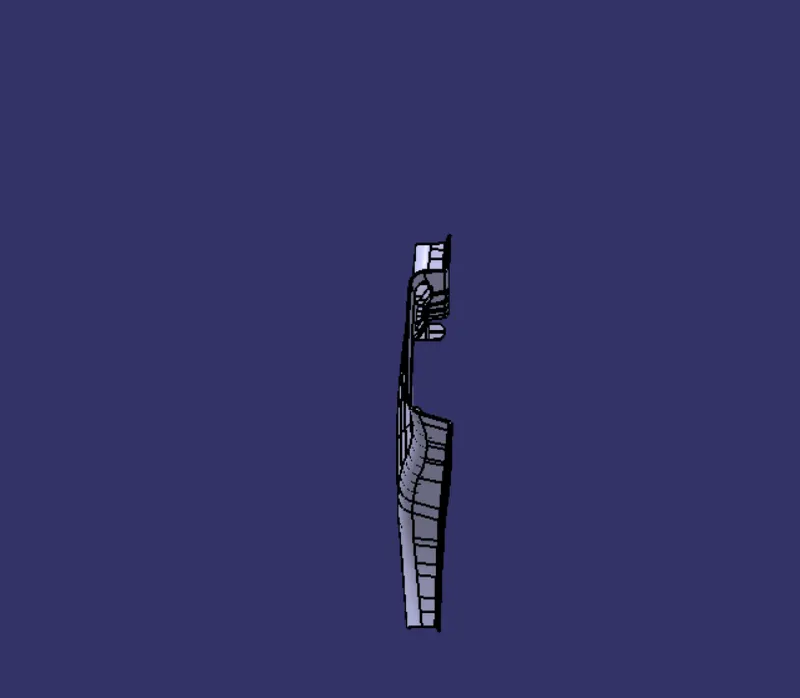

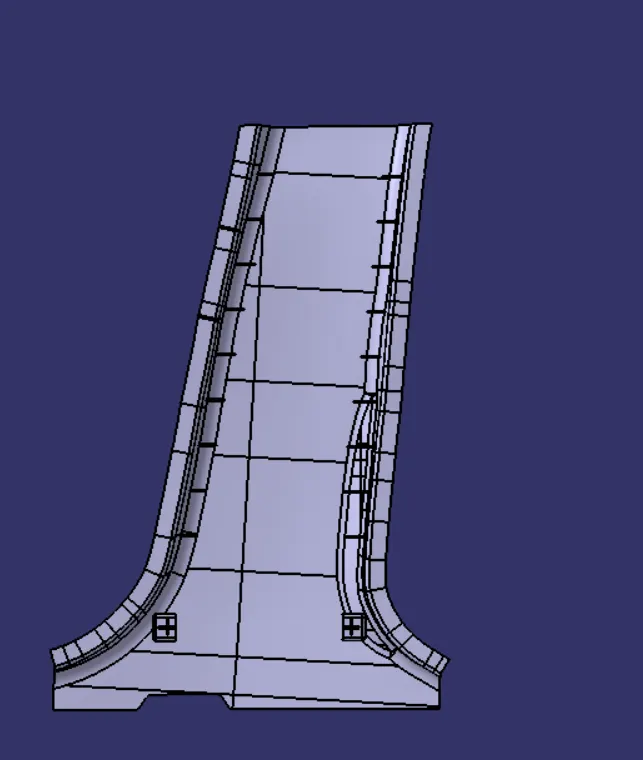

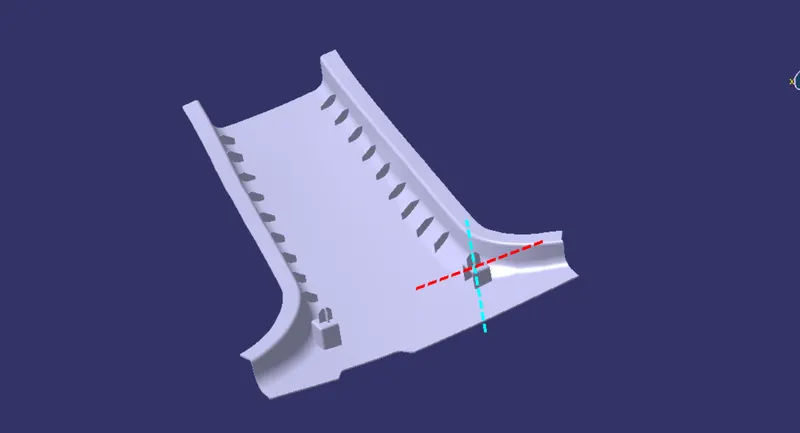

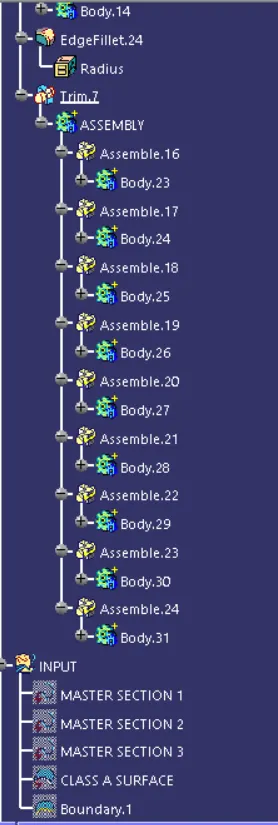

After creating dog house ribs are created. The size and shape of ribs are assumed. It also attached with the main body using union trim.

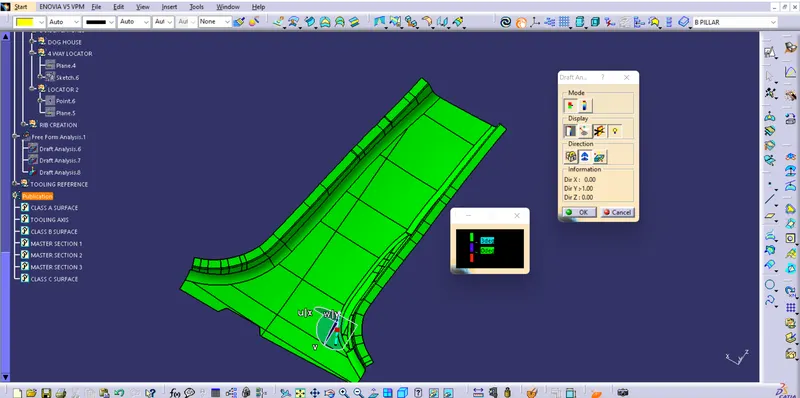

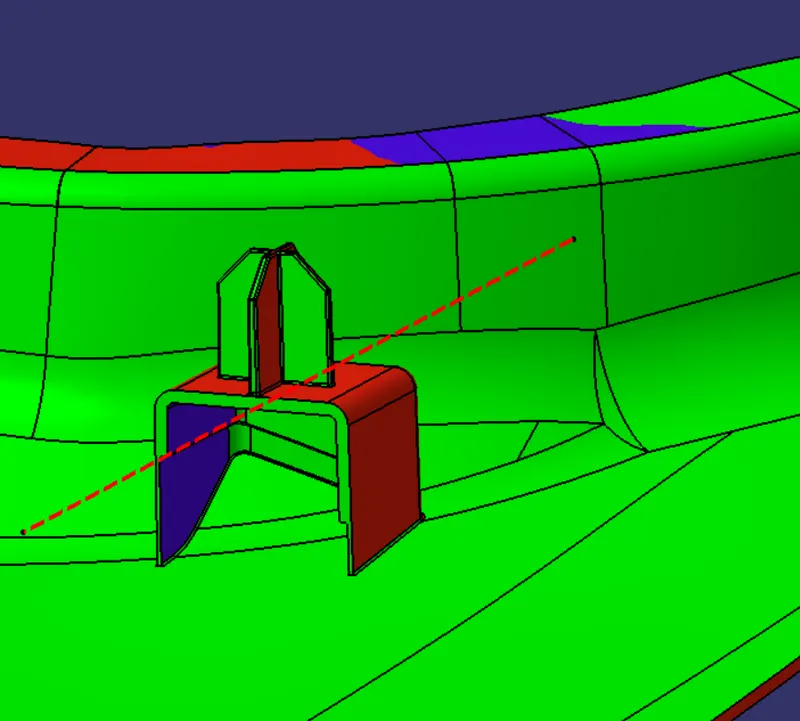

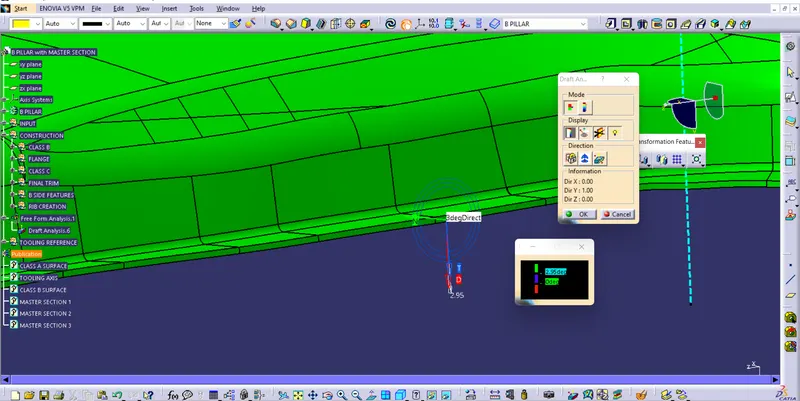

CONDUCTING DRAFT ANALYSIS ON FINAL BODY

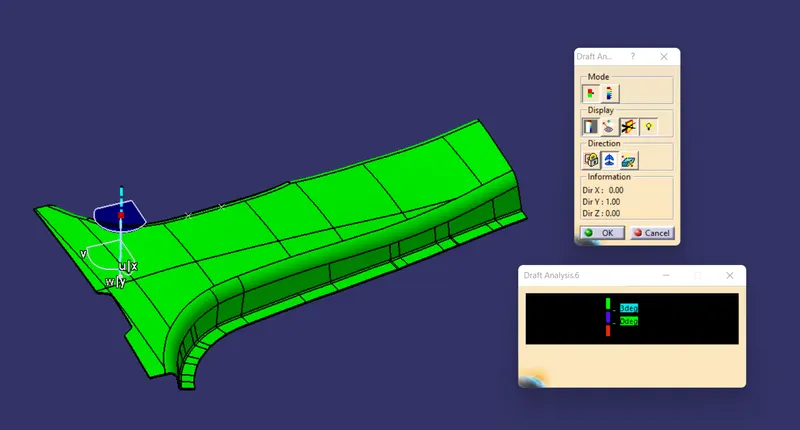

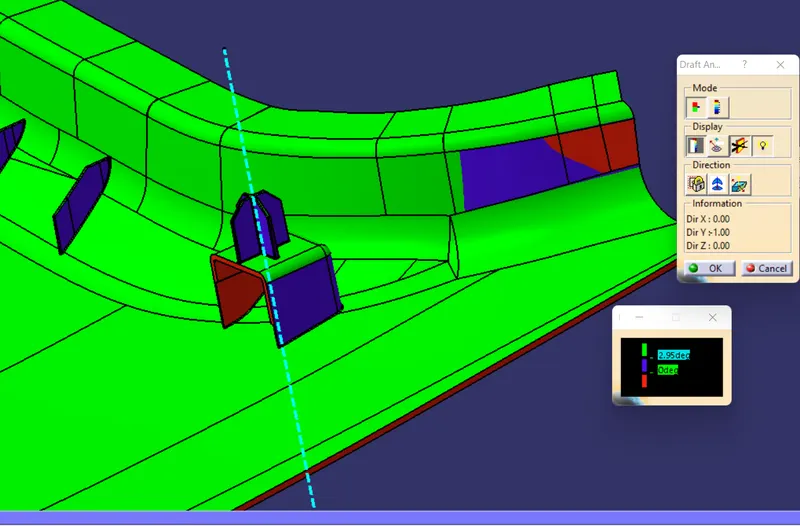

Draft analysis on A surface side

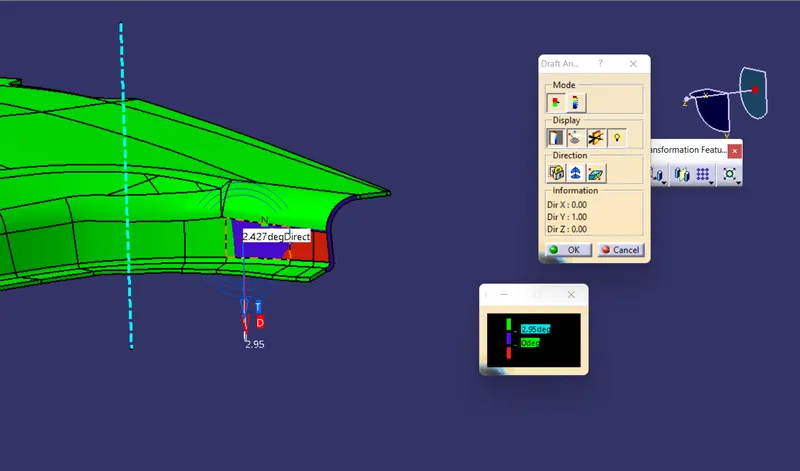

For getting green color in the c surface the draft value is reduced from 3 to 2.95 degree.

The parts getting draft below the 3 degree . Here the red color is due to the defects in Class A surface formation . To solve this we should make change in Class A surface . Otherwiseb it can bwe neglited due to small area.
