Week 9 - Project - Master Section Development

B PILLAR CLOSED BODY WITH B SIDE FEATURES.

CREATION OF TOOLING AXIS.

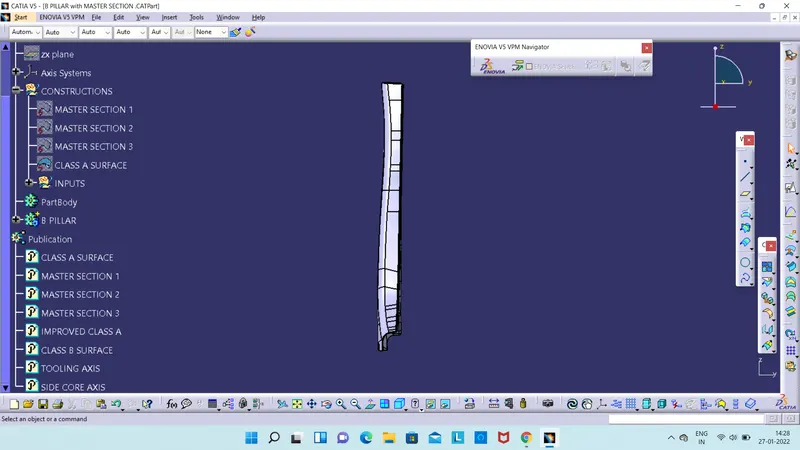

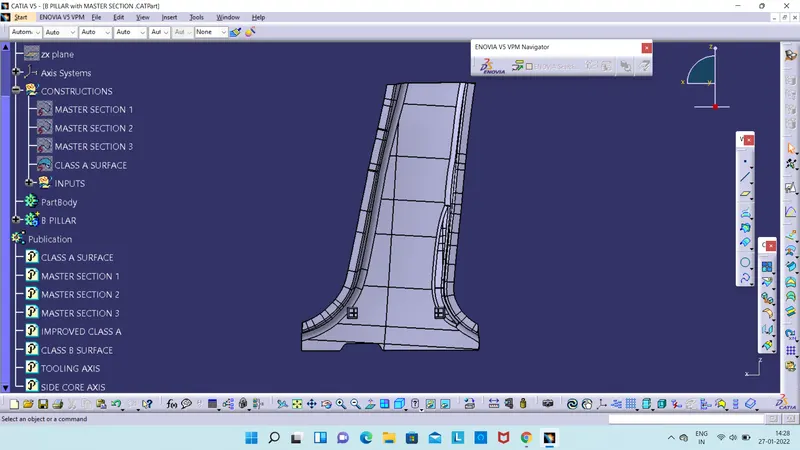

- FOR TOOLING AXIS , WE CAN TRY CREATE TOOLING AXIS FROM GIVEN MASTER SECTION I HAVE FOUR LINES FROM IT.

- AND TAKEN POINT BETWEEN THEM.

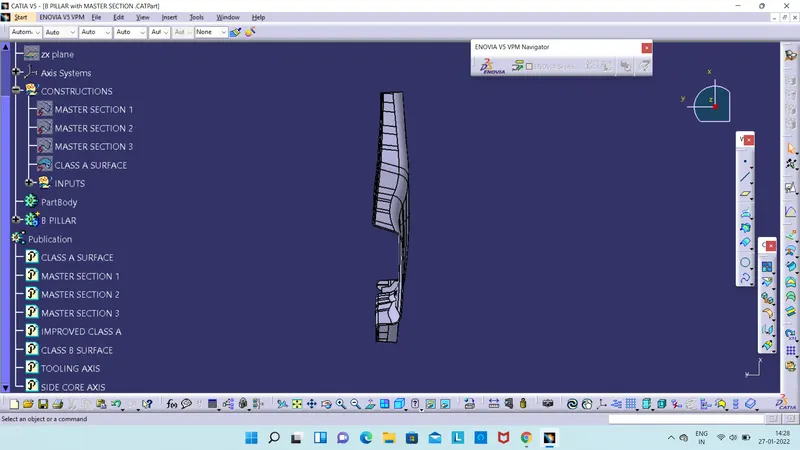

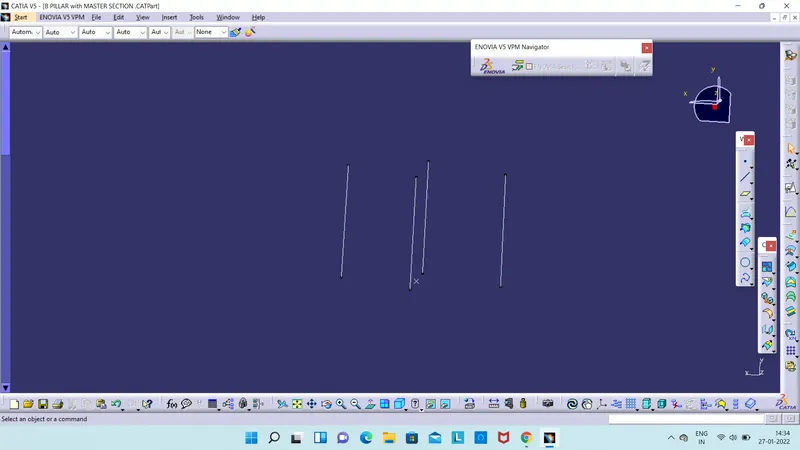

- NOW WE HAVE FOUR LINES AND A POINT.

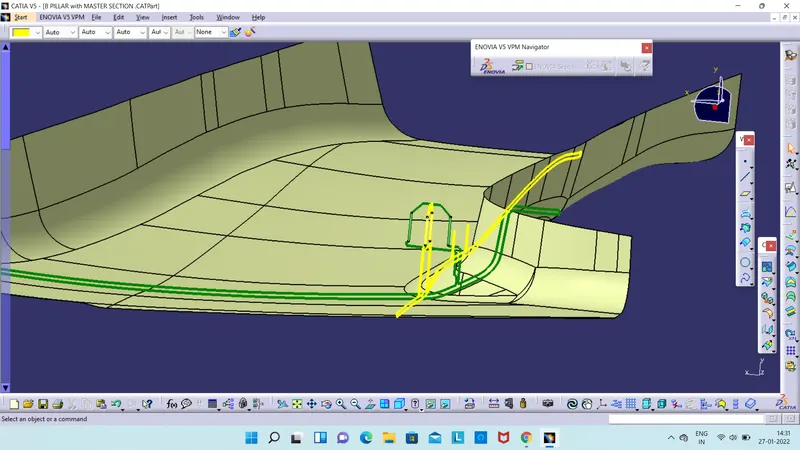

- WE CAN CREATE A BISECTING LINE FROM TWO LINES AND ANONTHER BISCETING LINES FROM OTHER TWO LINES.

- AFTER WE HAVE TWO NEW LINES , WE CAN CREATE A BISCETING LINE FROM THESE TWO WITH THAT POINT AS REFERANCE.

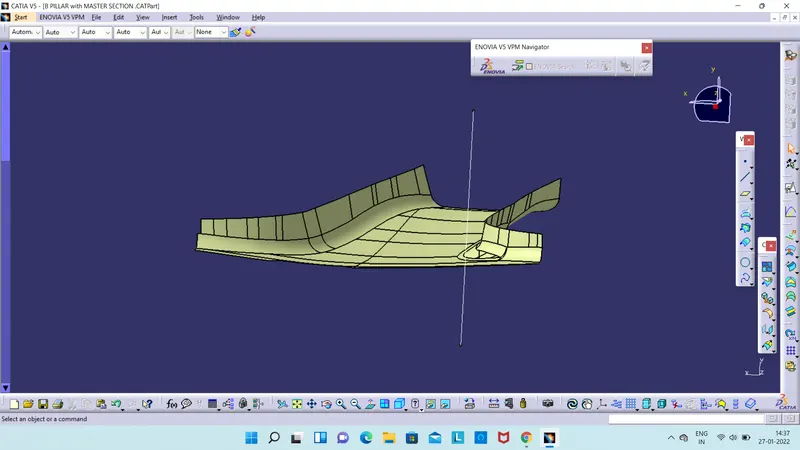

- WE CAN CONSIDER THIS AS TOOLING AXIS.

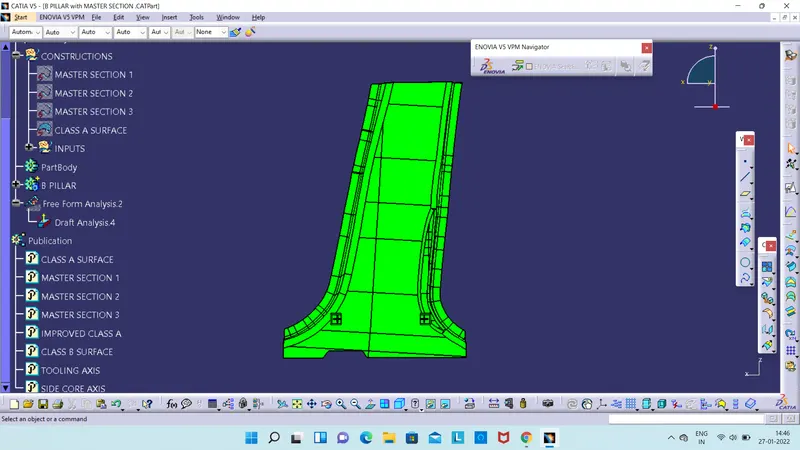

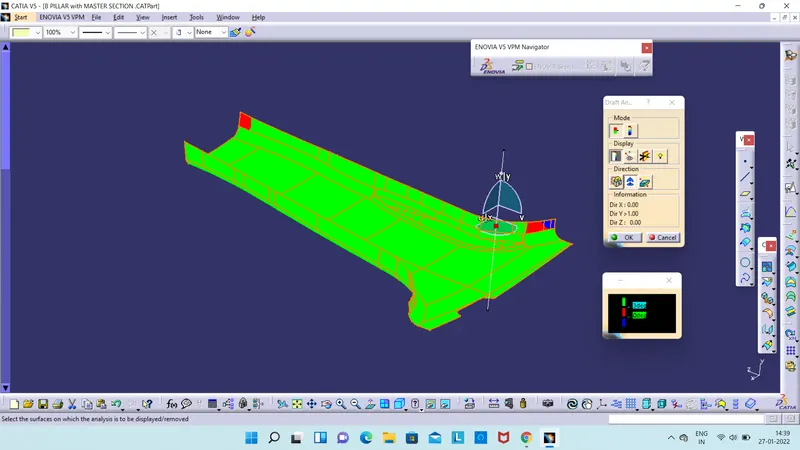

- THAN I HAVE PERFORM A DRAFT ANALYSIS ON THIS.

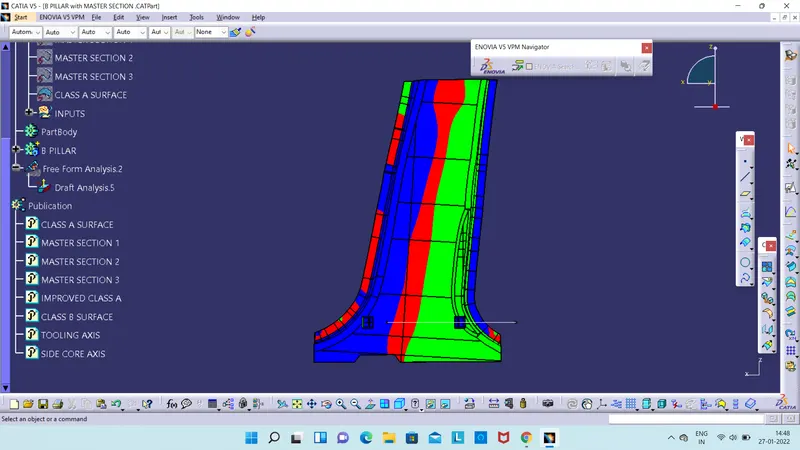

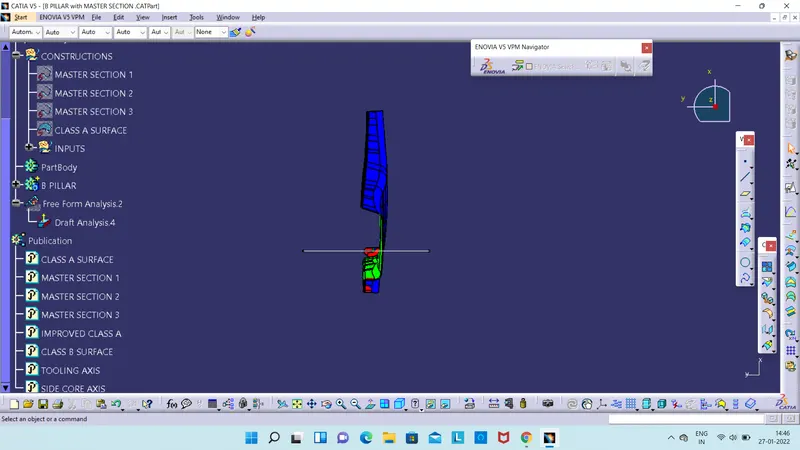

- YEAH IT HAS COVERED EVERY FACE BUT WE CAN SOME RED PATCHS.

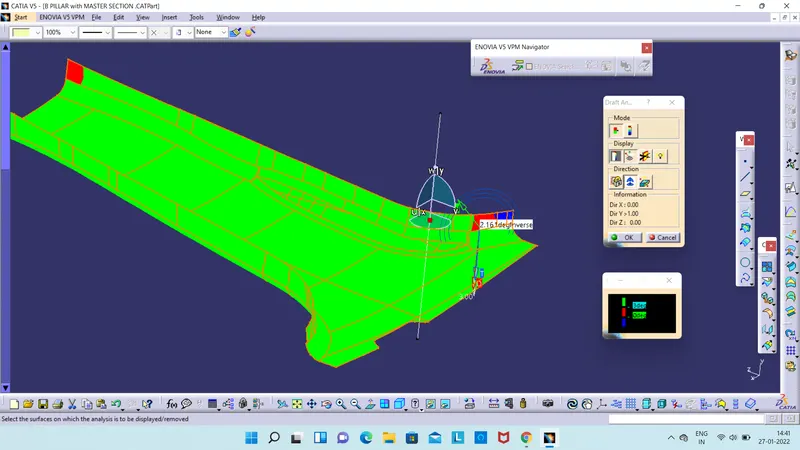

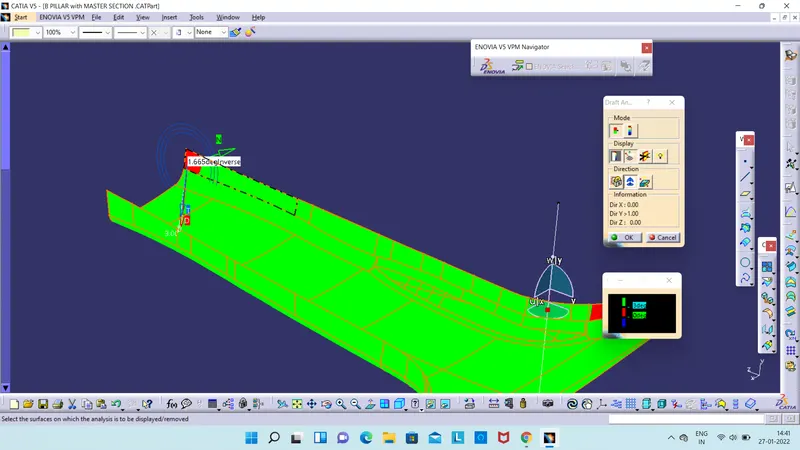

- I HAVE MEASURED IT HAVE DRAFT ANGLE OF 1.66 AND 2.16 AT OTHER SIDE.

- WE CAN SEND THIS TO CLASS A ENGINEER FOR CORRECTION.

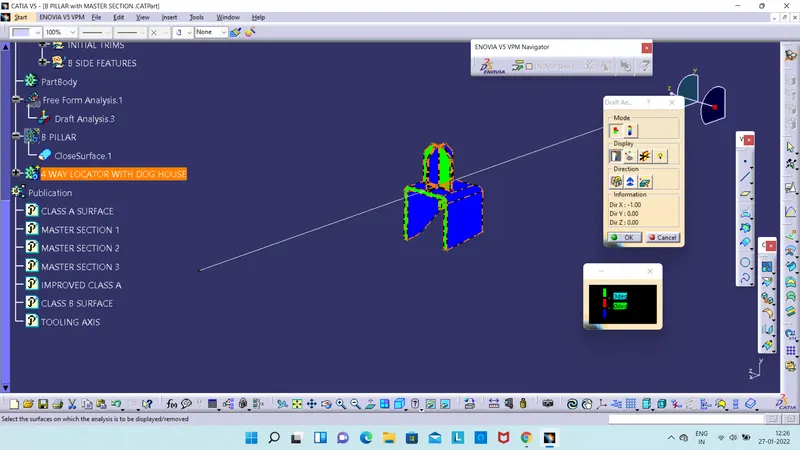

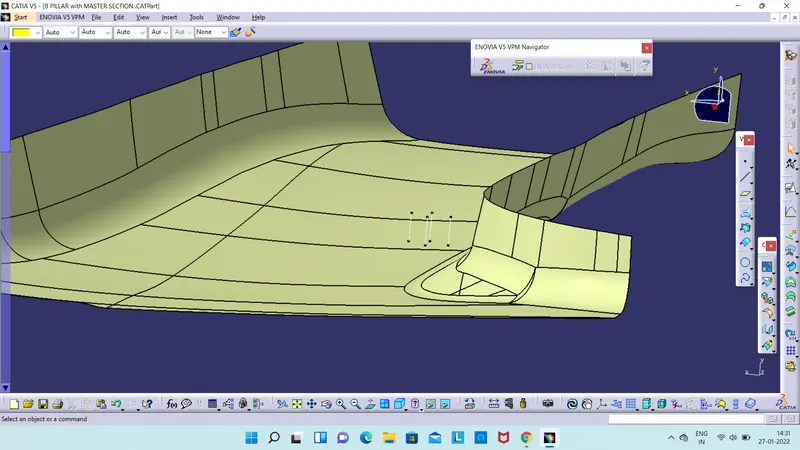

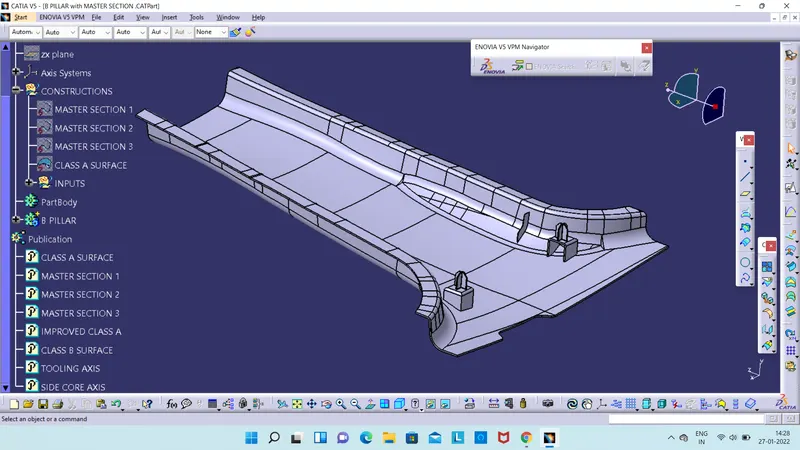

- AFTER IT I HAVE B SIDE FEATURE , AND FOR DOG HOUSE WE NEED SIDE CORE AXIS TO CLEAR.

- AND IT HAS BEEN CLEARED.

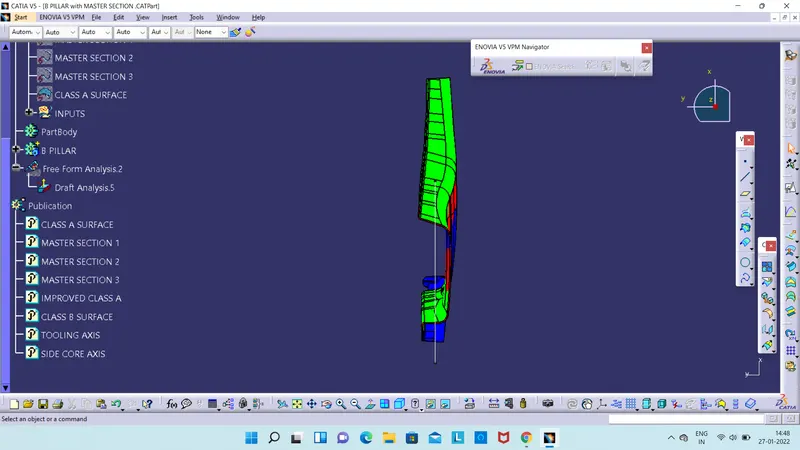

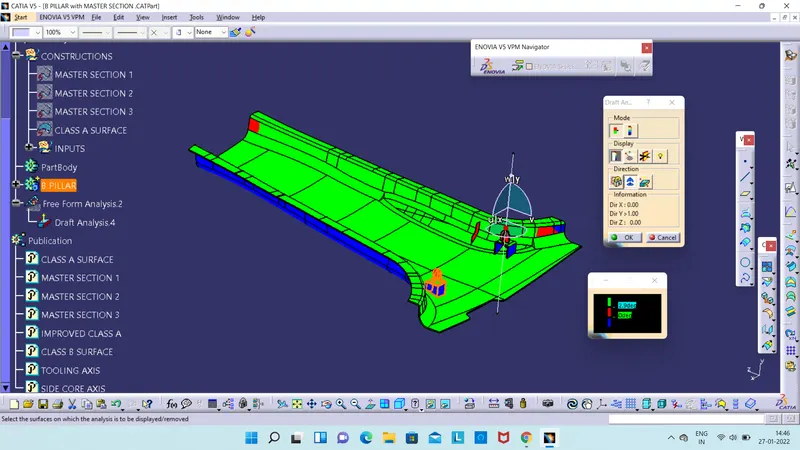

- AFTER I HAVE PERFORM DRAFT ANALYSIS ON B PILLAR WITH SIDE FEATURES.

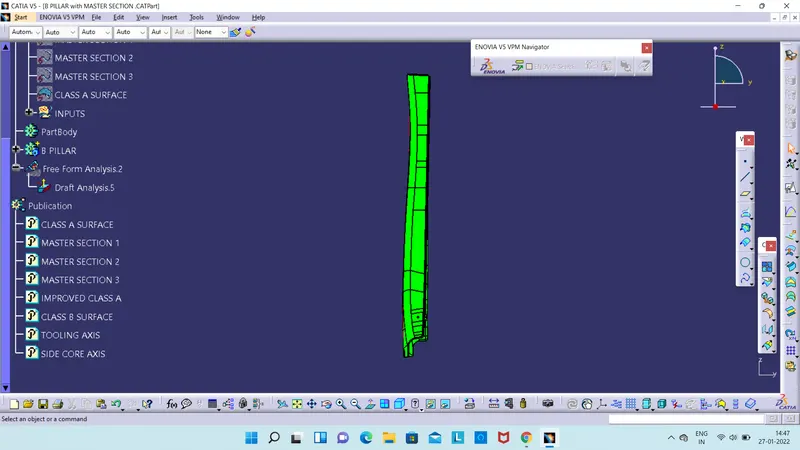

- WITH THE MAIN TOOLING AXIS IT HAS COVERED ALL THE FACES.

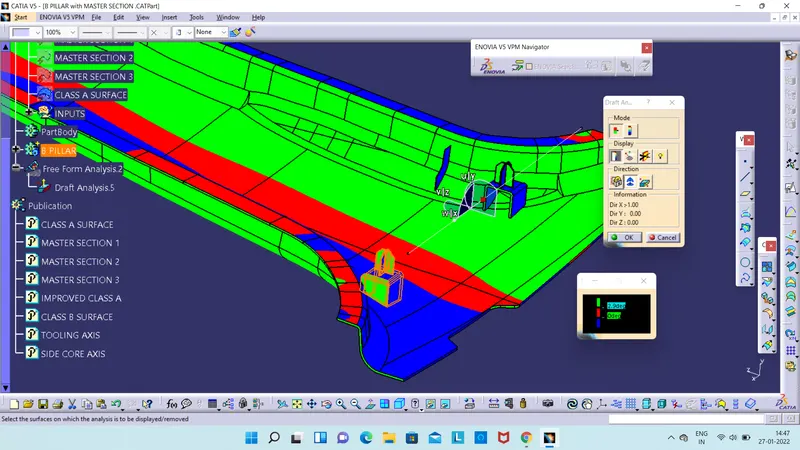

- AFTER I HAVE PERFORM SAME WITH SIDE CORE AXIS.

- AND IT HAS ALSO SOLVED ON B SIDE FEATURES.
