Week 9 - Project - A pillar Design with Master Section
A PILLAR REPORT

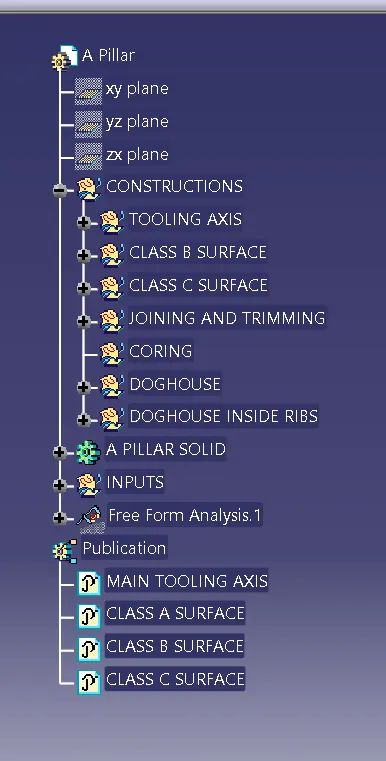

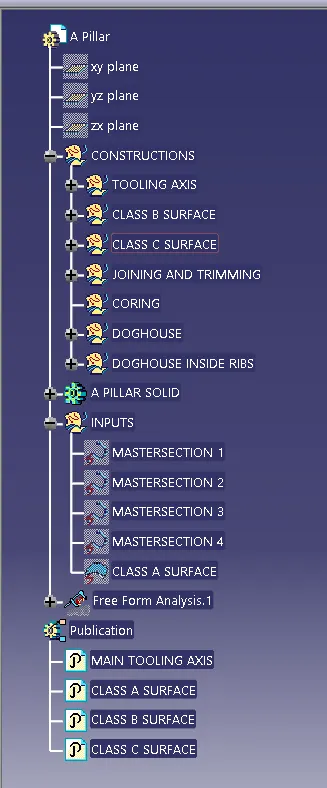

TREE STRUCTURE
OVERVIEW OF A PILLAR

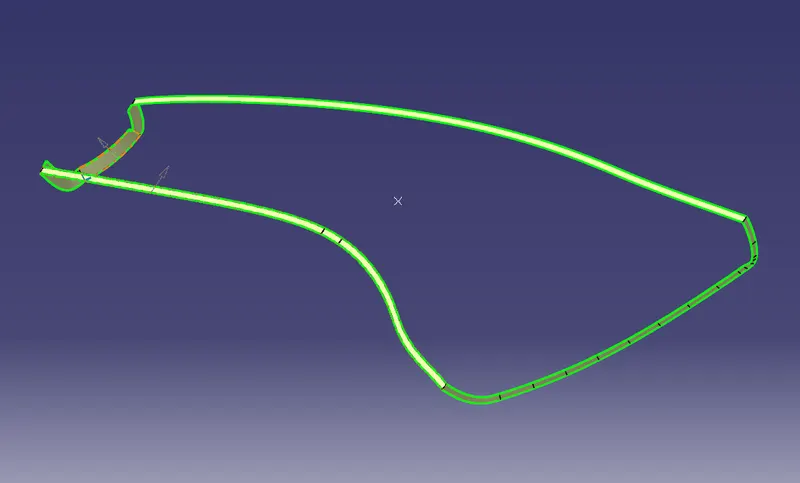

MASTER SECTION FOR CLASS A CLASS B AND CLASS C SURFACE:-

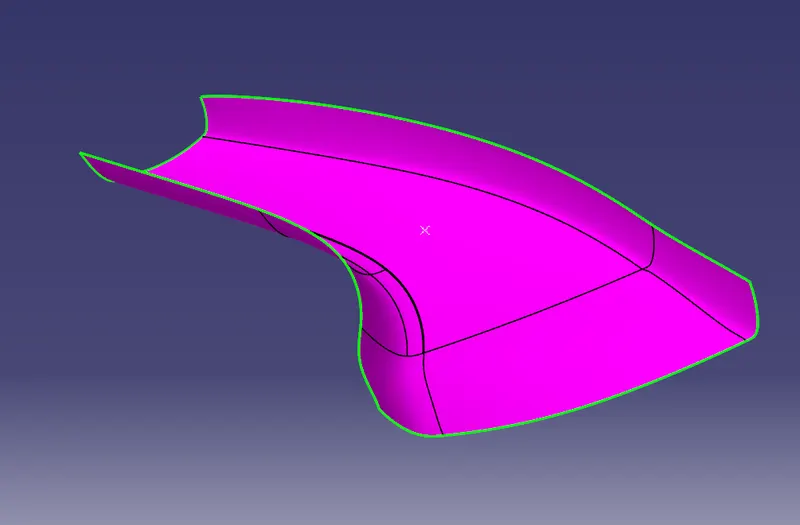

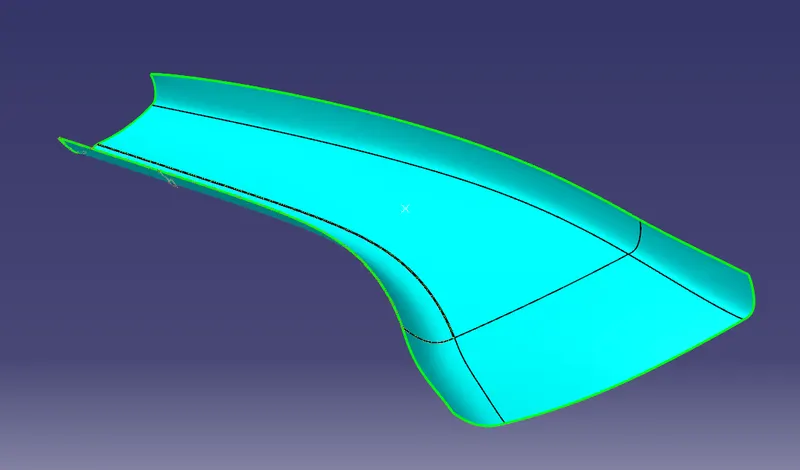

CLASS A SURFACE:-

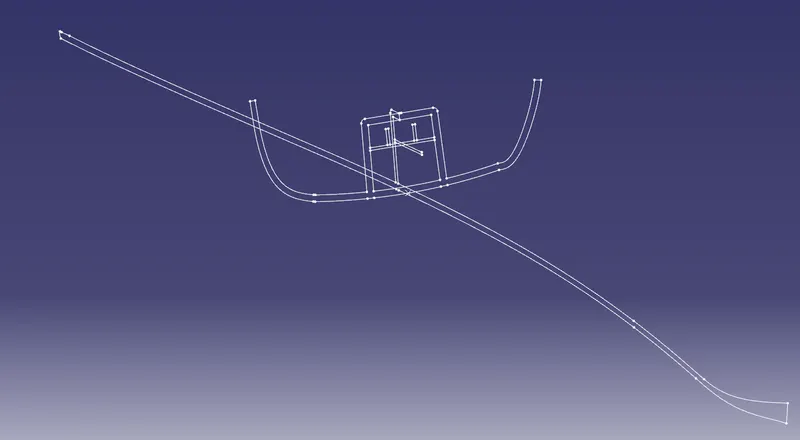

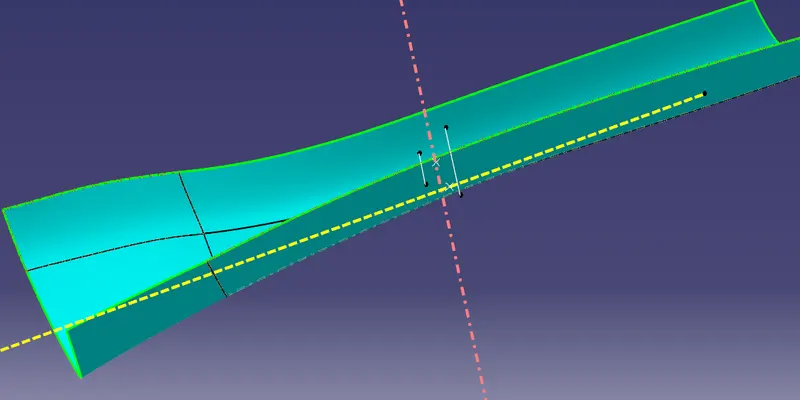

TOOLING AXIS :-
WE EXTRACTED LINES FROM MASTERSECTION AND CREATED A BISECTING LINE AND GET TOOLING AXIS AND ALONG WITH THAT WE DEVELOPED SIDE CORE AXIS TOO.

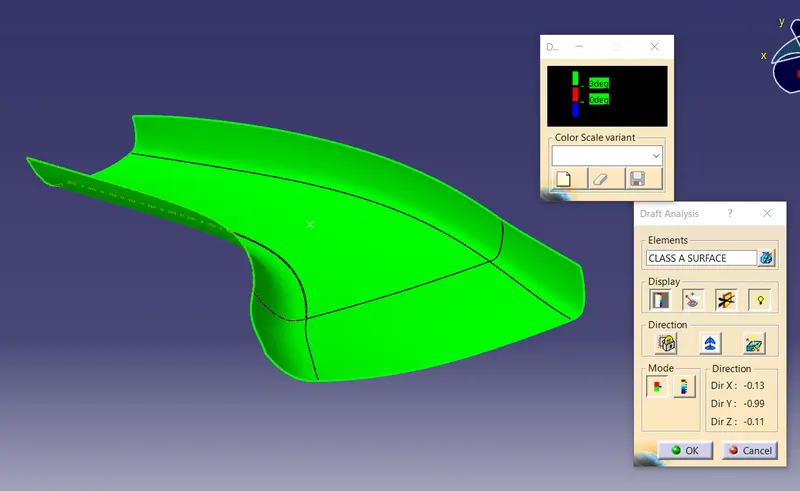

DRAFT ANALYSIS OF CLASS A SURFACE :-
CLASS B SURFACE :-

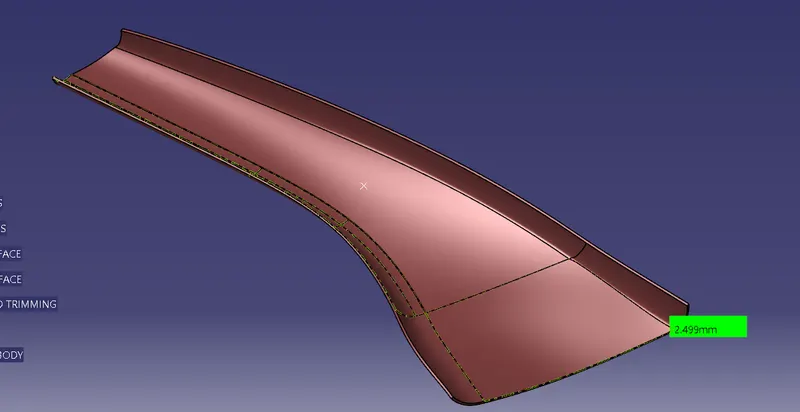

CLASS C SURFACE :-

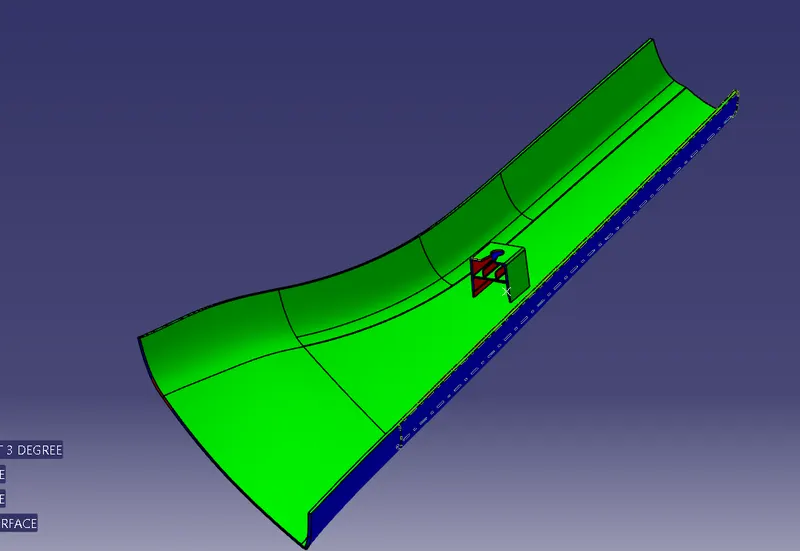

FINAL CLOSED PRODUCT :-

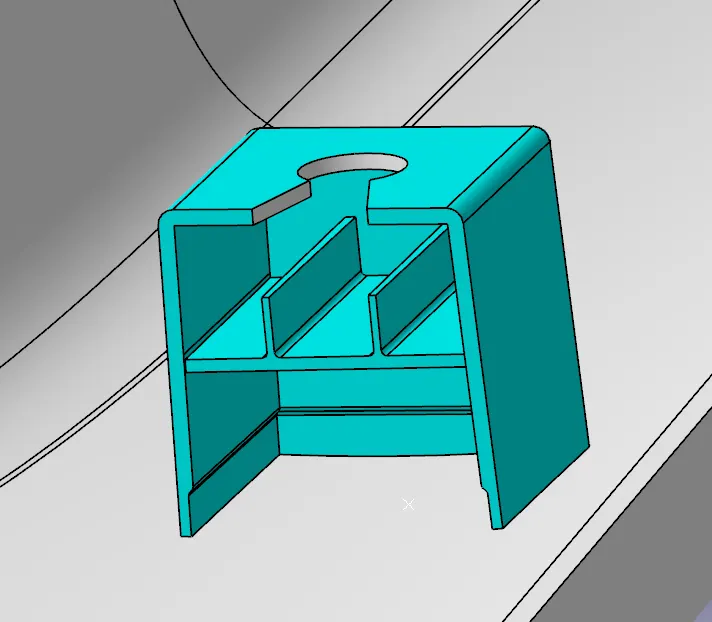

DOGHOUSE :-
When a Plastic Component has more than a 3mm of thickness, then it has an possibility of creating an Sink mark in the Class A Surface which can spoils the component's aesthetic look. In these regions Dog House can be helpful at the same time it can act as an supporting feature too. It has certain design rules to be followed while designing like,
- It should have a minimum height of 12mm
- Dog house wall thickness at intersection of part wall should be 40% or less than main wall thickness
