Week 8 - Challenge 5 - Door Trim Lower

DRAFT ANALYSIS OF CLASS A SURFACE :-

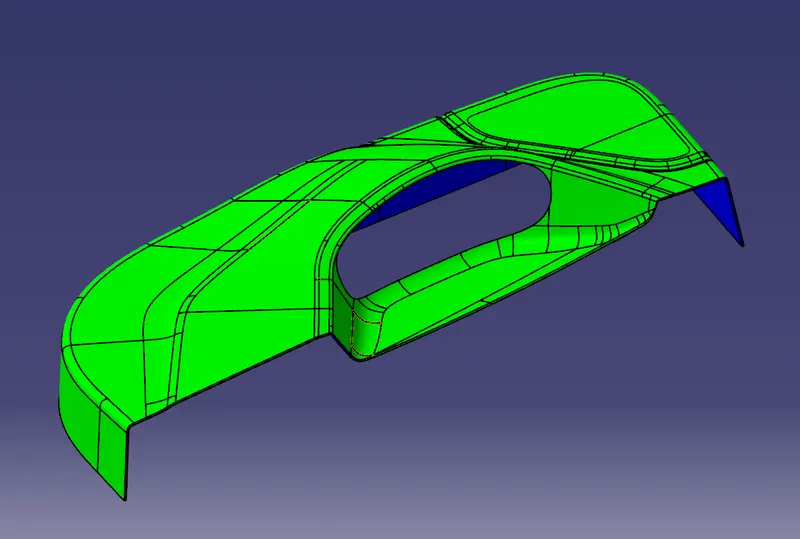

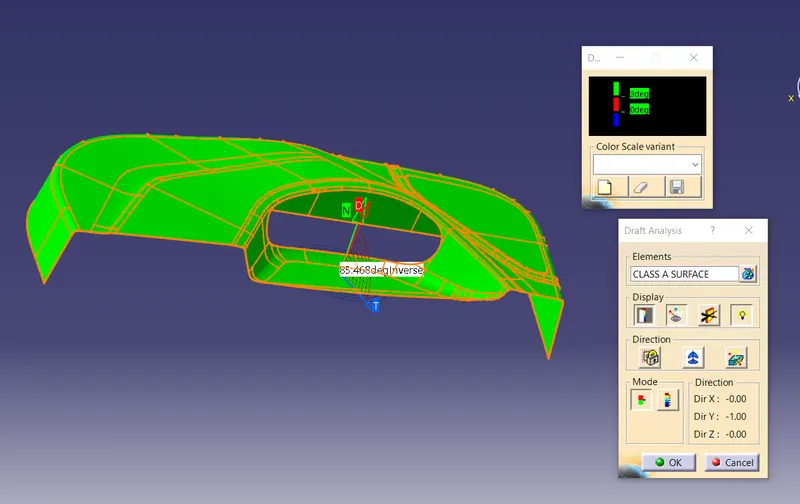

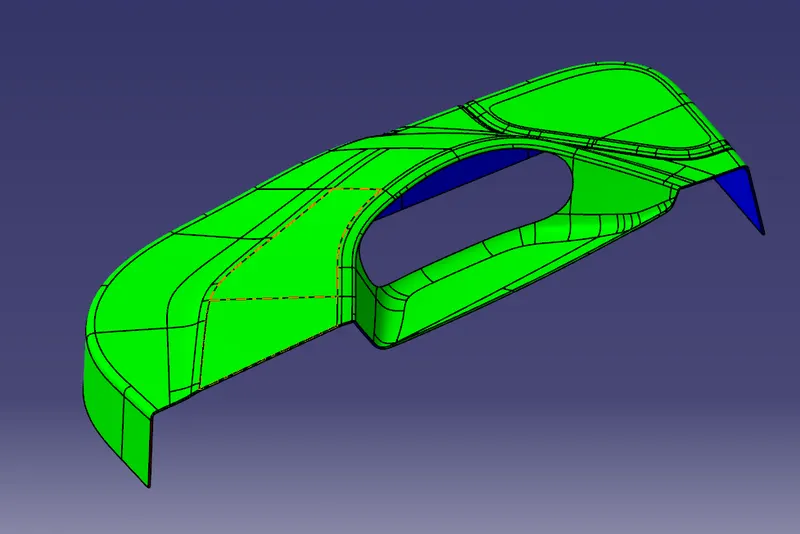

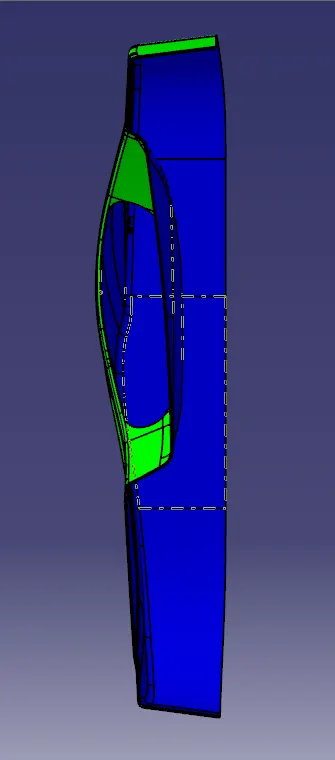

FOR DOING DRAFT ANALYSIS OF CLASS A SURFACE, FIRST WE CREATE A TOOLING AXIS WITH THE HELP OF MEASURE INERTIA AND THROUGH THAT POINT WE CREATE A LINE IN POINT DIRECTION IN Y DIRECTION BECAUSE IN Y DIRECTION ALL THE ELEMENTS ARE CLEARLY VIISIBLE AND CLEARING THE DRAFT ANGLE. OKKAY SO MOVING FORWARD FIRST WE GO TO DRAFT ANALYSIS AND WITH THE HELP OF COMPASS WE LOCATE THE COMPASS ON THE TOOLING AXIS CHECKING THE PROPER DIRECTION AND THEN LOCK THE COMPASS. AFTER LOCKING CLICK ON THE SURFACE TO GET THE ACTUAL DRAFT ANALYSIS WHICH STATES THAT GREEN COLOUR SURFACE IS HAVING DRAFT MORE THAN 3 DEGREE WHERWAS THE BLUE SURFACE IS HAVING THE NEGATIVE DRAFT ANGLE. HENCE IT RESULTS IN FORMATION OF CORE AND CAVITY.

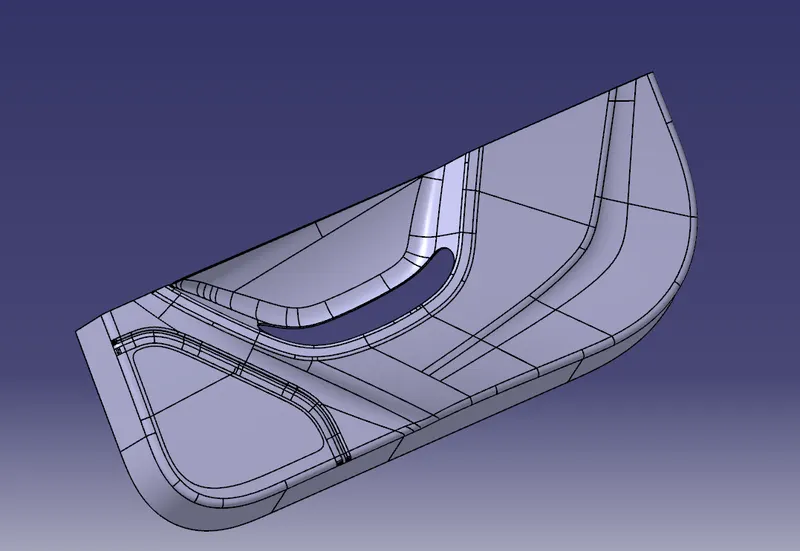

DRAFT ANALYSIS OF CLOSED DOOR TRIM LOWER :-

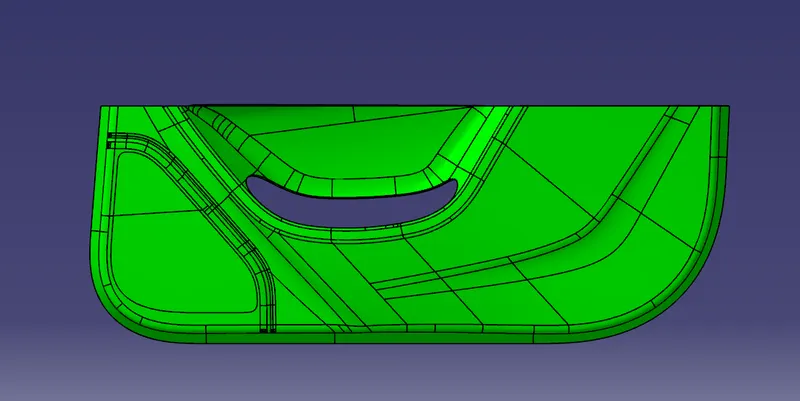

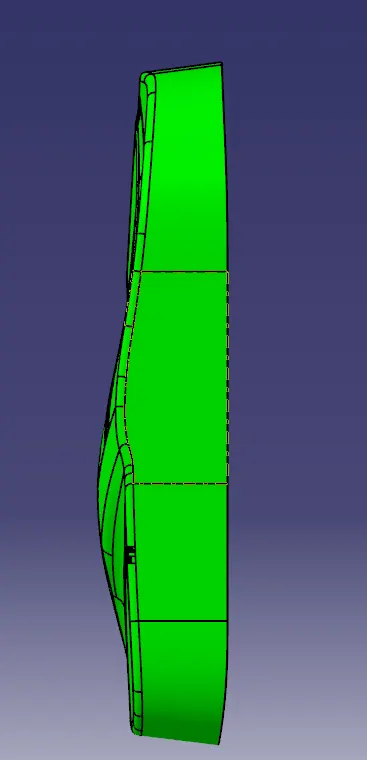

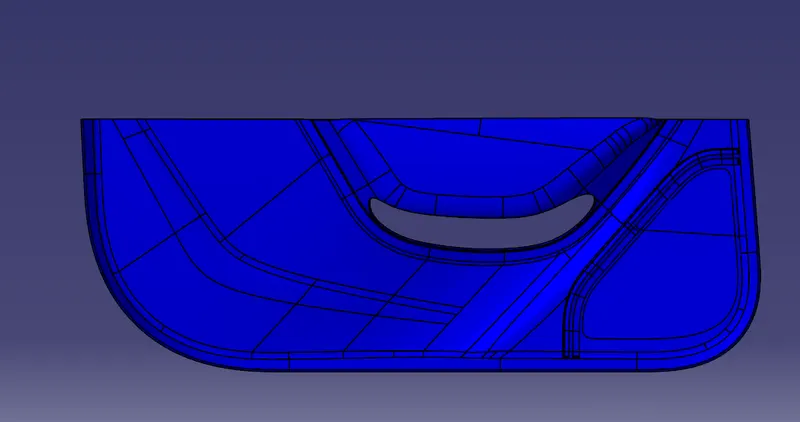

SIMILARLY FOR DRAFT ANALYSIS OF DOOR TRIMER WE FOLLOW THE SAME PROCEDURE OF BRINGING THE COMPASS TO THE TOOLING AXIS AND THEN CHECKING FOR VARIOUS DRAFT ANGLE ON THE SURFACE AND BELOW THE SURFACE AND ON CLASS C ALSO. THE GREEN SURAFCE INDICATES THAT IT BELONGS TO CAVITY AND BLUE SURFACE BELONGS TO CORE. AND THATS HOW WE ANALYSED THE DRAFT ANALYSIS FOR CLOSED DOOR TRIM SURFACE.
