Week 8 - Challenge 4 - Bumper

CREATING TOOLING AXIS :-

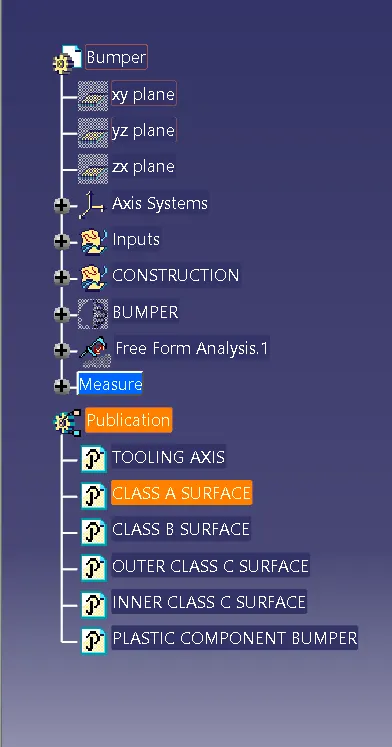

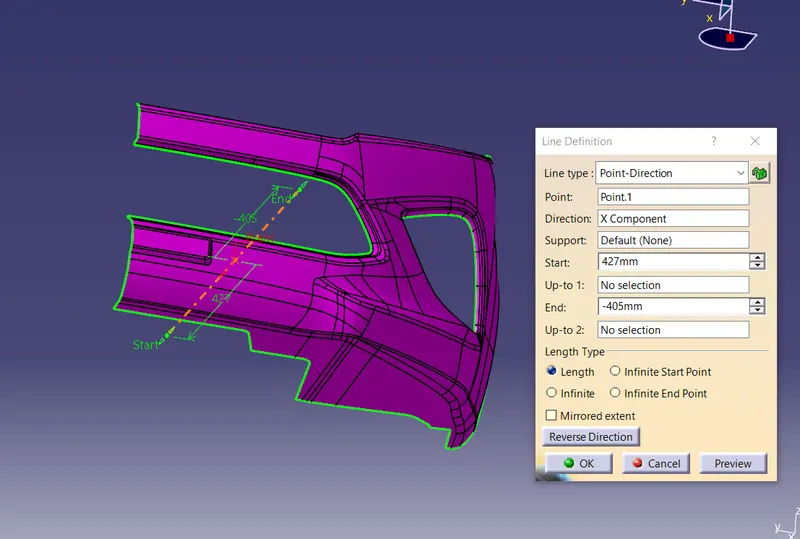

FOR CREATING THE TOOLING AXIS FIRST WE CHECK THE BEST SUITABLE DIRECTION FOR TOOLING BY USING COMPASS. HERE FOR TOOLING AXIS, X DIRECTION IS MOST SUITABLE BECAUSE IN X DIRECTION MOST OF THE SURFACES ARE CLEARING WHILE PERFORMING DRAFT ANALYSIS. GENERALLY WE USE BISECTING METHOD FOR CREATING THE TOOLING AXIS BUT HERE IN THIS CASE TOOLING AXIS IS CREATED IN THE POINT DIRECTION IN X DIRECTION.

DRAFT ANALYSIS OF CLASS A SURFACE :-

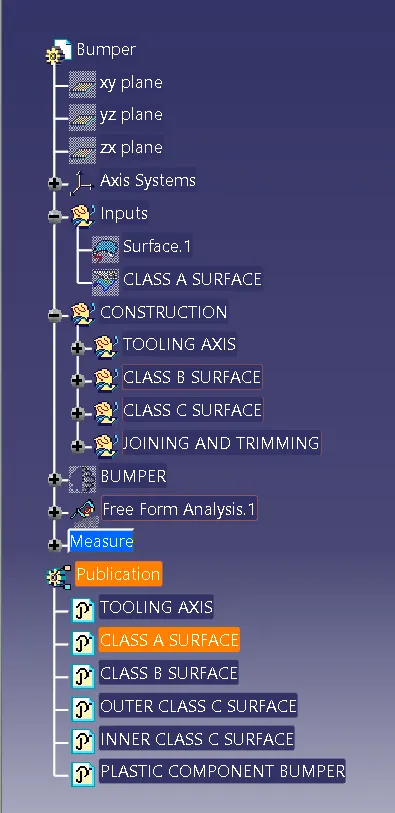

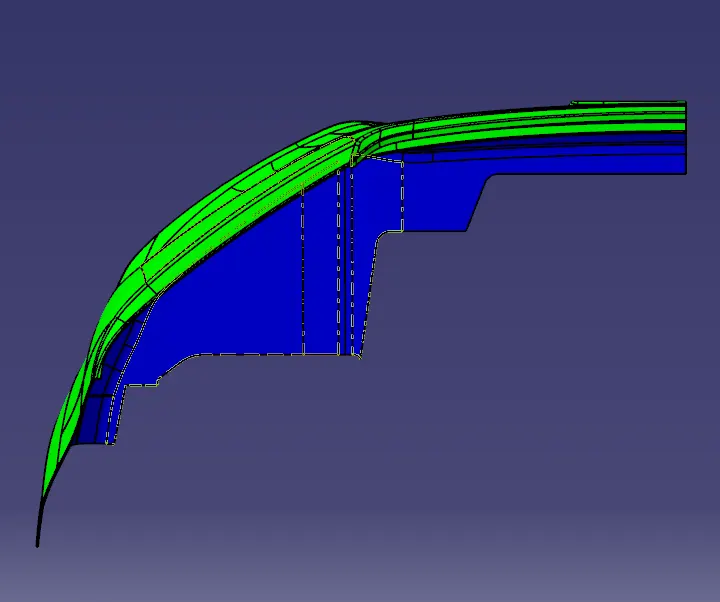

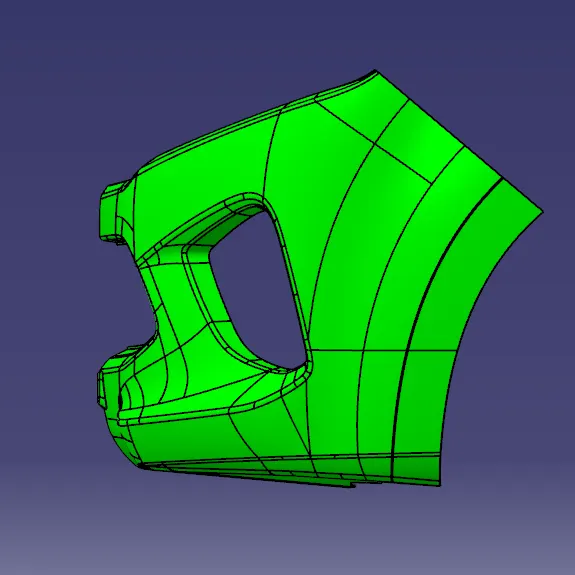

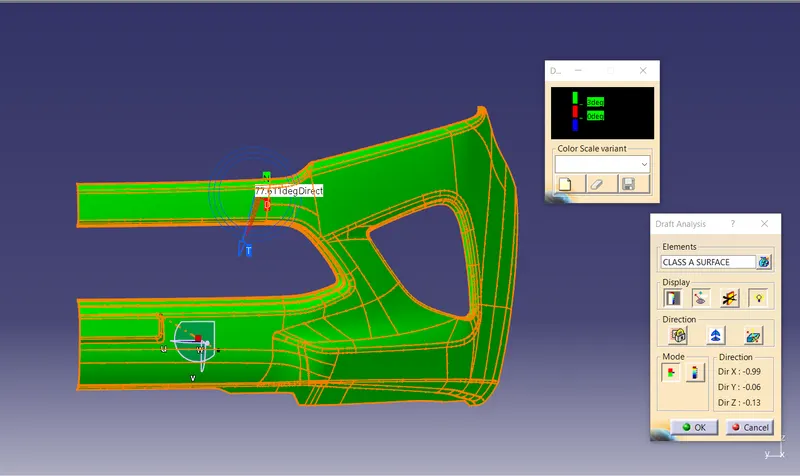

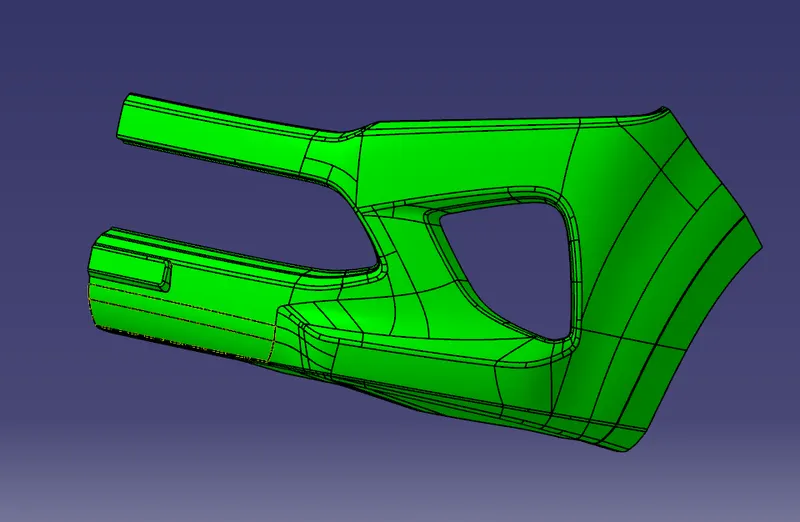

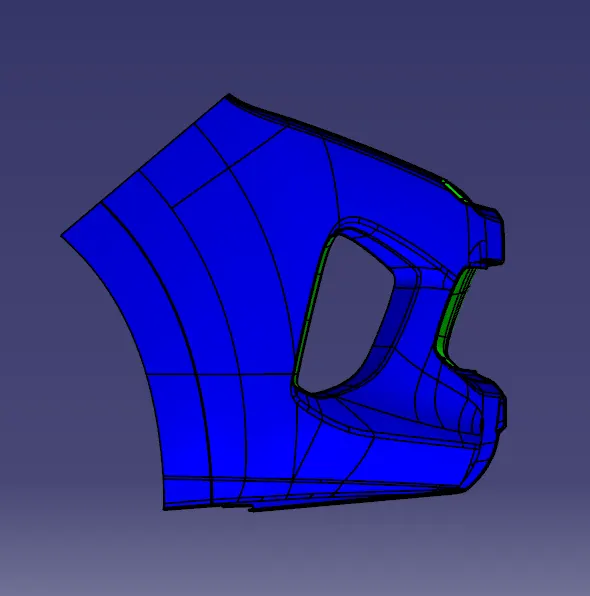

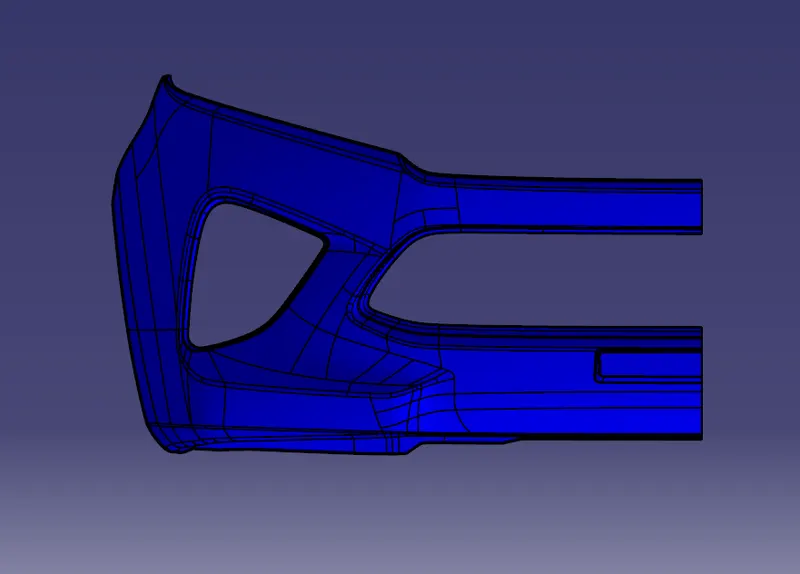

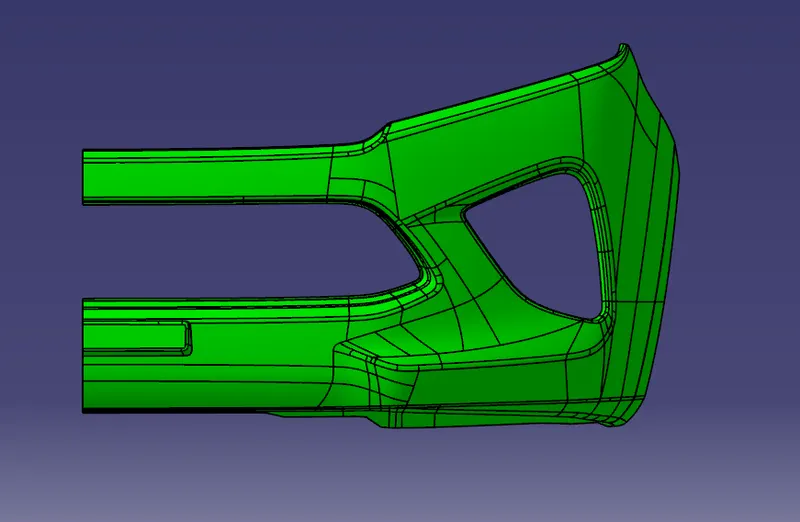

AFTER CREATING THE TOOLING AXIS WE DO THE DRAFT ANALYSIS. BEFIRE DOING MAKE SURE THE VIEW MODE IS SELECTED IN MATERIAL. AFTER SELECTING MATERIAL, WE DRAG THE COMPASS TO THE TOOLING AXIS AND LOCK IT. AND PROCEEDING WE GET THE DRAFT ANALYSIS FOLLOWING THE DRAFT VALUE WITH 3 DEGREE. AND THEN WE CAN USE THE RUNNING POINT TO CHECK THE ANGLE OF THE COMPONENT.
