Week 9 - Project - A pillar Design with Master Section
Inputs:
1.Class-A Surface
2.Master sections

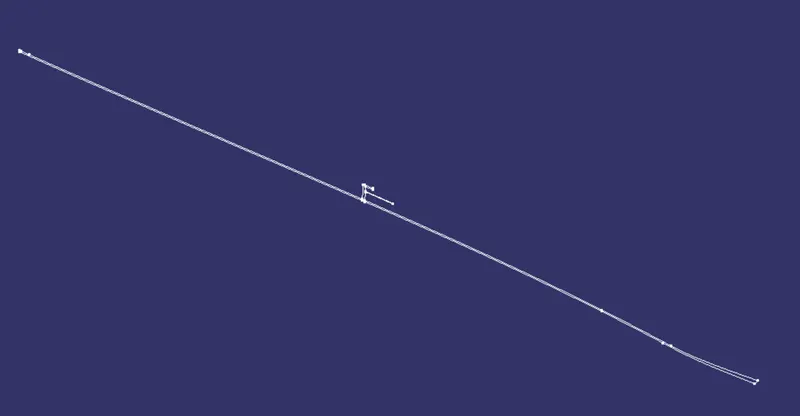

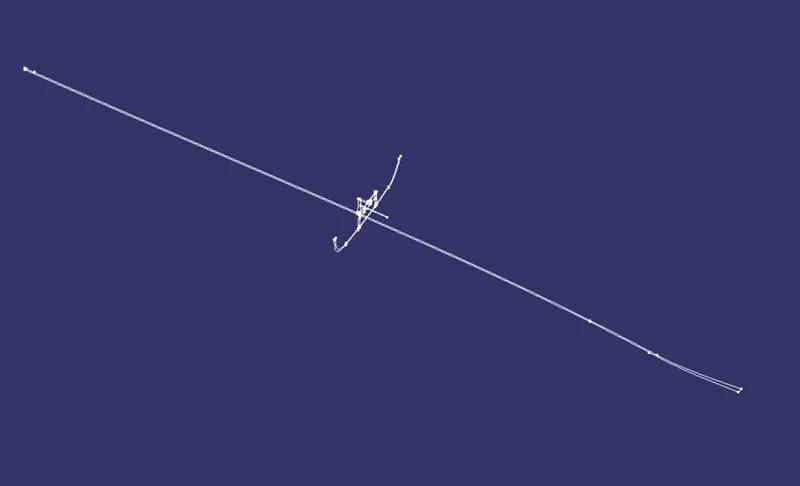

Sketches Used
Only One sketch is used

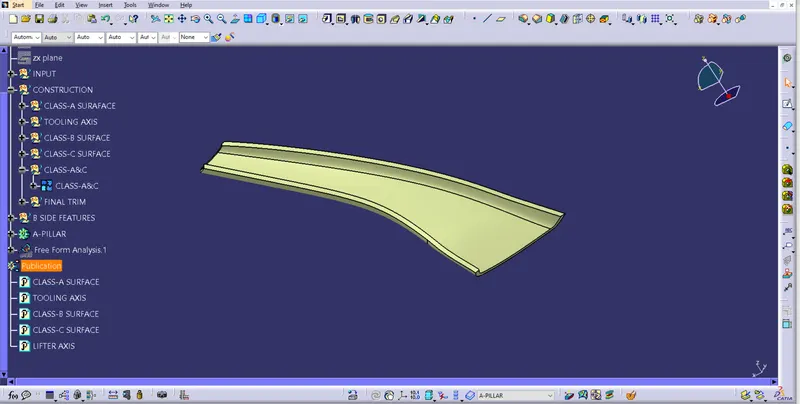

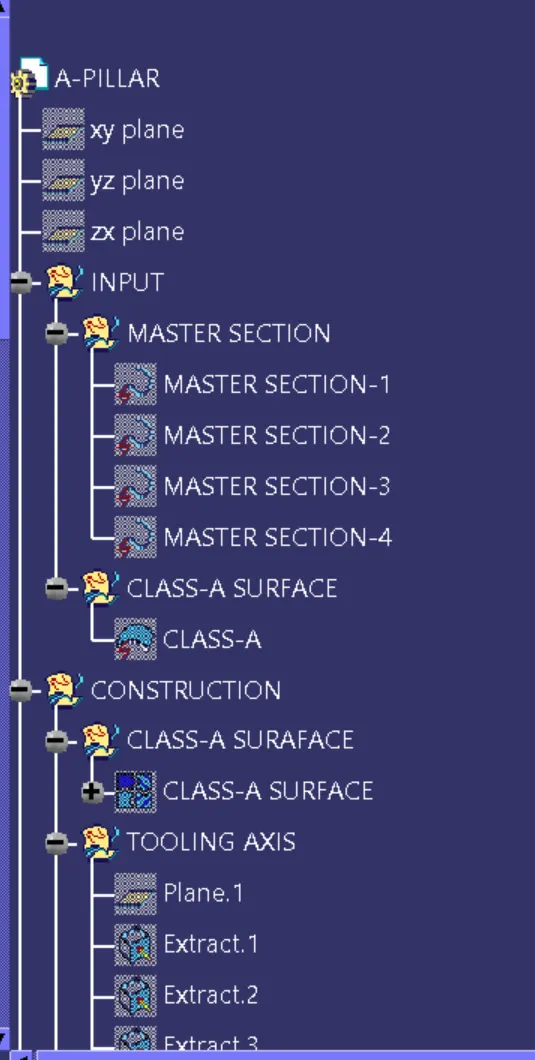

Tree
Class-A Surface

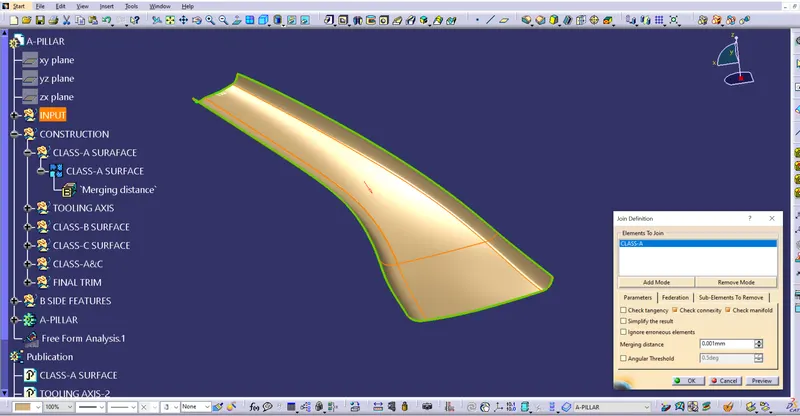

To ensure the connectivity between the surfaces, all surfaces joined using join command.
With this it is concluded that all surfaces are joined properly & there are no gaps between the surfaces.

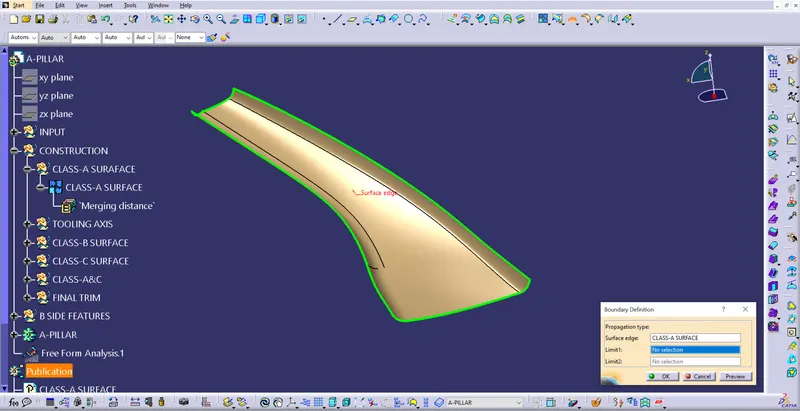

Using boundary command Class-A surface checked for unnecessary open profiles between the surfaces.

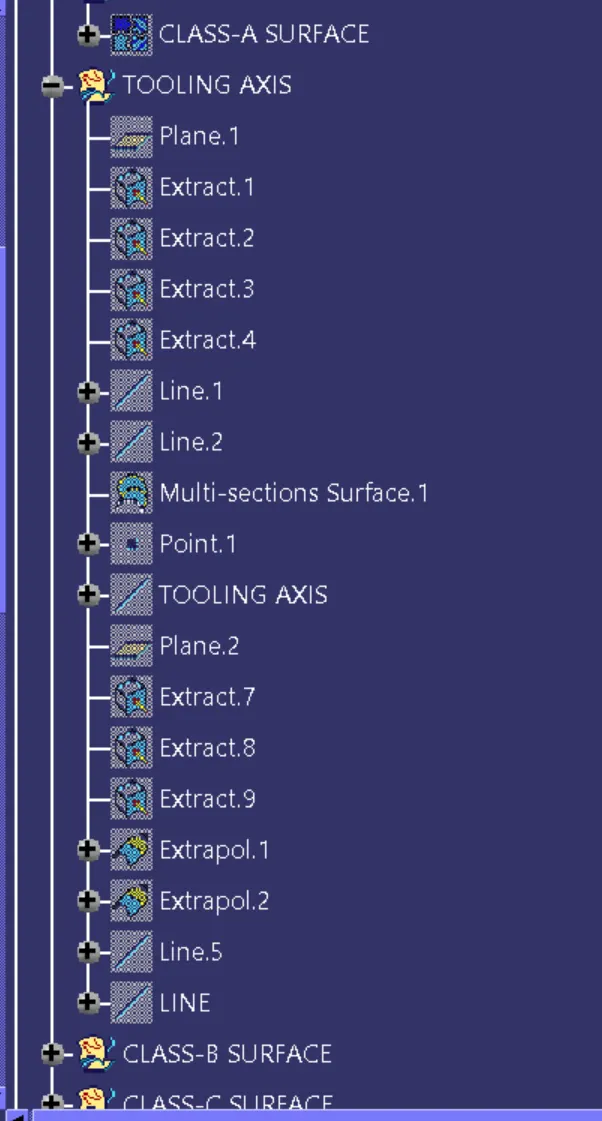

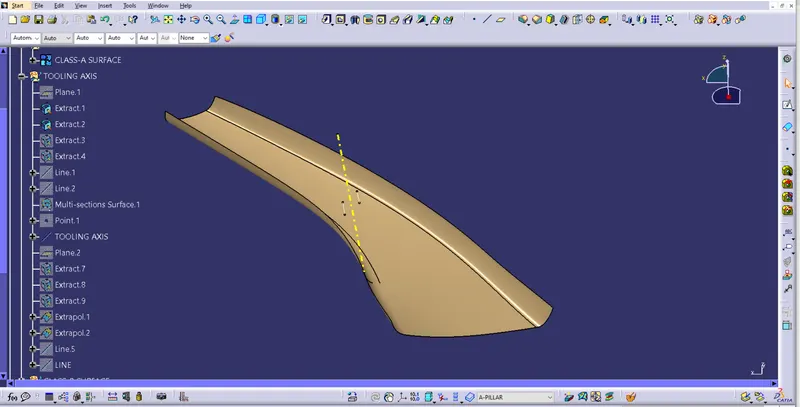

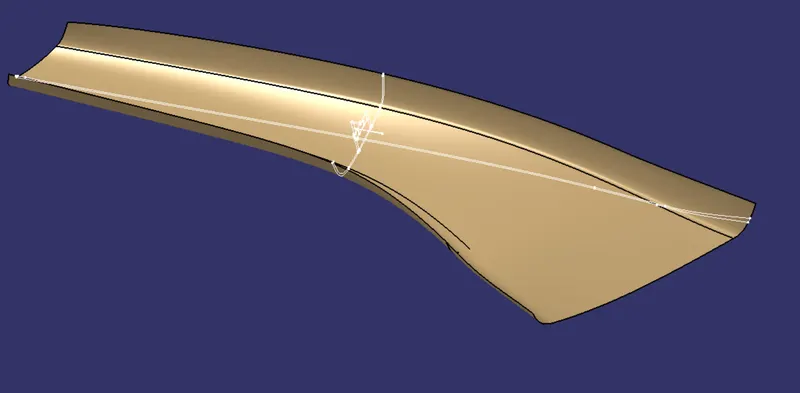

Tooling Axis

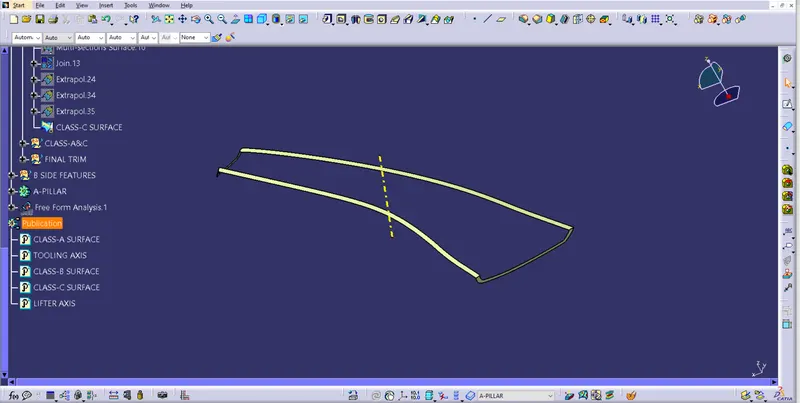

Tooling Axis is created by taking master section as reference & using line Bi-secting method

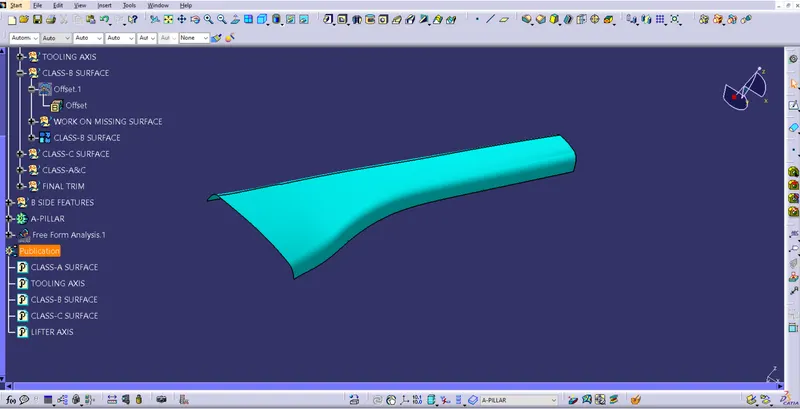

Class-B surface creation

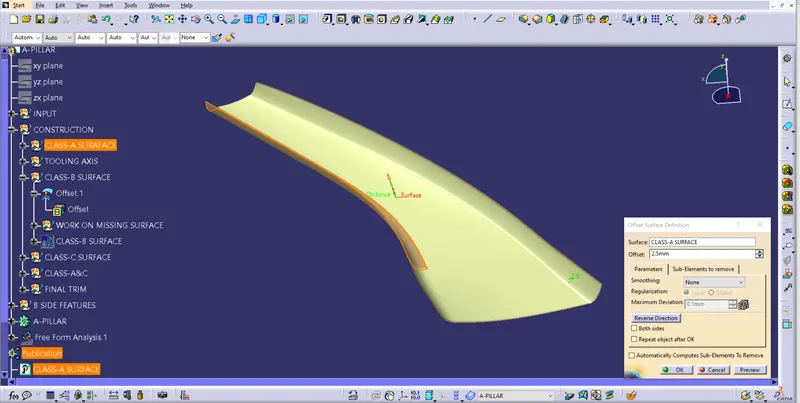

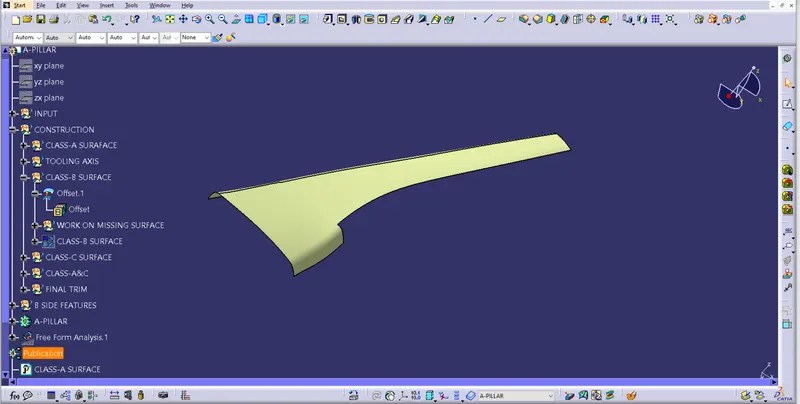

Class-A surface is off-set by thickness.

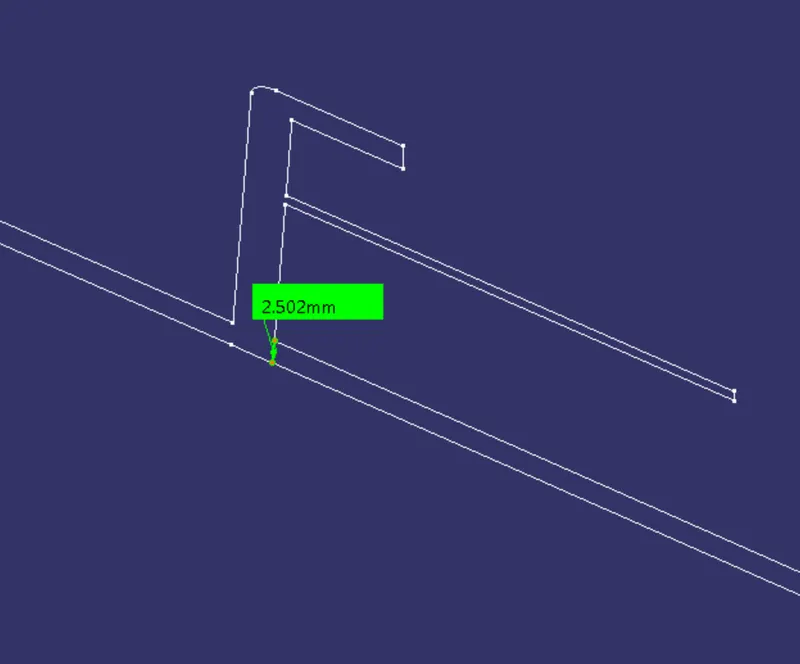

Thickness can be found using master section.

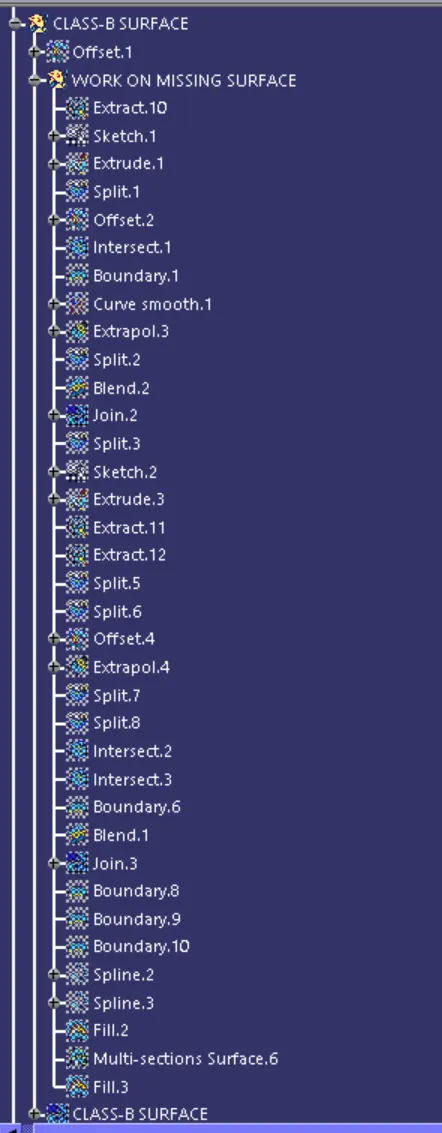

Missing surfaces are filled using sweep & multi section surface commands.
Class-C surface Creation

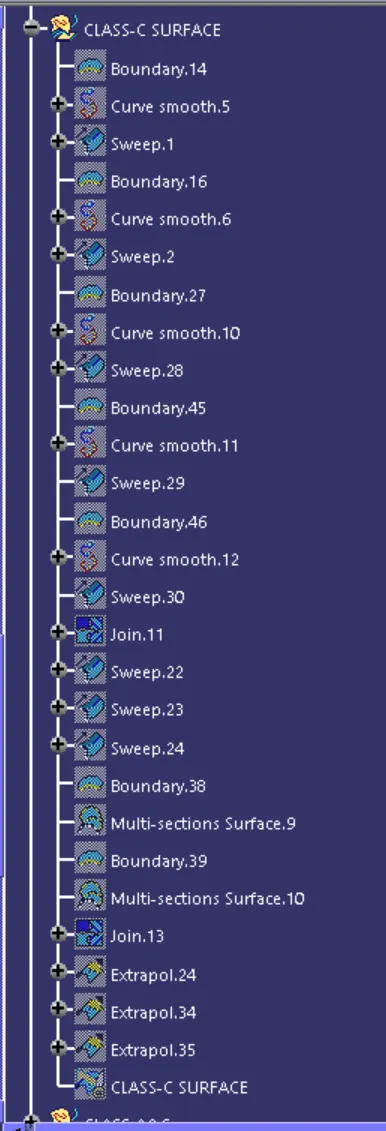

Class-C surfaces created using the boundary of Class-A surface.
Boundaries created & using sweep command drafted in Tooling direction.
Class- C surface.
Class-A&C surface

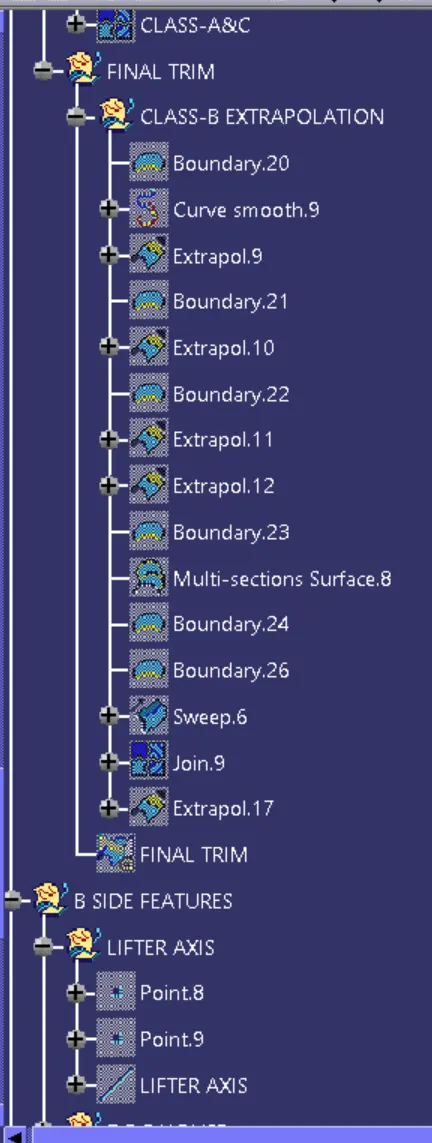

Class-A, Class-C surfaces joined to perform Final trim.
Final Trim

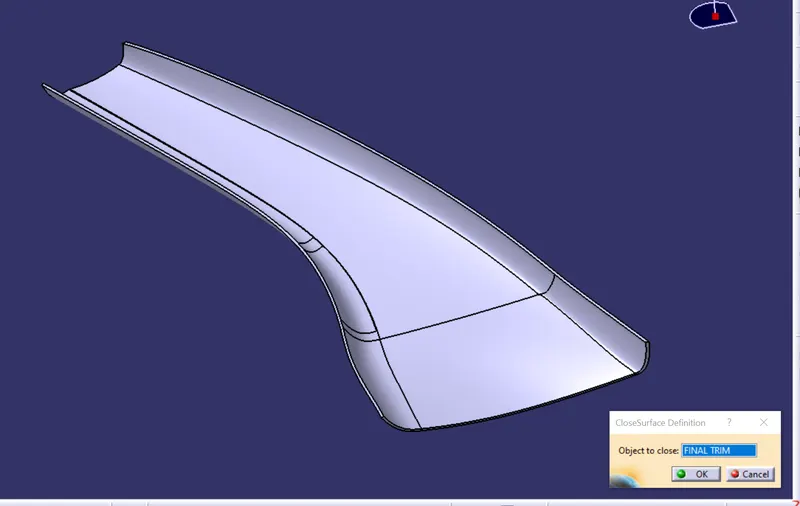

Final Trim consists of closed surfaces & obtained by trimming Class-A&C with Class-B surface.

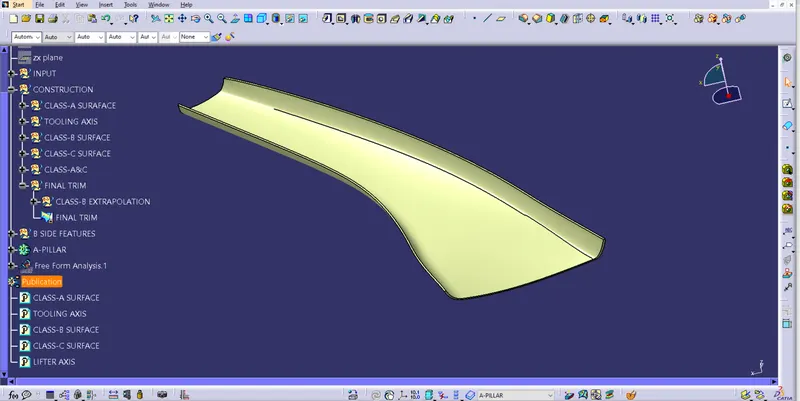

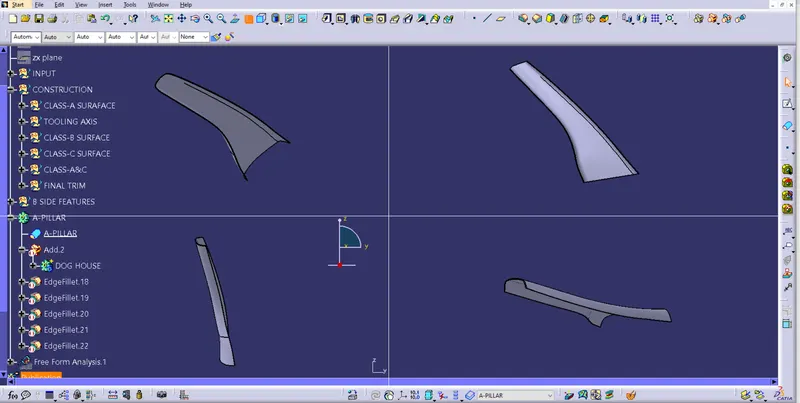

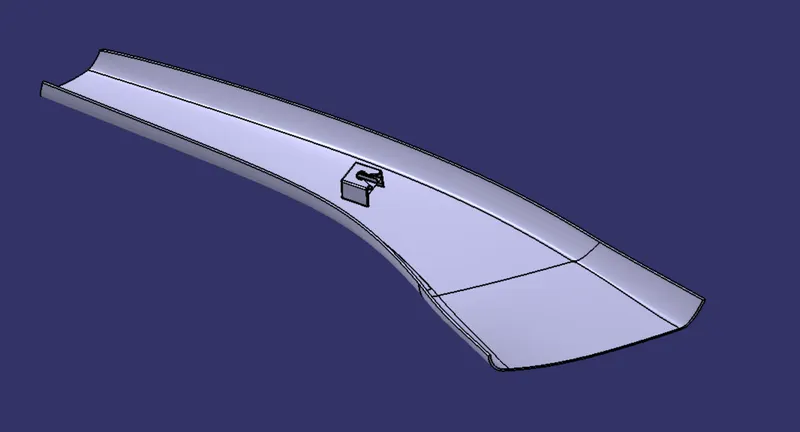

All views of solid A-pillar body.
Dog House Creation.

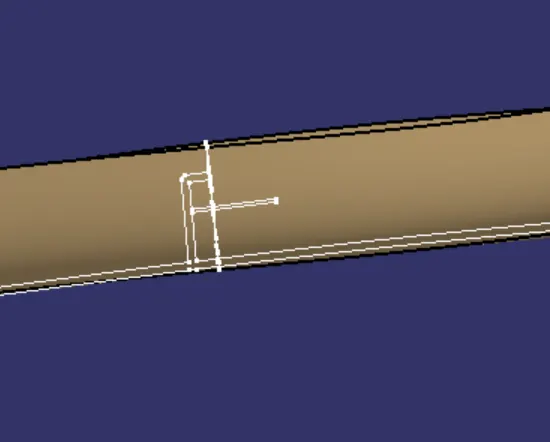

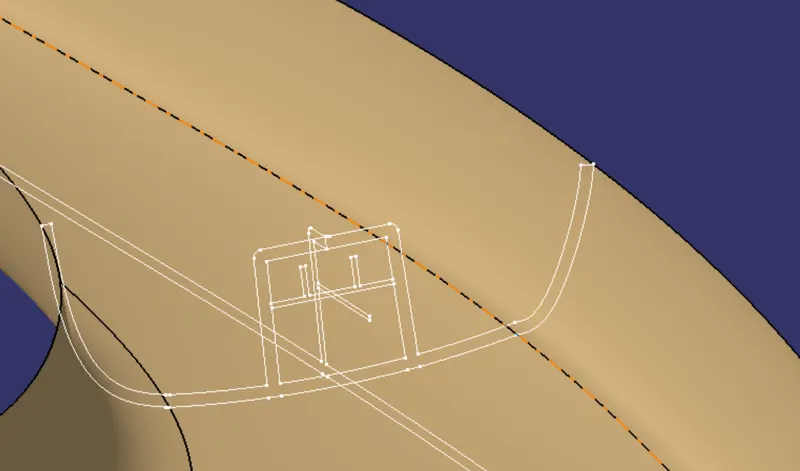

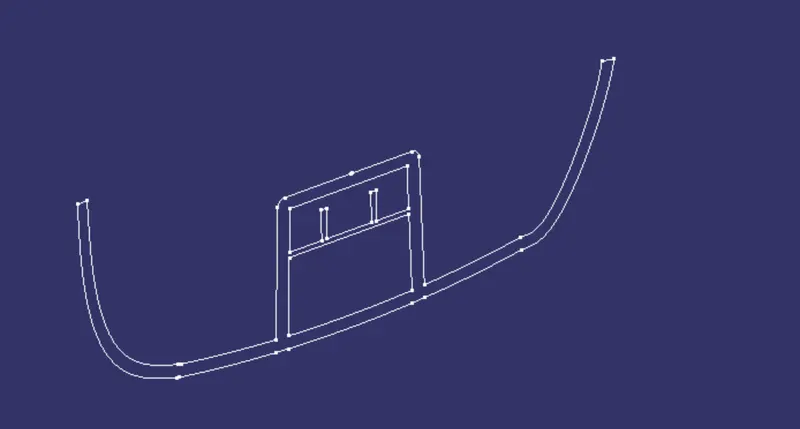

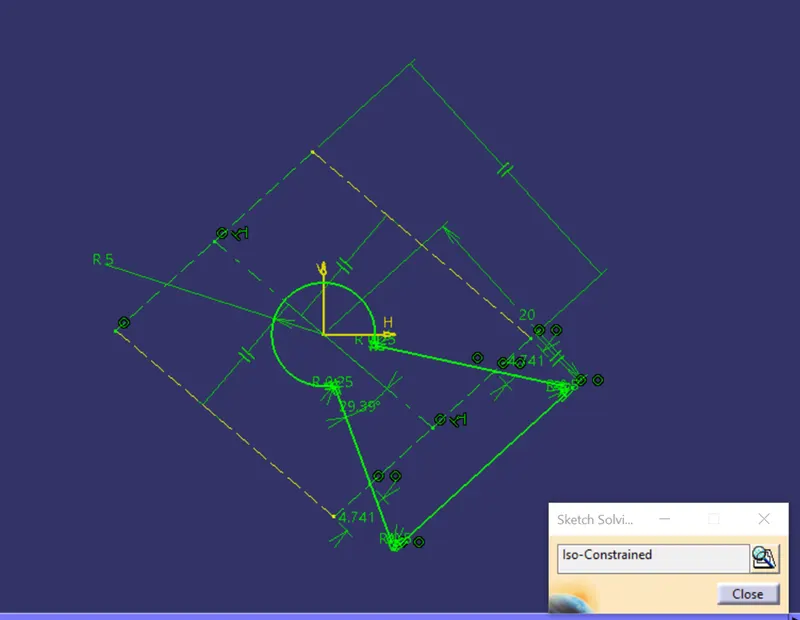

Given Master Sketches

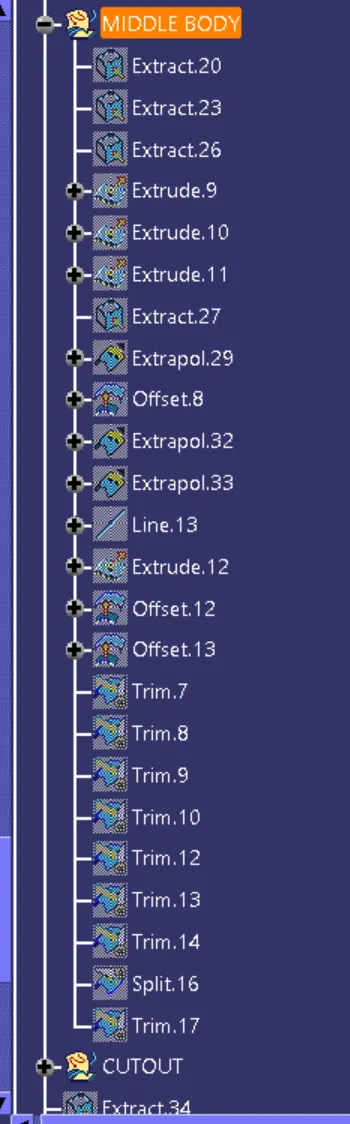

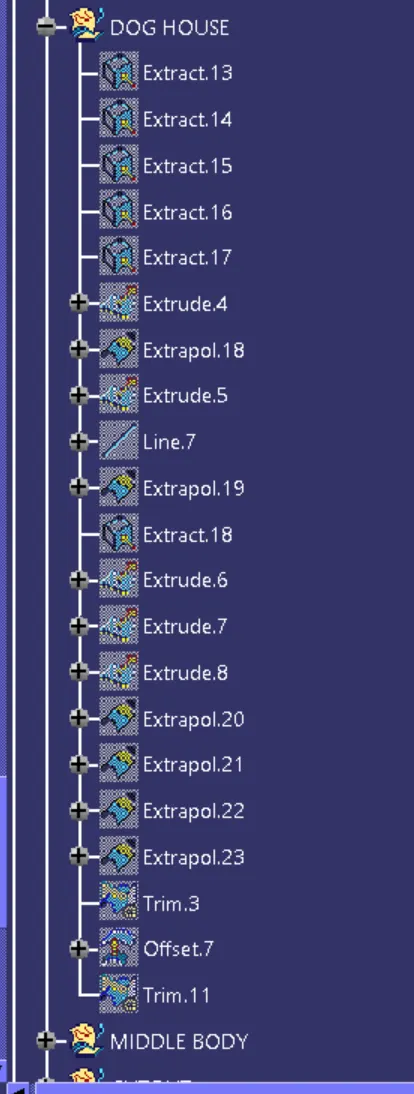

Dog House is created using the master section profiles.

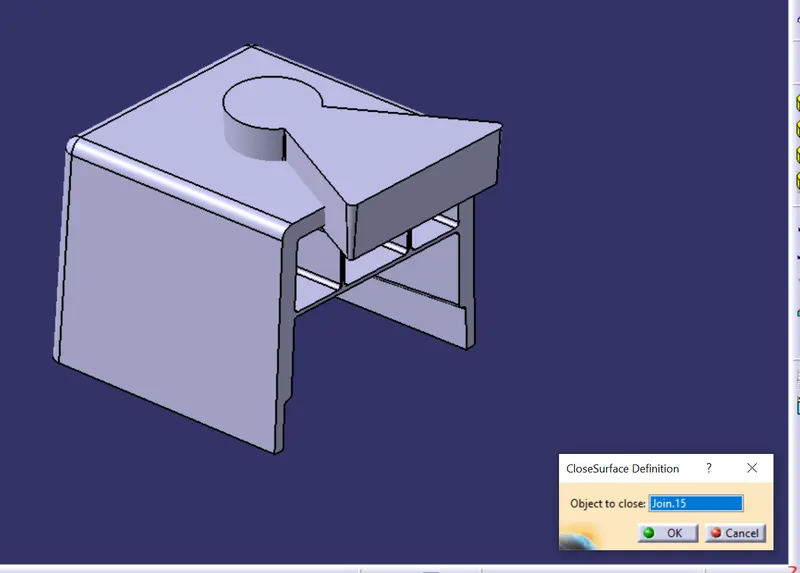

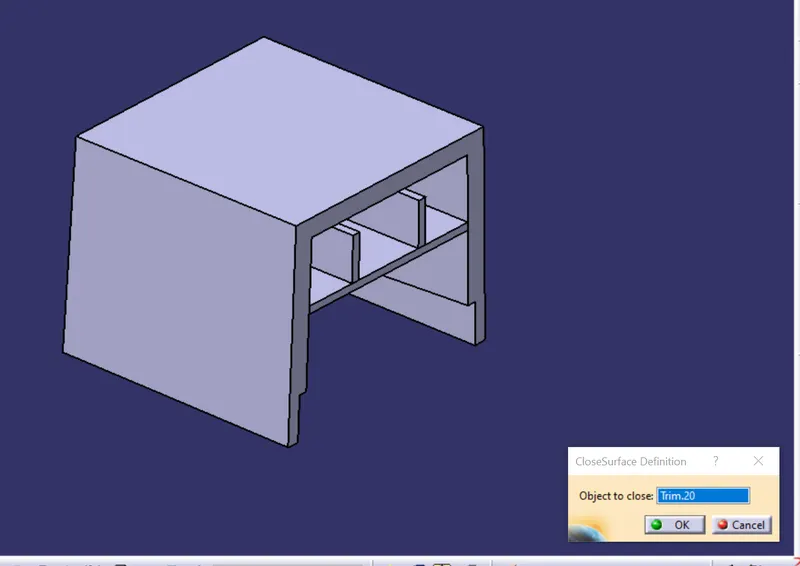

Close Body of Dog House(Without top cutout)

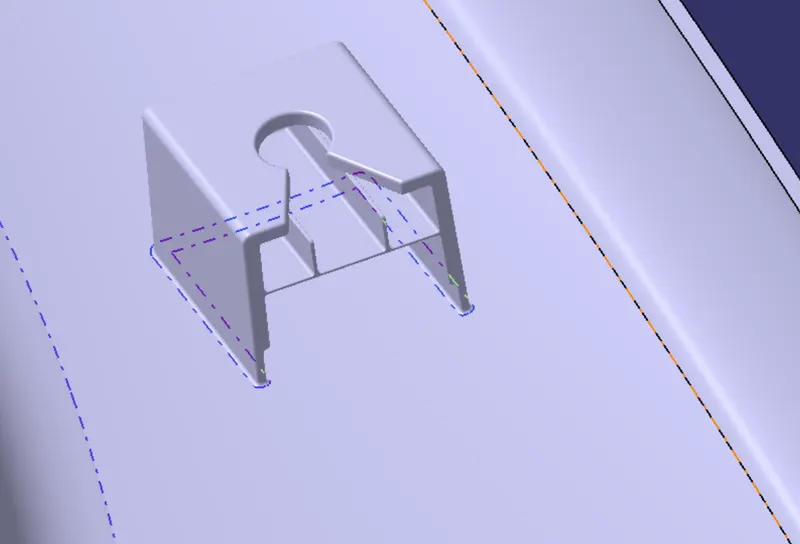

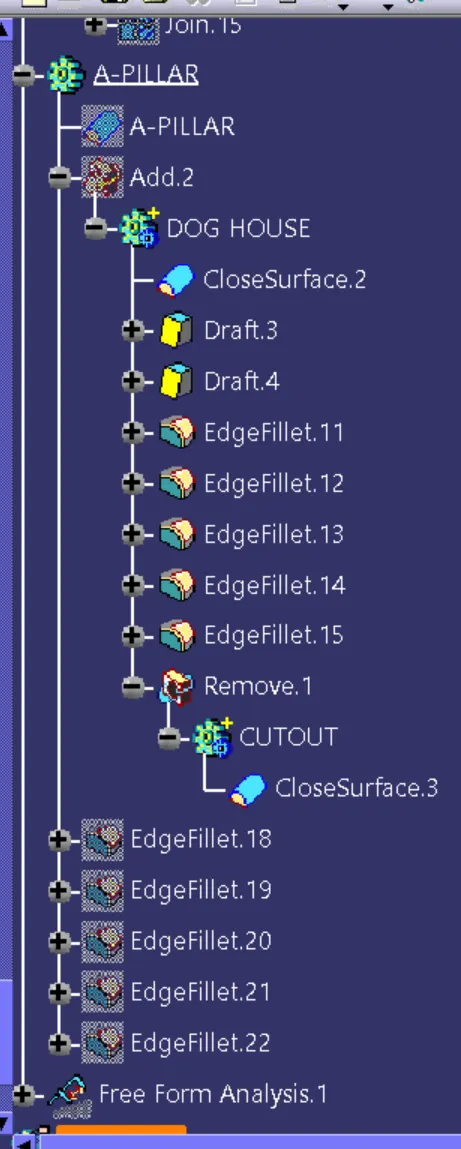

Dog House with cut out

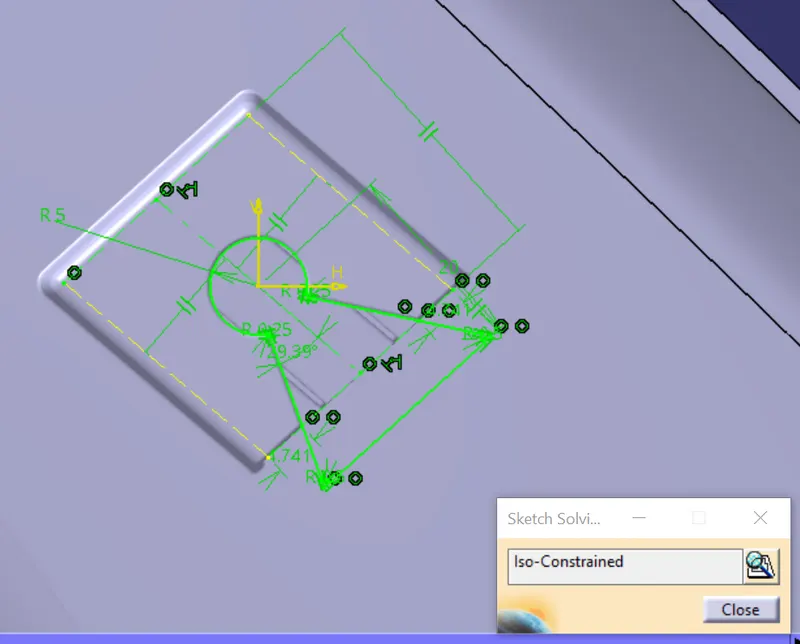

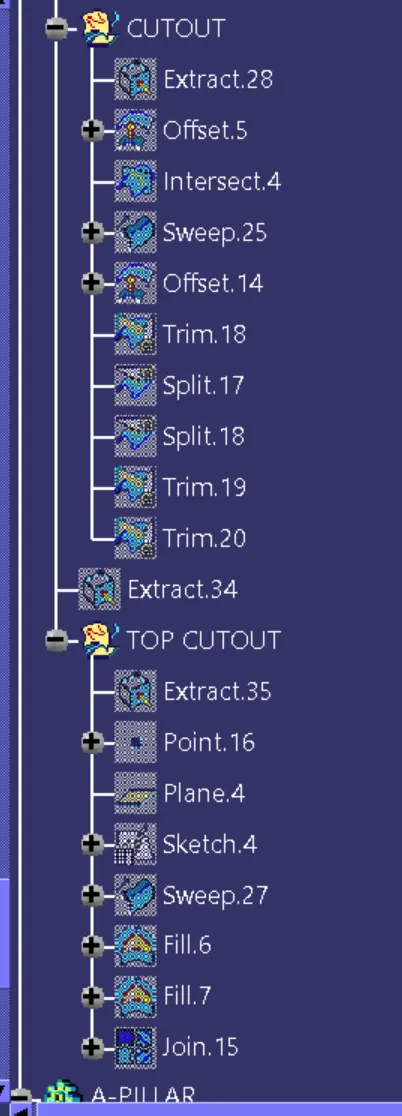

The above sketch is used to create cutout body.

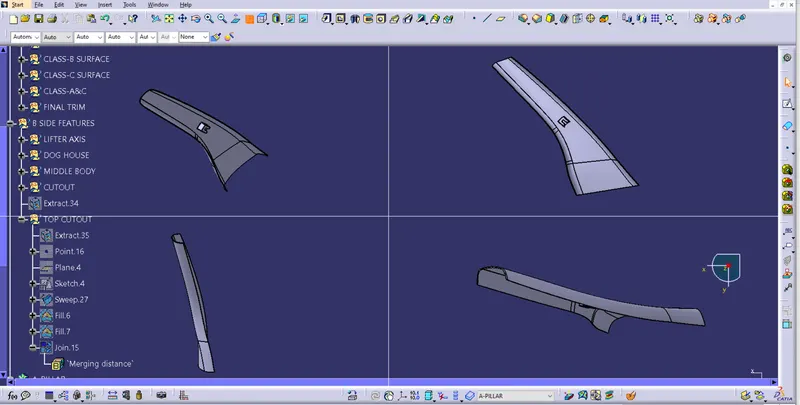

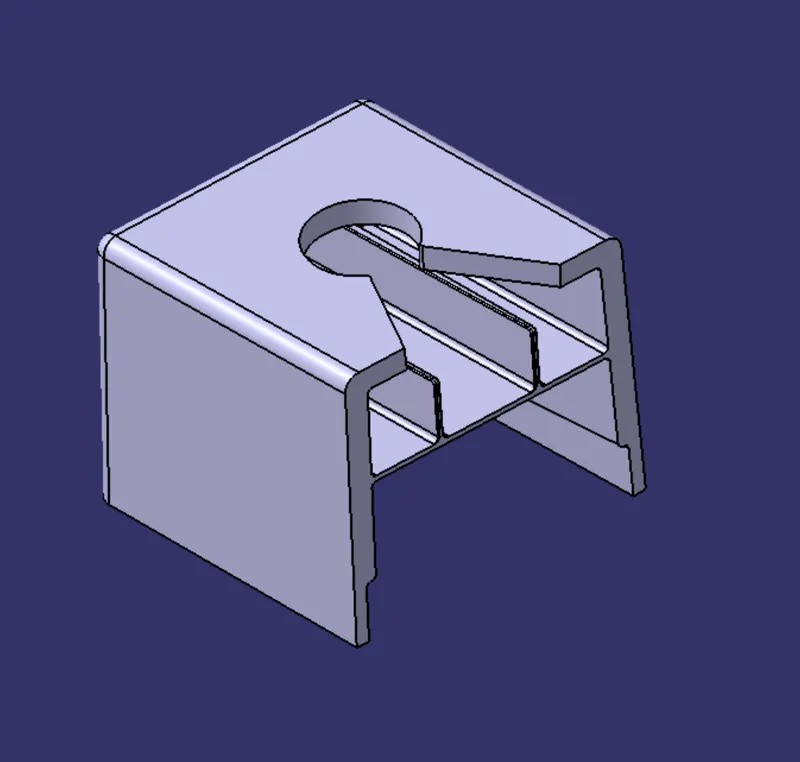

All views of dog house with cutout.

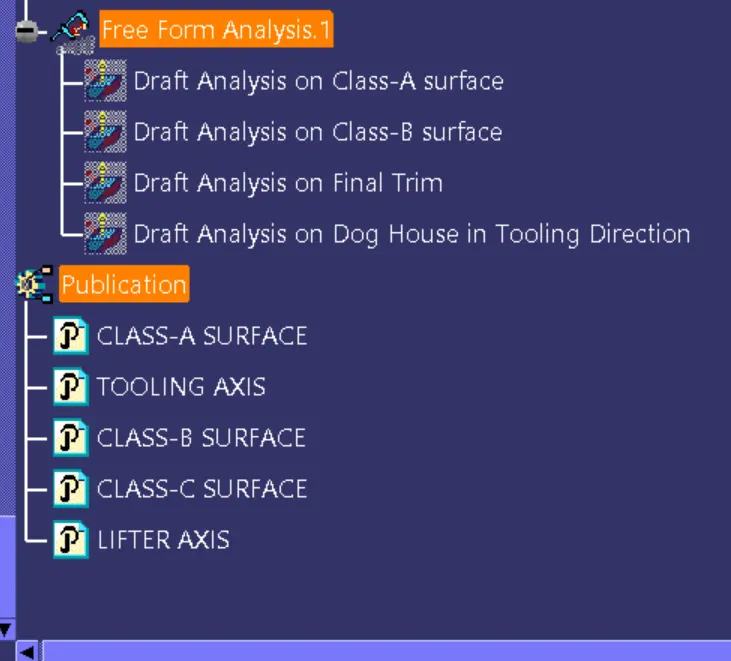

Draft Analysis on Class-A surface
Few steps need to be followed to perform draft analysis.
a. View --> Customise view parameters --> Mesh --> Material --> Ok.
b. The go to Insert --> Analysis --> Feature Draft Analysis
c. Click on compass from the direction, drag & drop compass on the tooling axis in such a way that Z axis to be along the tooling axis.
d. Lock the compass using lock command from direction.
e. Click on the surface to see the results.

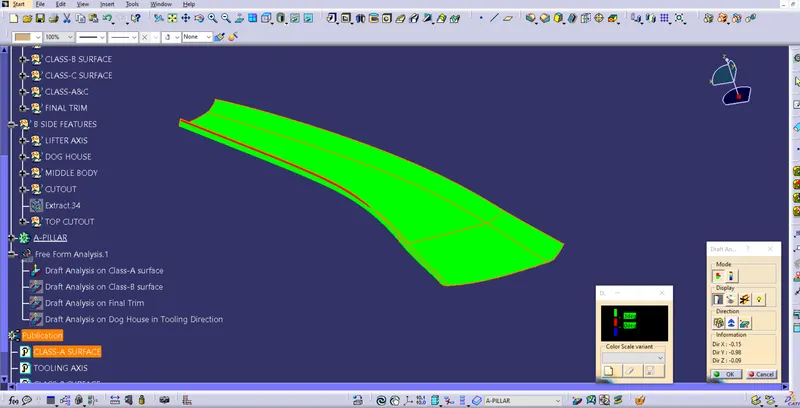

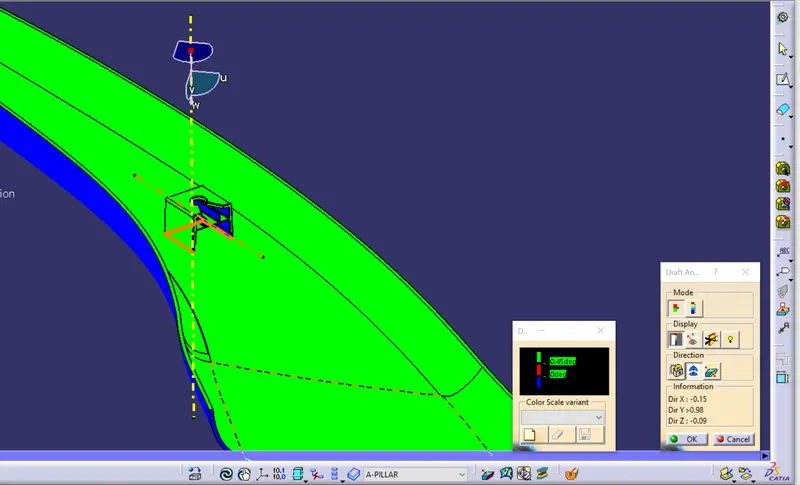

Draft Analysis on Class-A surface.

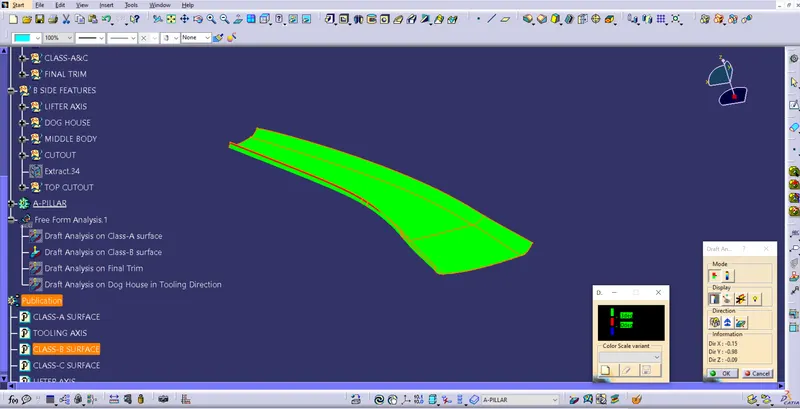

Draft Analysis on Class-B surface.

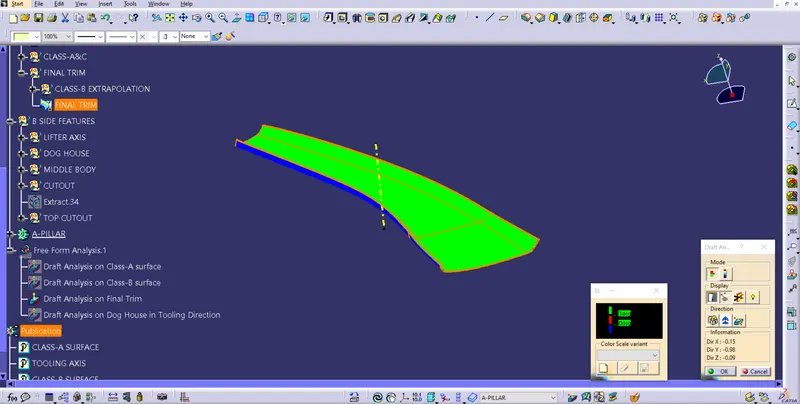

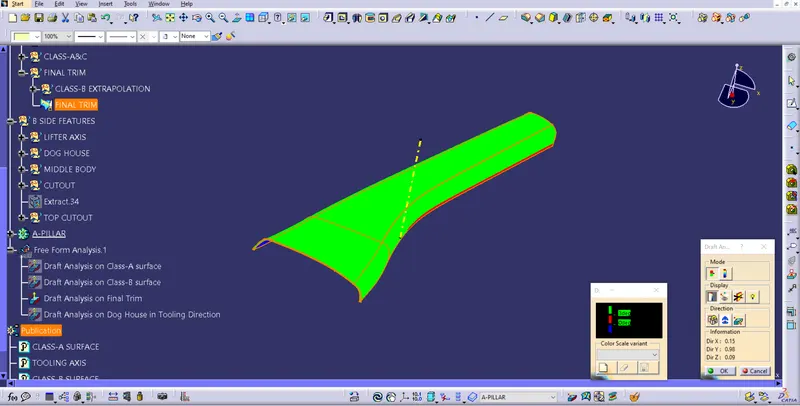

Draft Analysis on Final Trim.

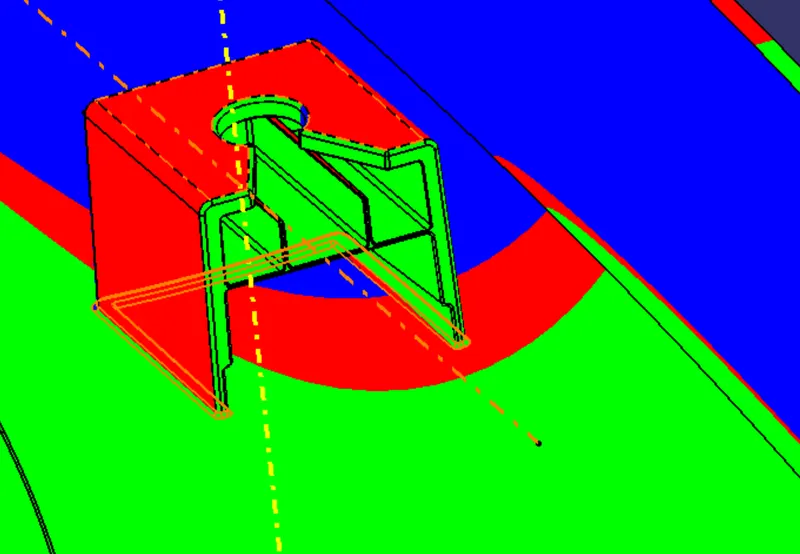

Draft Analysis on Dog House(Tooling Direction).
Draft Analysis on Dog House(Lifter Direction).
