A PILLAR DESGIN WITH MASTER SECTION
As mentioned in the challege we need to create the A pillar desgin by using Master section As we all now need check the surface condition for the given Class A if ok means good to go or we need to work to bring the good condition
Creating the Tooling Axis

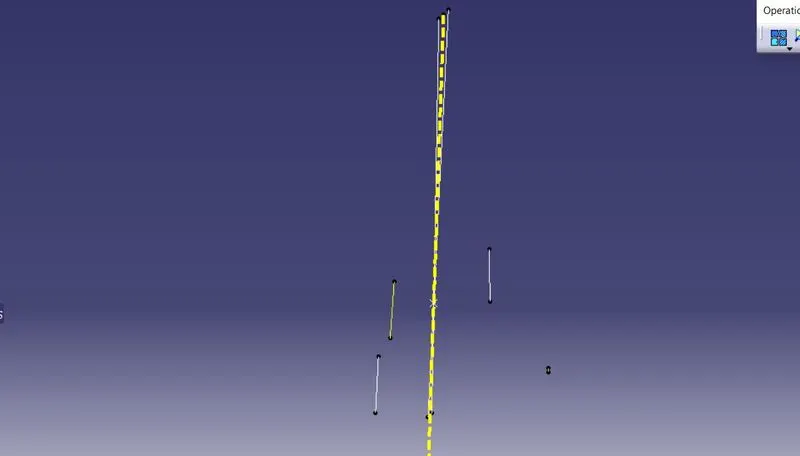

- firstly we need to create the plain by using the three point plane then exract the all the four lines given in the master section and by using bisecting method

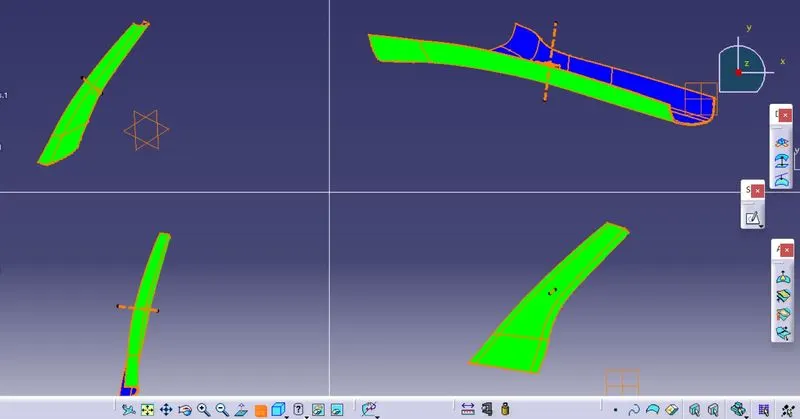

- perfrom the draft analysis and check the whether itb clearing or not for the given draft
Tooling Axis
Creating the B and C surface
- for creating the B surface first need to offset the given Class A for 2.5mm thickness as given in the challange the it will get some patches in the B surface, we need to create surface by using multysection or sweep commad based on the problrm occure
- by using the normal to surface we need create the C surface by using sweep commad
- then trim with B surface and join(C+B) with A surface for getting closed body

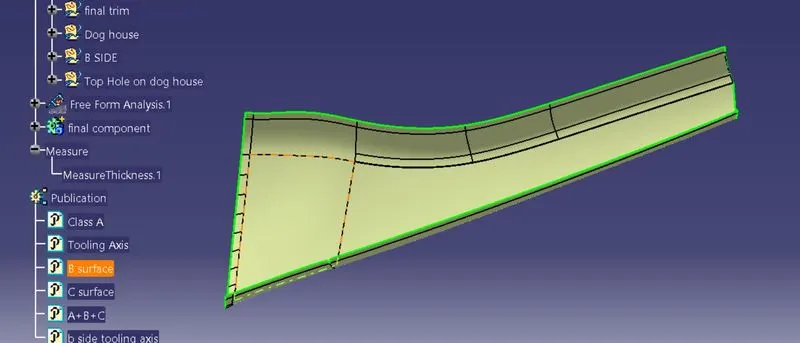

C surface B surface
- after joinig class A B & C perform the draft analysis for the fianl compnent for clearance in the core and cavity
Dog house creation
- create the dog house on the A pillar with the master section provided in the challenge
- firstly exract the master section line create the surface and give the thickness to the surface and perform the draft analysis on the dog house ,as in this challange draft is given to the master sectionso no need to given draft to the doghouse again
- in middle push pin mastersection is also provided so we need exract and add to the dog house
- in the given pdf of dog house there is hole at top we need to create steckech as provided in the pdf
- after creating stekch pad and remove from the dog house

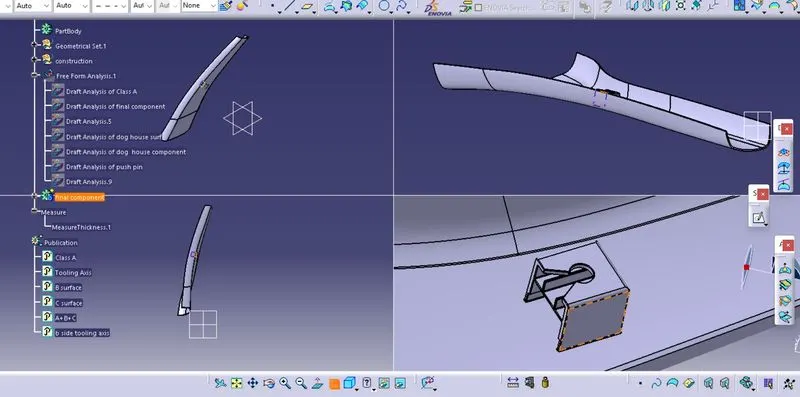

- then perfrom draft analaysis with respective to normal tooling axis and withe b side tooling axis
- then unoin trim with the main compent

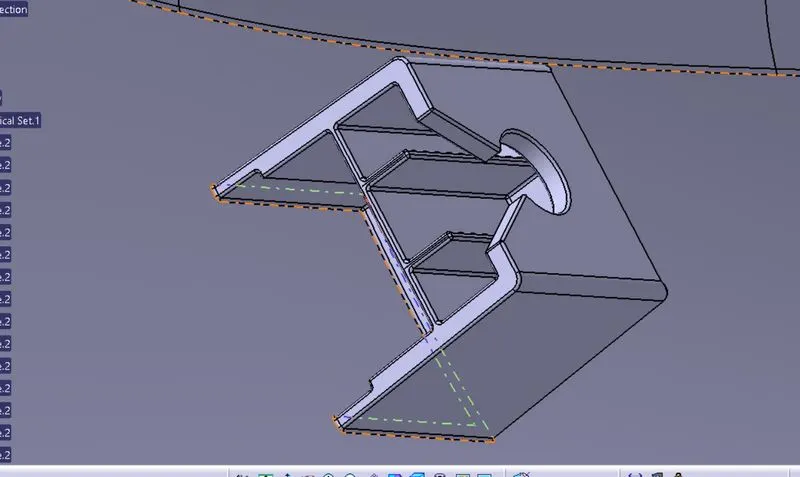

Dog house as per masster section
top side and front view

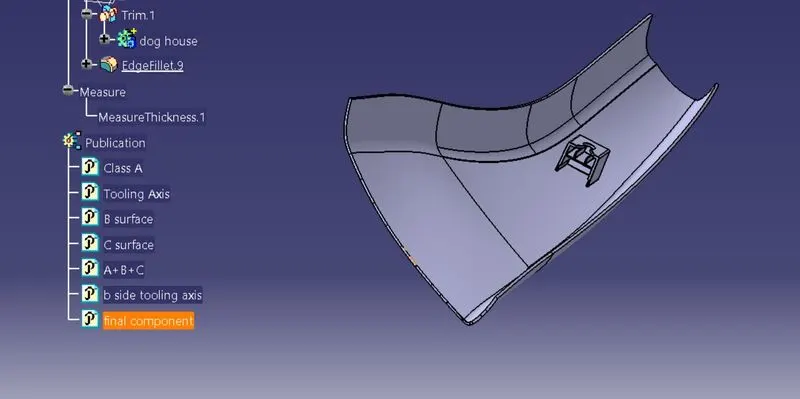

final compenet with dog house

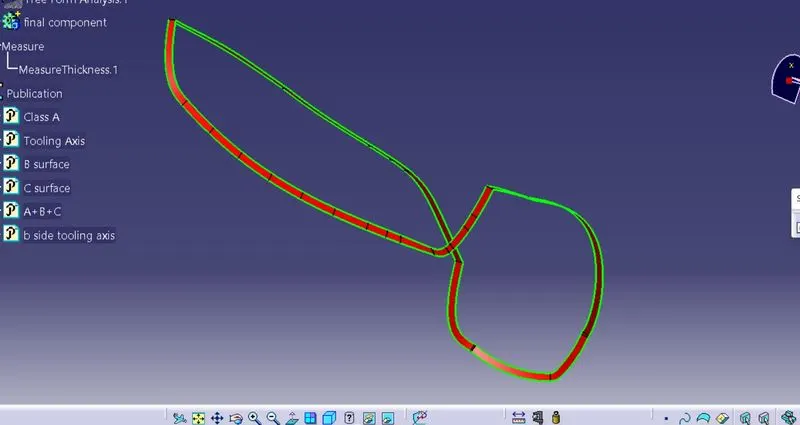

Draft Analysis of the final component
repected image and catia file is upload below for your refernce
