Week 9 - Project - A pillar Design with Master Section

A-Pillar Design using Master-section:

Aim:

To design an A-Pillar using the Master section and to keep all the design parameters into consideration.

A-pillar:

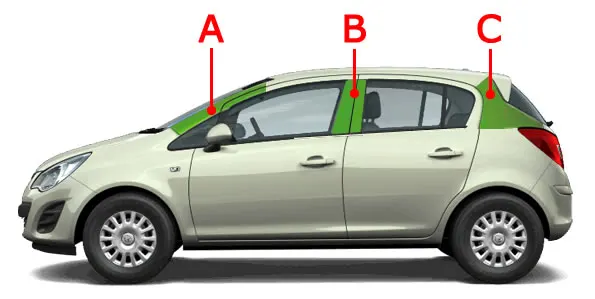

A pillar refers to vertical structural support that helps to hold the roof of the car up and provides a frame for the windows. There are several types of pillars in a vehicle, and they are usually designated by letters.

The A-pillar, for example, is the vertical support on either side of the windshield, while the B-pillar is the vertical support that separates the front and rear doors. The C-pillar is the vertical support at the rear of the car, between the rear side windows and the back windshield.

The size and shape of the pillars can vary depending on the design of the car, and they can have an impact on the car's visibility and overall structural strength. Car manufacturers will often use different materials, such as high-strength steel, to reinforce the pillars and enhance the car's safety performance.

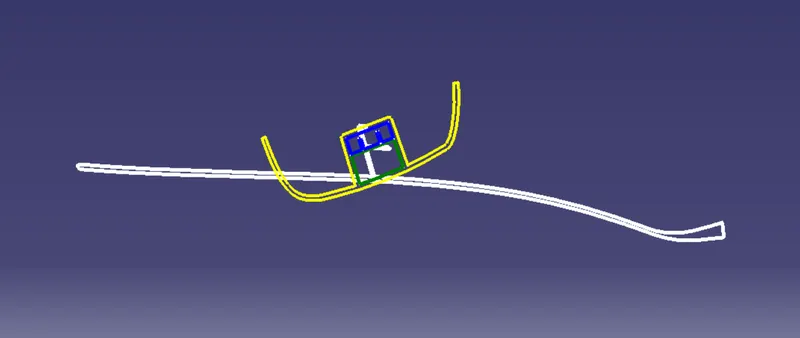

Master section:

In automotive design, the master section is a three-dimensional model that represents the overall shape and proportions of a vehicle. The master section is typically the first step in the design process, and it provides a way for designers to visualize and refine the basic form of the vehicle.

The master section is created using a combination of computer-aided design (CAD) software and physical modeling techniques. Designers will use sketches and renderings to develop a basic idea of the vehicle's shape, and then create a three-dimensional model that can be refined and adjusted as needed.

A master section is an important tool for automotive designers because it allows them to evaluate the proportions and overall shape of the vehicle from multiple angles. By manipulating the master section, designers can explore different design options and make adjustments to the vehicle's overall form.

Once the master section is complete, designers can use it as a reference to create more detailed models and refine the vehicle's design. The master section is also used as a reference during the engineering and manufacturing process, as it provides a detailed representation of the vehicle's overall shape and proportions.

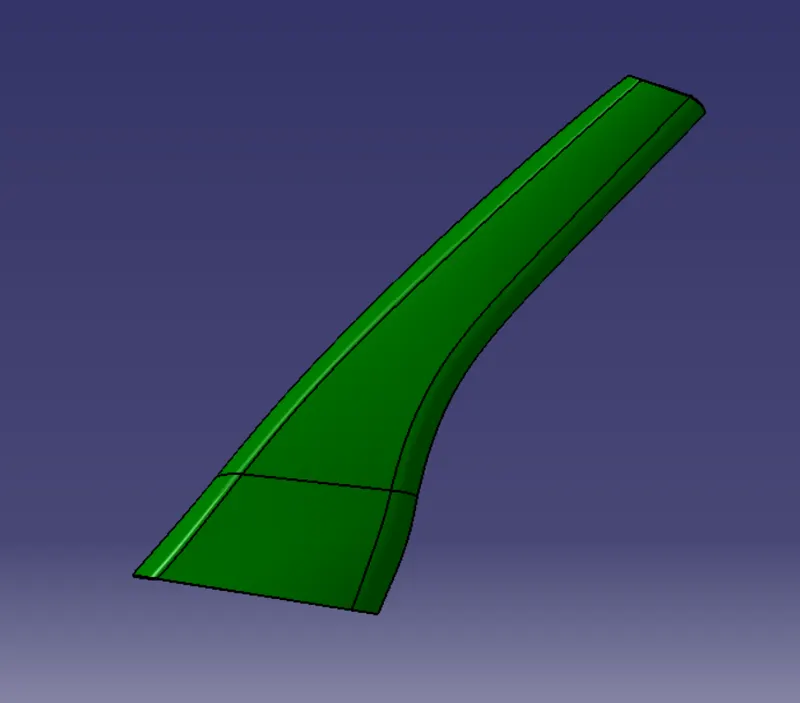

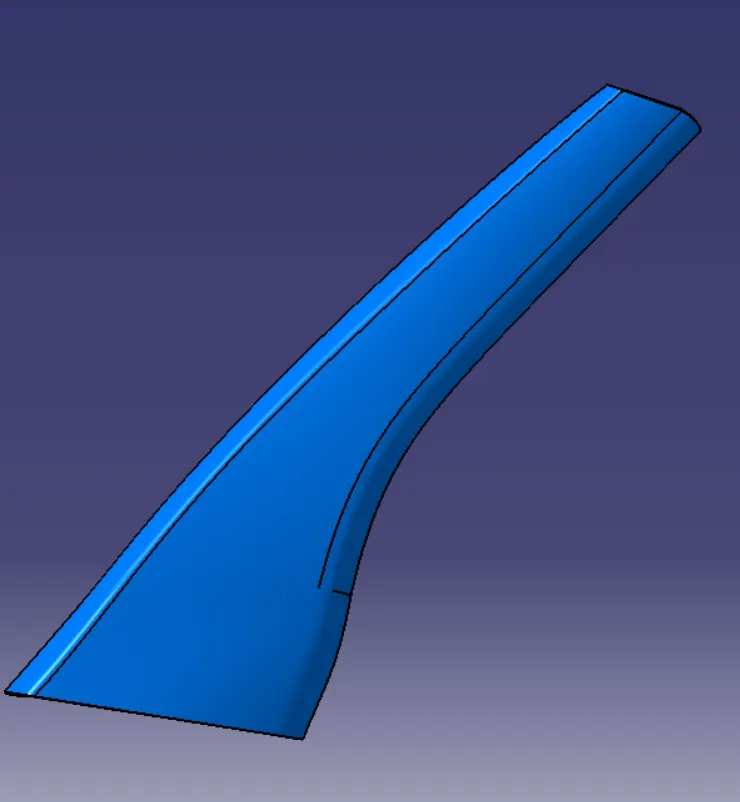

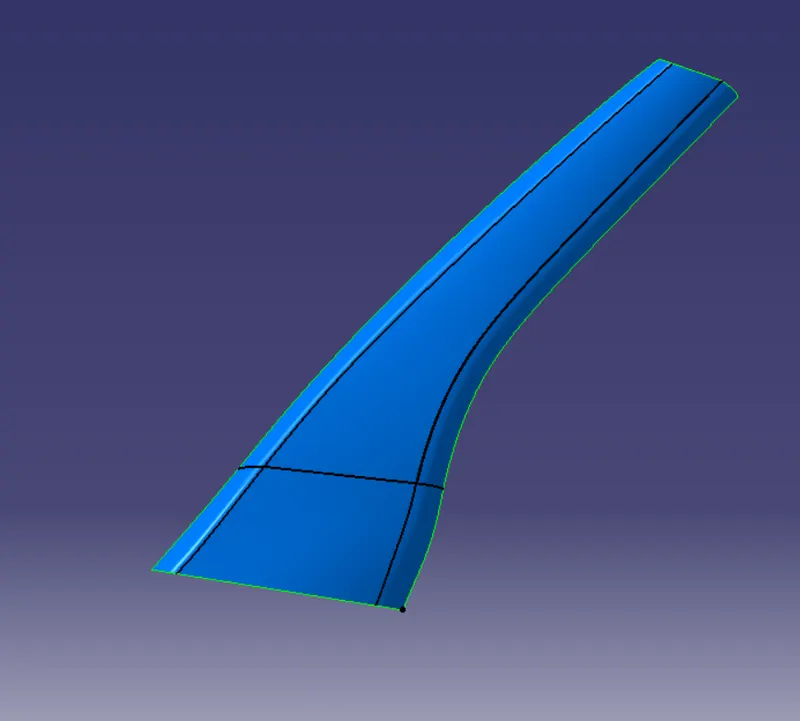

Class A:

The Class A surface is provided by the styling team, According to which the design engineer has to design the Class B and C surfaces. Also, it is the job of the design engineer to check whether the Class A surface is satisfying the draft analysis or not.

When a styling team provides a Class A surface to a design engineer, they are essentially providing a high-quality, visually appealing design for a specific part or component of a product. The Class A surface is created to meet the highest standards for appearance and quality, with no visible defects such as bumps, dents, or seams. The styling team uses advanced design techniques and technologies to create the Class A surface, taking into consideration the design requirements, materials, and manufacturing processes.

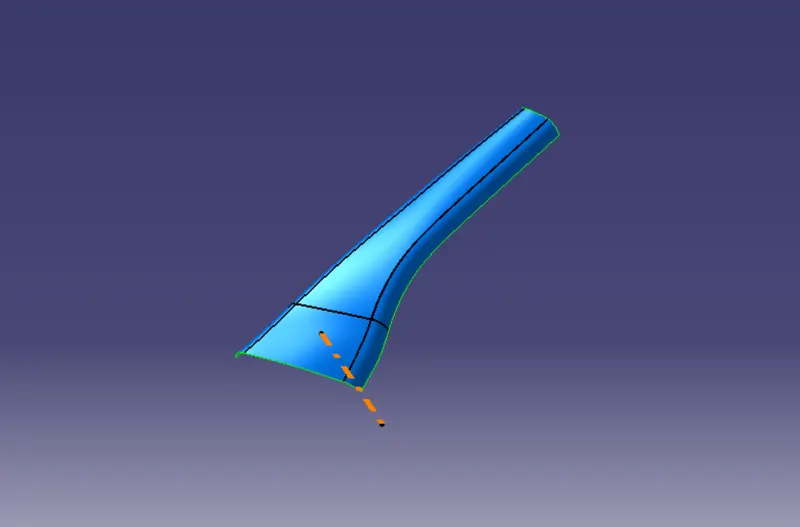

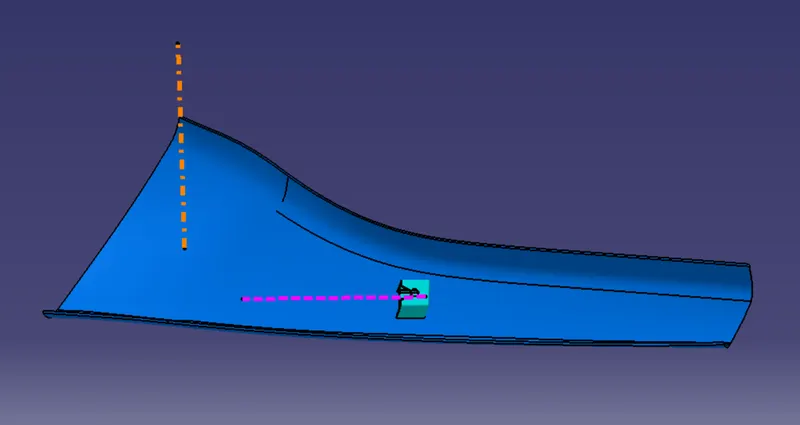

Tooling Axis:

The next step is to create a Tooling axis, It is a reference line used to check the draft analysis of a Class A surface during the product design process.

In this design, the Tooling Axis is created by the Point Direction Method. In this method, firstly we check from which direction, we can get the best view of the Model.

In this case, we got the view for the Y direction, which covers most of the part. So, we took the outermost point of the model and created a line towards the Y-axis. This method is simply based on Trail and Error method, if the model satisfies the draft Analysis using that Tooling Axis.

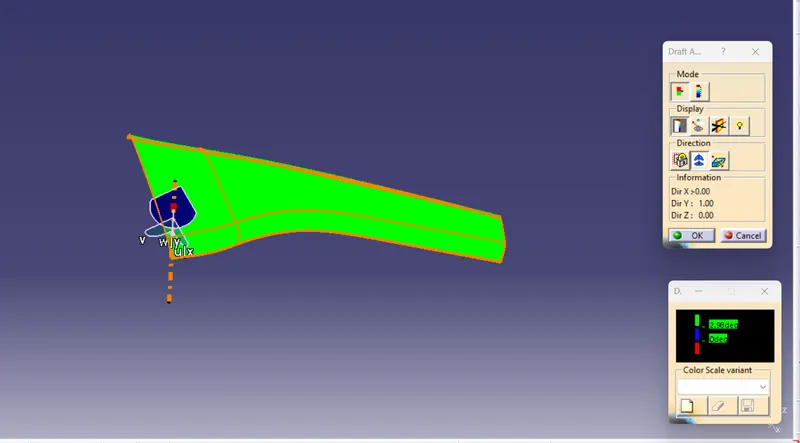

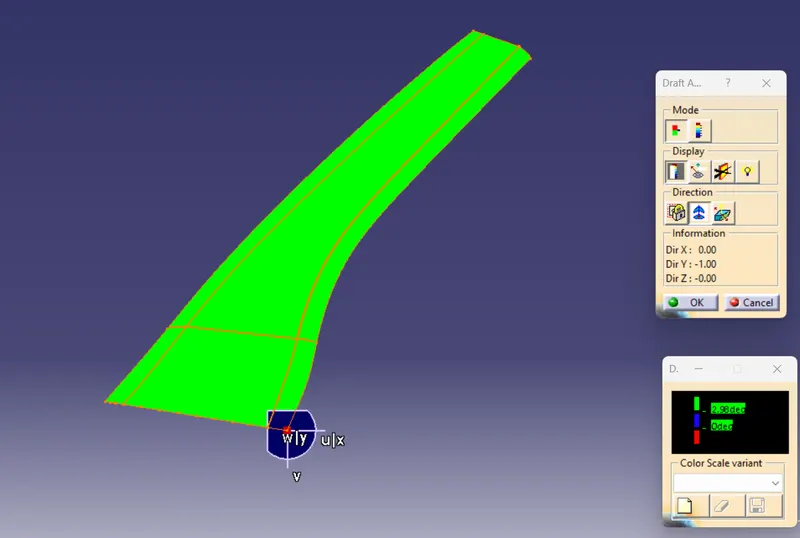

Draft Analysis:

The next step is to check the draft angle of the Class A surfaces by using draft analysis draft analysis is used to determine the angle of the Class A surface relative to the mold or tooling used to manufacture the part. This angle, or draft, is crucial in ensuring that the Class A surface can be properly released from the mold during the manufacturing process, without causing any defects or damage to the surface finish.

It's important to accurately perform the draft analysis and check the Class A surface against the tooling axis, as it can greatly impact the quality and consistency of the final product. An incorrect draft angle can result in surface defects, manufacturing problems, and increased production costs.

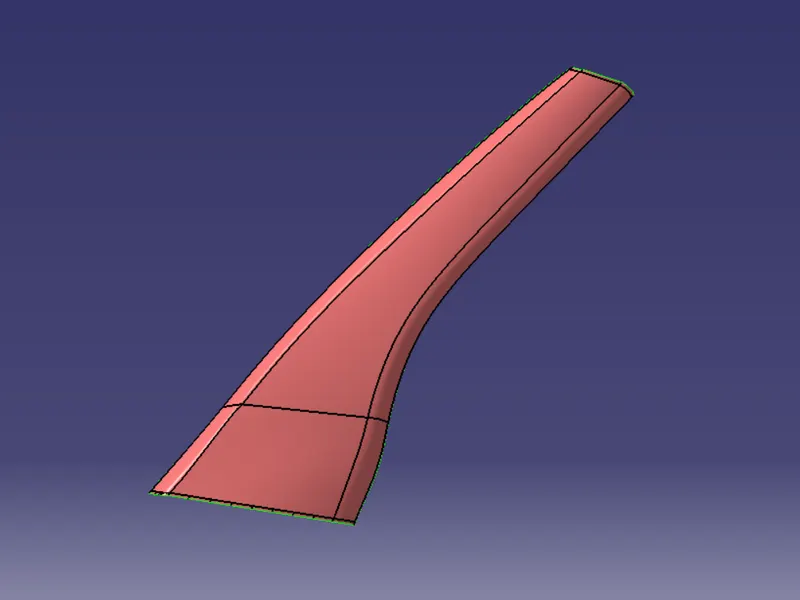

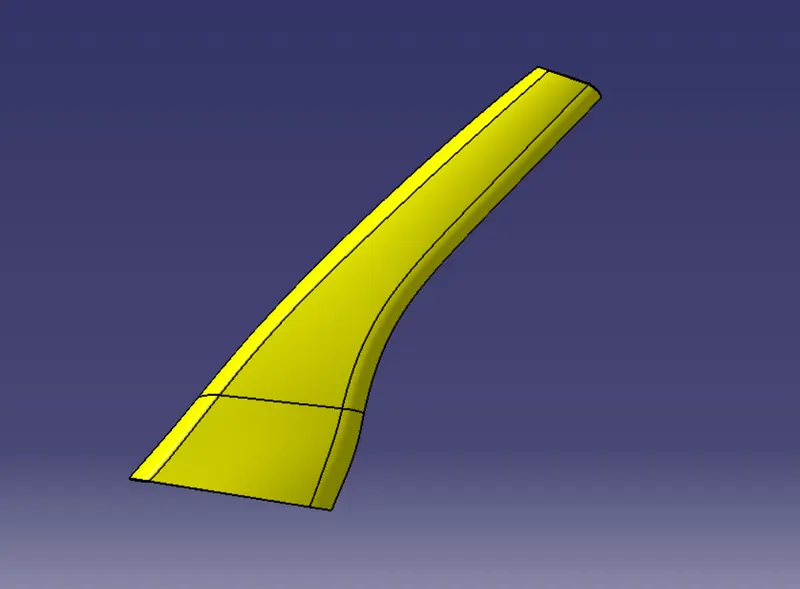

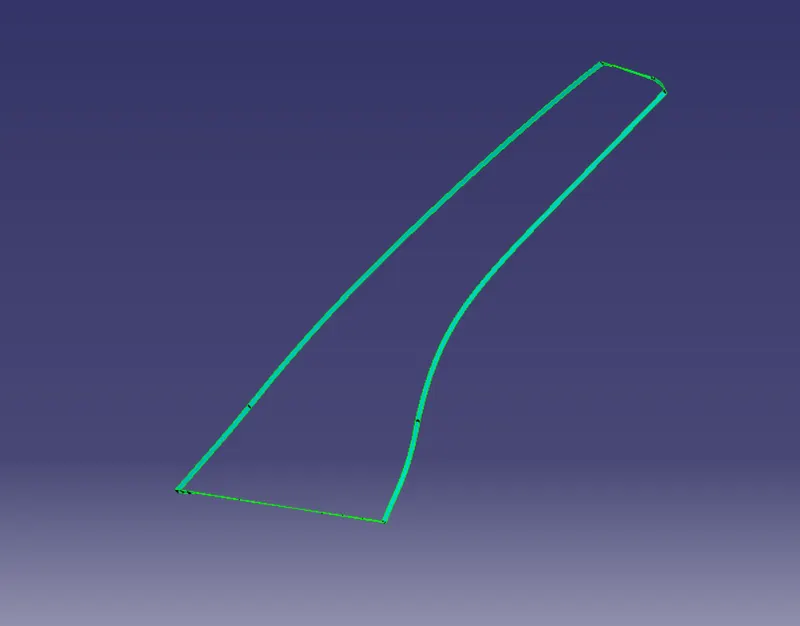

Class B:

Class B surface refers to a lower-quality surface finish in product design, particularly in the automotive industry. Class B surfaces are typically less uniform and have more visible defects than Class A surfaces, such as seams, visible reflections, and variations in color and texture.

Class B surfaces are typically used for less visible or critical parts of a product, such as an underbody or interior panels of a car. They are usually manufactured using less advanced techniques and materials compared to Class A surfaces, resulting in lower quality and less consistent surface finish.

The design engineer is responsible for determining the type of surface finish required for each part or component of a product. When a Class B surface is required, the design engineer will typically choose materials and manufacturing processes that are less expensive and less time-consuming than those used for Class A surfaces. This allows for a lower-cost product to be produced, while still meeting the functional requirements and design specifications of the product.

Class C:

The class C surface is designed to create a join the Class A and Class C surfaces, this part can be created in Catia using the sweep command also there needs to be at least a 3-degree draft to satisfy the Draft Analysis for the manufacturing of the component.

In the C-surface draft analysis, there are some issues with the Draft analysis as the edges on the A surface are not smooth enough which further results in the disorientation of the class C surface. So, this is the main reason why C-surface is not satisfying the Draft Analysis. The best possible way to correct this issue is to give some changes to the edges of the Class C surface So, this part need to be referred back to the styling team for changes.

Final Join:

The Final Join is done by using two simple steps, Firstly, we need to join the Class A and Class C surface after that this join need to be trimmed with the Class B Surface to create the Final Join.

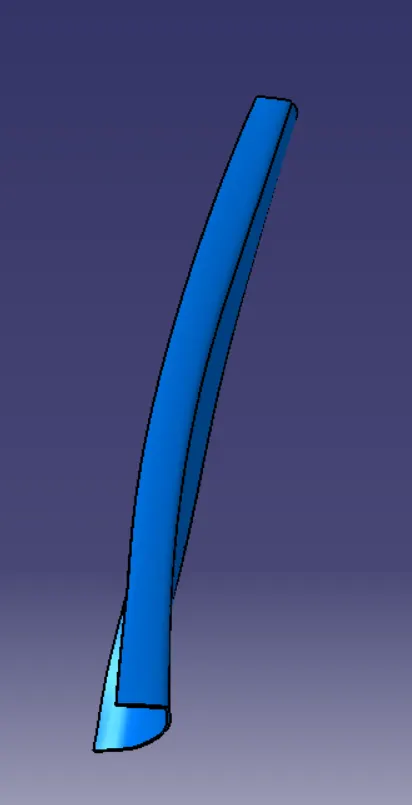

Closed Surface:

After that, we need to go to the part design workbench and using the close surface command create the base Door Trim solid part body.

Draft Analysis of Closed Surface:

In the final step, we need to do the Draft Analysis of the Solid Body to ensure the Manufacturability of the product.

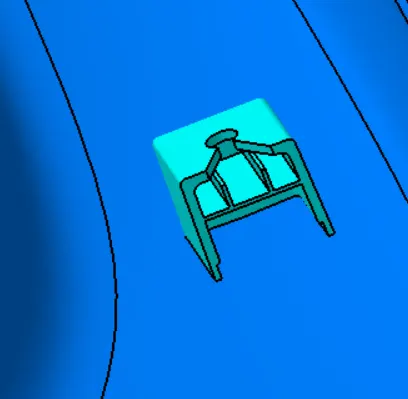

Dog House with Ribs:

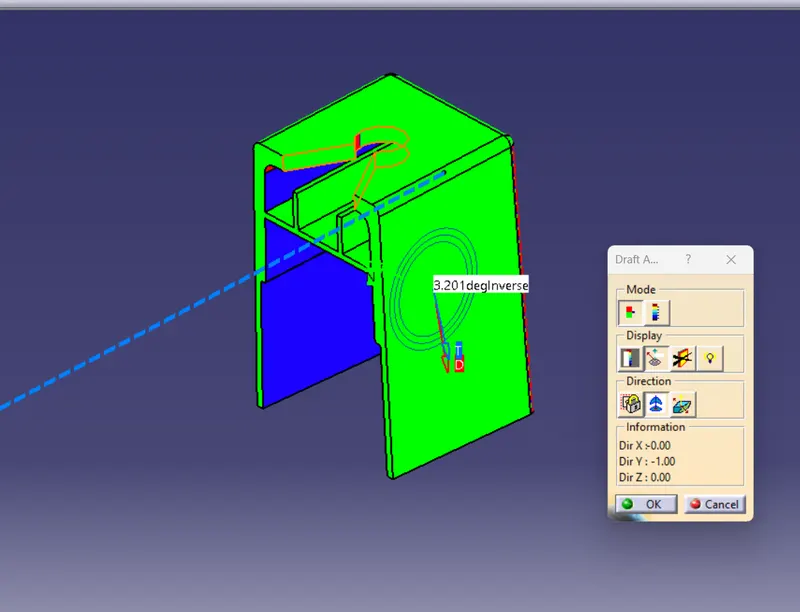

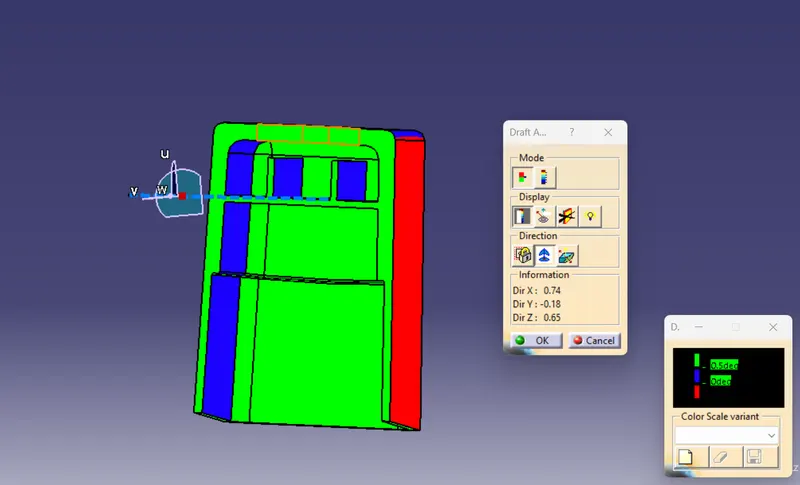

Draft Analysis on Dog House:

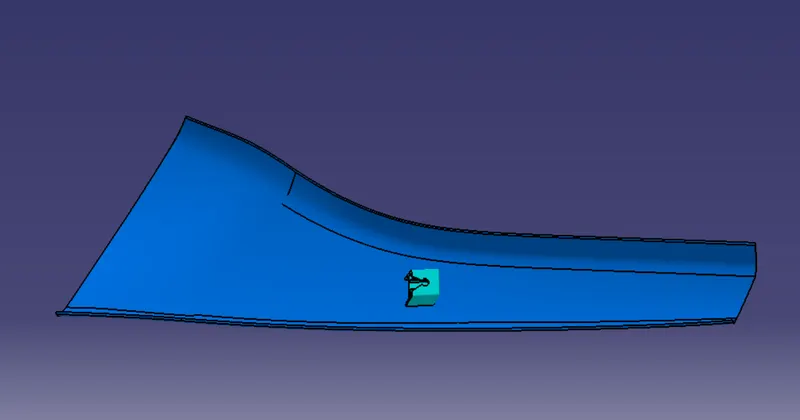

Views:

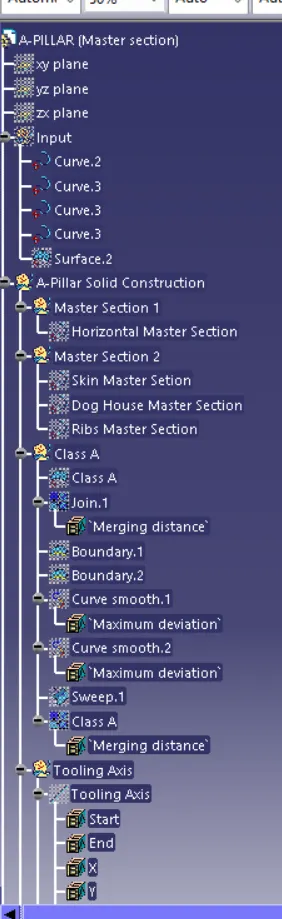

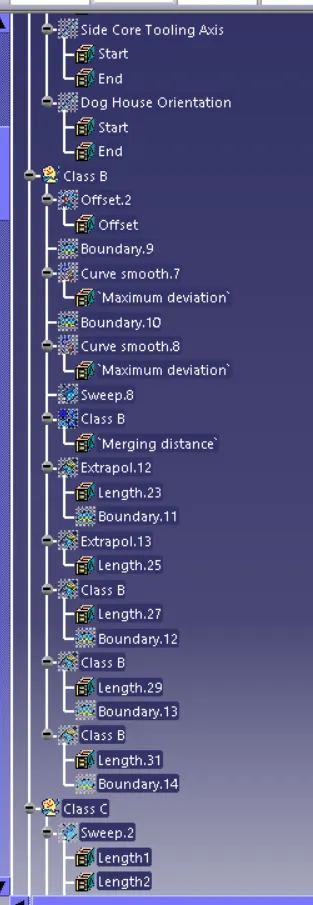

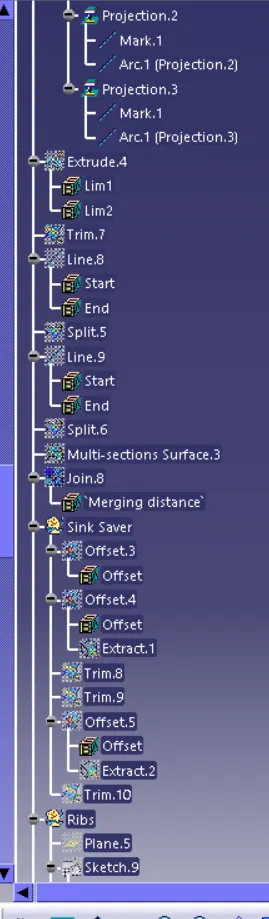

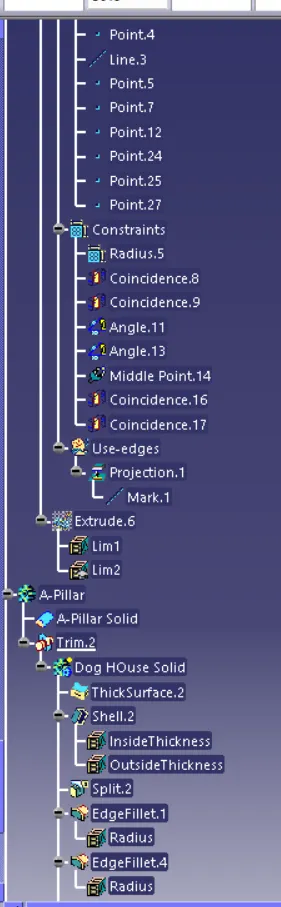

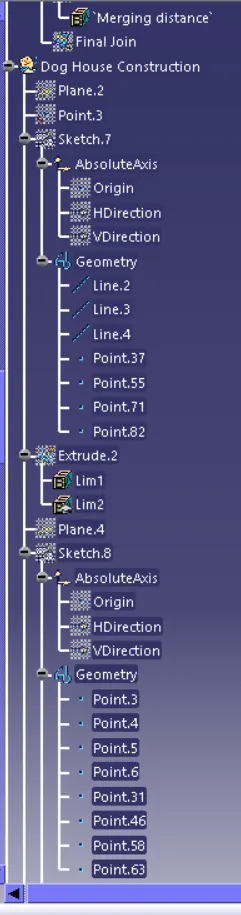

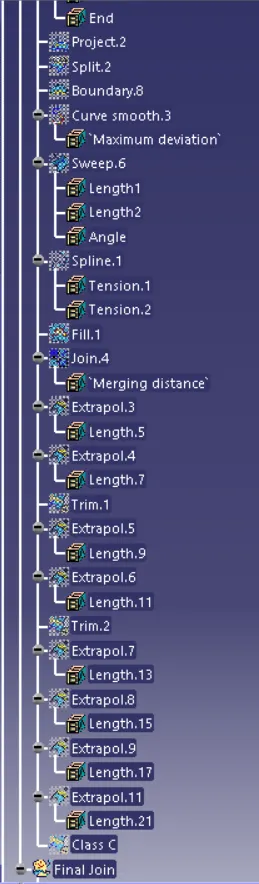

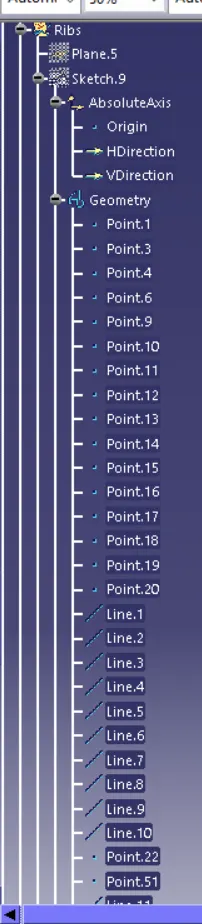

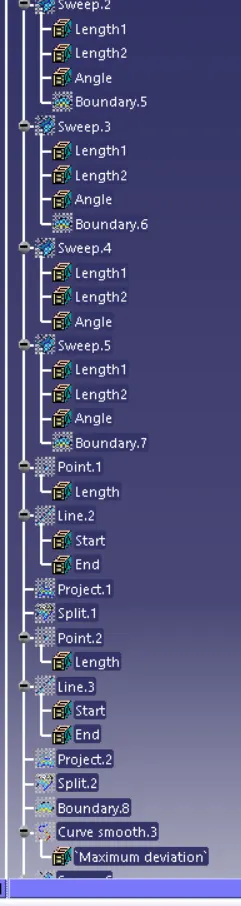

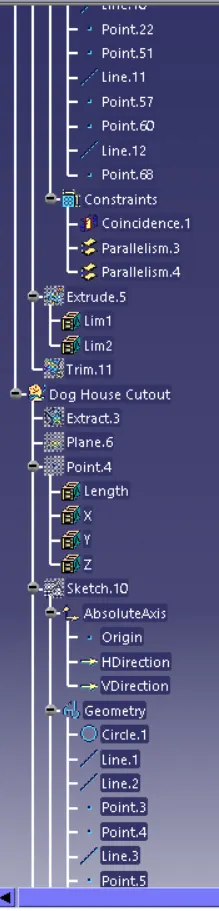

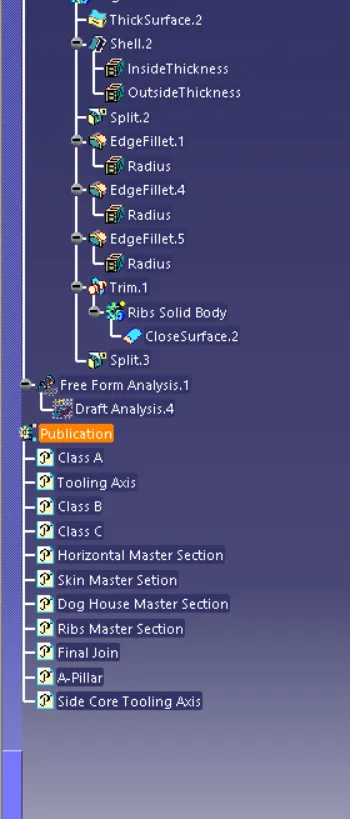

Feature Tree:

Conclusion:

Following the above mention draft analysis the design of the A-pillar using the master section is completed. Although there is some issue that needs to be corrected by the styling team.
