Week 9 - Project - A pillar Design with Master Section

objective: The main objective of this challenge is to under stand the given master section to creat a solid body and B side features for a class A surface by considering all the design parameters

master section:master section are guide wish decide the component packaging after technical.

Tooling axis: To creat the tooling axis,i used to ectract the master section and extract the line and created the bisecting line at the centre of the two line it is bisecting line inthe command

Draft analysis:The draft analysis check is performed on the class A is surface before we creat we check the given class A surface of draft is properly or not. the draft angle for a plastic component is 0.5 deg to 3deg.

Class B surface:To creat the class B surface initially i measured the master section is 2.5 mm.I offset the class A surface 2.5mm in inside direction.The styling fillet on class A surface is not offset properly it created the patches i used sweep command to fill the patches .

Class c surface:creat the class C surface, i used sweep command .i sweep the outer boundary of class A surface with the reference surface draft angle 90 deg.joined the class A and class C to get single surface A+C.I trim the class B surface with class A+C join to get the closed surfaceto creat solid body.

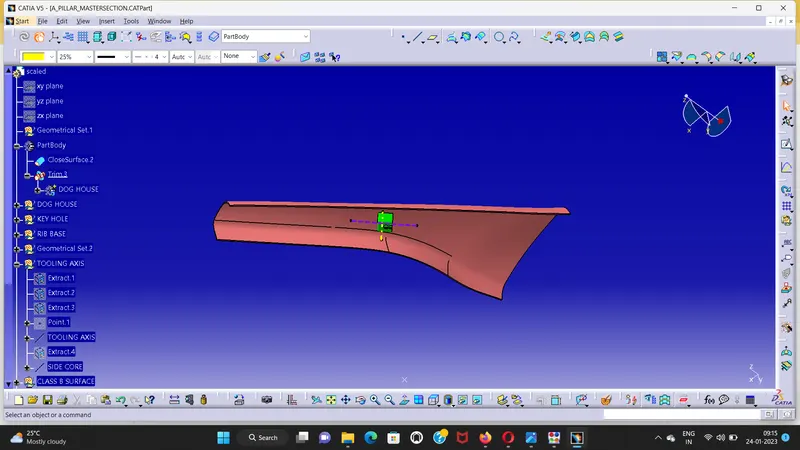

solid part body: To creat the solid part body,i used closed command in the part work bench.

dog house and top cutout to desing the parameters and draft analysis with the side core axis there are some red color is negative
