Week 9 - Project - A pillar Design with Master Section

REPORT:-

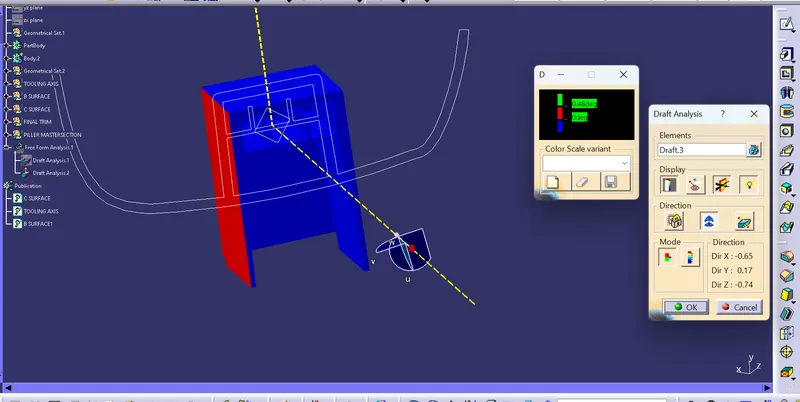

Here we create the tooling axis using mastersection , Intially extracte the two line on mastersection, create new line using bisecting comman and check for deaft cklearence if its clear its considered as tooling axis.

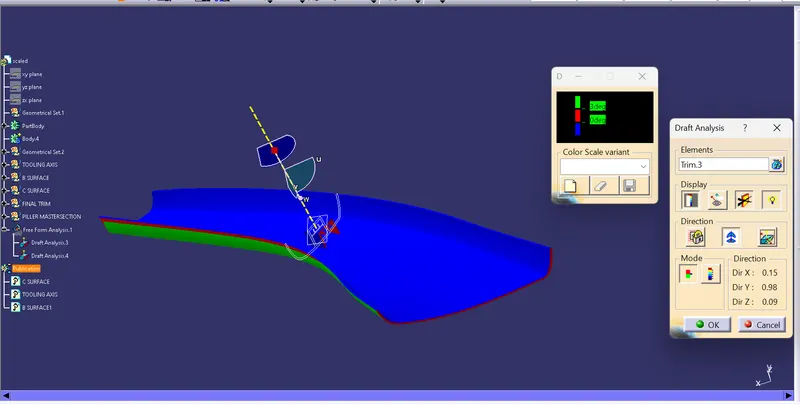

When we do the draft analysis on that line i got clear color of that part.

2. B SURFACE

Next create the B surface, for that first offset the class a surface that is called class B surface, in that some gaps are form in the surface ,we need to fill it and make one surface with one sigle boundary .

3. C SURFACE

create the class c surface using the class A surface ,outer line of the class A surface is created using boundary feature ,create the surface perpendicular to the class A surface using the sweep feature,then check for any error in boundary feature, if found currect it.

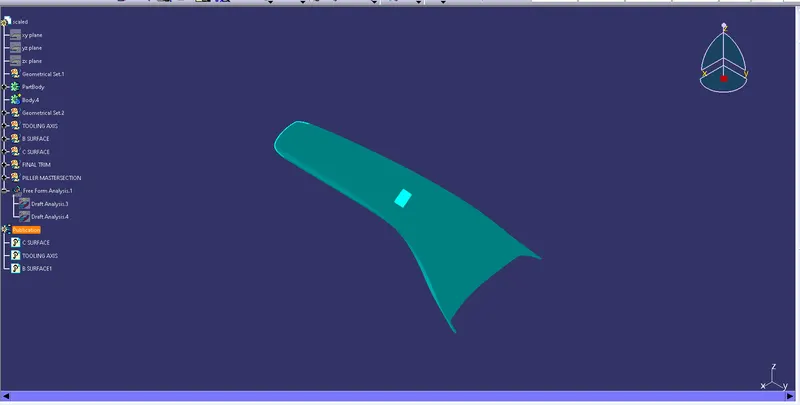

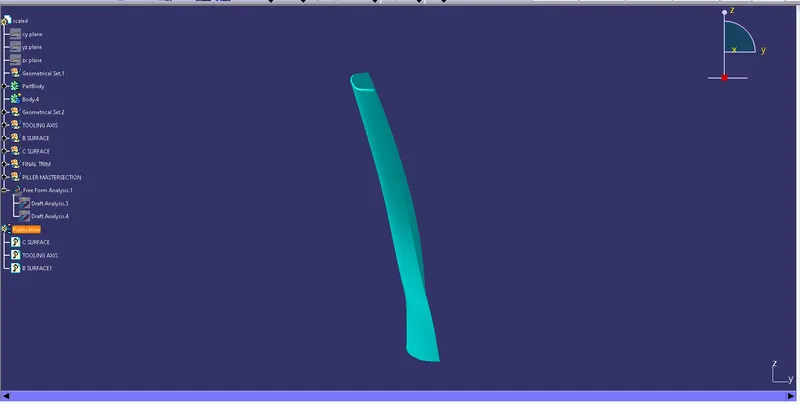

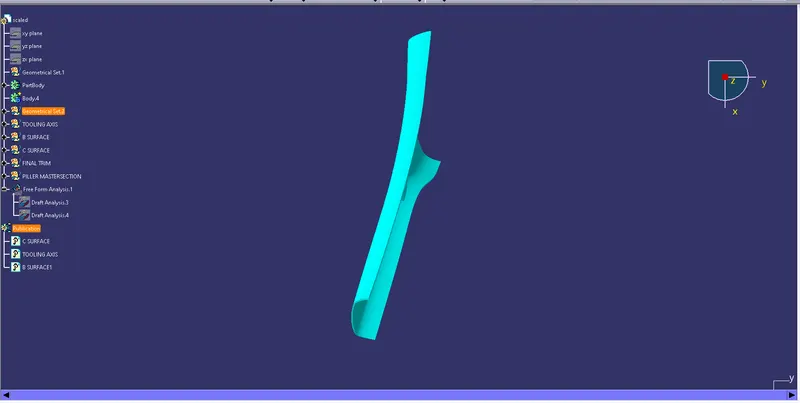

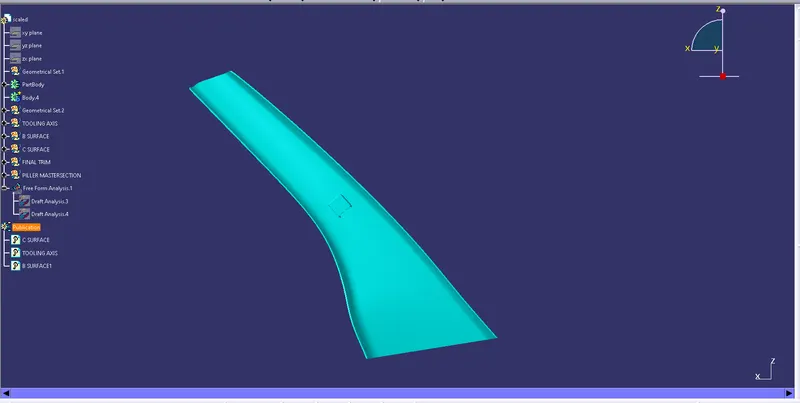

to get final surface model join class A surface and C surface trim with class B surfac
