Week 8 - Challenge 1 - Base Bracket Design

REPORT

1. Tooling Axis

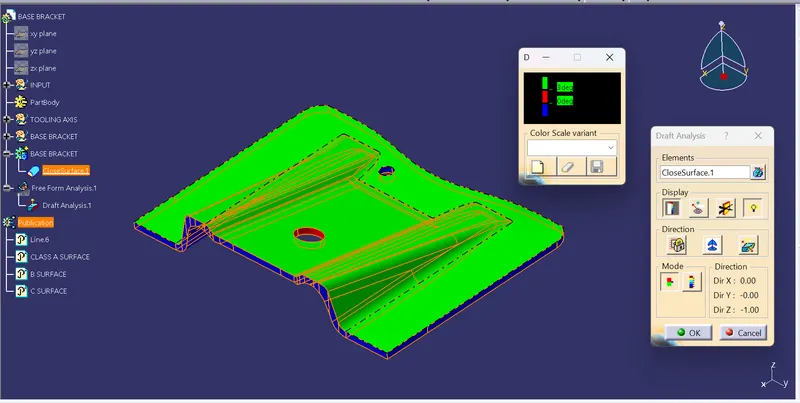

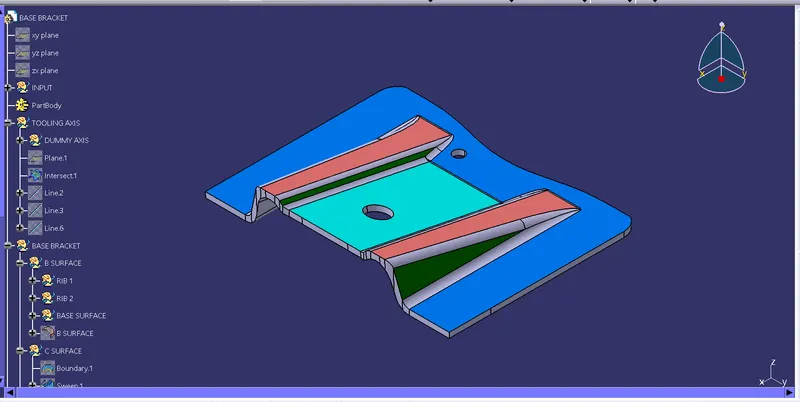

once we get the class a surface first we creat the dummy tooling axis ,for this create the point where we get max draft angle for analysis, create the intersecting line on the surface where point created using plan, check carefully for any negative angle on the intersecting line, if not create the line on the angle surface on both side of the dummy axis,using these two line create bisecting line one the point where created.this lline we called real tooling axis.

2.class B surface

once we created the tooling axis then focus on the creating the B surface by offseting the class A surface ,thire first offset the ribs of the surface then other surface once done trime the surface get the class B surface.

3.class c surface

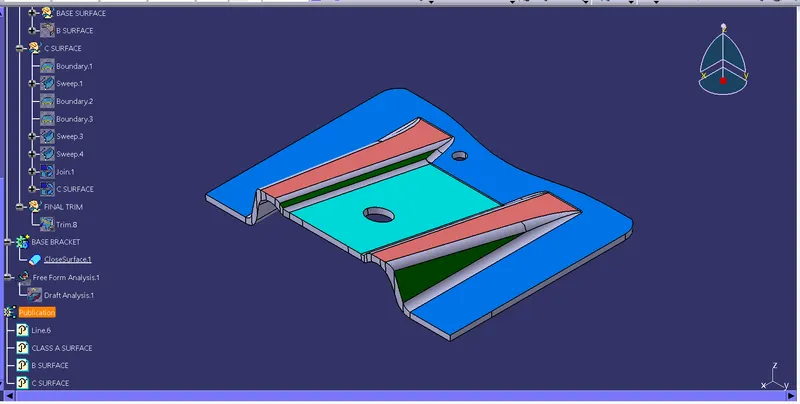

create the class c surface using the class A surface ,outer line of the class a surface is created using sweep feature thire select angle of draft and tooling axis create surface by selecting direction.once done join all sweeped surface .

once done trim all of them get final surface model.
