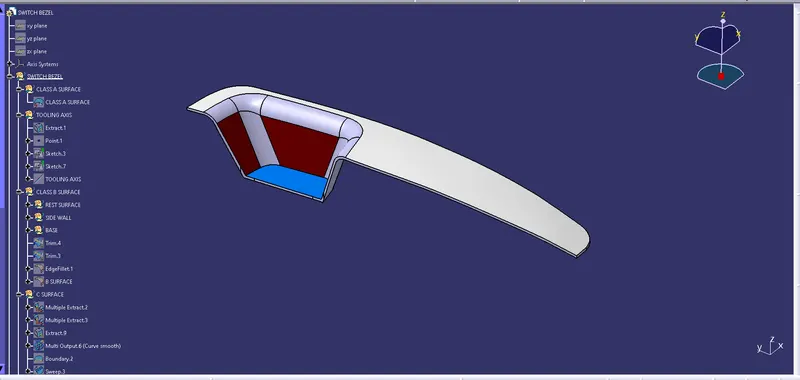

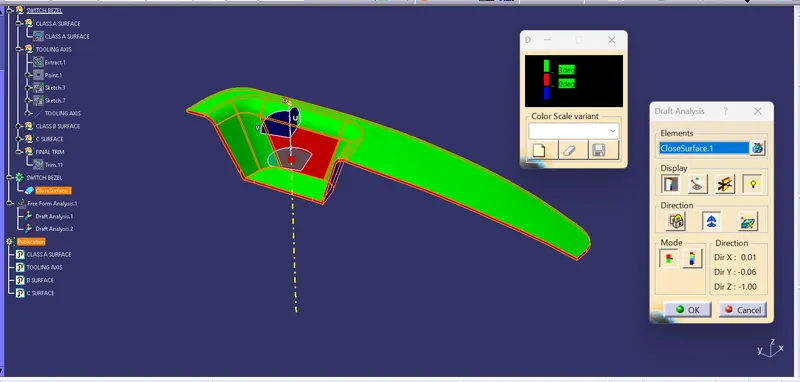

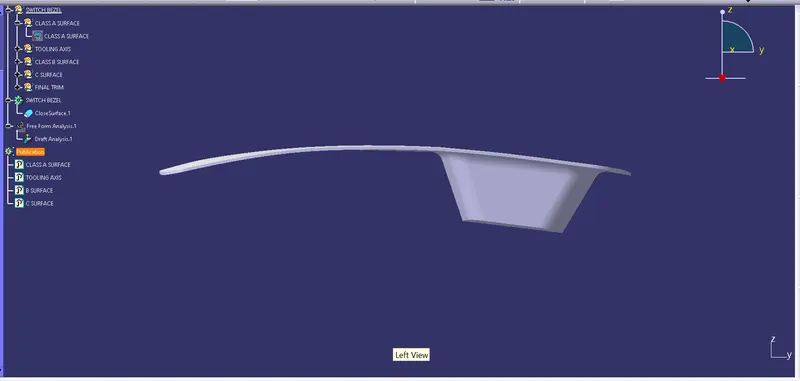

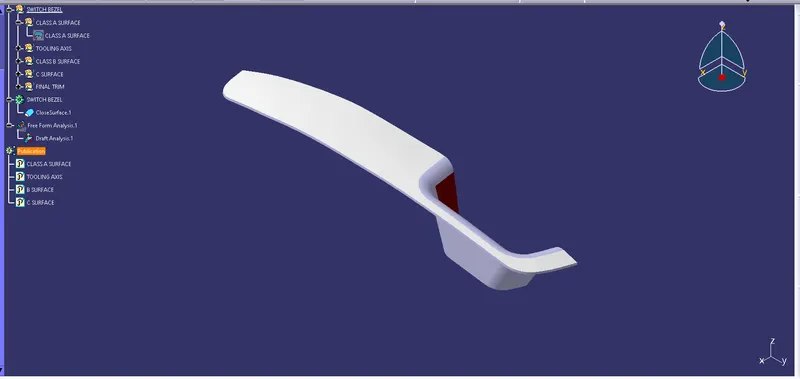

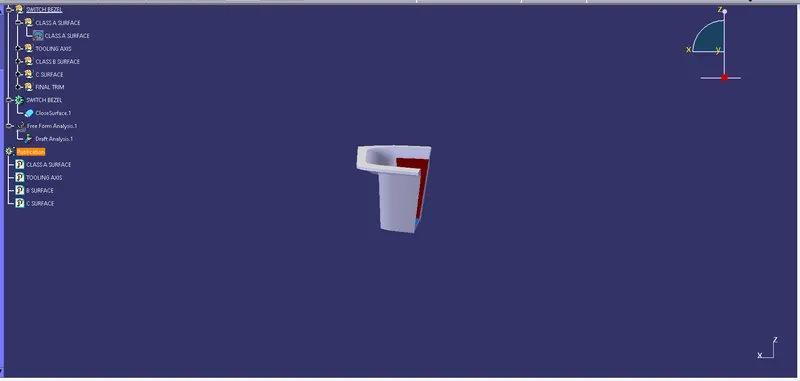

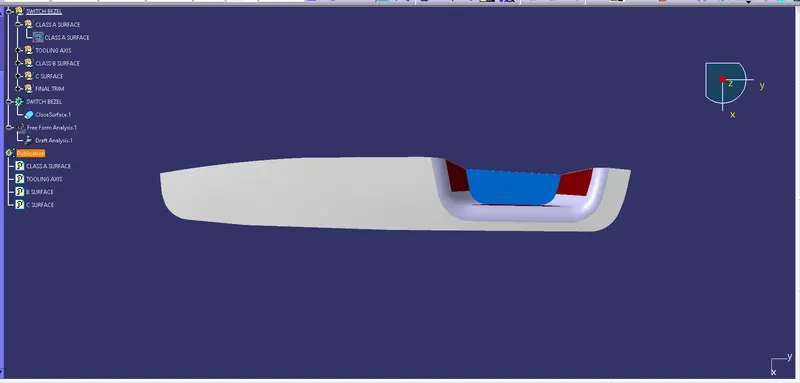

Week 8 - Challenge 2 - Switch Bezel Design

REPORT:

1. TOOLING AXIS

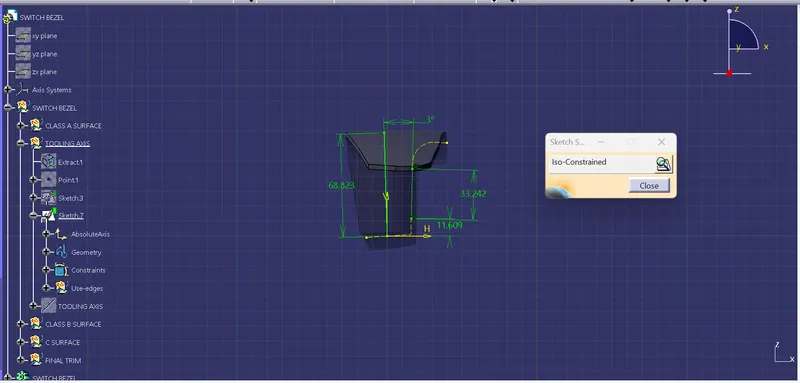

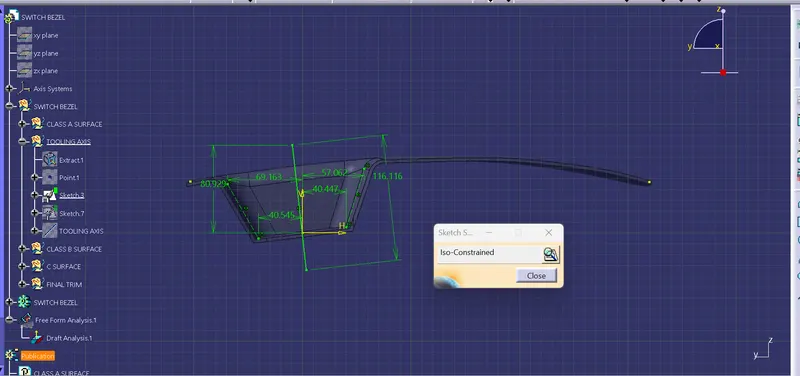

Here we create the tooling axis on the base plan, Intially create point the plane and place the axis system on the point ,create 2 dummy tooling axis on the plan,

For the first dummy tooling axis create the bisecting line with reference to two line which are create on the intersecting line

For the second dummy tooling axis thire get reference line on one side only so we create tooling axis by giving the draft angle between them.

create the final tooling axis line by bisecting the these two dummy line.

2. B SURFACE

Next create the B surface, for that first extract, untrim and extrapolate the side wall then offset them about 2.5 mm, same process carried out for top and base of the switch bazel surface once its done trim the surface, finish this class B surfaces with giving Radius value.

3. C SURFACE

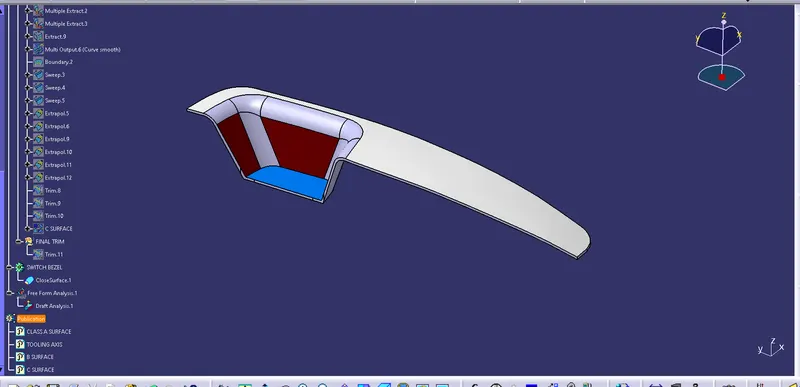

create the class c surface using the class A surface ,outer line of the class a surface is created using sweep feature thire select angle of draft and tooling axis create surface by selecting direction,then check for any error in boundary feature if found currect,for the unjoined boundary join with extrapolate and trim feature, once done join all sweeped surface with clase A surface.
