Week 9 - Project - A pillar Design with Master Section

BBhanu Pratap Rajput1 Dec 2022

AIM:

To Create the A pillar Design with Master Section Component from the given Class-A surface.

To Create the Tooling axis for the given Class-A Surface.

To perform the Draft analysis on CLASS A and the final solid component.

To Create the B Side Feature(Dog House) on the component by following the master section.

Check CLASS A Continuity/ Quality:-

Before start working on model must check the model. A model should be enclosed and check surface continuity should be proper. For this check it by using the Boundary or Using Join.

The A-Surface Needs To Be Free Of All The Patches Or Error Elements. For This First, We Need To Disassemble The Given Styling Surface And Join It With The Merging Distance Of 0.001mm.

Master Section:-

Master Sections Are The Guides For Design Requirements Which Shapes The Component After Technical Styling Of Class A Surface

The Body Frame Is Mainly Composed Of Floor Longitudinal Beams, Upper Side Beams, Door Sill Beams, And Front Cover, The Rear Beam, A-Pillar, B-Pillar, C-Pillar And Other Load-Bearing Beam Structures Are Composed.

Master Sections Are Parameterized Model Of The Vehicle Body That Outlines The Guide For Npd Team

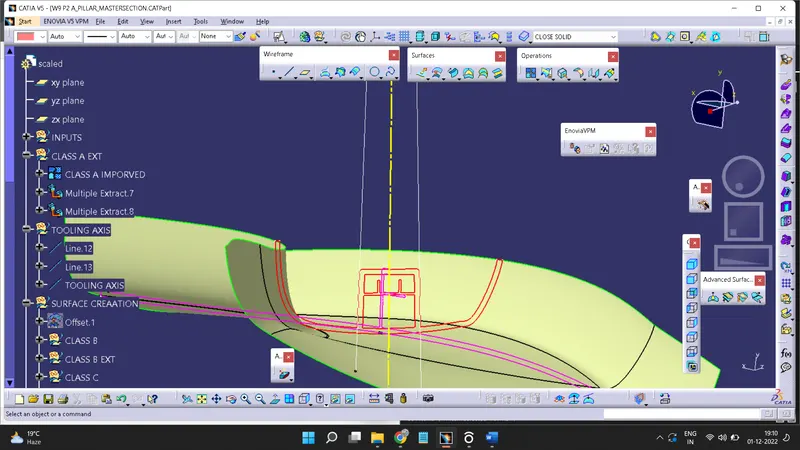

CREATING TOOLING AXIS -

The next step is to create the tooling axis for the part which will determine the direction in which the core and cavity of the mould will move.

The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dye line or the Tooling Direction.

Designer must ensure that all holes and slots are covered in the main tooling and thus side core must be avoided whenever possible

After analysing visually for the best possible tooling axis, an axis system is created on the centre of one of the surfaces of the door trim.

Firstly check the tooling axis in a x/y/z component and the other method for creation of tooling axis in a bisecting Method.

For a bisecting method fro master section …

First of all need to analyse a component for best tooling axis

Now Extract a base surface and create a point (by using Point on surface)

Then insert a Axis System on a point.

If our tooling axis is in Y direction then we need to find a tooling axis angle with X & Z Axis.

So Use a Bisecting method for it.

Firstly create a intersection from with class A and XZ plane

and create line in intersection then create bisecting line of these two line.

It will be XZ plane tooling Axis.

This same procedure needs to follow for YZ plane tooling axis

It will be final Tooling axis of component.

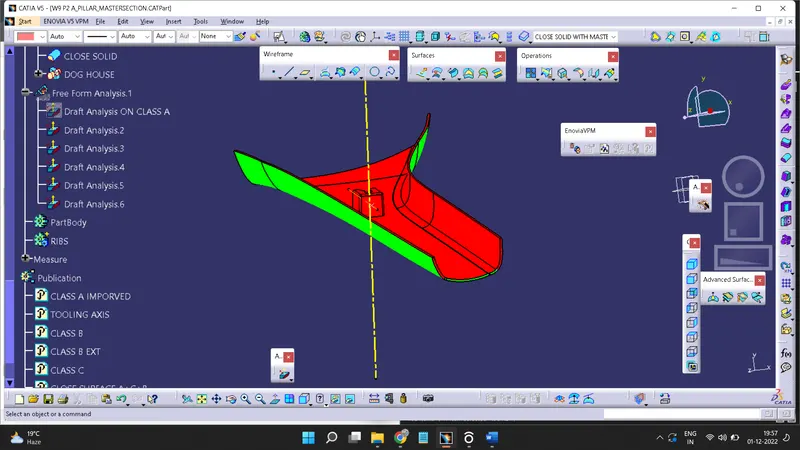

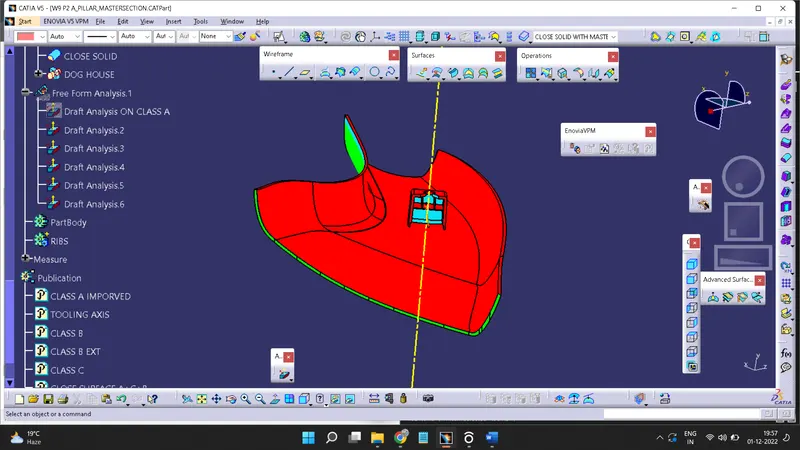

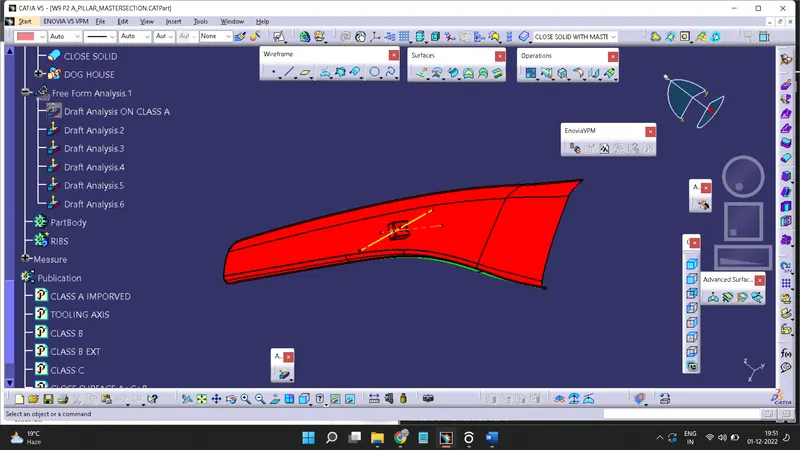

DRAFT ANALYSIS:

Draft analysis is done on the class a surface after the tooling axis has been obtained

Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

The part must have a minimum draft angle of 0.5 degrees on all the tapered faces

Using the feature draft analysis tool and the compass the part surface is validated for the minimum draft criteria

The Before going to drat analysis go to customized view parameter >under mesh >check material and then click ok.

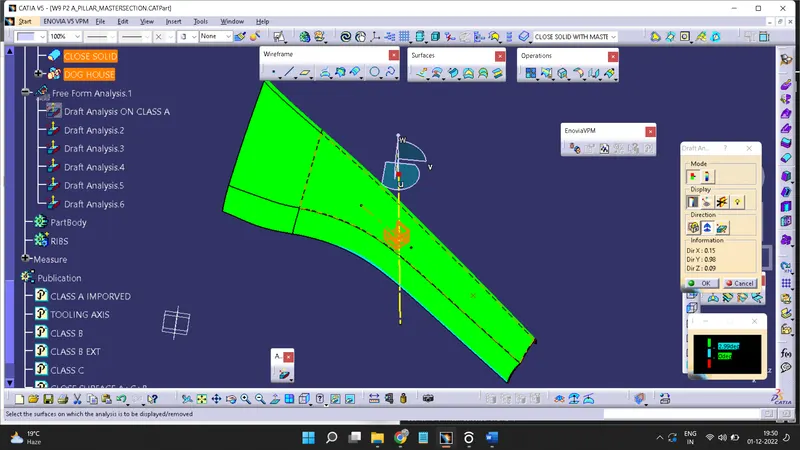

Now for draft analyses go to insert » analysis » feature draft analysis.

Use the compasss to define the draft direction.

In the colour scale change the draft angle to 3 degree.

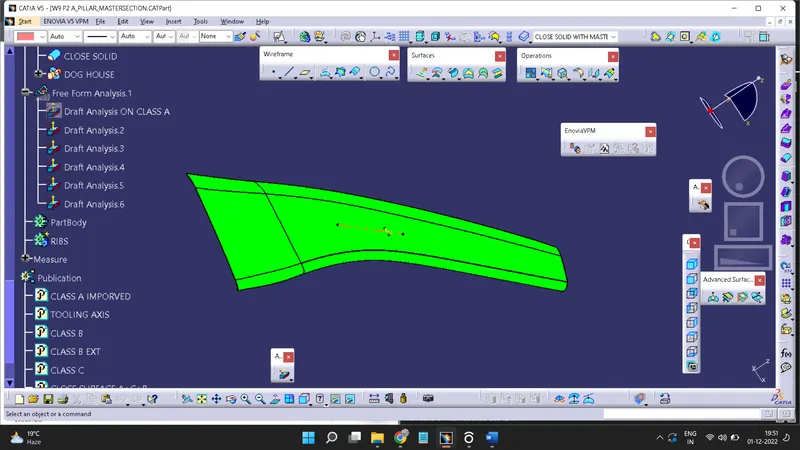

The component changes to green in indication of passing draft angle.

Use running point to check the angle on the component.

CLASS B SURFACE

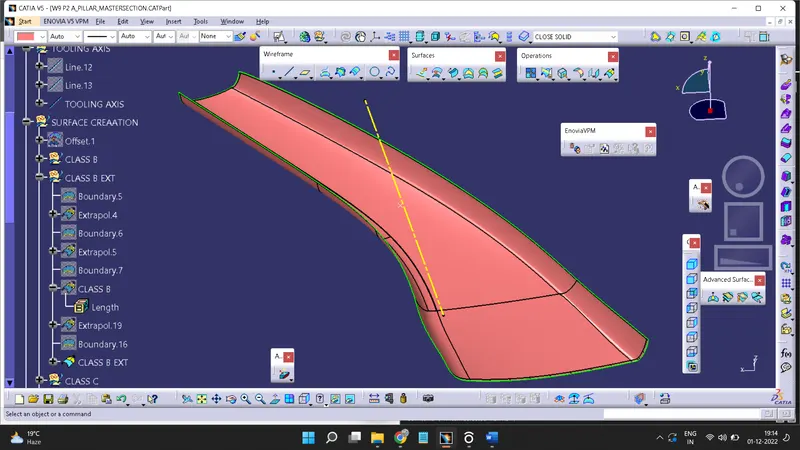

After all the validation has been done, the class B surface is created by offsetting the class B surface to a distance of 2.5 mm

After offsetting many openings in the surfaces are found which are closed with the help of sweep, multi sections-surface and fill command.

Trim the extra surfaces using trim command.

The class B surface is then extrapolated to trim it along with the class C surface

Insert them into new geometrical set and name it with respective part names.

Apply fillets to the model after creating the entire surface.

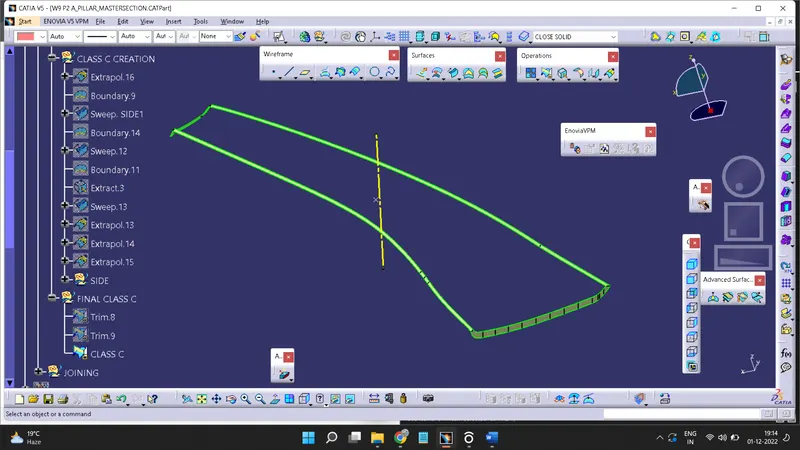

CREATING CLASS C SURFACE

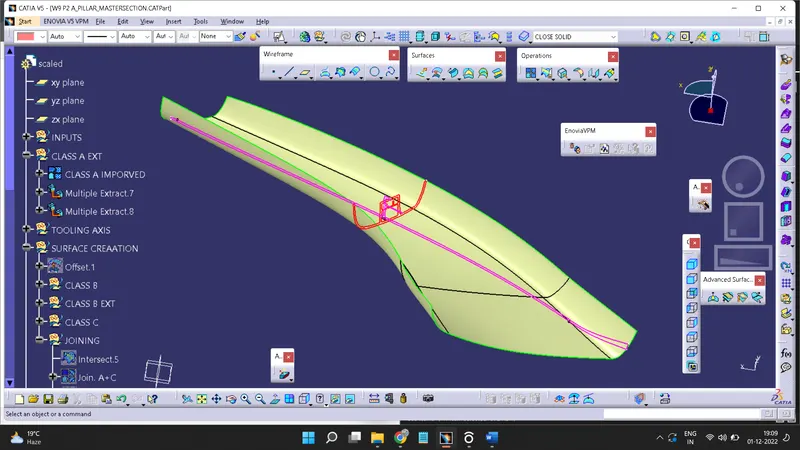

The class C surface which connects the class A and class B surface is created by sweeping the boundary of the class A and using the class A as a reference.

The sweep is divided into several parts in order to avoid complexity

Surfaces which are parallel to the tooling direction are swept with the tooling axis as reference and with a draft angle of 3degrees

Use sweep command > choose profile type line > subtype as with draft direction > choose guide curve and draft direction > draft angle as 3 degree > preview.

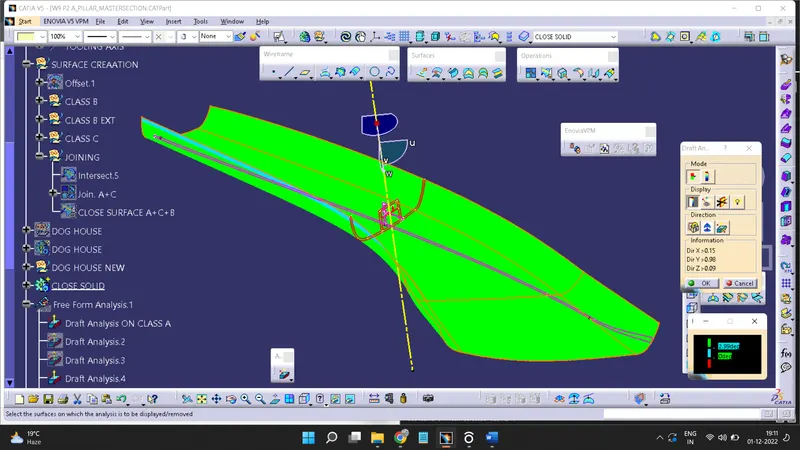

Joining of CLASS A, CLASS C & CLASS B

After getting sweep then trim the output with class B surface to get final output.

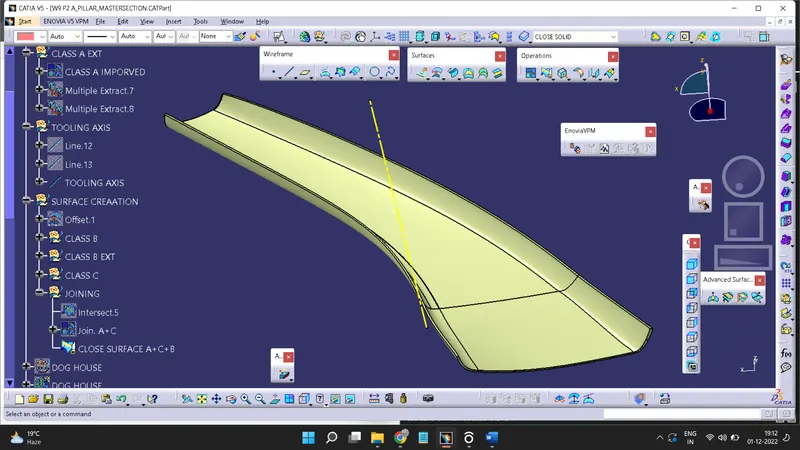

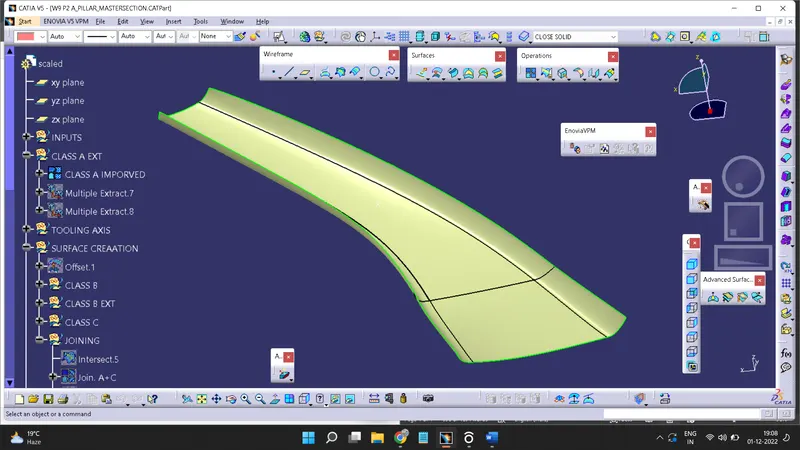

The final trim is created by joining the Class A and C surface and finally trimming it with the Class B surface. The combination of class A, B and C surface is then converted into a solid with the aid of fill command in the part workbench

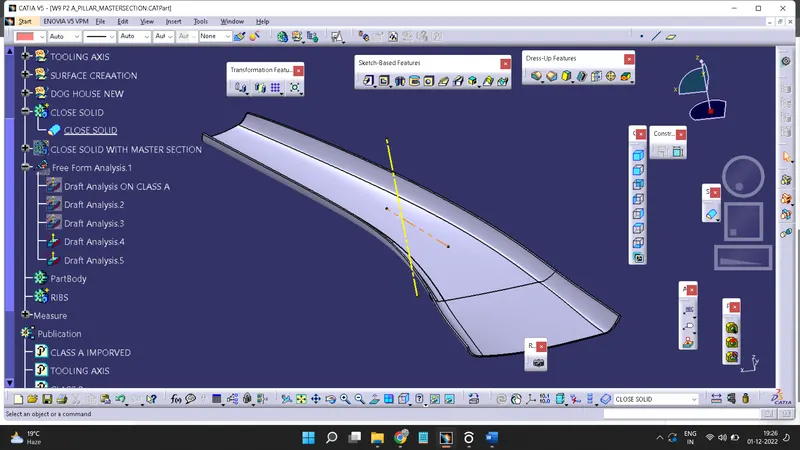

Creation Of Close Solid Component:-

Goto Start>Mechanical Design >Part Design

Here Use Surface Creation Toolbar >Close Surface for create a Solid Component

CREATION OF DOG HOUSE BY USING MASTER SECTION:

Master Section:-

Master Sections Are The Guides For Design Requirements Which Shapes The Component After Technical Styling Of Class A Surface

Master Sections Are Parameterized Model Of The Vehicle Body That Outlines The Guide For Npd Team

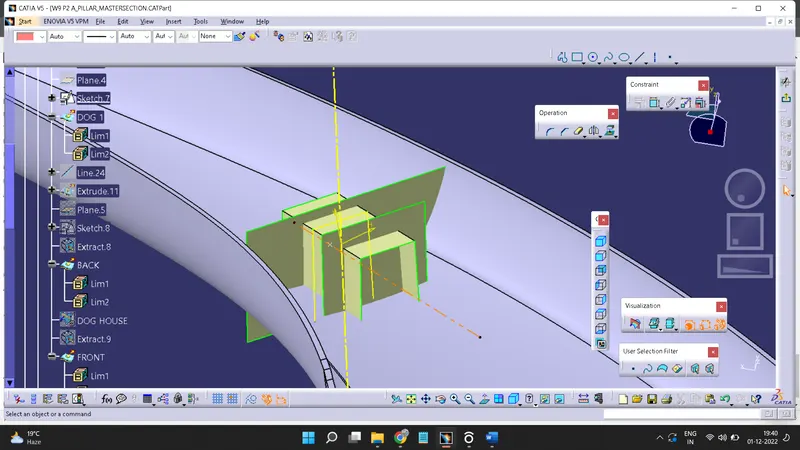

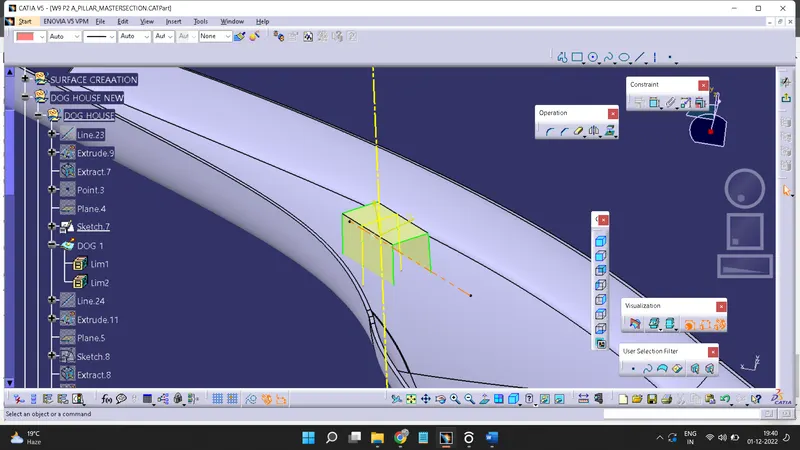

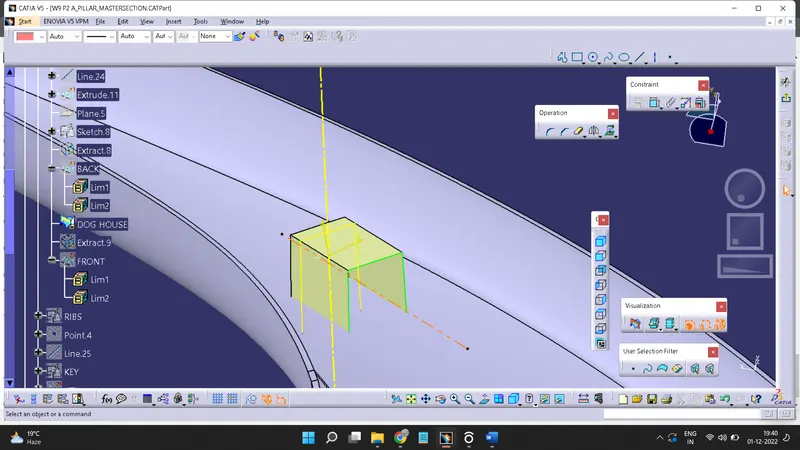

Firsttly Create a plane on a master section and add appoint over it then use this plane and point and create a sketch

Use a master section lines and create a line by using Project 3D Element

Now Use a Line Trim and extent lines till join with another

And sketch has been completed then extract a sketch and create a surface.

Use the same procedure for other view and create a surface

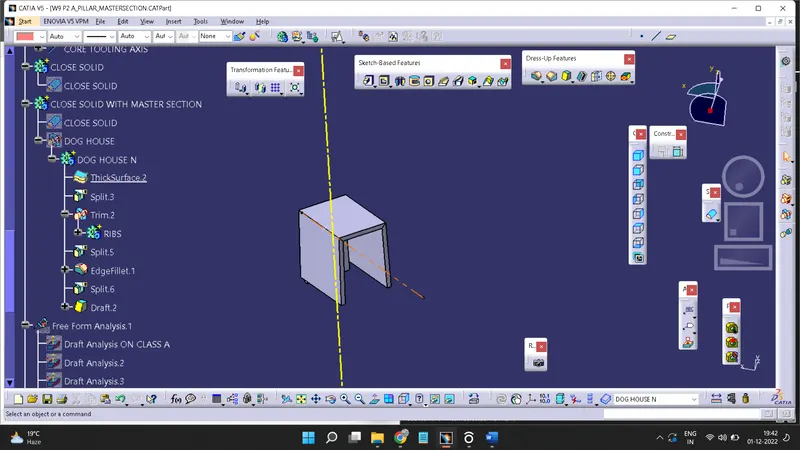

Trim it then dog house outer surface has been created.

Use a thicken for create a solid

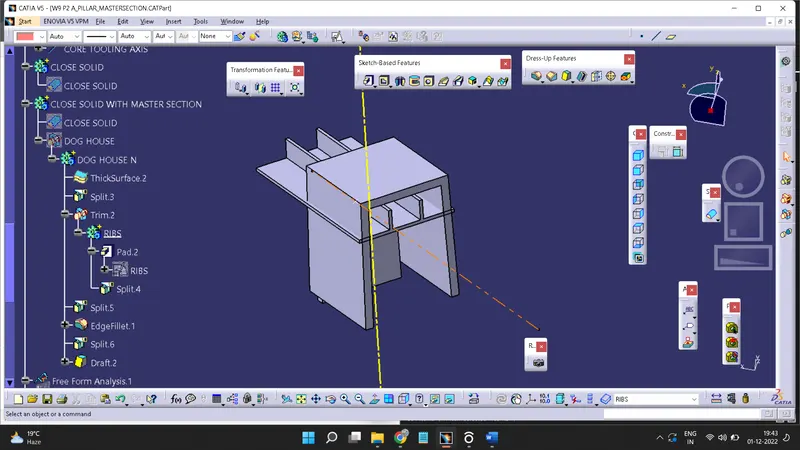

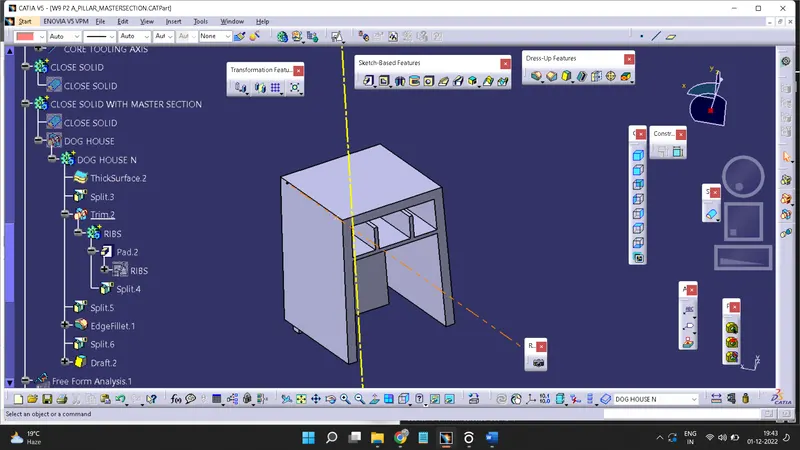

Use the same procedure for creation of ribs which are shown in Master section

And join both by using a UNION trim Boolean operation.

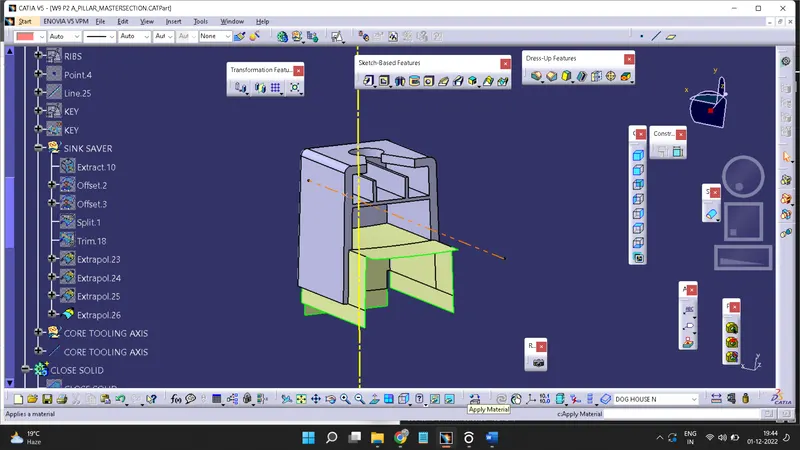

Create a Sink Saver by following Design Rules:-

Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).
The height of ( B ) should be between 3.0 – 6.0 mm

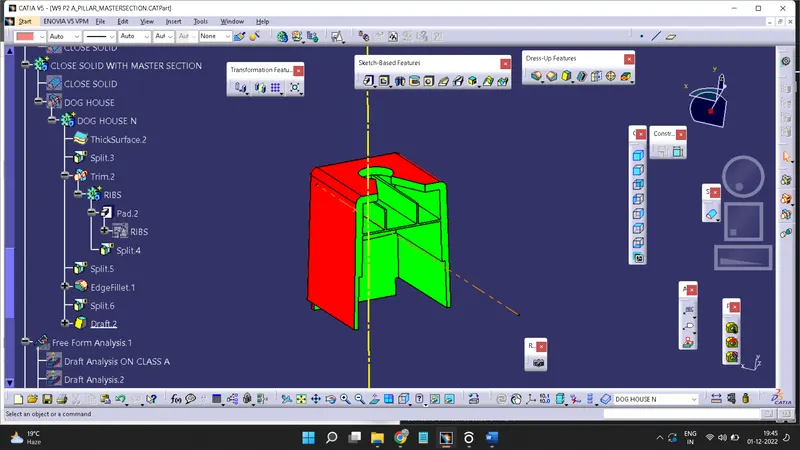

And Dog House is Created & Do Draft Analysis On it.

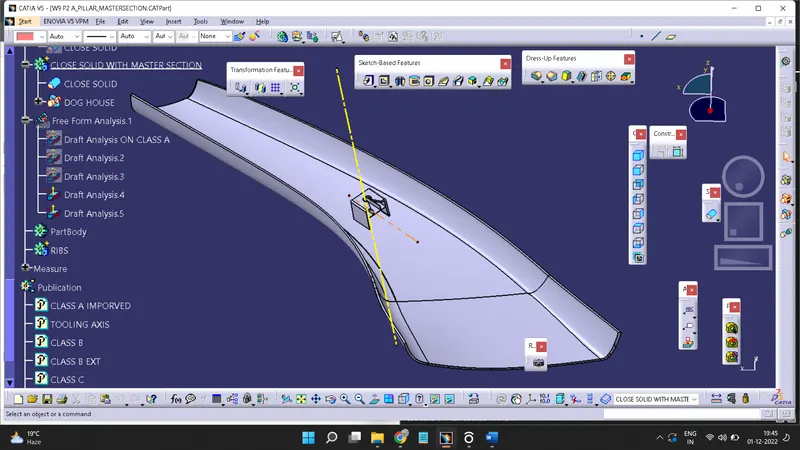

Now Add it to close Solid Body by using Union Trim Boolean Operation.
