Week 9 - Project - A pillar Design with Master Section

REPORT

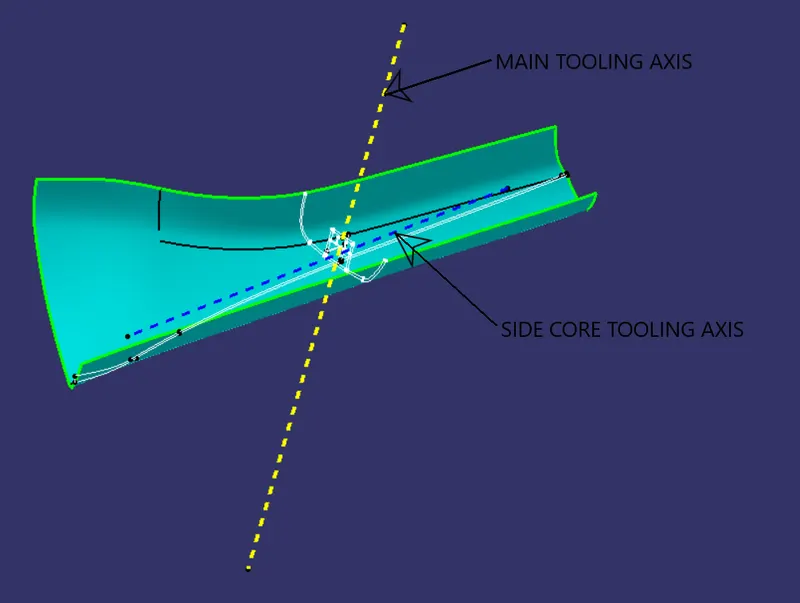

FIRST OF ALL WE NEED TO CREATE TOOLING AXIS FROM THE GIVEN MASTER SECTION. WE NEED TO CREATE MAIN TOOLING AXIS AS WELL AS SIDE CORE TOOLING AXIS. FOR CREATING DOG HOUSE THERE IS SIDE CORE AXIS IS NECESSARY.

WE CAN USE THE EDGES OF MASTER SECTION FOR CREATING THIS. EXRACT THE EXTREME EDGES AND BY USING BISECTING METHOD WE CAN CREATE BOTH TOOLING AXIS.

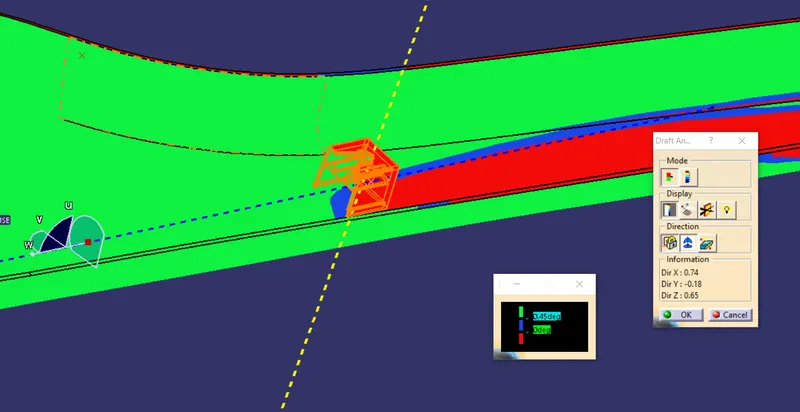

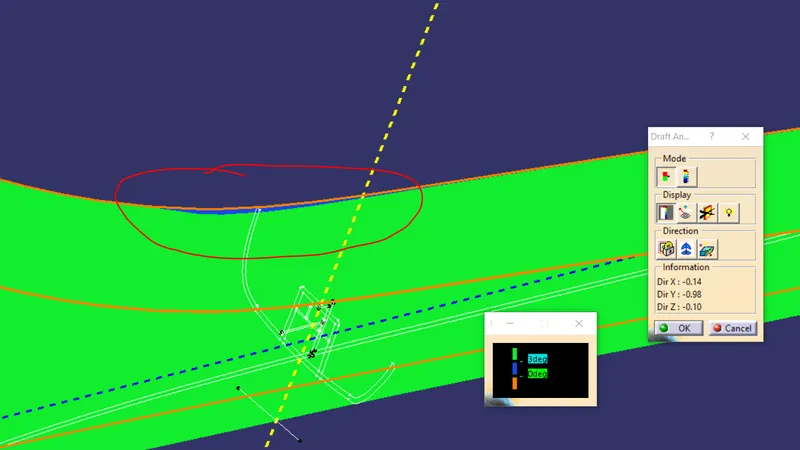

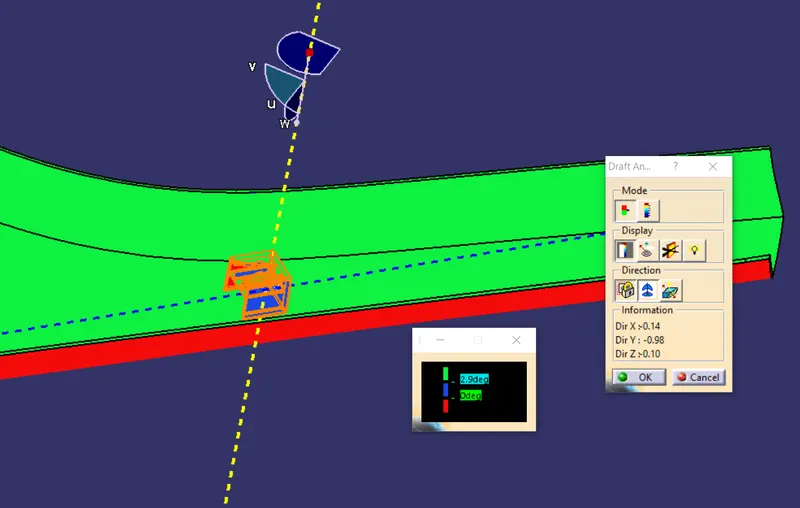

AFTER THE CREATION OF TOOING AXIS DID THE DRAFT ANALYIS OF CLASS A. THERE I FOUND A MISTAKE IN CLASS A.

SOME PORTION OF CLASS A IS LIED IN BETWEEN 0 - 3 DEGREE. WE CAN REFER THIS TO CLASS A TEAM.

THEN WE NEED TO CREATE CLASS B AND CLASS C. INITIALLY OFFSET THE CLASS A IN 2.5 MM , AND DID THE CORRECTIONS IN WHEREVER THE PROBLEMS HAPPENED. THEN EXTRAPOLATED CLASS B, AND CREATED CLASS C BY SWEEPING CLASS A EDGES WITH THE REFERANCE OF MAIN TOOLING AXIS.AND DID THE FINAL TRIM AND GOT CLOSED SURFACE. THEN USING CLOSED BODY COMMAND CHANGED CLOSED SURFACE TO CLOSED SOLID BODY.

THEN STARTED CREATING DOG HOUSE. AFTER CREATION OF DOG HOUSE DID DRAFT TO THE INNER PORTION OF DOG HOUSE WITH RESPECT TO THE SIDE CORE TOOLING AXIS. AND FINALLY DID THE DRAFT ANALYSIS FOR THE MAIN TOOLING AXIS AND SIDE CORE AXIS AS WELL.

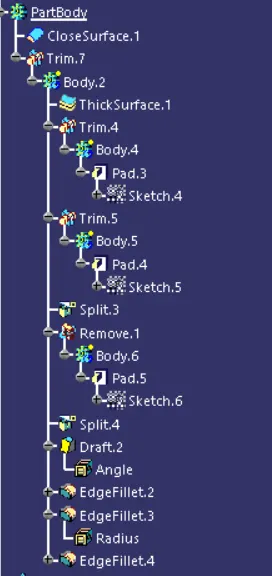

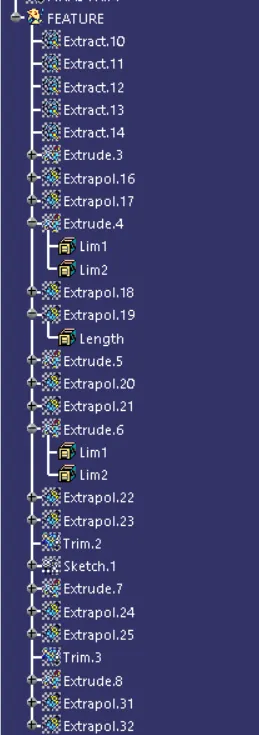

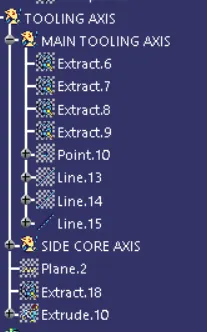

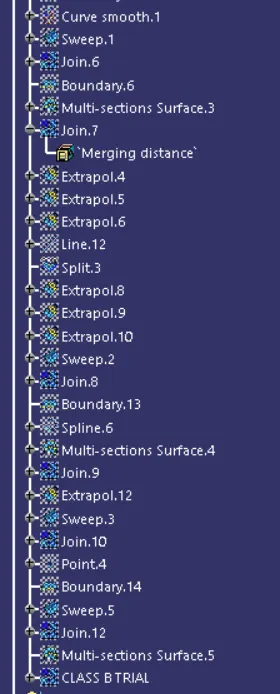

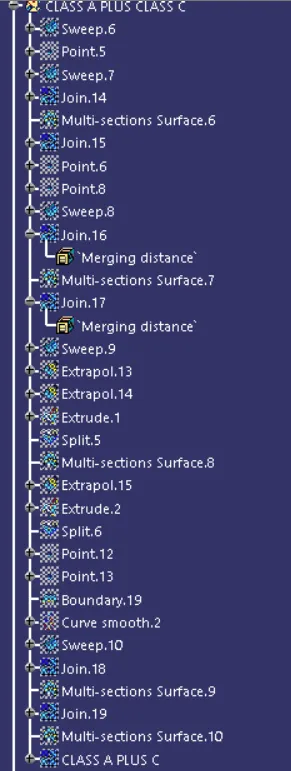

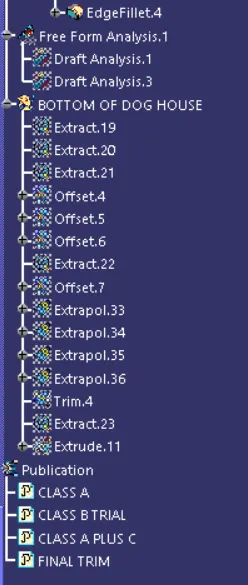

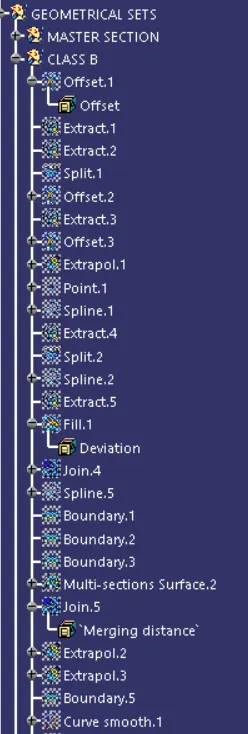

GEOMETRICAL TREE STRUCTURE

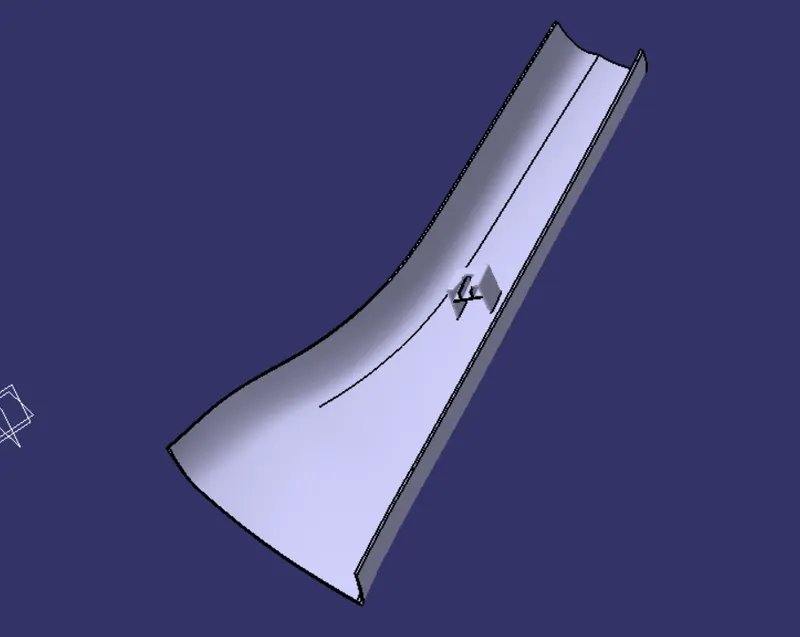

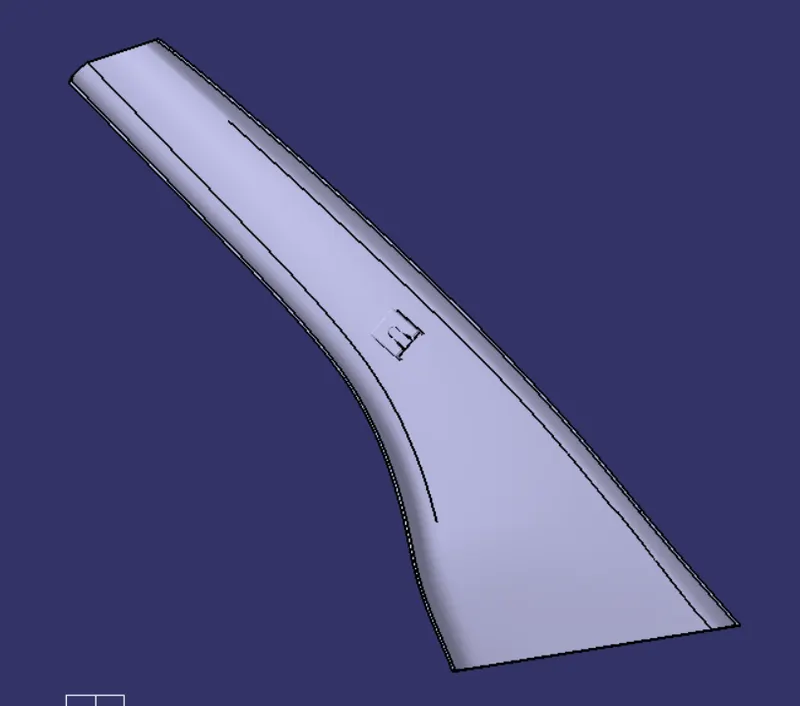

ISOMETRIC VIEW

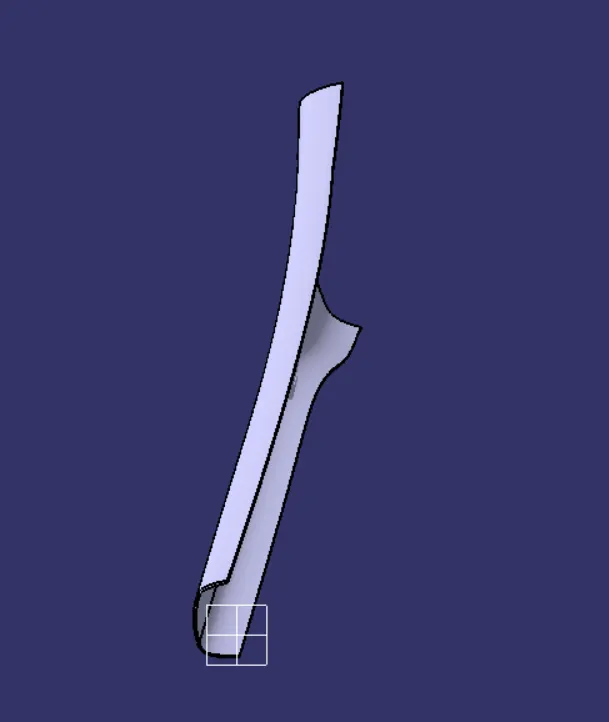

SIDE VIEW

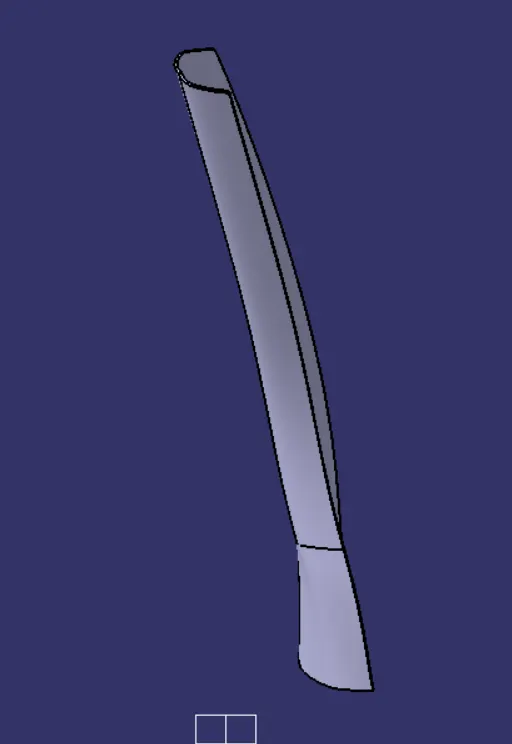

FRONT VIEW

TOP VIEW

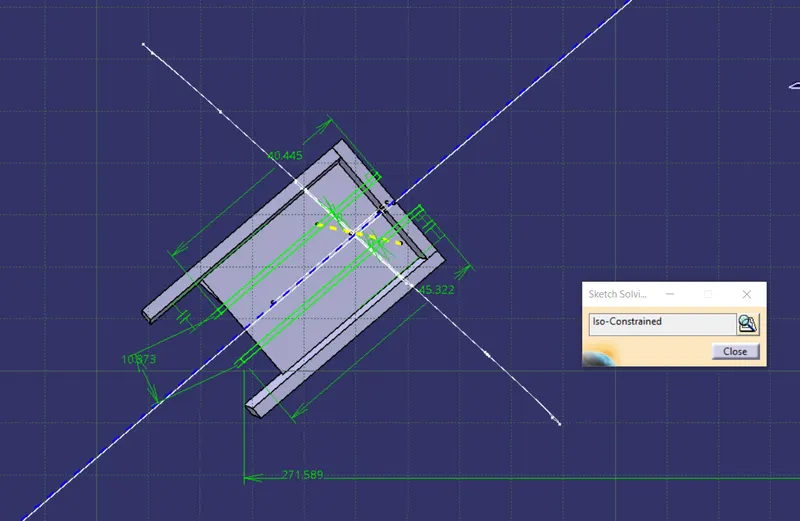

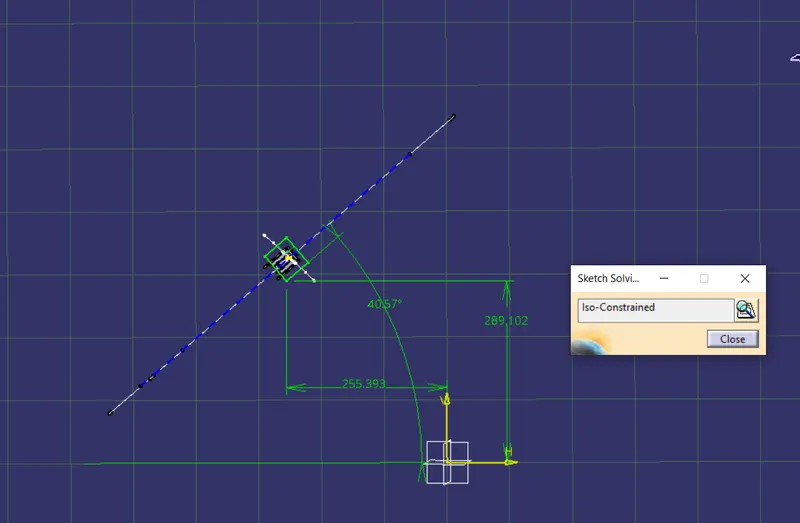

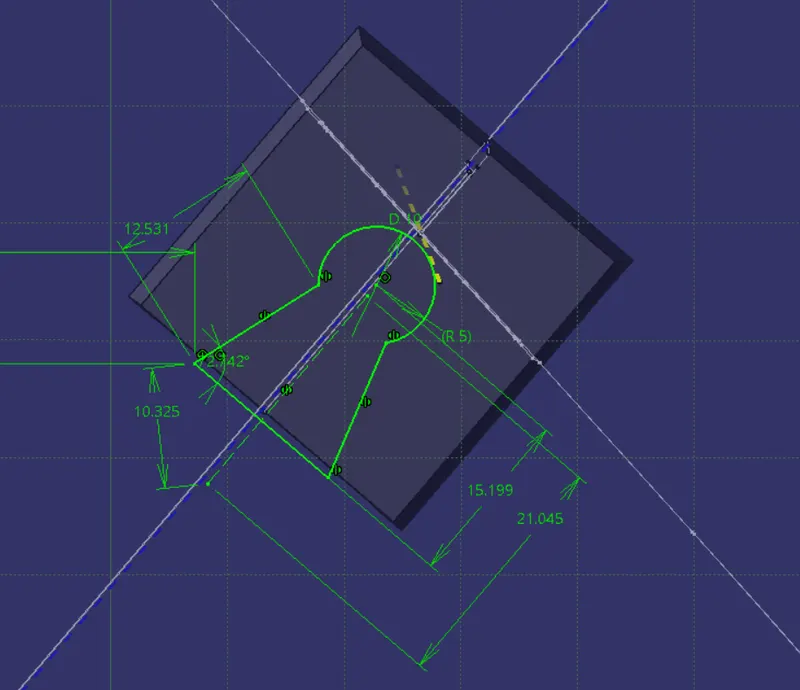

SKETCH AND SKETCH SOLVING STATUS BAR
