Week 8 - Challenge 4 - Bumper

REPORT

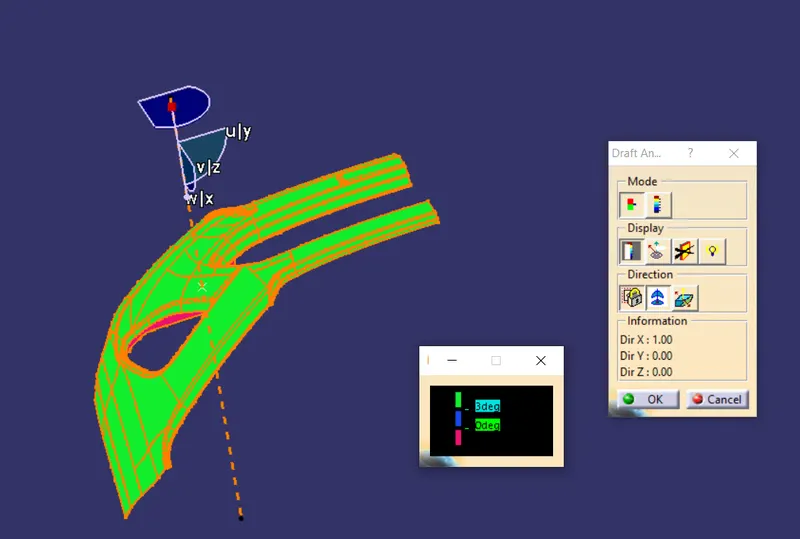

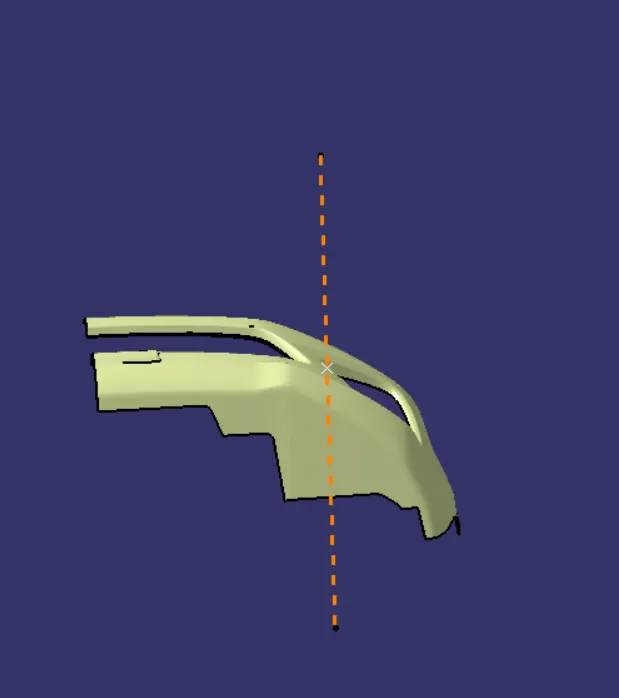

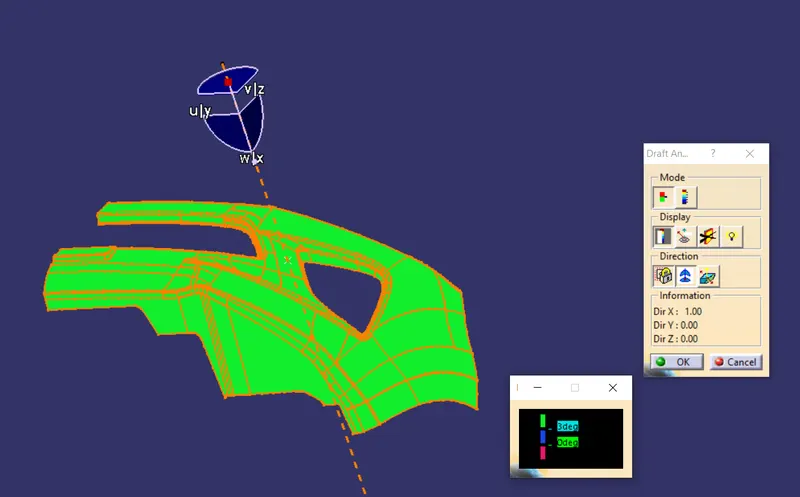

initially we need to create tooling axis , here difficult to find equally intersection plane , so created a line in the Y direction and considered it as a tooling axis. tooling axis the direction of motion where the core and cavity open and close. then need to draft analysis for the class A . for that opened featured draft analysis and arranged the colour varient then coinside compass with the tooling axis and locked it. then analysed the draft is ok.

then started to creating class B. for that offset the class A to a distance of 3mm which is the required thickness of the part.then worked on the removed portions of class B using multisection, extrapolation etc. for creating class C sweeped classA at the required draft angle then joined it together. then finally trimmed class B with class A plus C. the final surface then changed to a closed body using closed surface feature. then did draft analysis to the final body checked the draft is ok.

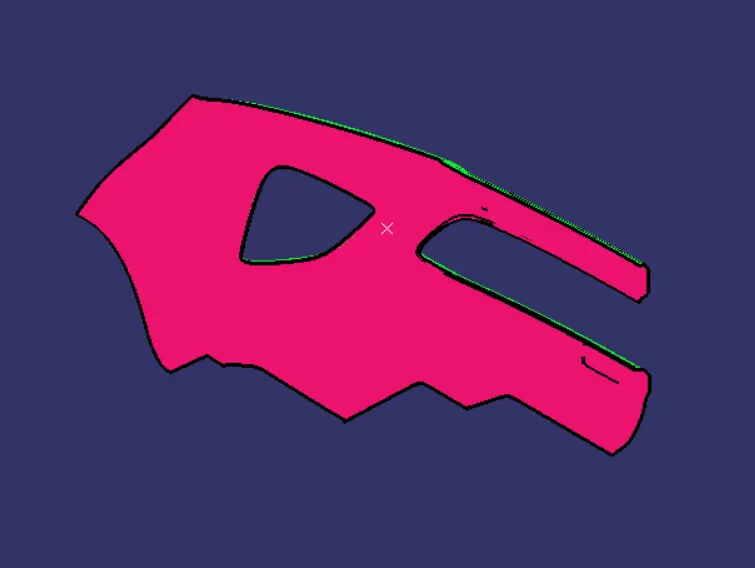

`isometric view

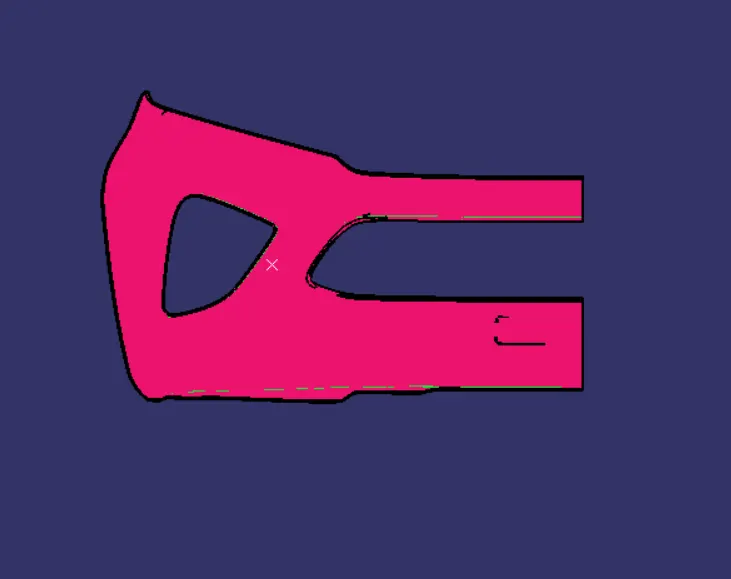

front view

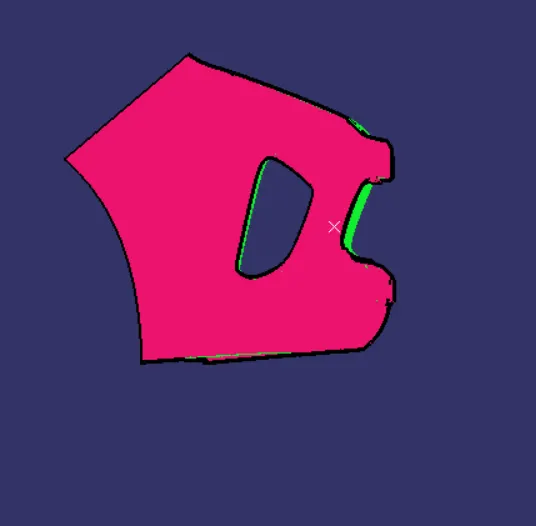

side view

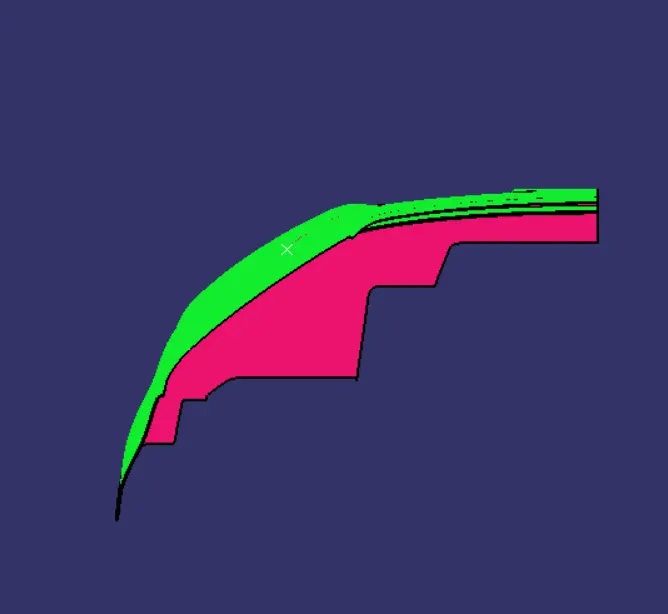

top view
