Week 9 - Project - A pillar Design with Master Section

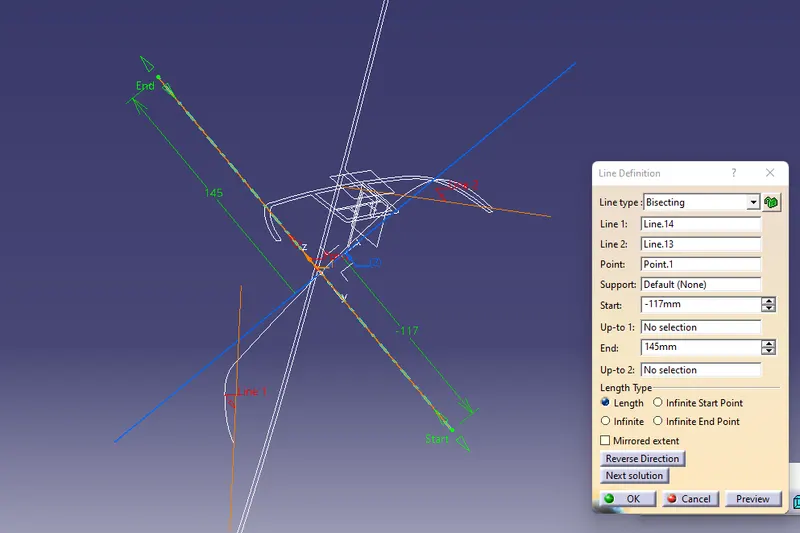

Tooling axis is created by bisecting the tooling axis in both x and y direction which are created by extened and bisecting lines of the inetersection of the class a surfce with both xz and yz planes

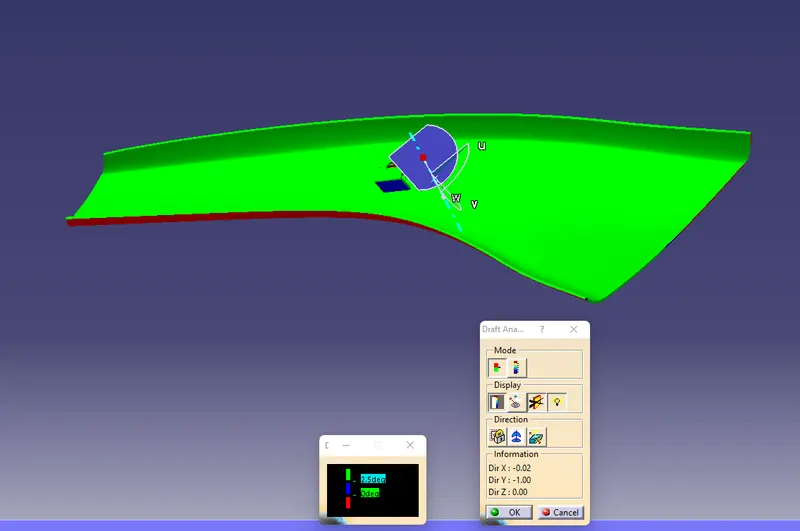

draft analysis report

draft analysis made on the CLASS A and final plastic componant by aligning the compass with the tooling direction and byclicking the componant will give the report of the CLASS A and final componant

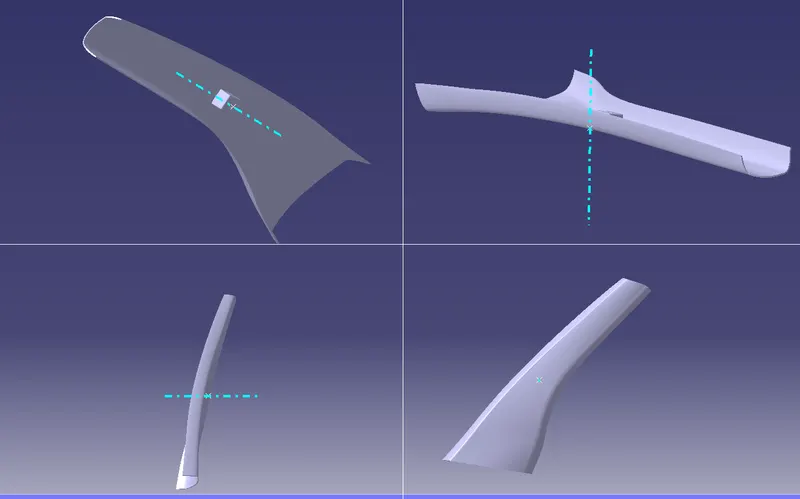

3d views of cat part

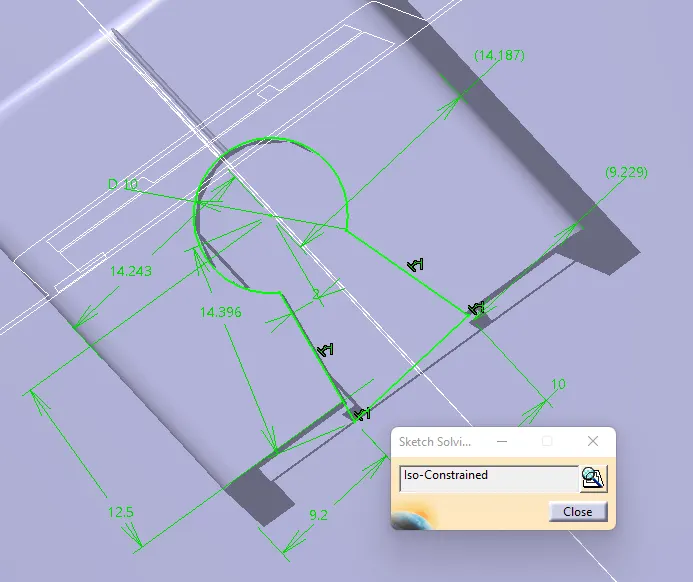

sketch images

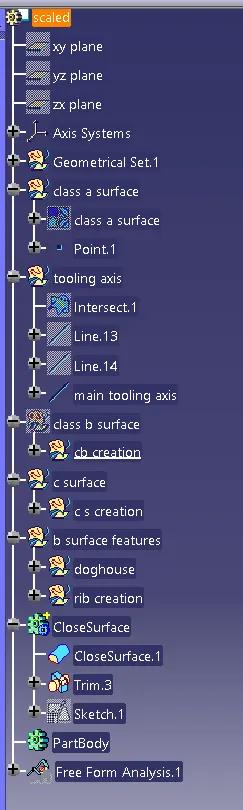

tree structure
