Week 9 - Project - A pillar Design with Master Section

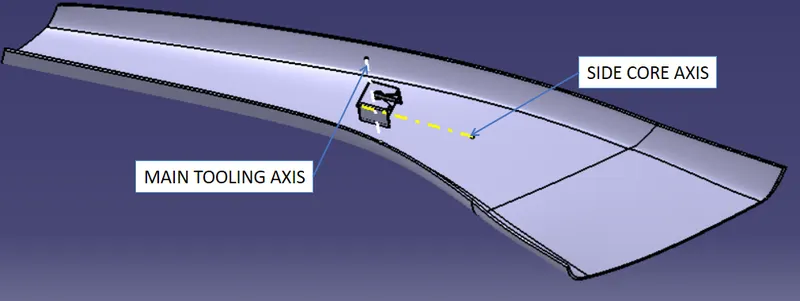

MAIN TOOLING AXIS CREATION

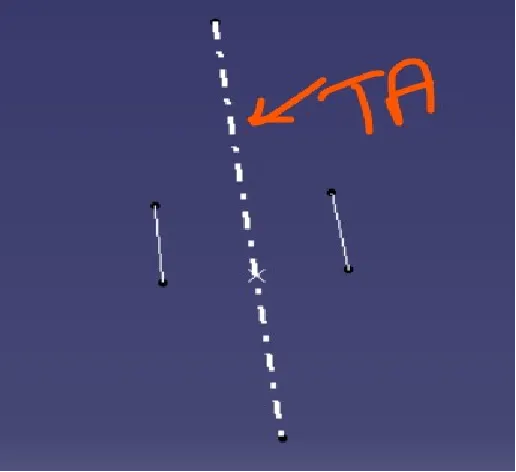

• EXTRACT LEFT AND RIGHT LINES FROM MASTER SECTIONS FOR CREATING POINT
• CREATE POINT BY USING THE EXTRACT
• THEN CREATE A BISECTING LINE WITH RESPECT TO THE ABOVE EXTRACT AND THE POINT.
• THIS IS OUR MAIN TOOLING AXIS

CLOSED BODY CREATION:

• CREATE B SURFACE
• THEN CREATE C SURFACE FROM CLASS A
• COMBINE CLASS A AND C TOGETHER
• TRIM COMBINED CLASS A AND C WITH CLASS B SURFACE
• THEN GO TO CLOSE BODY OPTION AND SELECTED ABOVE TRIMMED SECTION.

 SIDE CORE AXIS CREATION:

• EXTRACT THE DOG HOUSE SIDE LINES
• BISECTING THE LINE FROM THE EXTRACT
• THIS IS OUR SIDE CORE AXIS

NOTE:

   OUTPUT PPT AND PART FILES ARE SUBMITTED IN THE ATTACHMENT BELOW
