Week 8 - Challenge 3 - Coin Holder Design

REPORT:

TOOLING AXIS CREATION:

• ANALYSE THE DRAWING FOR BEST TOOLING AXIS ANGLE.
• EXTRACT BASE FOR CREATING TOOLING AXIS
• CREATE POINT IN THE BASE
• THE SIDE WALLS ARE PERPENDICULAR TO THE BASE, SO CREATE THE LINE PERPENTICULAR FROM THE BASE POINT. THIS WILL BE OUR TOOLING AXIS.

DRAFT ANALYSIS:

• AFTER COMPLETING THE CLOSE SURFACE OF THE DESING GO FOR FEATURE DRAFT ANALYSIS OPTION

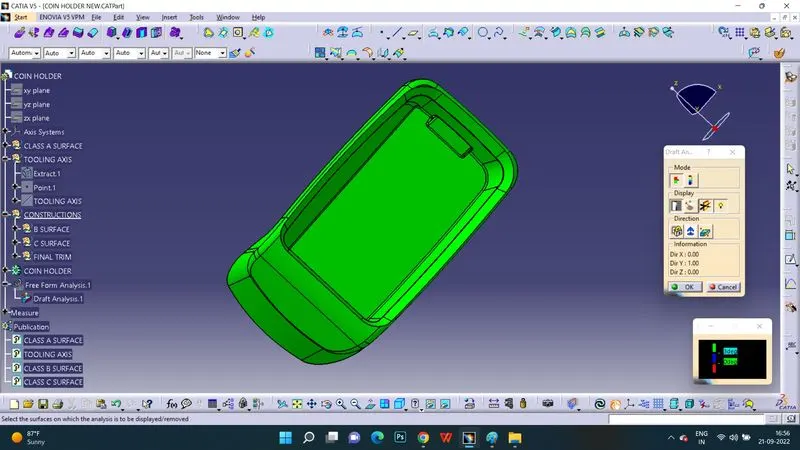

• THEN DRAFT ANALYSIS TOOL BAR WILL OPENED.
• THEN USES THE COMPASS OPTION TO DEFINE THE DTAFT DIRECTION.
• HERE TOOLING AXIS IS THE DRAFT DIRECTION.
• PLACE THE COMPASS IN THE TOOLING AXIS.
• THEN LOCKS THE DRAFT DIRECTION USING LOCK OPTION.
• THEN MOVE THE CURSOR ON THE SURFACE AND RIGHT CLICK, HERE THE COROR SCALE OF THE SURFACE WE WILL CREATE IS SHOWN
• THEN THE SURFACE WILL SHOWN IN GREEN COLOR, WHICH MEANS THE DRAFT OF THE SURFACE IS GOOD.

DRAFT ANALYSIS SCREENSHOT:

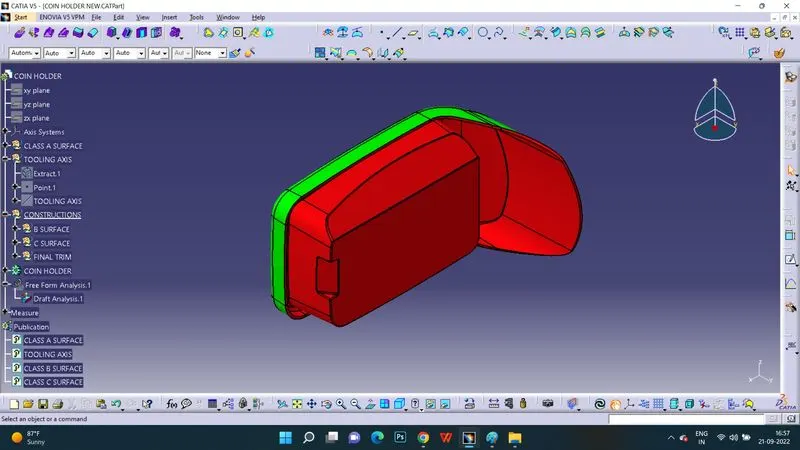

ISOMETRIC VIEW

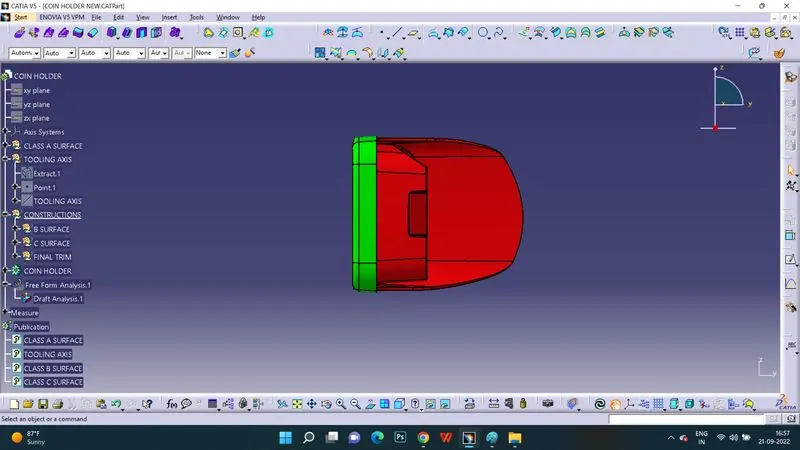

FRONT VIEW

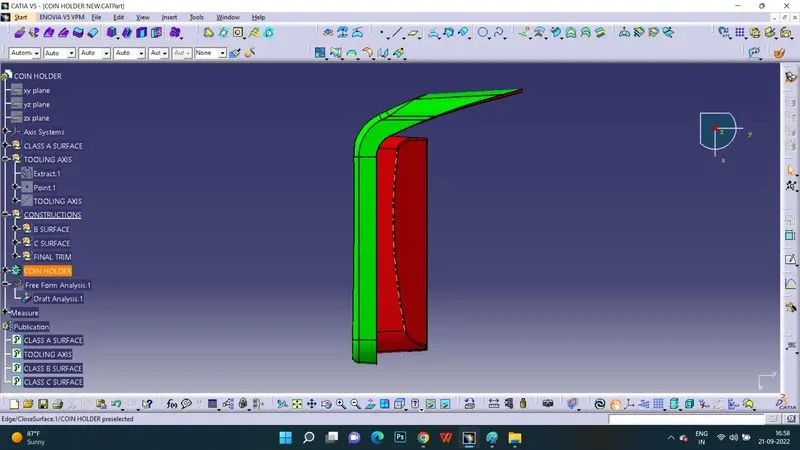

SIDE VIEW

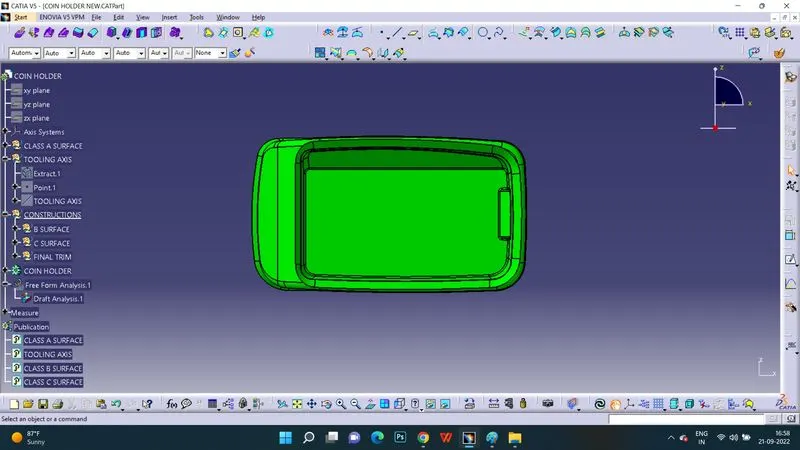

TOP VIEW
