Week 8 - Challenge 6 - Core & Cavity Design
REPORT:
TOOLING AXIS CREATION:
- ANALYSE THE DRAWING FOR BEST TOOLING AXIS ANGLE.
- EXTRACT BASE FOR CREATING TOOLING AXIS
- CREATE POINT IN THE BASE
- MAKE A POINT WITH RESPECT TO CLASS A SURFACE. AFTER THAT CREATE THE DUMMY AXIS LINE USING SKETCH WITH RESPECT TO THE SIDE WALLS.
- THEN MAKE AN 3 DEG ANGLED LINE USING SKETCH WITH RESPECT TO OTHER SIDE OF THE WALLS.
- AFTER THAT CREATE TOOLING LINE BY USING BISECTING OF TWO LINES WE CREATED WITH RESPECT TO TWO SKETCH LINES WITH POINT AS REFERENCE.
DRAFT ANALYSIS:
- AFTER COMPLETING THE CLOSE SURFACE OF THE DESING GO FOR FEATURE DRAFT ANALYSIS OPTION
- THEN DRAFT ANALYSIS TOOL BAR WILL OPENED.
- THEN USES THE COMPASS OPTION TO DEFINE THE DTAFT DIRECTION.
- HERE TOOLING AXIS IS THE DRAFT DIRECTION.
- PLACE THE COMPASS IN THE TOOLING AXIS.
- THEN LOCKS THE DRAFT DIRECTION USING LOCK OPTION.
- THEN MOVE THE CURSOR ON THE SURFACE AND RIGHT CLICK, HERE THE COROR SCALE OF THE SURFACE WE WILL CREATE IS SHOWN
- THEN THE SURFACE WILL SHOWN IN GREEN COLOR, WHICH MEANS THE DRAFT OF THE SURFACE IS GOOD.

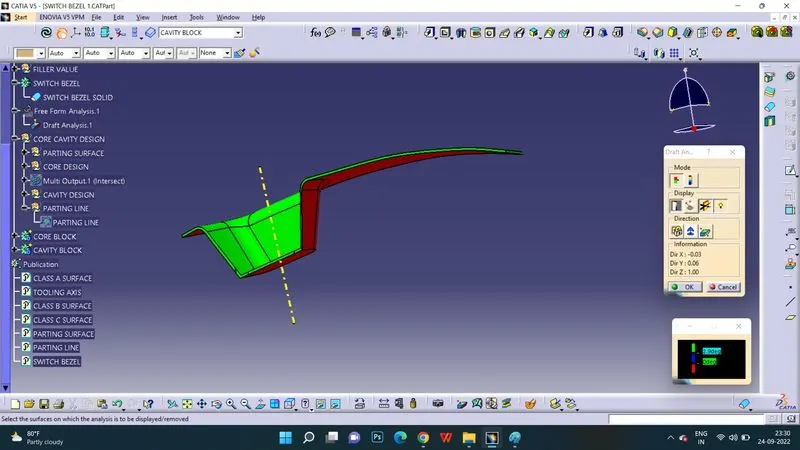

DRAFT ANALYSIS

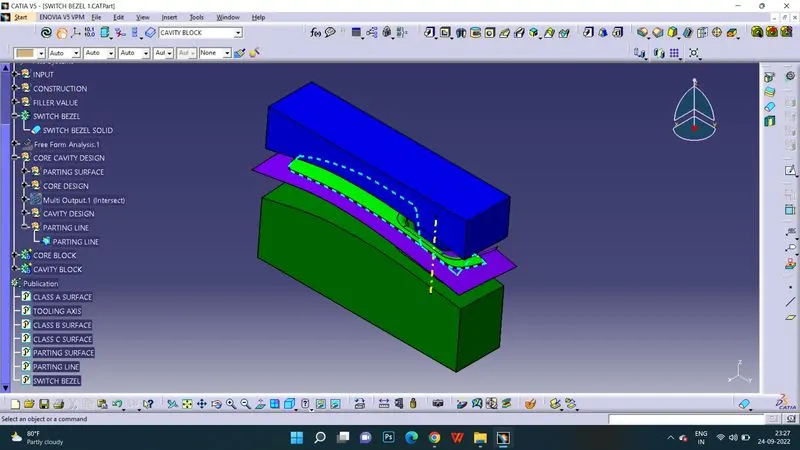

ISOMETRIC VIEW

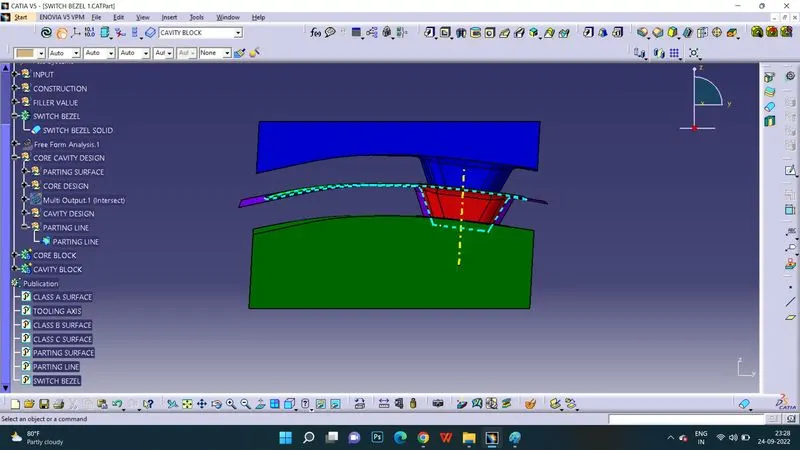

FRONT VIEW

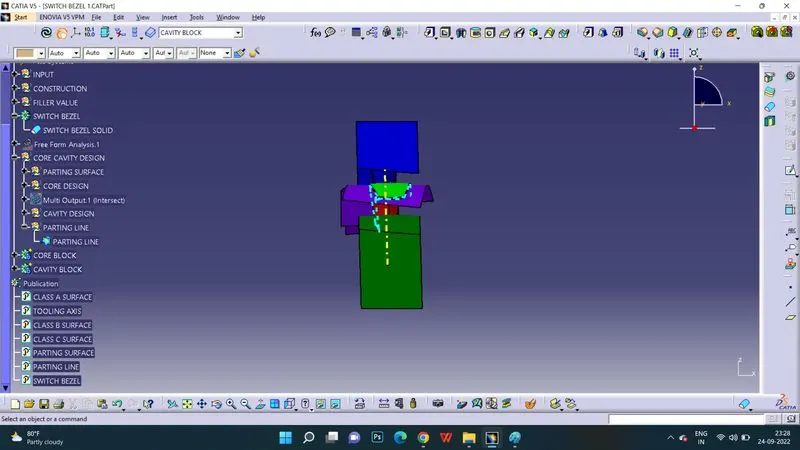

SIDE VIEW

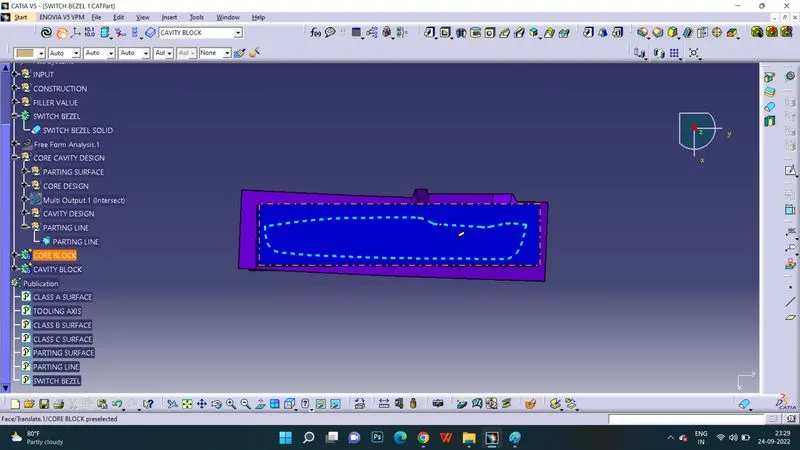

TOP VIEW
