Week 9 - Project - A pillar Design with Master Section

A pillar with master section

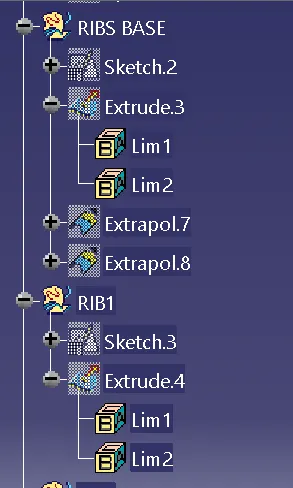

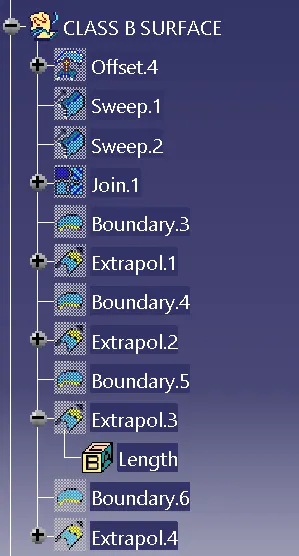

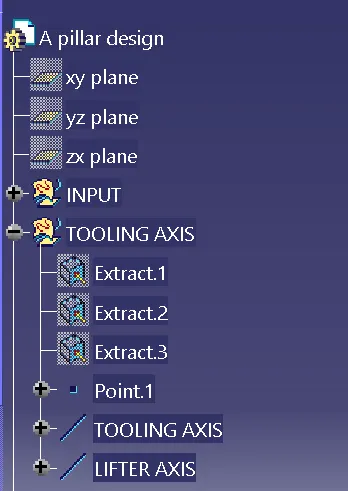

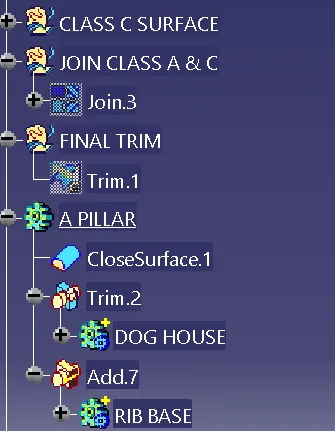

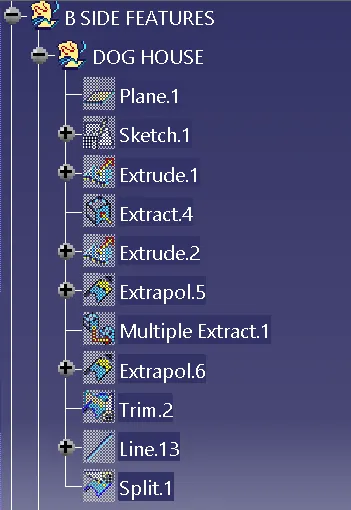

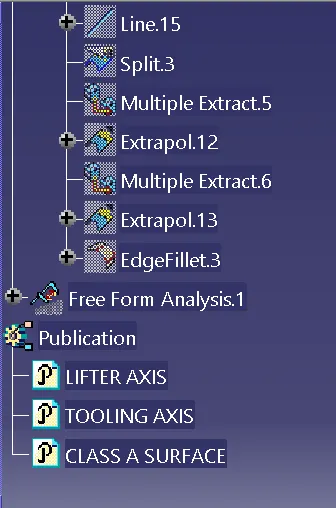

Picture of detailed tree structure

In the tree structure we can see that we have us surface commands to create the class b and class c surfaces

and for dog house also

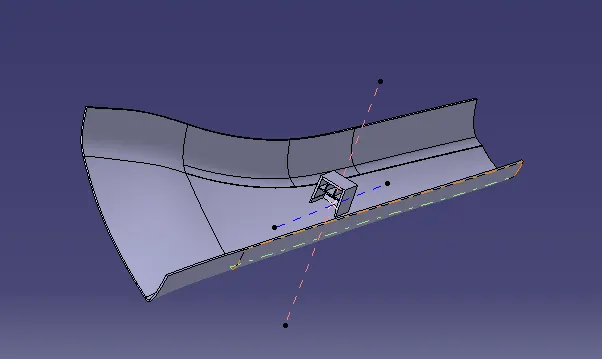

Picture of the 3d Cad

The model is a closed body model with dog house and ribs

Tooling Axis - It is the direction in which the core and cavity will move while manufacturing.(MENTIONED IN THE ABOVE IMAGE IN ORANGE COLOUR)

Side core axis - It is the axis which represents the movement of the side core(MENTIONED IN ABOVE IMAGE IN BLUE COLOR)

Master section was provided through which the dog house and ribs were made

Draft analyis

It is a feature in catia v5 to check if the draft of the component is easy to manufacture

There are thre colors with which two values in degree are given and checked if the component clears the draft for easy manufacturing

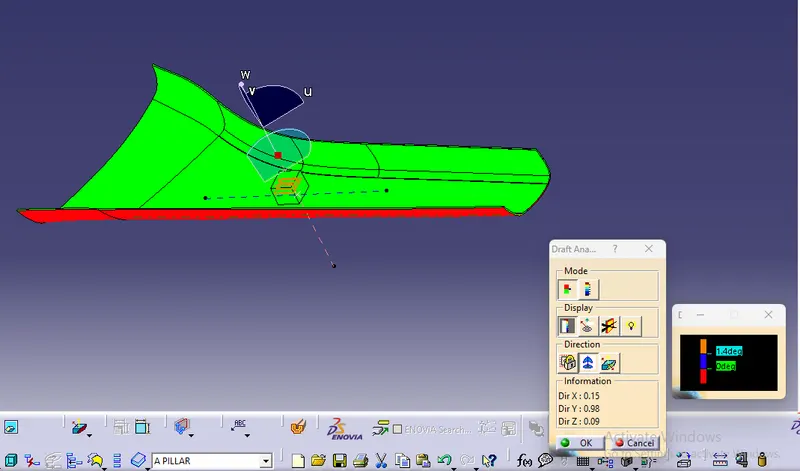

Here is the picture of draft analysis in the tooling direction

Note - I am not able to download powerpoint or google sheets so i answered in answer box
