Week 9 - Project 1 - Door Trim Lower with Engineering Features
DOOR TRIM LOWER PLASTIC COMPONENT
Generally, the part component that we design must be manufacturable or toolable. As we know that, some exterior and most interior parts of automotives are made by plastics. In that approximately 80% can be manufactured by Injection molding. Injection molding machine have two halves- Core half and Cavity half, In which one is movable and the other one is fixed. Tooling axis direction is the direction in which the core and cavity opens. To be manufacturable all faces of the part component must clear the main tooling axis direction, and there are exception in which Sidecores are used additionally if holes or slots present in the part component.
There are three ways to find the tooling axis direction-
1. X, Y, Z axis method
2. Normal to surface method
3. Bisecting method
I've found the tooling axis direction of door trim lower plastic component by X,Y,Z axis method. The direction of tooling axis is in the Y direction.

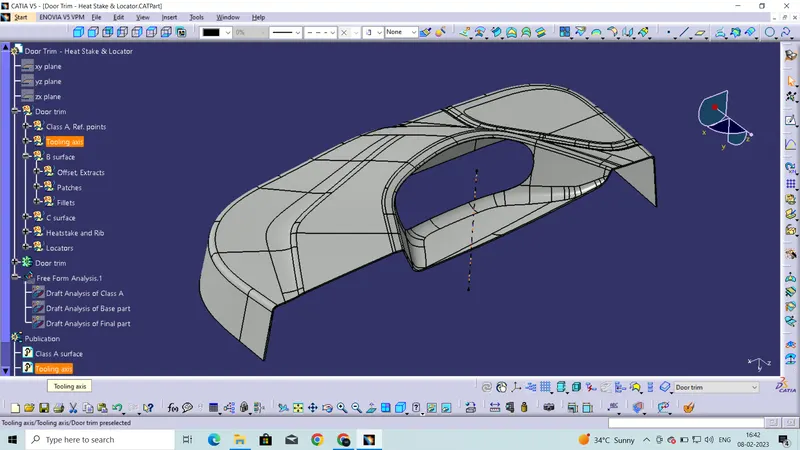

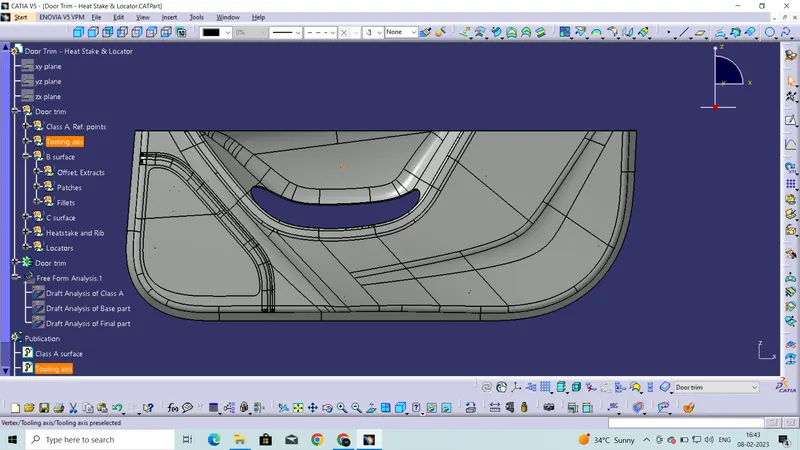

Tooling axis of door trim lower plastic component:
Locators- Locators are one of the engineering feature that is used to arrest the degree of freedom while assembling the part components.
There are two types of locators- Four way locators, Two way locators

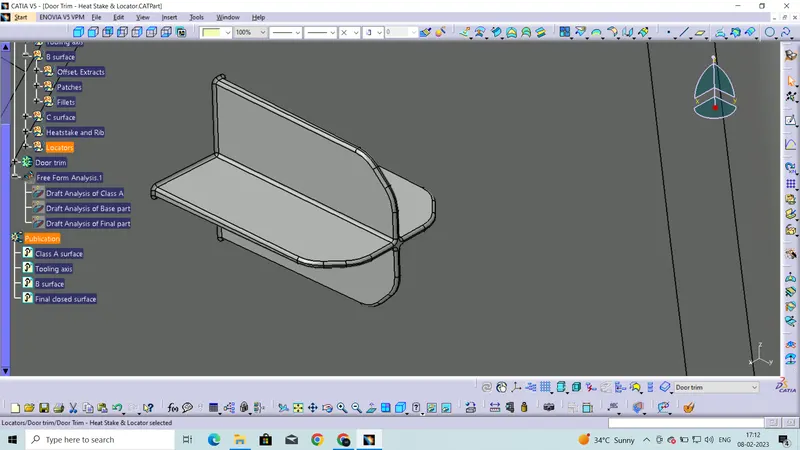

( Four way locator )

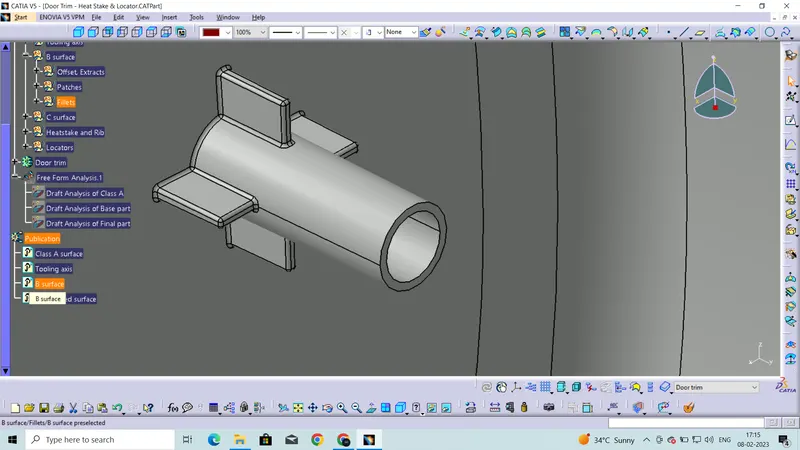

Heatstakes- Heatstakes are one of the engineering feature that is used for joining two part components permanently.
Draft analysis-
Draft analysis is the technique that is used to analyze whether the part component that is designed in the catia part workbench can be manufacturable based on the draft condition applied.
The part component must have a minimum draft in all faces to avoid damages between the mold and part while in the ejection process.
Nominal draft value- 3 degree

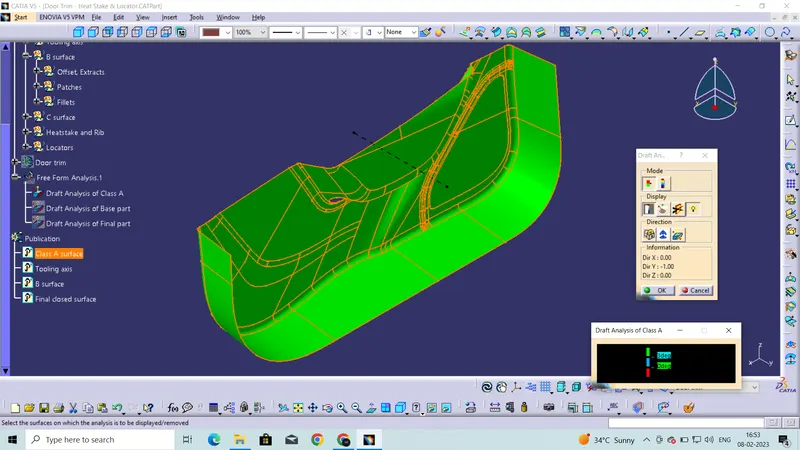

Draft analysis of Class A surface:

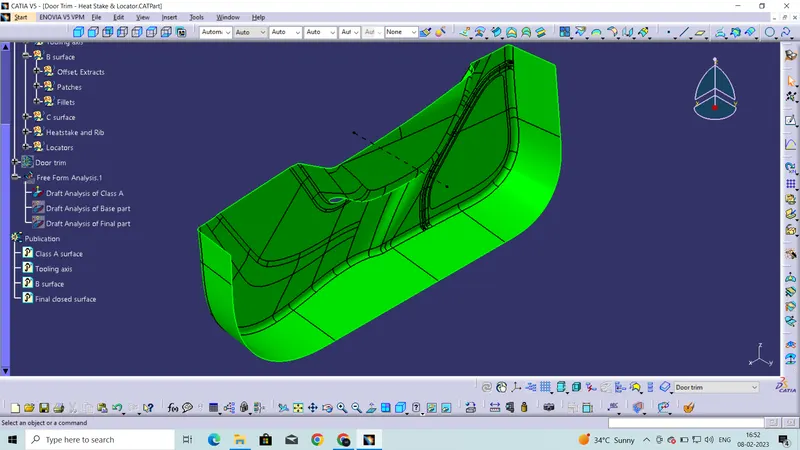

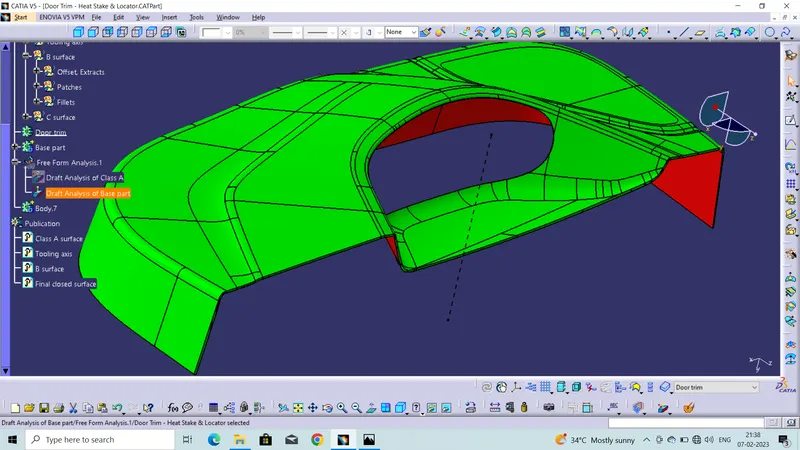

Draft analysis of Base part ( Without engineering features ):

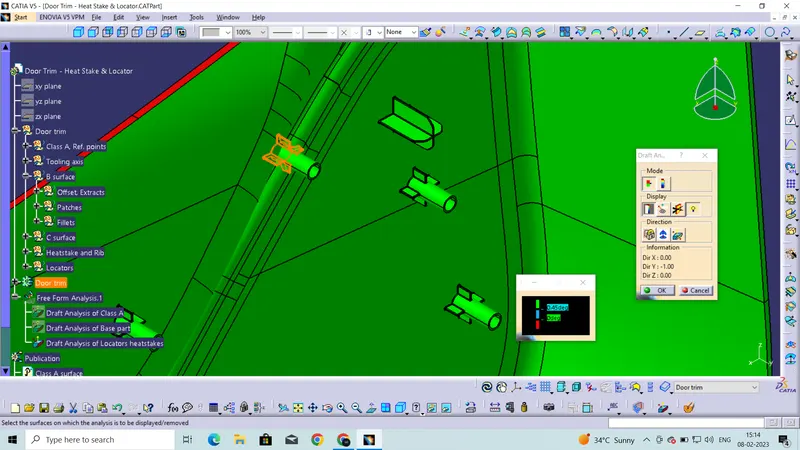

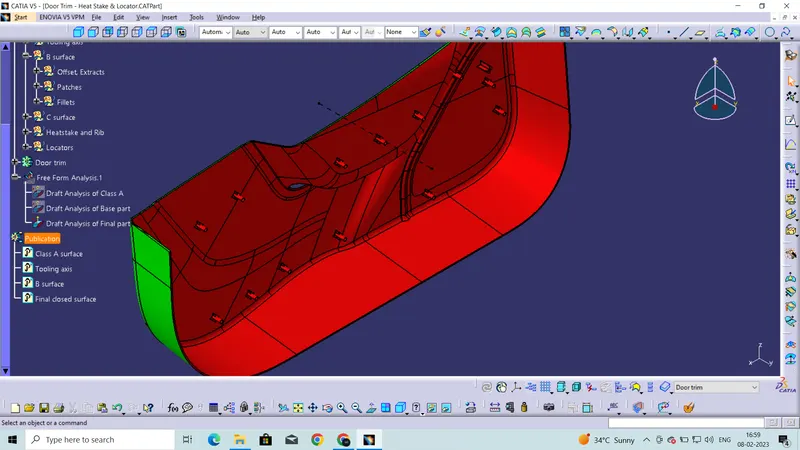

Draft analysis of Locators and Heatstakes:

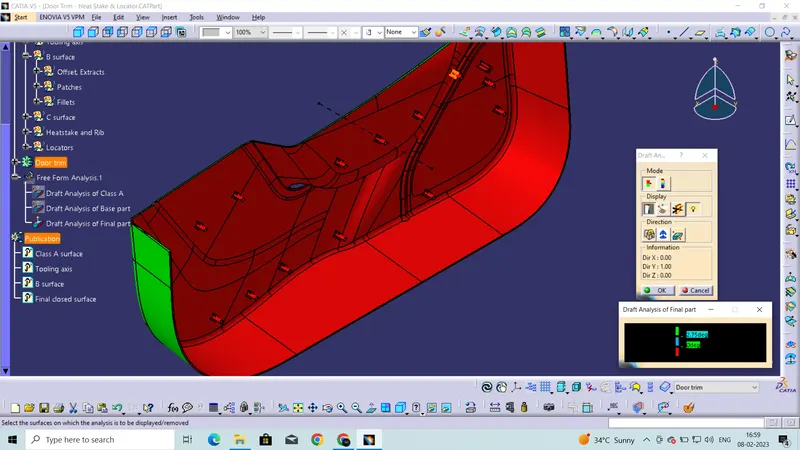

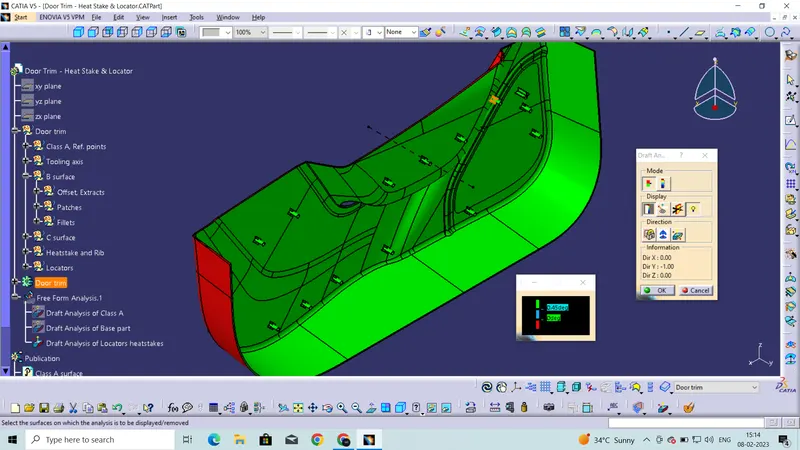

Draft analysis of Final part component:

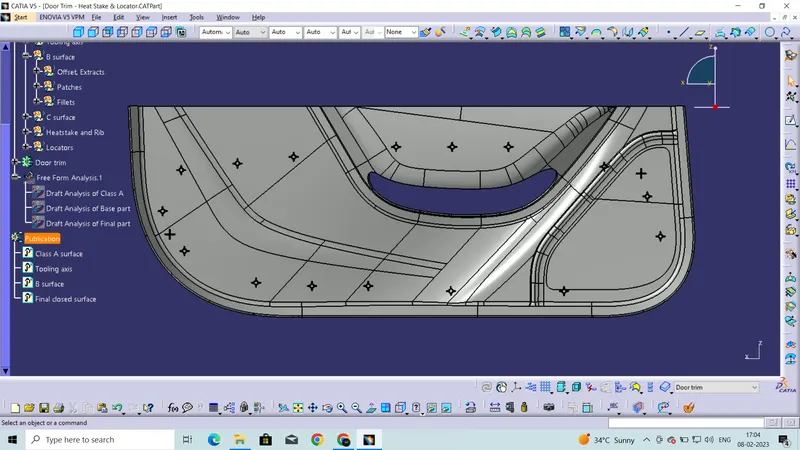

Final part component in various orientations-

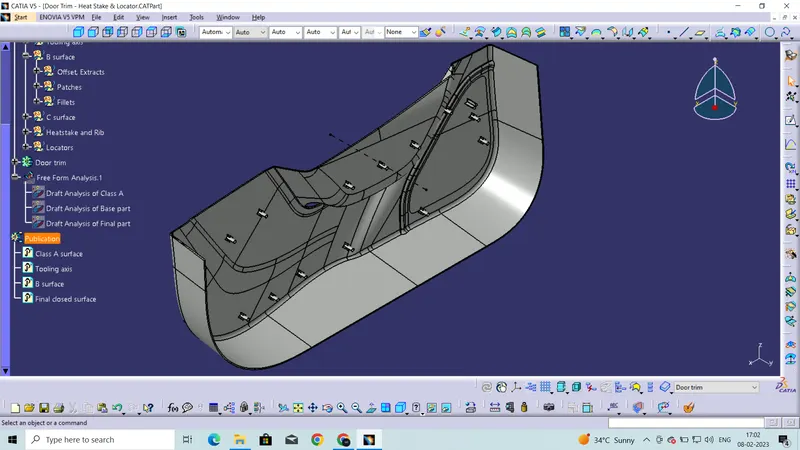

Isomteric view

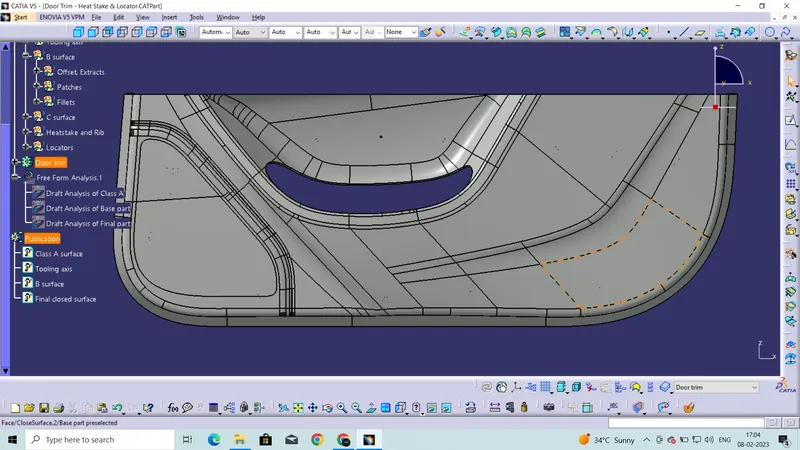

Front view
Back view

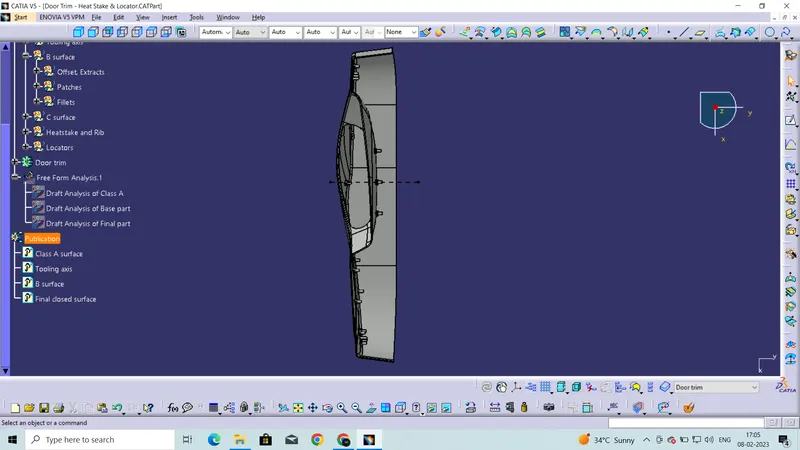

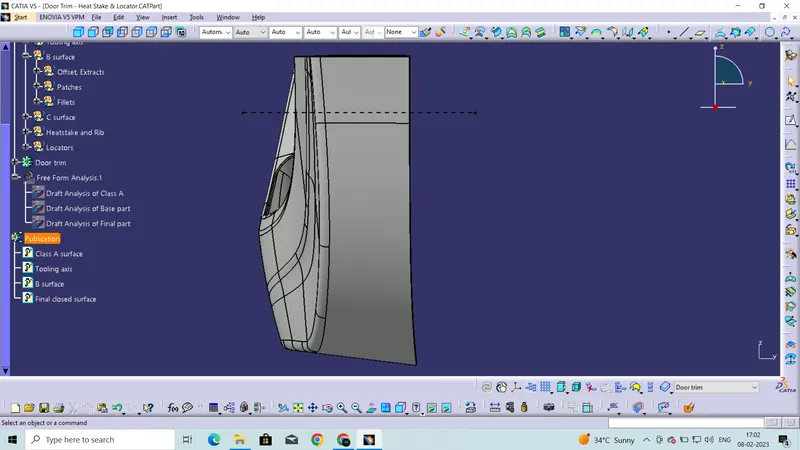

Left view

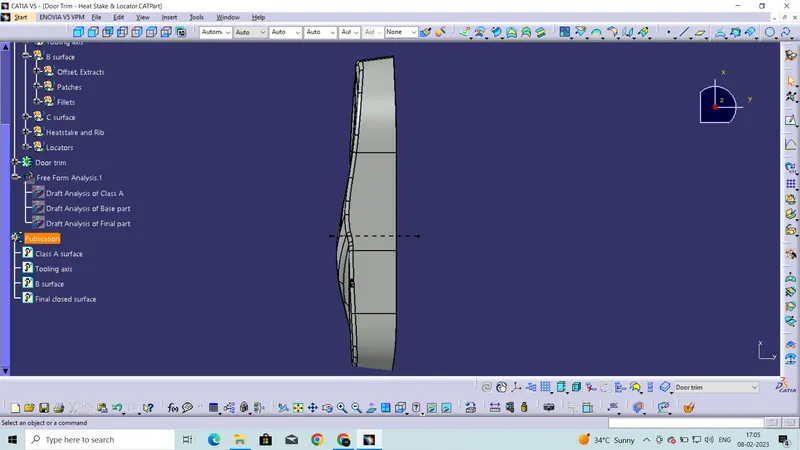

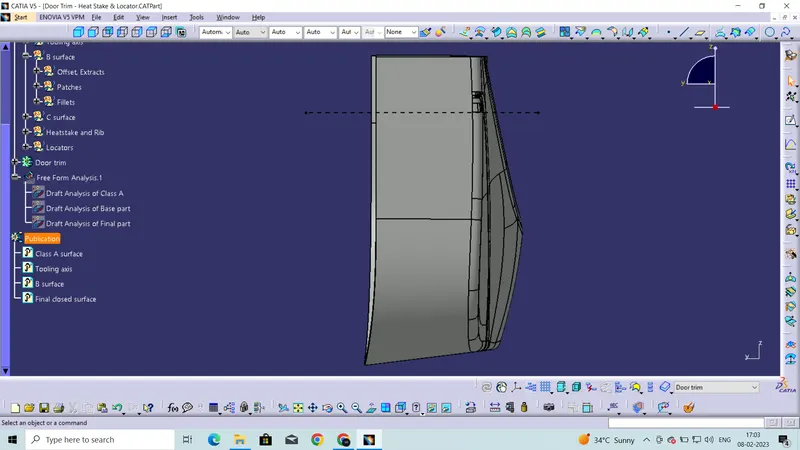

Right view
Top view
Bottom view
Design rules-
Wall thickness of part component: 2.5mm
Outer diameter of heatstake: 7mm
Inner diameter of heatstake: 5mm
Height of heatstake: 18mm
Height of Heatstake's rib: 6mm
Thickness of Heatstake's rib: 1mm
Length of Heatstake's rib: 14mm
Length of Locators: 15mm
Height of Locators: 20mm
Thickness of Locators: 1mm
Locator's chamfer value: 3mm
General value
Draft: 0.5 degree
Fillet: 0.25mm
