Week 9 - Project 1 - Door Trim Lower with Engineering Features

FFrancis Lal31 Jan 2023

REPORT

Aim :

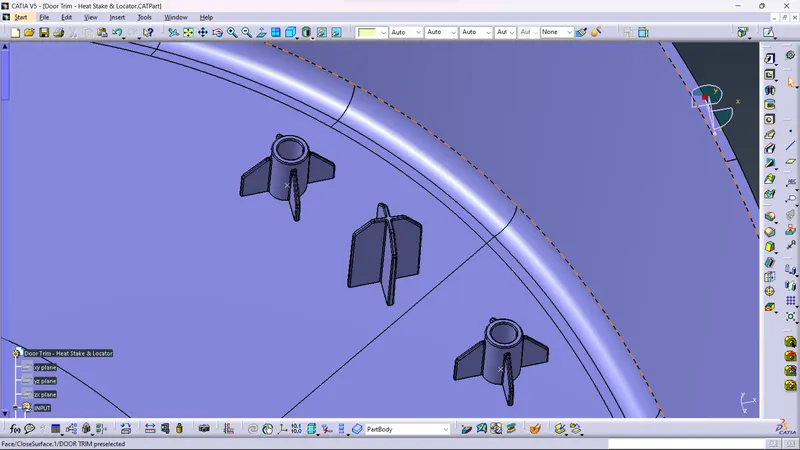

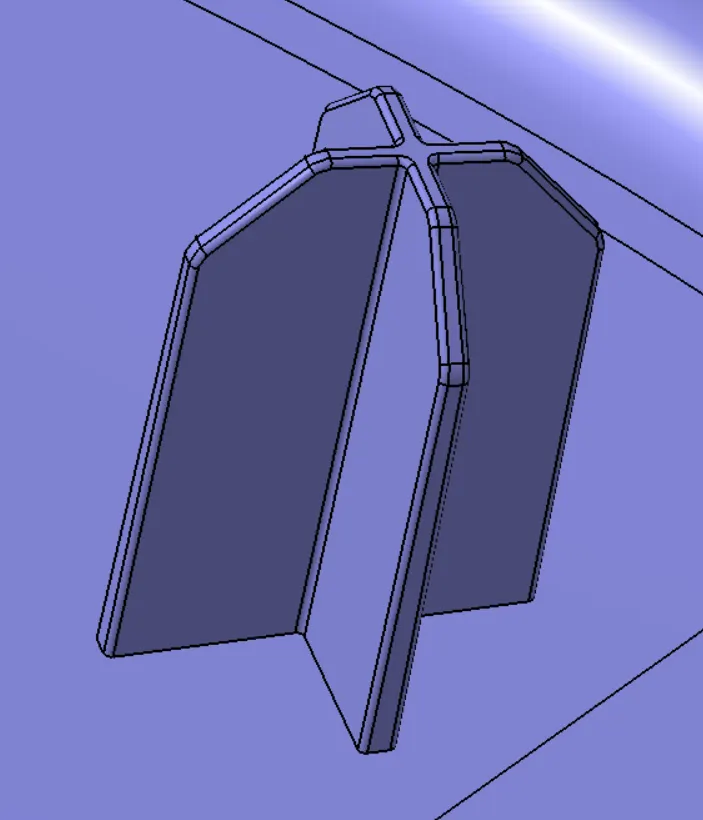

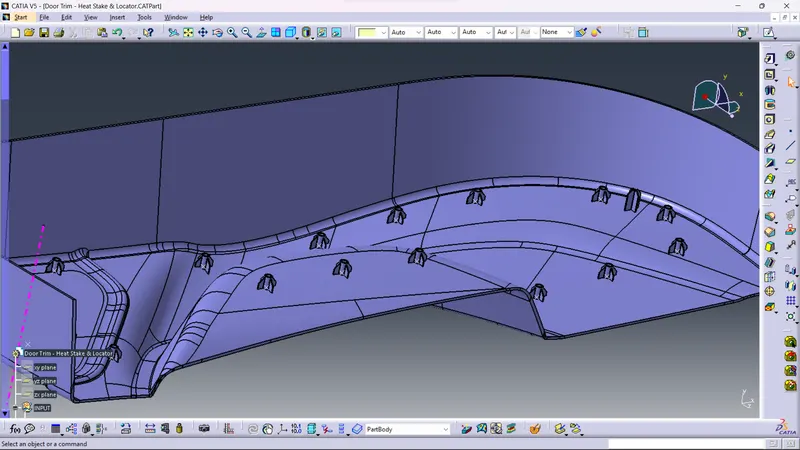

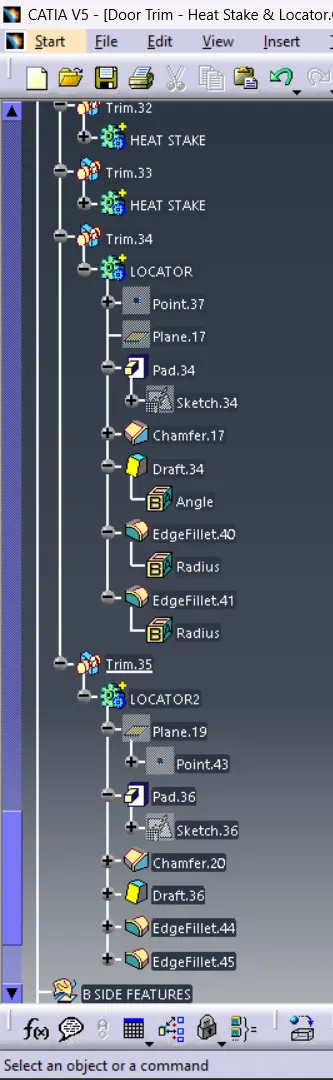

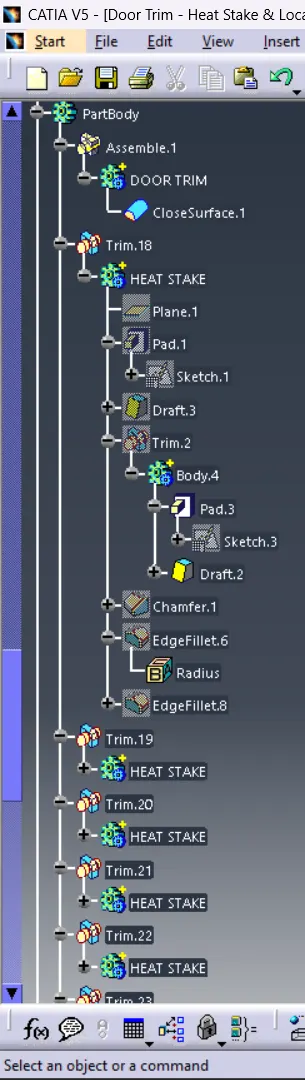

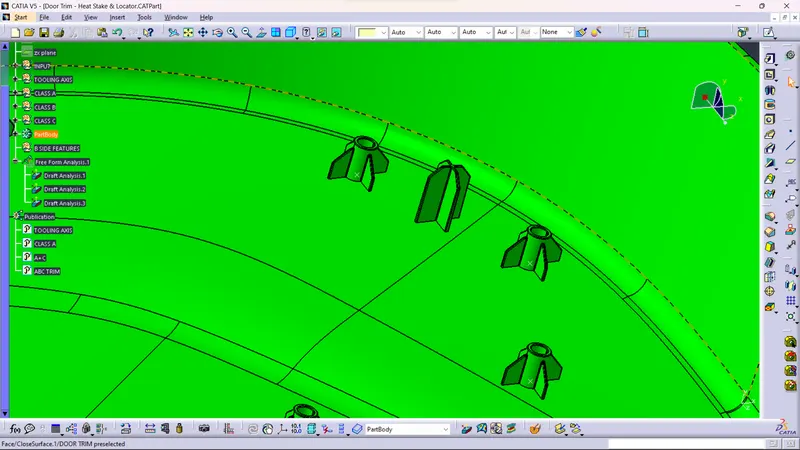

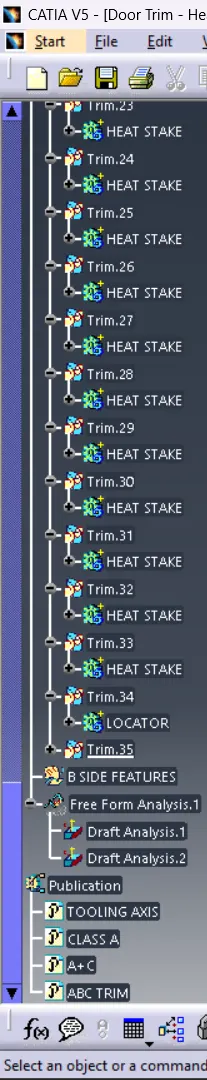

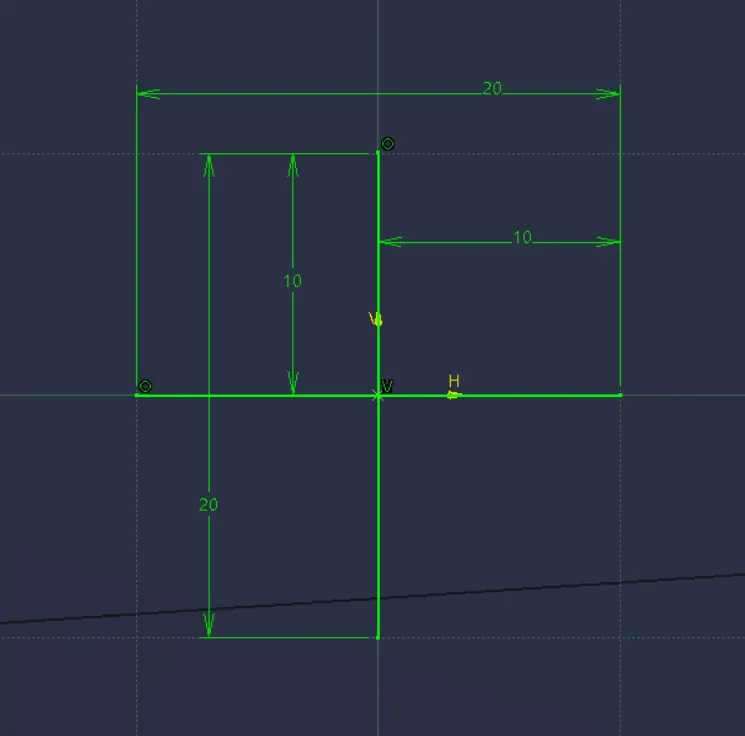

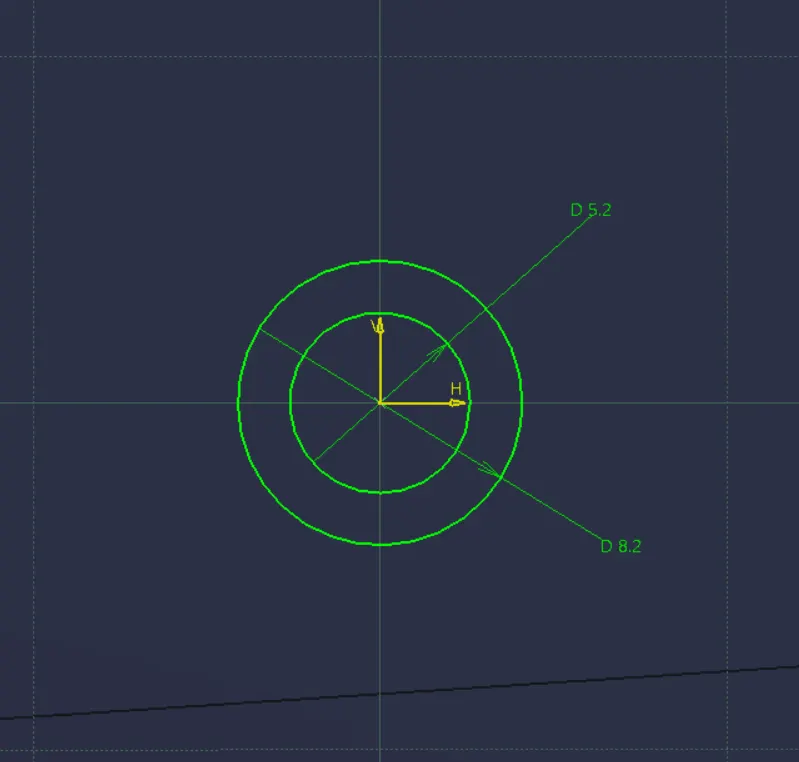

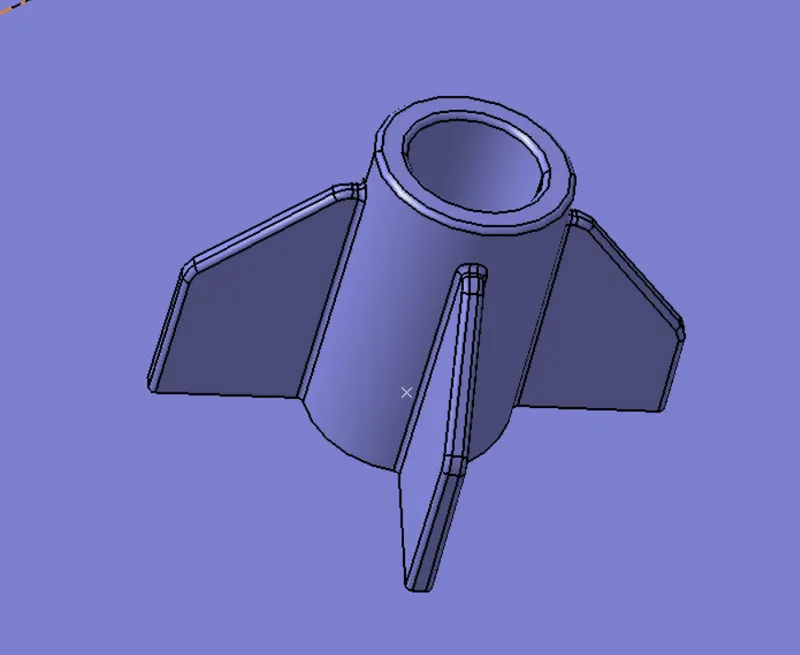

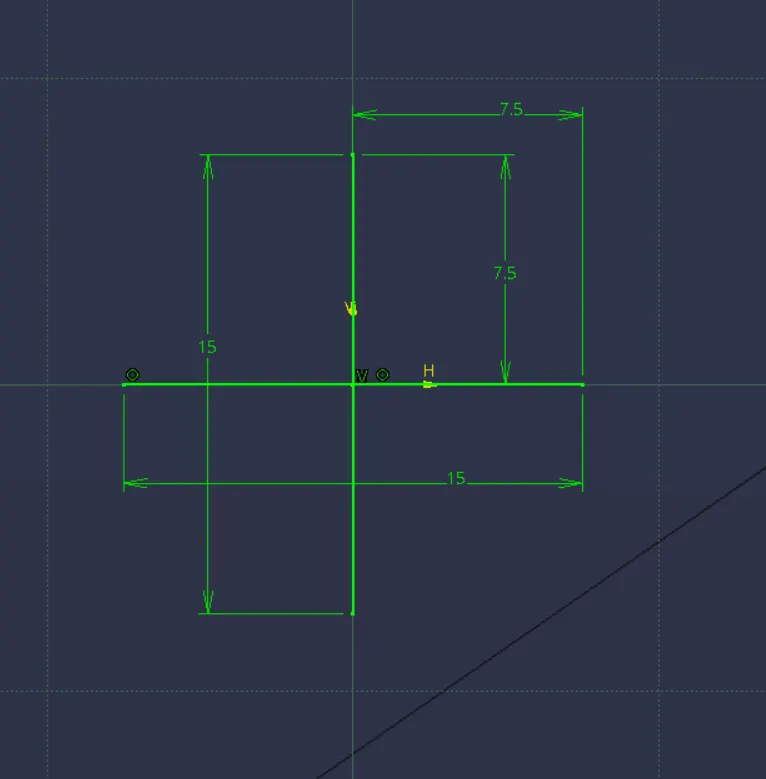

To A Create the DOOR TRIM LOWER Plastic component through the given Class-A surface and Create the Heat Stakes and the locators considering the design rules mentioned in the video for the door applique. Consider the thickness of the part to be 2.5 mm.

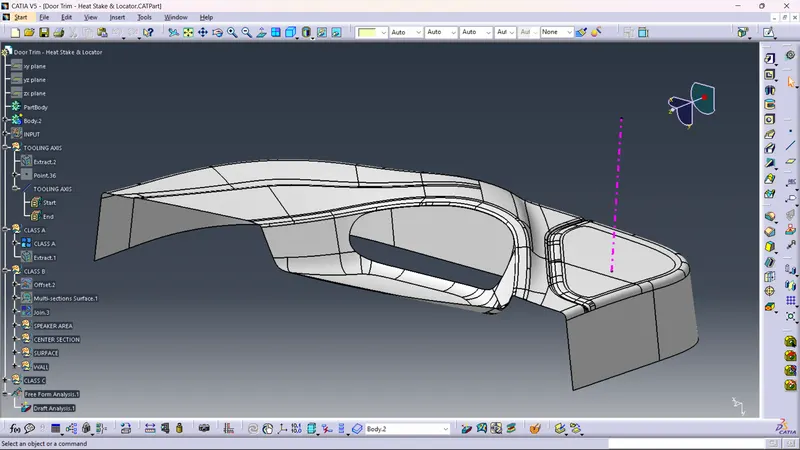

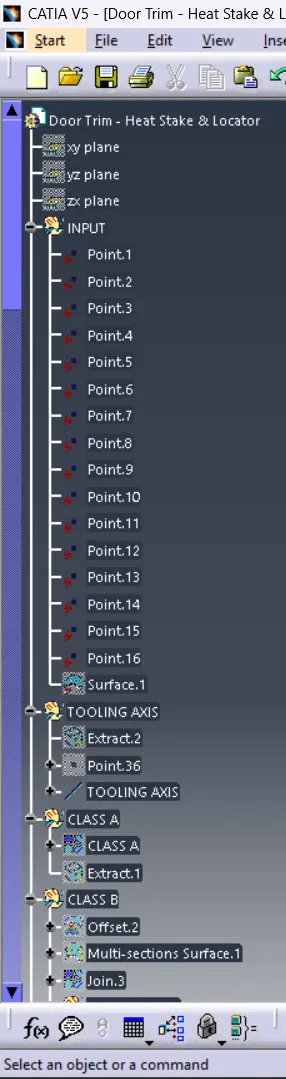

TOOLING AXIS CREATION

The starting will be from the creation of tooling axis. we need to select the tooling axis so as it is the optimum orientation for the component production in real life. Generally, first we look if its okay for the tooling axis to be in the XYZ directions. If thats not possible, then we will look for large, flat surface and take the tooling axis normal to the surface. If that is also not possible, then we will create tooling axis with bisecting method.

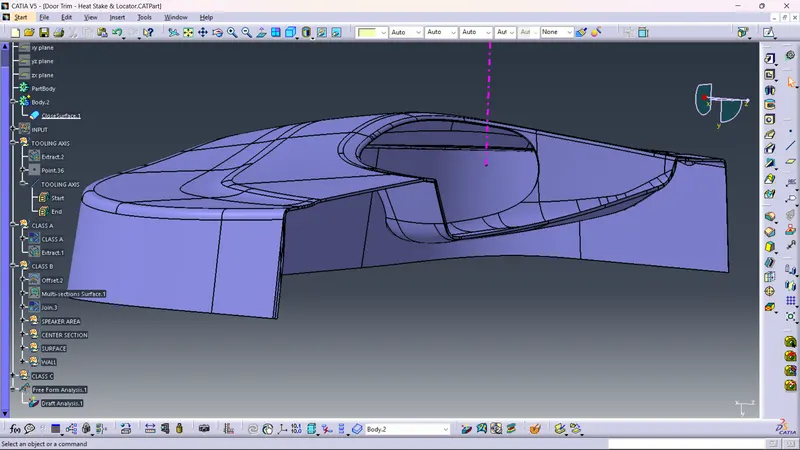

Here what we done is, extracted a flat surface, made a point in the suface and created a line in the normal to that surface.

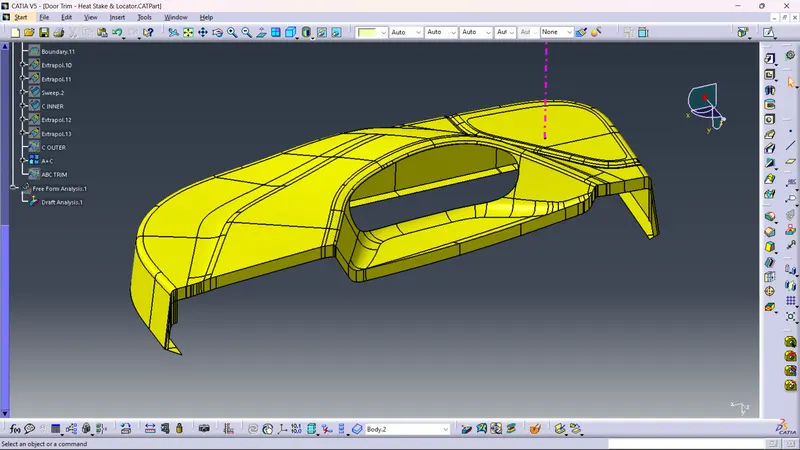

DRAFT ANALYSIS (CLASS A)

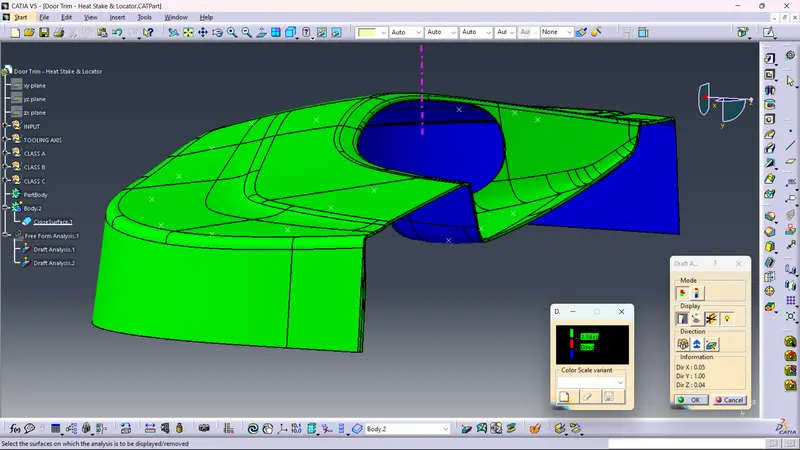

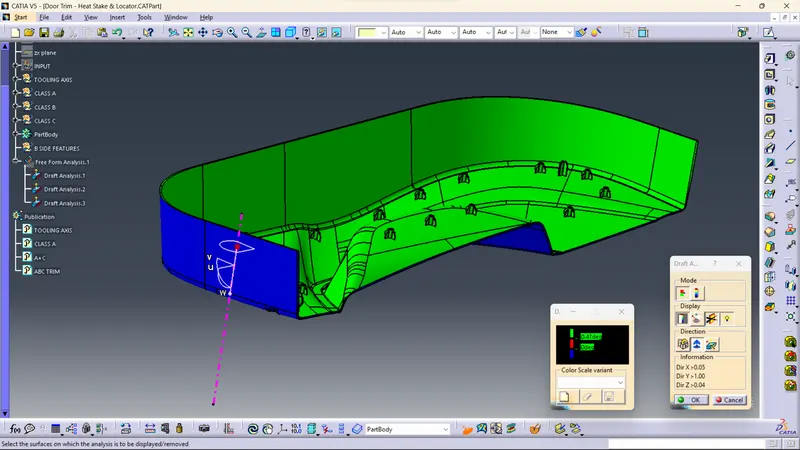

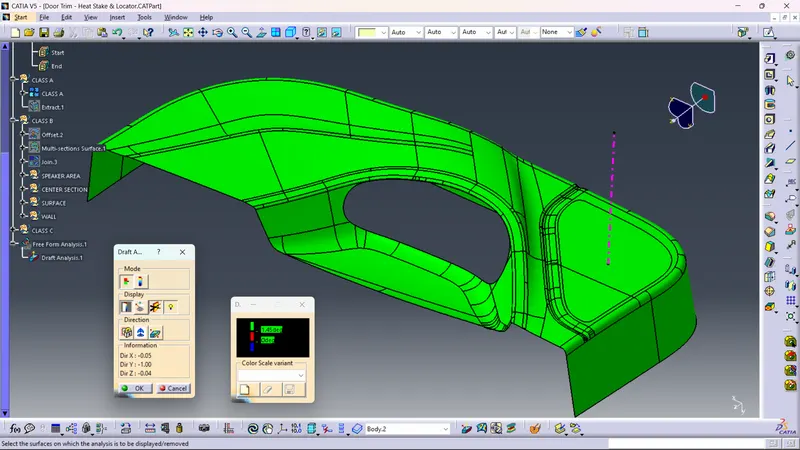

Click on the Feature Draft analysis icon.

Use the compass to Select the tooling axis as the direction.

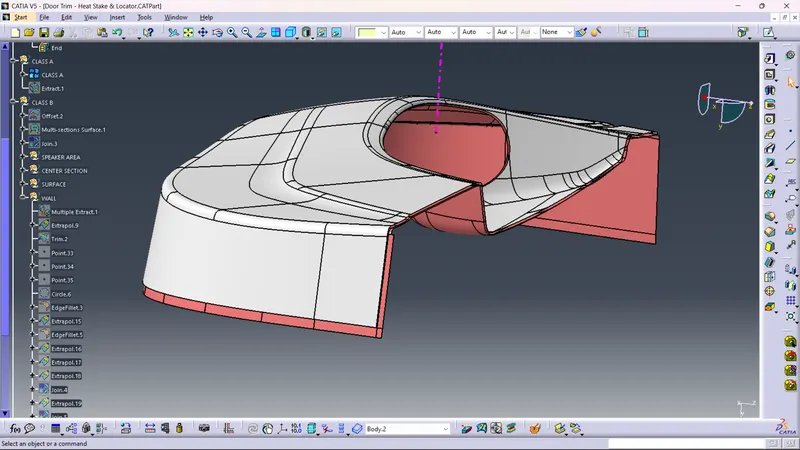

B Surface Creation

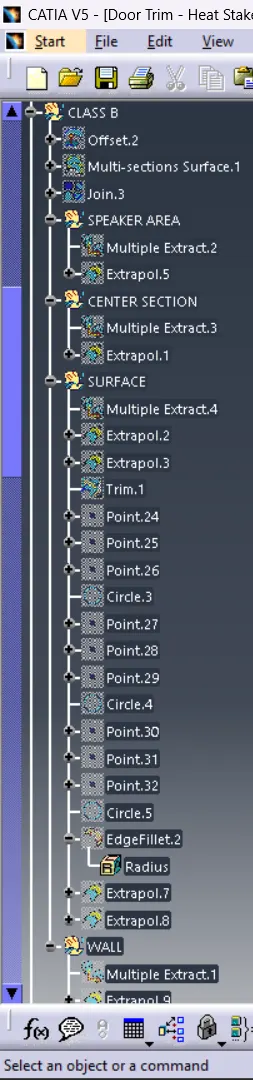

The specified thickness for the component is 2.5mm. Offset the class A surface 2.5mm in the inside direction. Some of the sub elements will not be offsetted very well. Such areas needed to be extracted individually and offsetted.

Class C surface creation

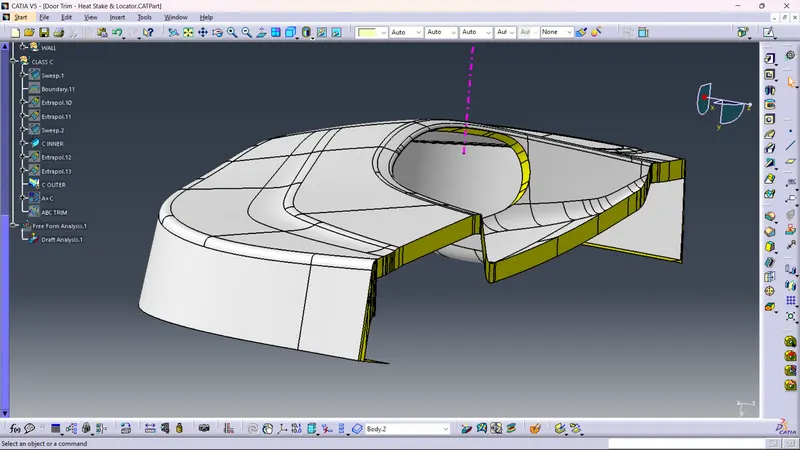

The c surface is made with draft direction with respect to the tooling axis using sweep operation.

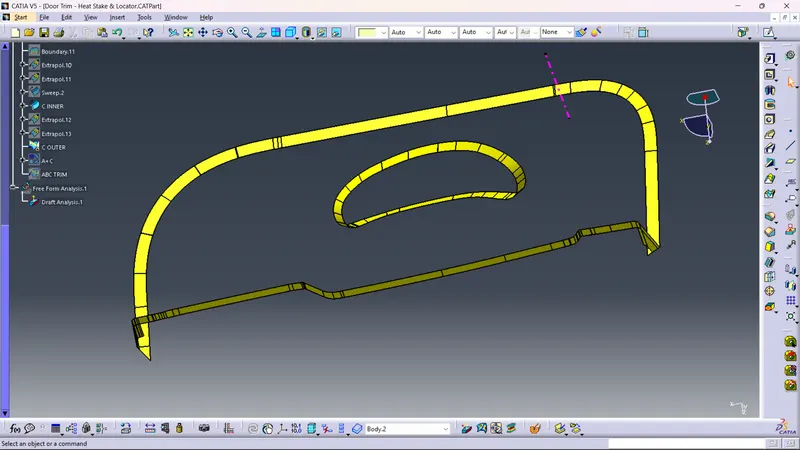

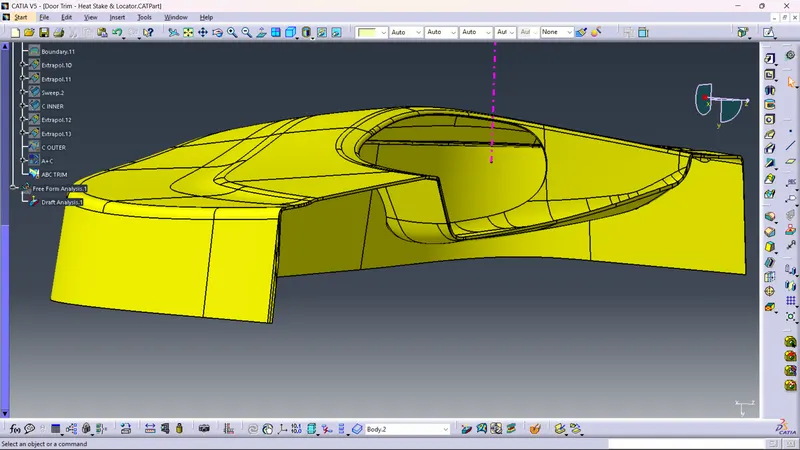

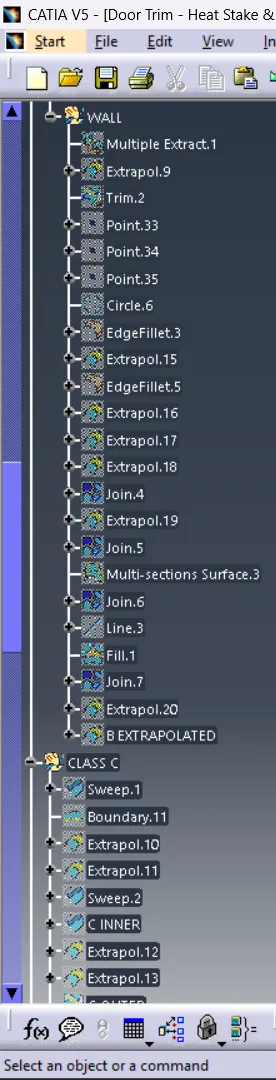

Trimming

The class A surface and class C surface is trimmed and then then it is trimmed with the class B surface to create a closed surface.

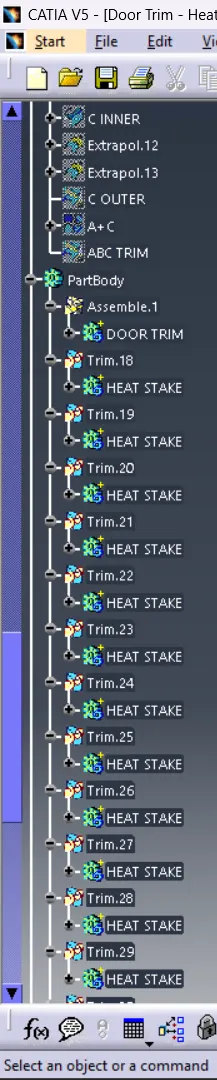

Solid Body Creation

Switch to Mechanical Part Design Workbench and select the closed surface operation in the surface based features. Define the part body and select the closed surface. The solid body wiil be created.
