Week 9 - Project 1 - Door Trim Lower with Engineering Features

DOOR TRIM LOWER APPLIQUE WITH ENGINEEERING FEATURES CHALLANGE REPORT

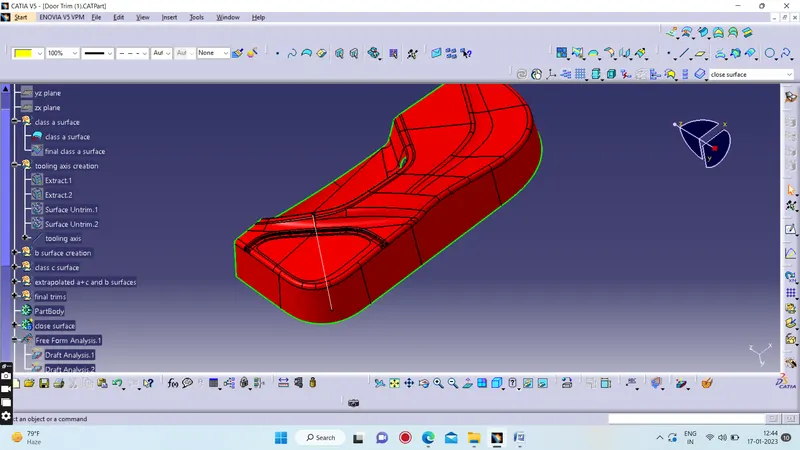

TOOLING AXIS CREATION AND SURFACE PARTIAL DRAFT ANALYSIS .

CHECKED THE SURFACES WITH RESPECTIVE ALL THE AXIS AND EXTRACTED ONE FLAT SURFACE THROUGH WITH ALL THE SURFACES ARE SEEN WHEN PARTIAL DRAFT ANALYSIS IS DONE
CREATED A POINT ON THE SURFACE
CREATED A LINE NORMAL TO THE SURFACE EXTRACTED AND NAMED IT AS TOOLING AXIS

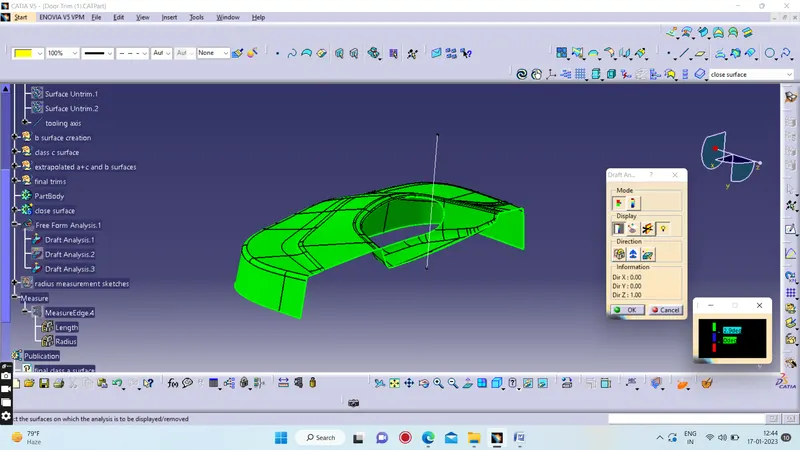

WITH RESPECTIVE THE TOOLING AXIS CREATED PERFORMRD DRAFT ANALYSIS AND THE DRAFT ANALYSIS GOT JUSTIFIED

CLASS B SURFACE CREATION

INTIALLY CHECKED THE B BY TAKING THE INPUTS FROM THE CLASS A SURFACE CREATED THE C SURFACE WHICH CONNECTS BETWEEN A NAD B SURFACE AND BY USING OFF SET METHOD OFFSETTED THE CLASS A SURFACE WITH 2.5 MM DOWNWARDS

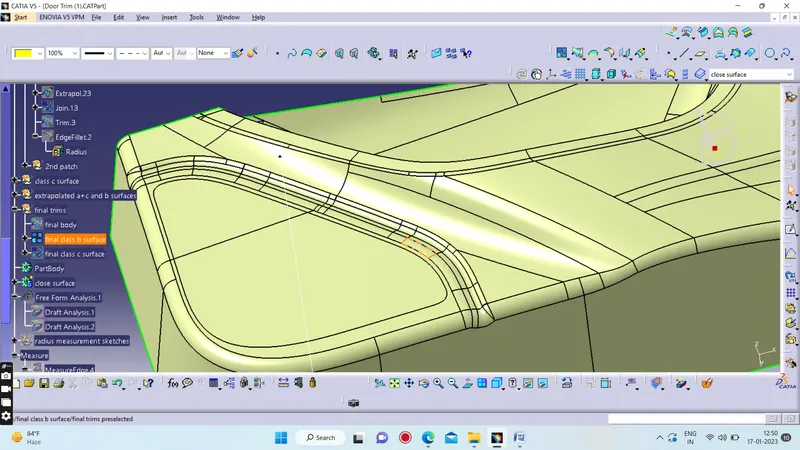

AND FOUND FEW SURFACES GOT MISSED ESPECIALLY FILLET AREAS

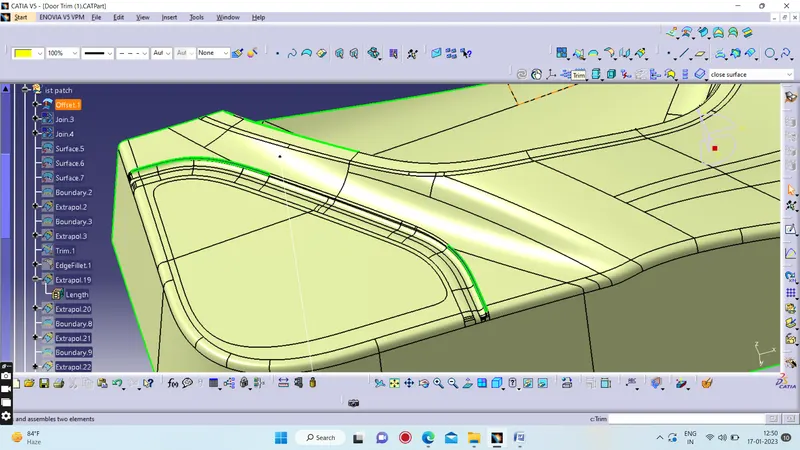

WORKED ON THOSE ARES AND FILLED THOSE AREAS BY USING EXPOLATION ,MULTI EXTRACTS ,MULTI SECTION SURFACE AND SWEEP
AND CHECKED ALL THE AREAS FILLED WITH PROPER BOUNDRY WITH RESPECTIVE CLASS A SURFACE

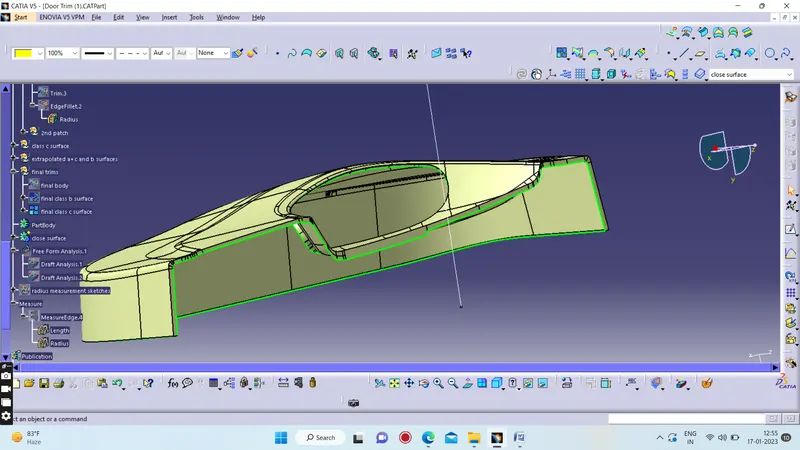

CLASS C SURFACE CREATION :

BY TAKING THE INPUTS FROM THE CLASS A SURFACE CREATED A SURFACE WHICH CONNECTS CLASS A SURFACE AND B SURFACE BY USIND SWEEP COMMAND WITH REPECTIVE DRAFT DIRECTION AND WITH REFERENCE SURFACE DIRECTION OUTSIDE AND JOINED THEM USING 0.003 AS MERGING DISTANCE AND ALSO TRIM AND SPLIT COMMAND

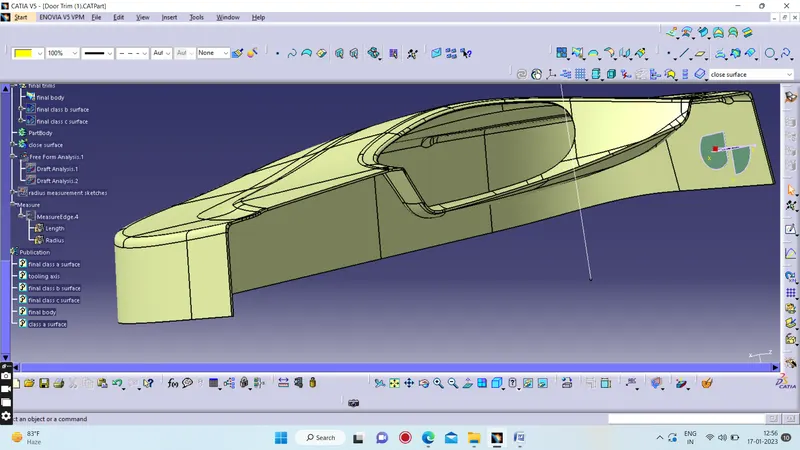

JOINED A AND C SURFACE AS ONE BODY AND TRIMED IT WITH THE B SURFACE TO FORM A CLOSED BODY WITH TRIM COMMAND

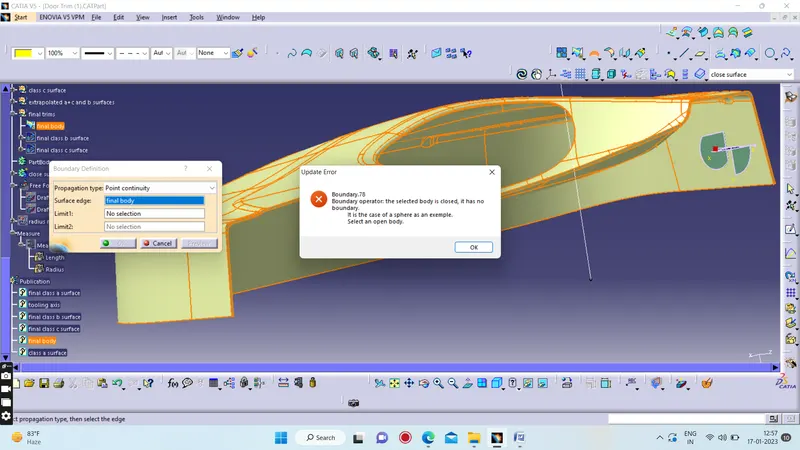

CHECKED WITH INTERSECT AND BOUNDRY COMMAND

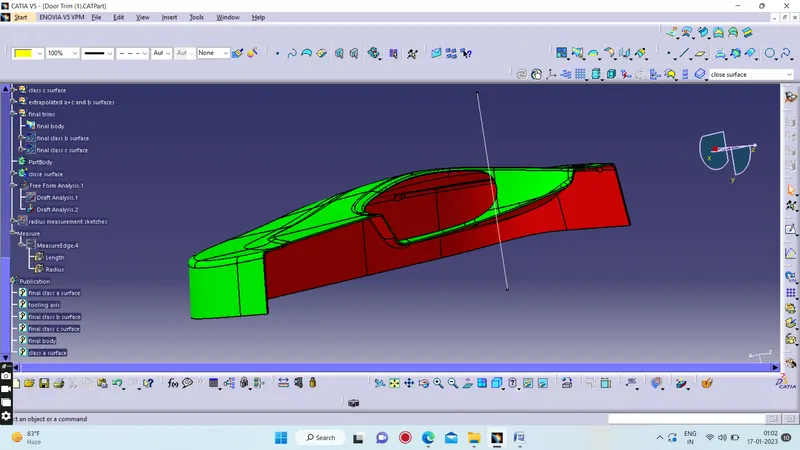

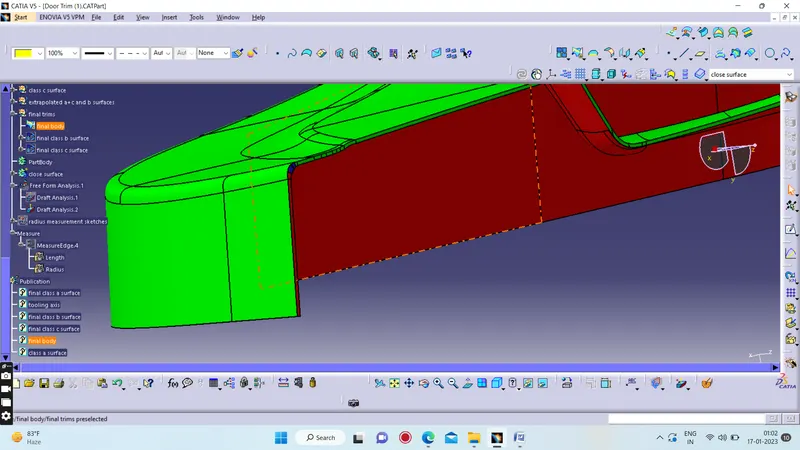

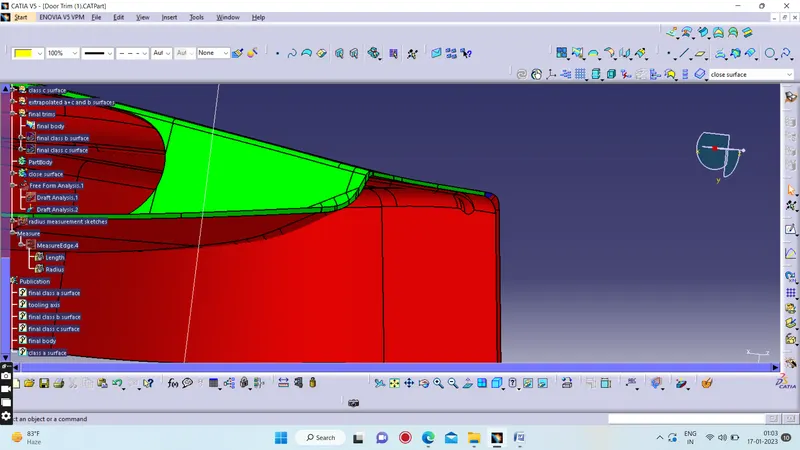

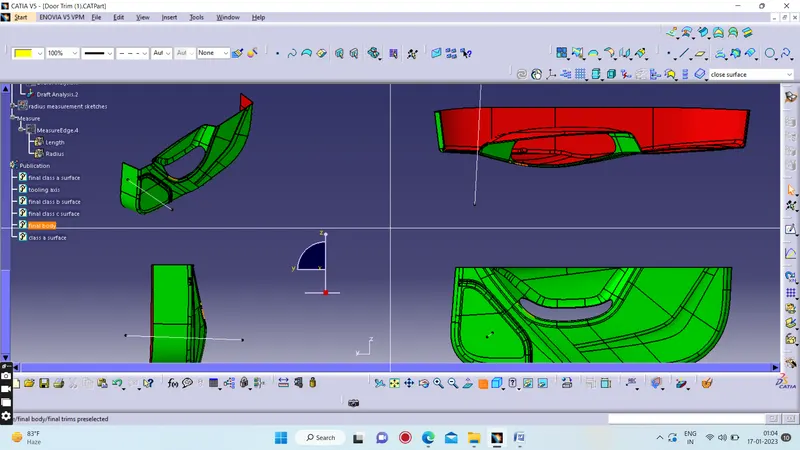

FINAL DRAFT ANALYSIS AND REPORT

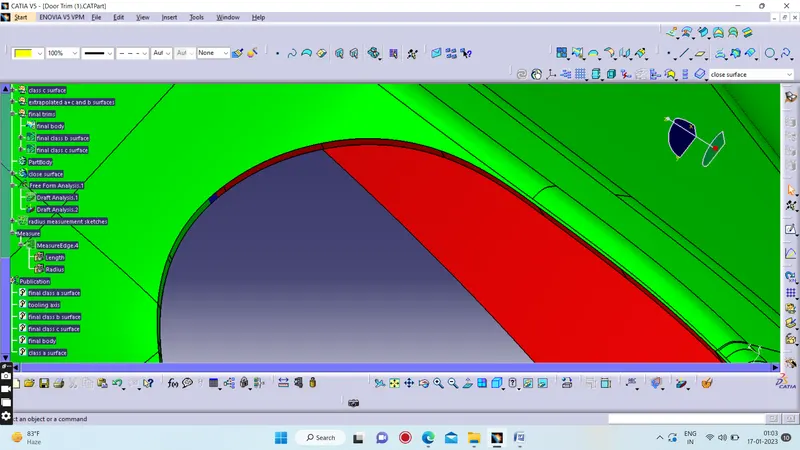

PERFORMED THE DRAFT ANALYSIS ON THE FINAL BODY AND FOUND FEW SURFACES NEED ALTERNATIONS IN THE CLASS A SURFACE SO THAT THOSE SURFACE WILL GET CLEARED WITH RESPECTIVE TOOLING AXIS

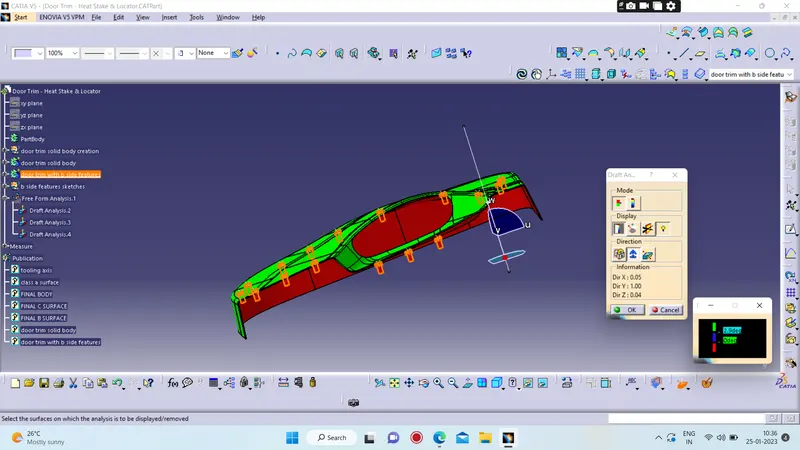

B SIDE FEATURES CREATION

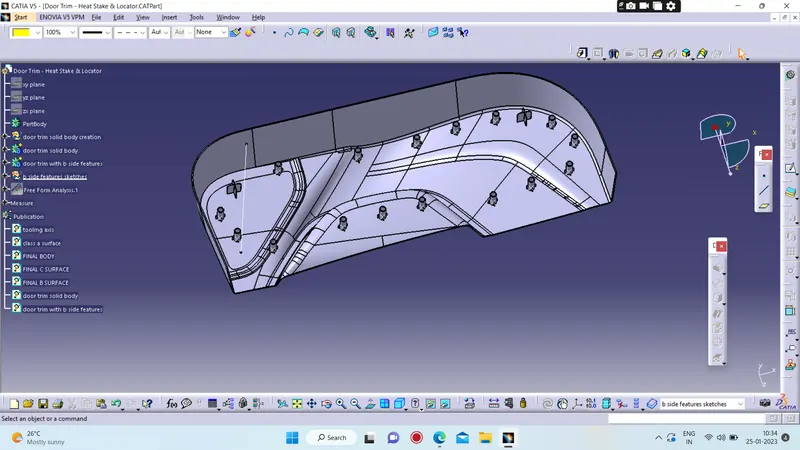

AS PER THE INPUTS POINTS GIVEN CREATED THE HEAT STAKE SKETCHES AND PADDED THEM IN A PART BODY AND TRANSLATED THE BODY TO REMAINING ALL POINTS HENCE THE HEIGHT OF THE HEAT STAKE IS HIGH CREATED RIBS IN 4 SIDES OF THE HEAT STAKE FOR THE STRENGHT PURPOSE
ALSO CREATED A 4 WAY LOCATORS IN 2 POINTS AND

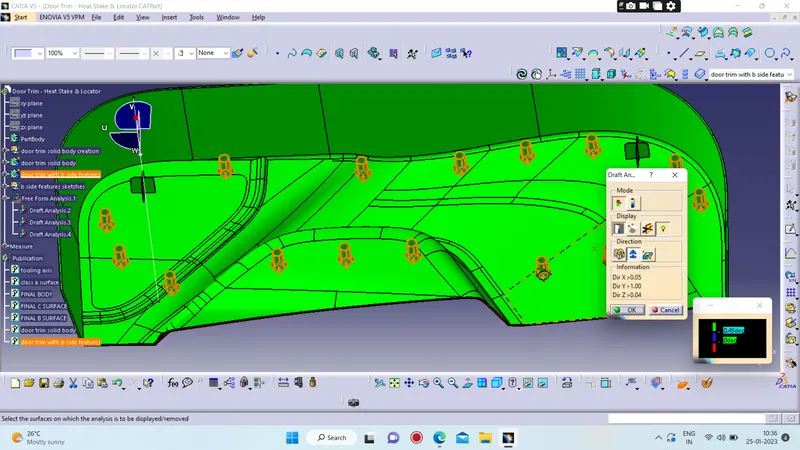

PROVIDED DRAFT OF 0.5MM ALONG TOOLING AXIS TO EACH AND EVERY B SIDE FEATURES
AND VERIFIED WITH THE DRAFT ANALYSIS AND IT IS GETTING CLEARED WITH 0.45 DRAFT
