Week 9 - Project 1 - Door Trim Lower with Engineering Features

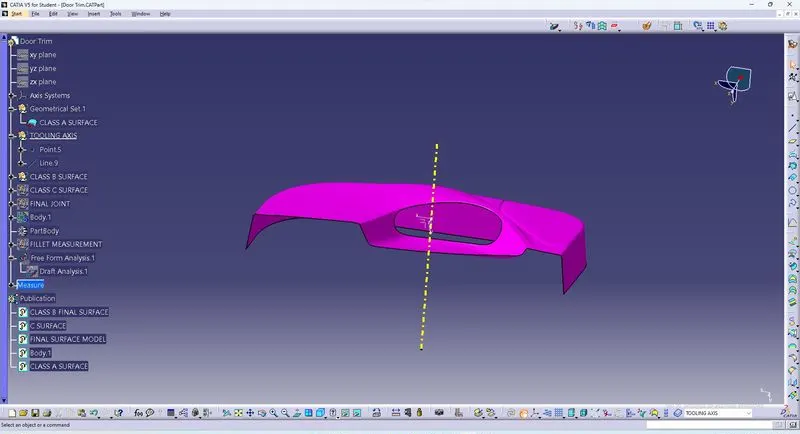

TOOLING AXIS
SINCE IT IS HAVING UN EVEN BOUNDARY,WE CAN'T REFER OUTER SURFACES.ALSO THERE IS NO FLAT SURFACE FOR REFERNCE.
SO USING CENTER OF GRAVITY OPTION,WE CREATED ORIGIN POINT & CREATED COORDINATES.
TOOLING AXIS CREATED WITH THAT POINT REFERNCE.

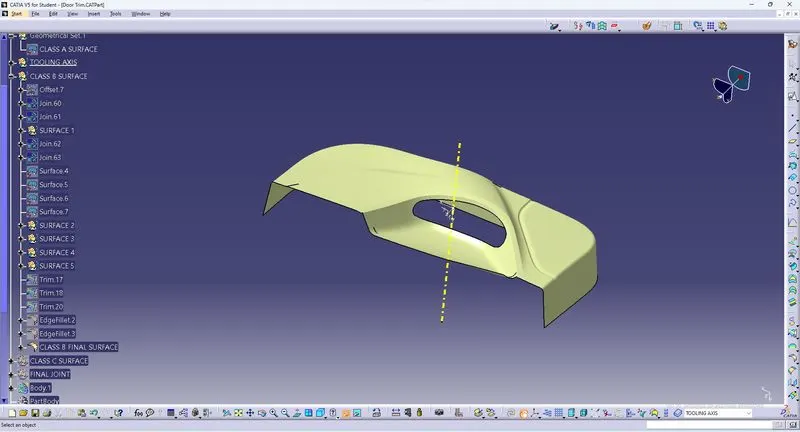

CLASS B SURFACE
DIRECTLY OFFSETED CLASS A SURFACE UPTO 2.5mm.
FOUND SOME PATCHES.
SO SPLITTED INTO MULTIPLE SURAFES.
EXRACTED AREAS NEAR TO PATCHES.
USING EXTRAPOLATION & TRIM COMMAND THAT PATCHES CLOSED.
FEW PLACES USED MULTISECTION OPTION TO CLOSE THAT PATCHES.
THEN ALL SURFACES JOINED BY TRIM OPTION.
FINALL CLASS B SURFACE CREATED
CLASS C SURFACE
CLASS A OUTER SURFACES EXTRACTED & USING SWEAP COMMAND CLASS C SURFACE CREATED AT INVIDUAL PROPAGATIONS.
MULTISECTION COMMAND USED AT SOME PLACES.
THEN USING TRIM & JOINT COMMAND ALL SURFACES JOINED & FORMED FINALL CLASS C SURFACE.
THEN USING TRIM COMMAND CLASS C SURFACE JOINED WITH CLASS A SURFACE
FINALLY CLASS B SURFACE ALSO JOINED WITH IT USING TRIM COMMAND
FILLETS PROVIDED WHERE EVER NEEDED.
FILLET RADIUS USED WITH RESPECT TO FILLETS USED IN CLASS A SURFACE AT THE SAME AREA.

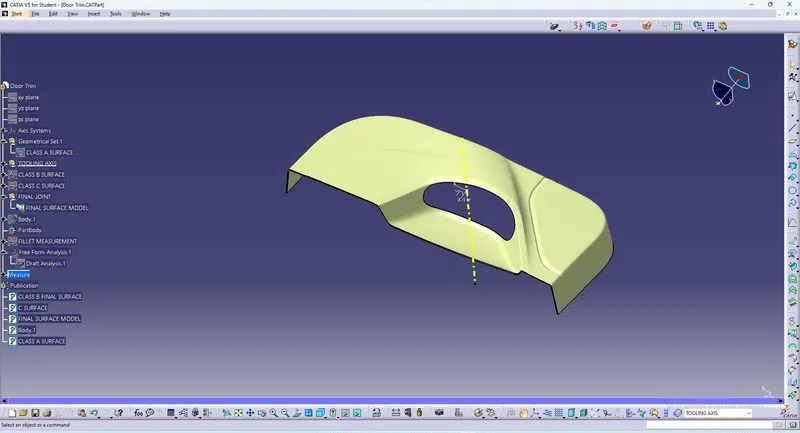

CREATED FINAL SURFACE MODEL.

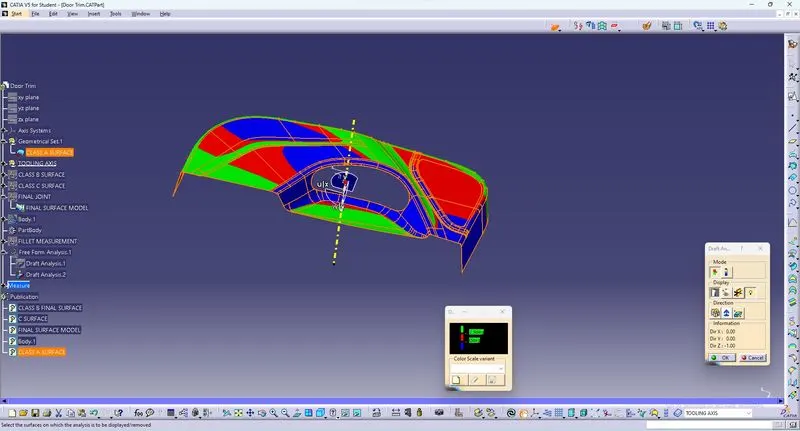

CLASS A SURFACE DRAFT ANGLE ANALYSIS

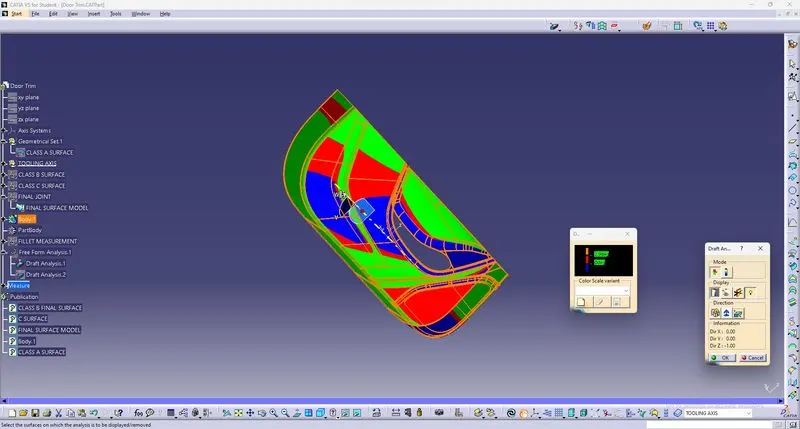

FINAL PLASTIC COMPONENT DRAFT ANGLE ANALYSIS

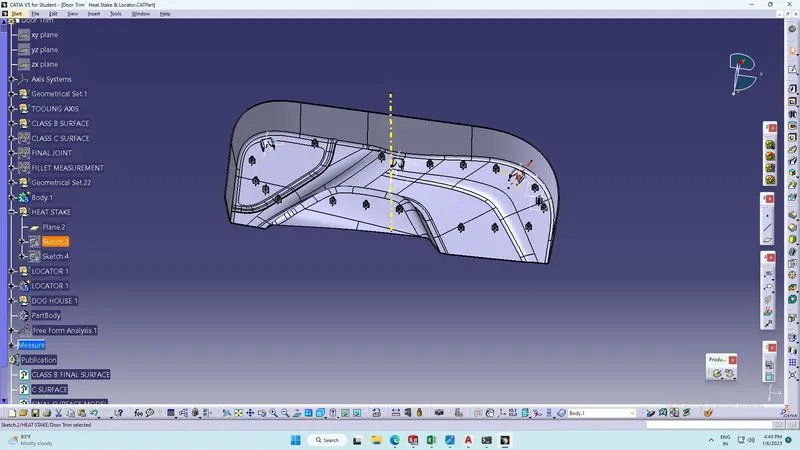

HEAT STAKES
SCREW BOSS CREATED AT CENTER OF GIVEN POINT.
SCREWBOSS DIMENSIONS MAINTAINED AS PER DESIGN RULE.
DRAFT WORK APPLIED FOR SCREWBOSS.
RIBS CREATED AROUND SCREWBOSS.
RIBS & SCREW BOSS JOINED TOGETHER BY UNION TRIM COMMAND.
FILLETS USED WITH PROPER RADIUS VALUE.
THEN HEAT STAKES CREATED AT ALL GIVEN POINTS BY USING USER DEFINED PATTERN COMMAND.
THEN USING SPILT COMMAND,PROJECTION BEYOND B SURFACE REMOVED.
JOINED WITH MAIN BODY USING ADD COMMAND.

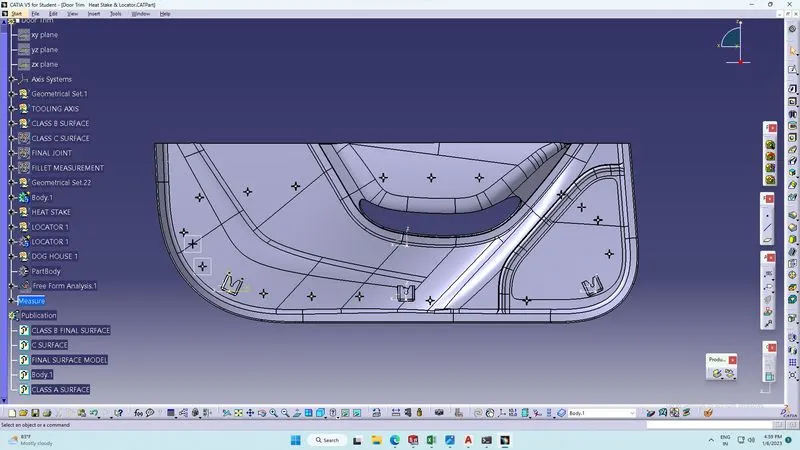

LOCATOR:
IDEAL DIMENSIONS USED FOR LOCATOR.
LOCATOR HEIGHT WAS 2mm GREATER THAN HEAT STAKE HEIGHT.
LOCATORS POSITIIONED AS PER GIVEN MODEL IMAGE.
LOCATORS JOINED WITH MAIN BODY USING UNION TRIM COMMAND.
DOG HOUSE:
DOG HOUSE DIMENSIONS NOT GIVEN IN QUESTION.
SO CONSIDERED SOME ASSUMING VALUES.
DOG HOUSE CREATED AT PLACES AS PER MODEL IMAGE.
DRAFT & FILLETS USED FOR DOG HOUSE AS PER DESIGN STANDARDS.

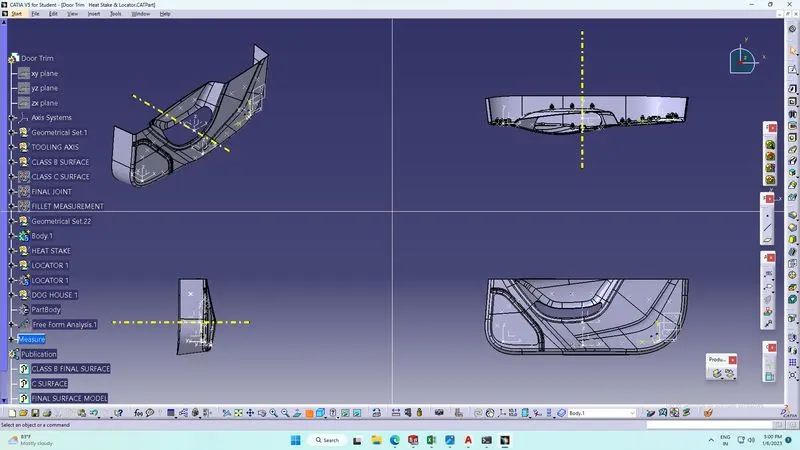

MULTIVIEW
