Week 9 - Project 1 - Door Trim Lower with Engineering Features

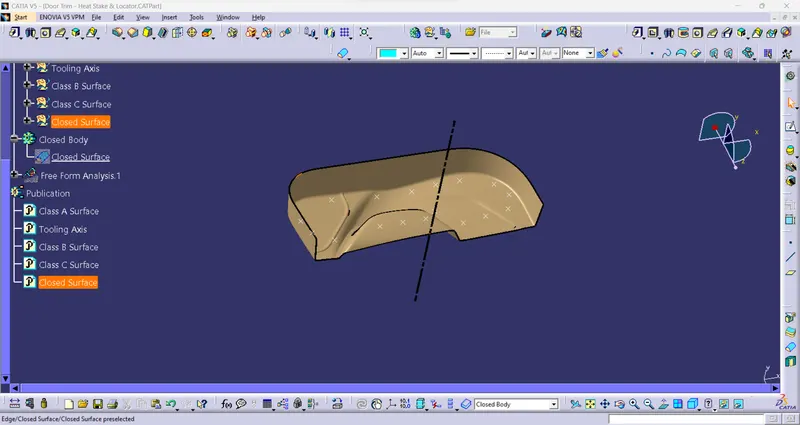

Tooling Axis:

• Tooling Axis is a line in which the core & cavity is open.
• create an intersection on both sides to check the center of the axis
• To create a point using the surface to generate the line to the center of the tooling axis.
• To change the name to Tooling axis.

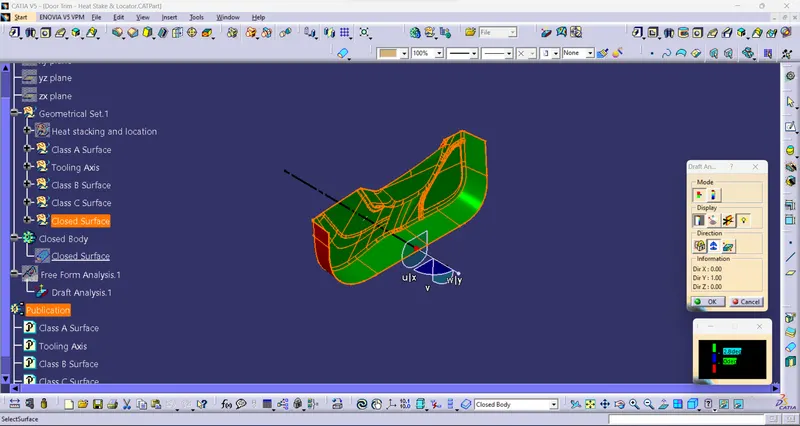

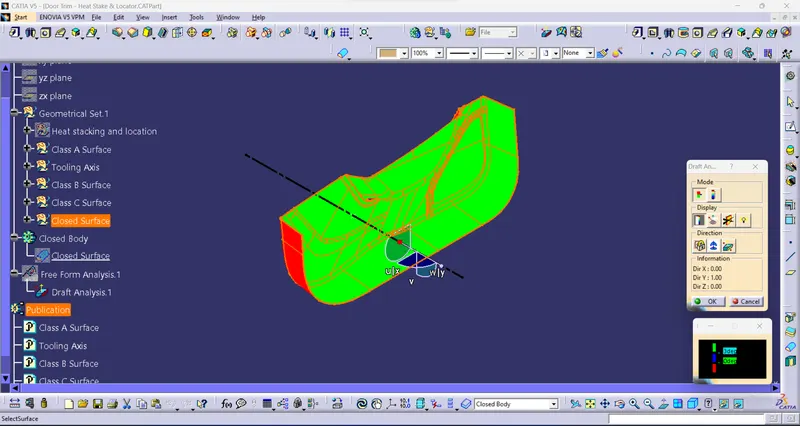

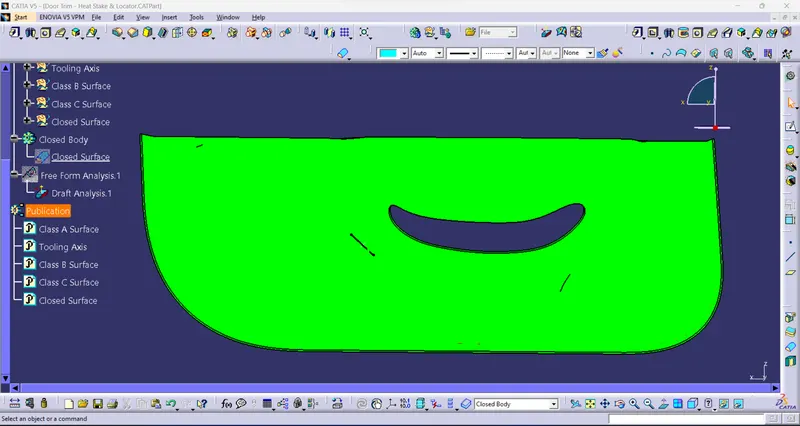

Drafting Analysis

• Analysis of the draft angle of the completed solid model.
• I am using this command to check the possibility of the draft angle for tooling direction.
• The green color in the correct body or possible side.
• Blue is between the 0 to 3° angle.
• Red is a negative angle not possible.
• This draft analysis uses the tooling direction to analyze all the angles of the solid surface.

View:

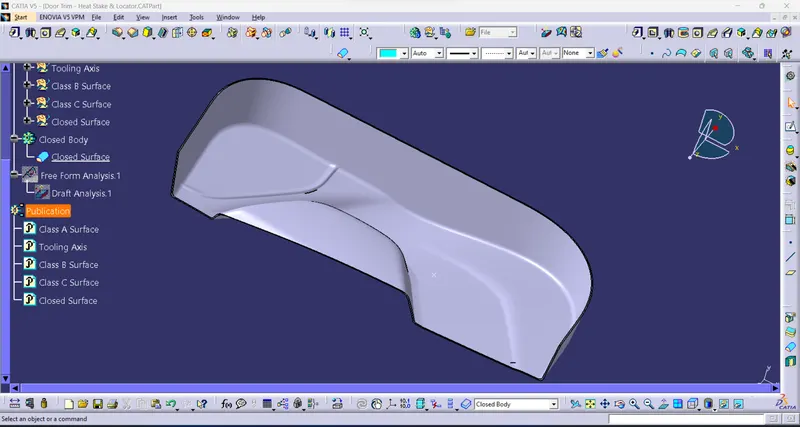

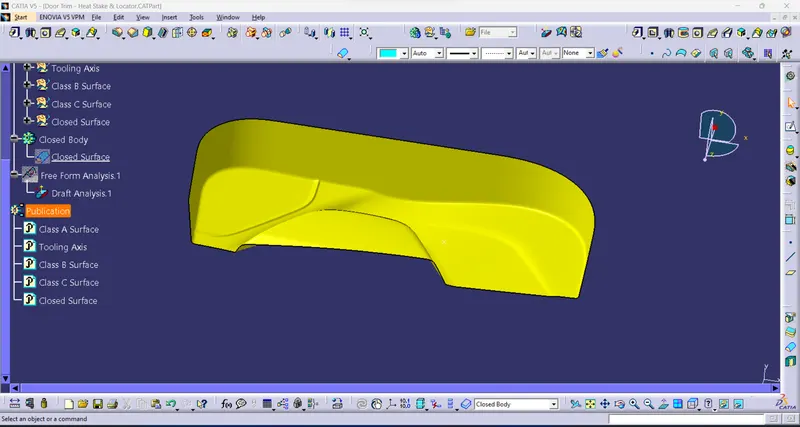

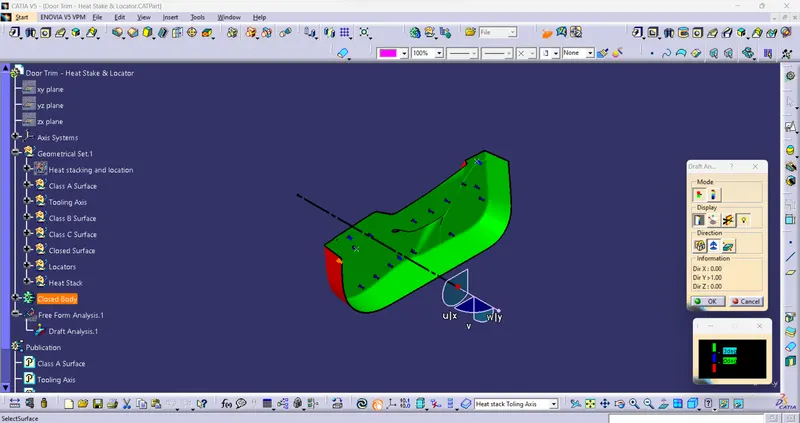

Isometric view:

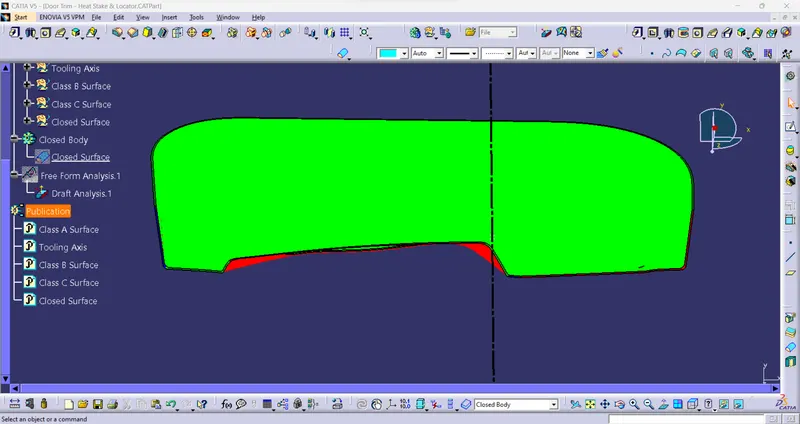

Front View:

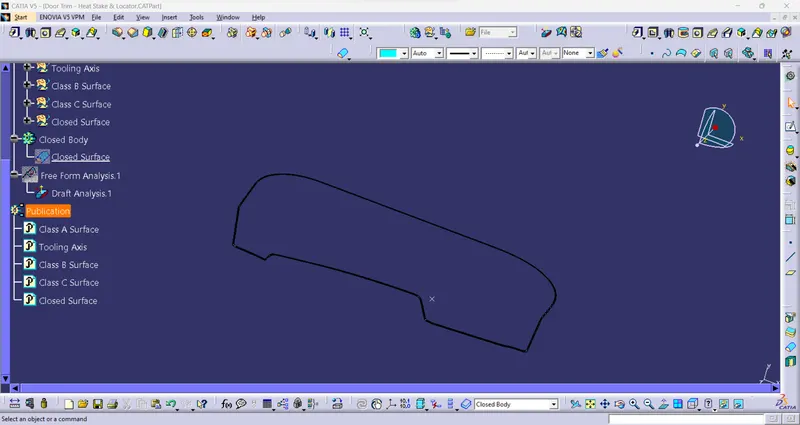

Side View:

Surface modeling :

Class A surface:

• class a is an input to get stylish.
• check the class A surface to fully closed surface or not.
• the use to create class B surface.

Class B surface:

• Class B surface has Extracted the surface from the class A surface.
• First, offset the surface for a 2.5mm thickness.
• Finally, create a class B surface

Class C Surface:

• create class C surface used to Sweep command to close the surface then trim the body.
• to close the surface.
• To get the closed surface

Closed Surface:

• Trim both class c and class B surfaces to get the closed surface.

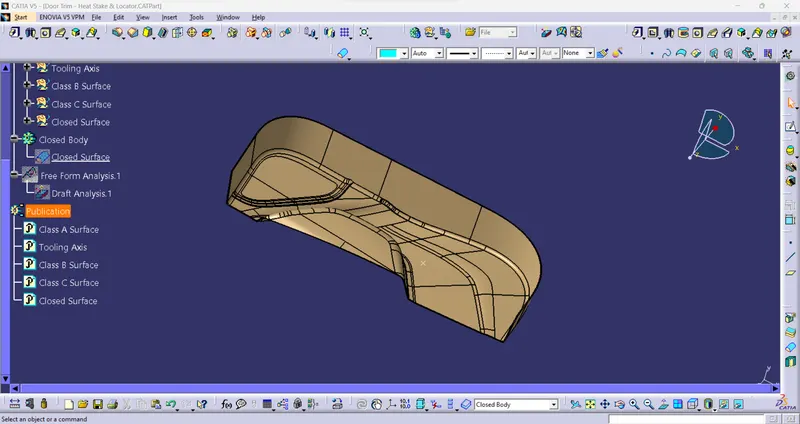

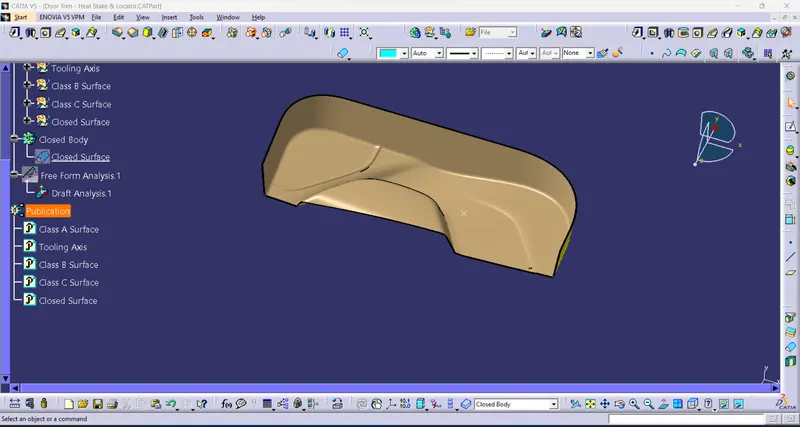

Solid Surface:

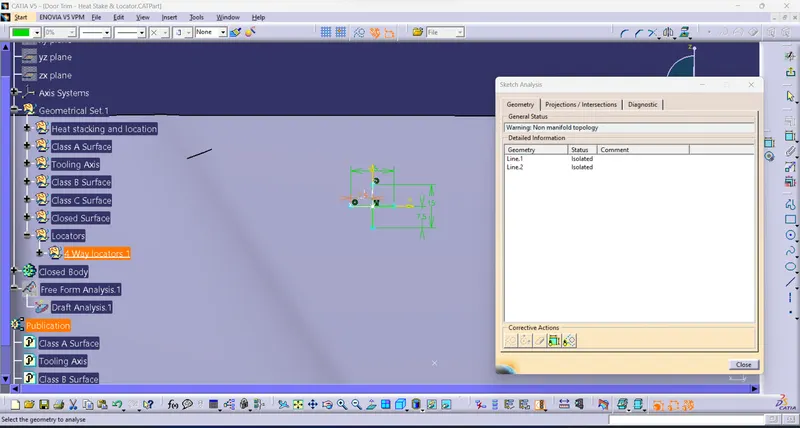

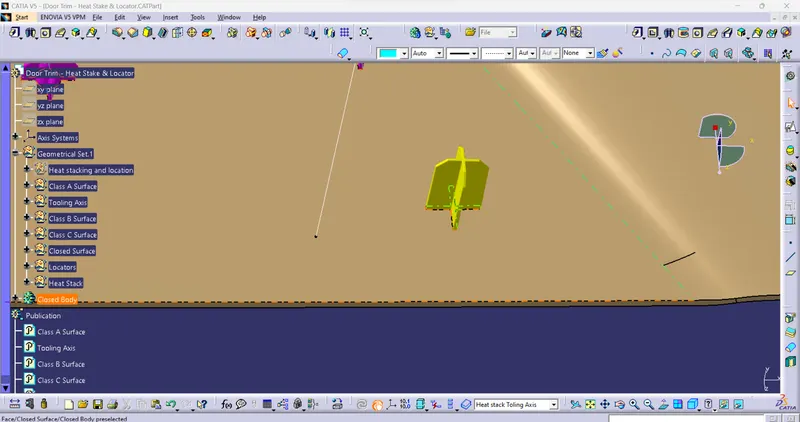

Locators:

4 and 2 Way locators:

• These locators arrest the degree of freedom of the part.

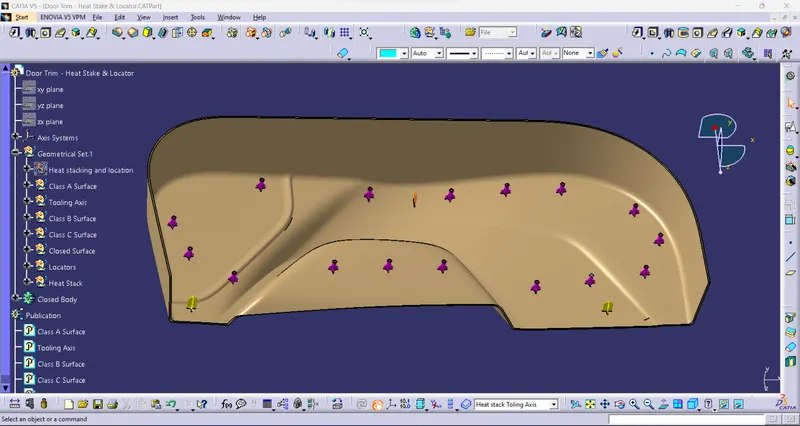

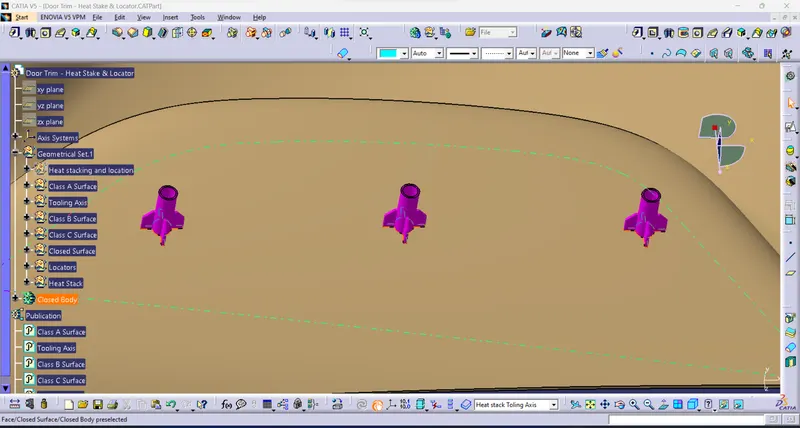

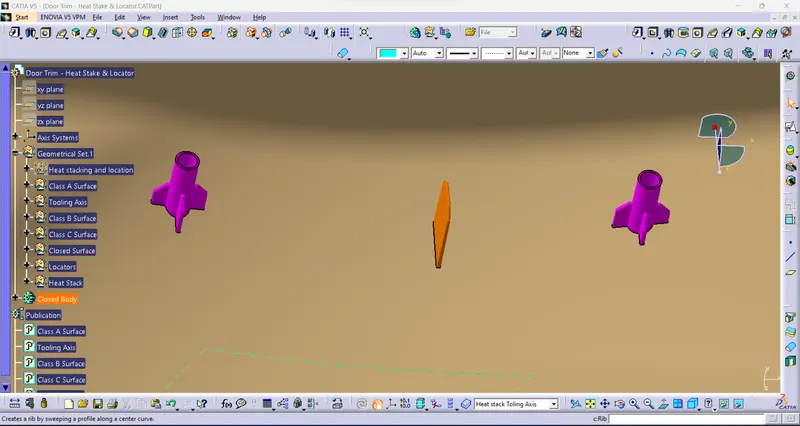

Heat steak:

Heat steaks are used to join 2 different materials.

It is one of the welding processes.

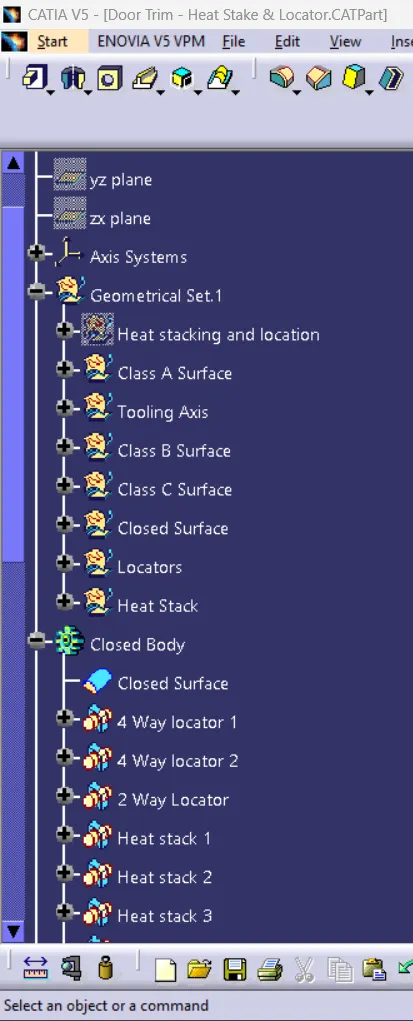

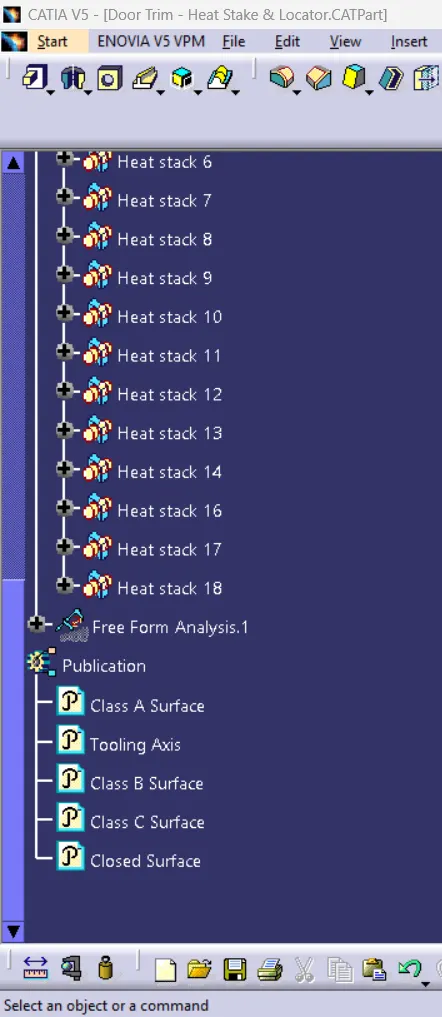

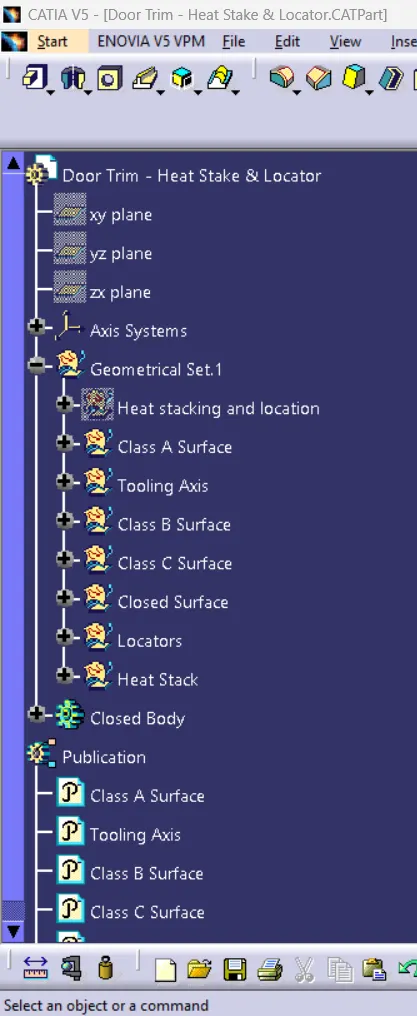

Tree Management :
