Week 9 - Project 1 - Door Trim Lower with Engineering Features
REPORT:
TOOLING AXIS FOR DOOR TRIM CREATION:
- ANALYSE SUITABLE SURFACE FOR CREATING TOOLING AXIS
- ESTRACT SURFACE FROM CLASS A
- CRATE A POINT USING POINT ON A SURFACE COMMAND
- CREATE A LINE PERPENDICULAR TO THE SURFACE (ie Y DIRECTION)
- THIS IS OUR TOOLING AXIS
SIDE TOOLING AXIS FOR DOG HOUSE CREATION:
- USING MAIN TOOLING AXIS POINT AS A REFERENCE
- THEN CREATE A LINE COMMAND AND MAKE X AS A DIRECTION.
- THIS IS OUR SIDE TOOLING AXIS
- WE CAN USE THIS FOR DOG HOUSE CREATION
DRAFT ANALYSIS:
- TO PERFORM DRAFT ANALYSIS OPEN FEATURE DRAFT ANALYSIS OPTION
- THEN PUT CUSTOMIZE VIEW PARAMETERS TO MATERIAL MODE
- THEN CLICK ON COMPASS ICON TO ALIGN THE COMPASS INTO TOOLING AXIS, THEN CLICK ON THE SURFACE.
- THEN COLOR SCALE WILL OPEN THERE WE WILL SEE THE DRAFT ANALYSIS IN DETAILS.
- THEN PRESS OK. DRAFT ANALYSIS IS COMPLETED THE SURFACE WILL REMAIN SHOWN IN COLOR SCALE UNTILL WE KEPT THE VIEW PARAMETERS IN MATERIAL MODE.

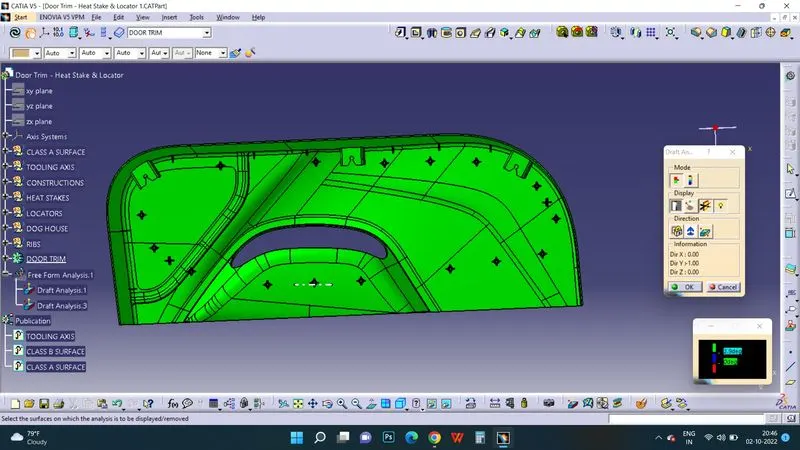

DRAFT ANALYSIS SCREEN SHOT

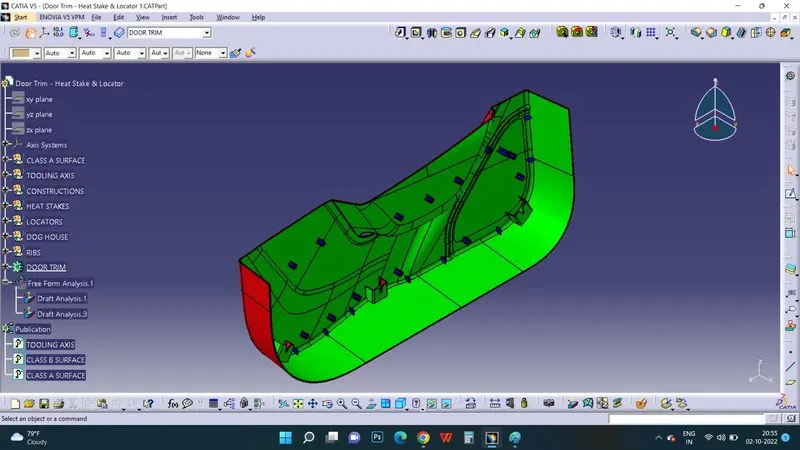

ISOMETRIC VIEW

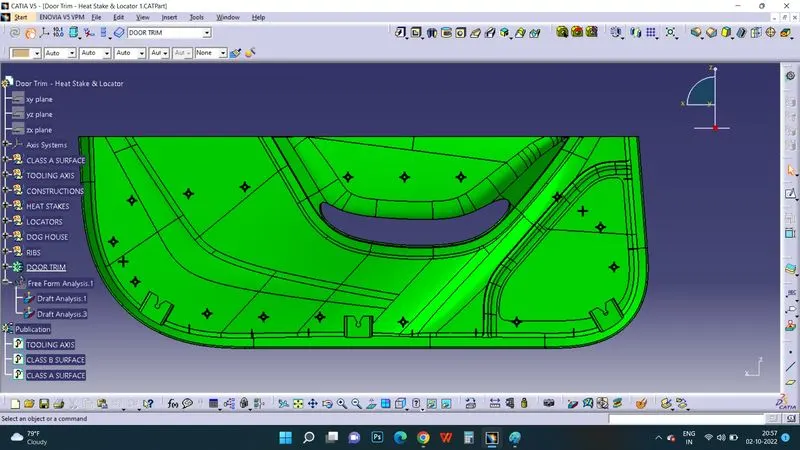

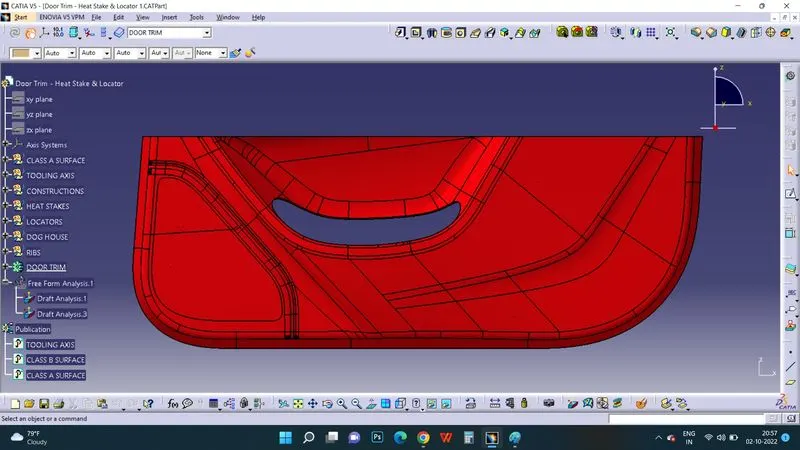

FRONT VIEW

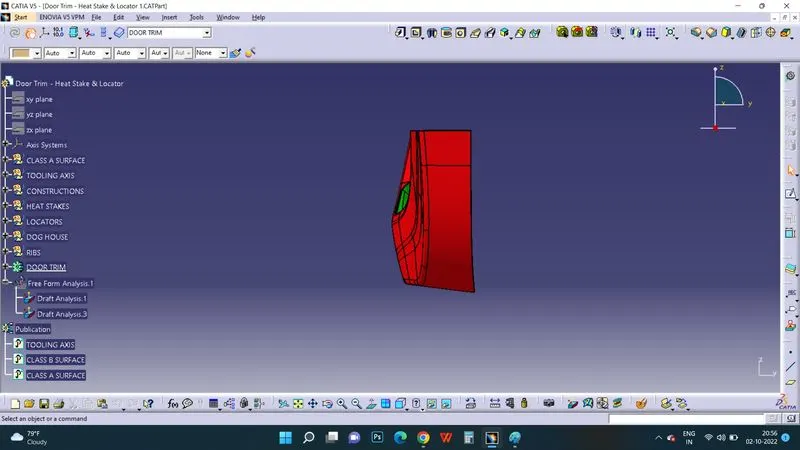

LEFT SIDE VIEW

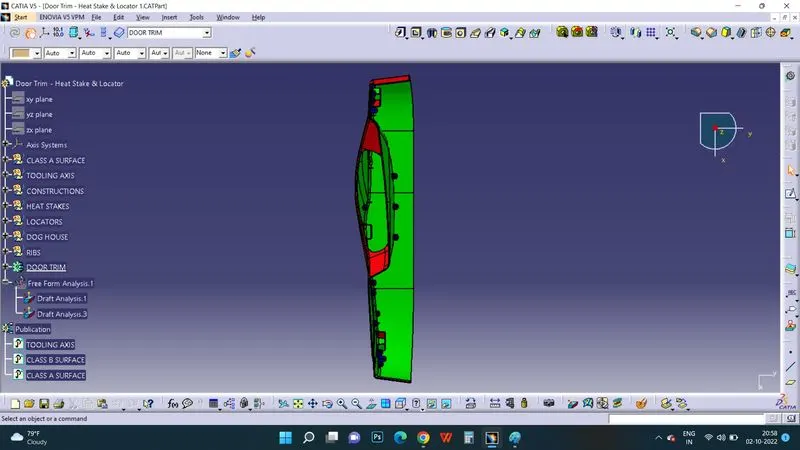

RIGHT SIDE VIEW
TOP VIEW
