Week 9 - Project 1 - Door Trim Lower with Engineering Features

Aim:

      To create the Heat Stakes and the locators considering the design rules for the door applique.

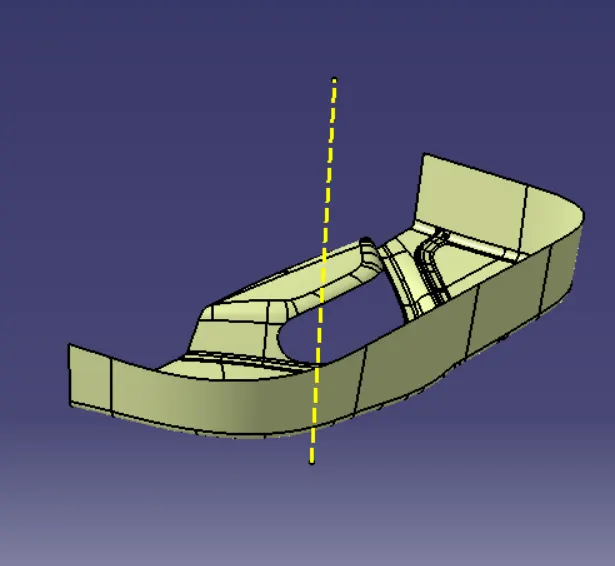

Given Class A:

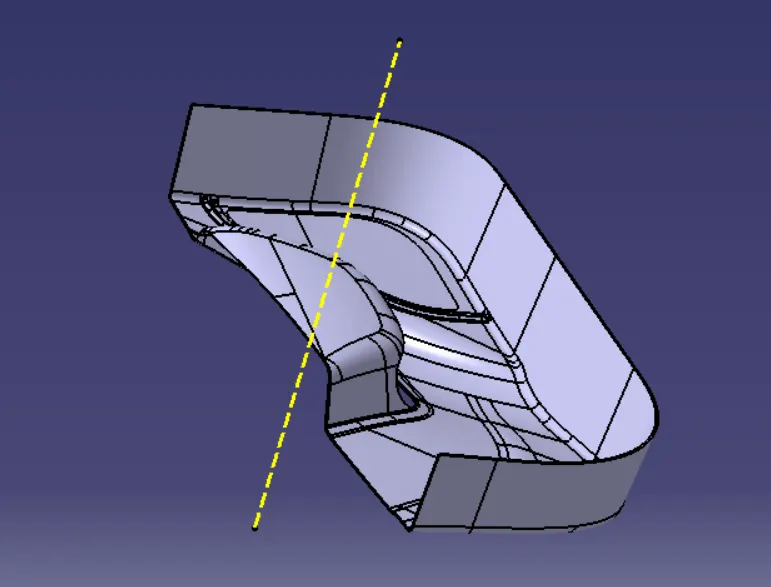

Tooling Direction:

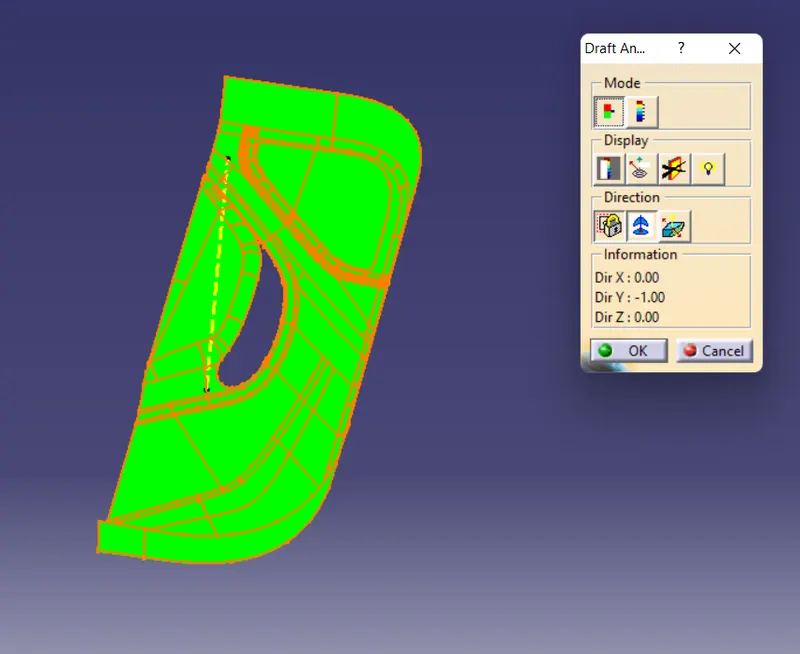

Draft Analysis:

Class B and C surface:

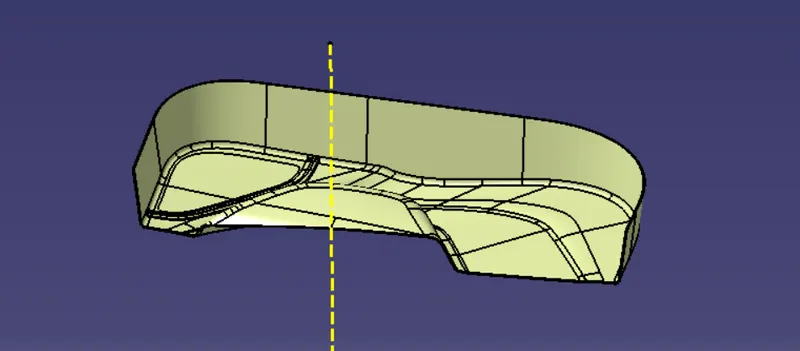

Class B Surface:

Offset the class A surface to 3 mm inward to get the class B surface. Repair the class B surafce incase if any surface is missing.

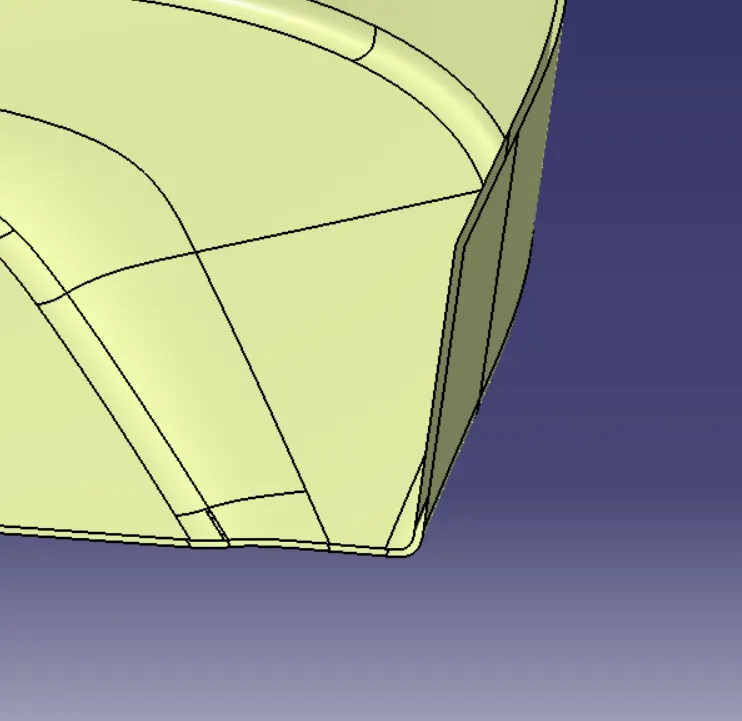

Class C Surface:

Create a boundry using the given class A. Now with the sweep option we can create a surface perpendicular to the surface to join the two surfaces.

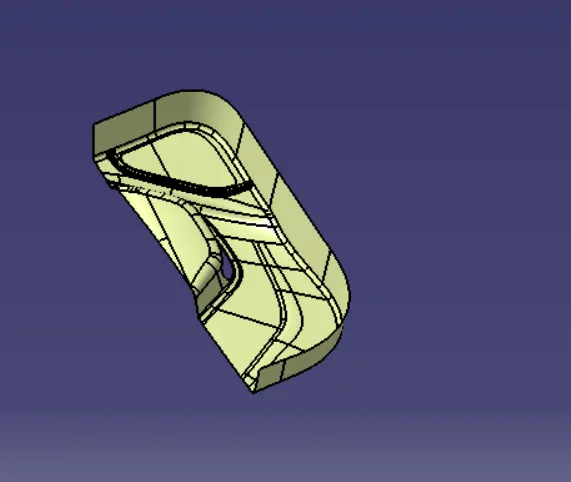

Now trim class B with class C

And then to get final surface trim it with class a.

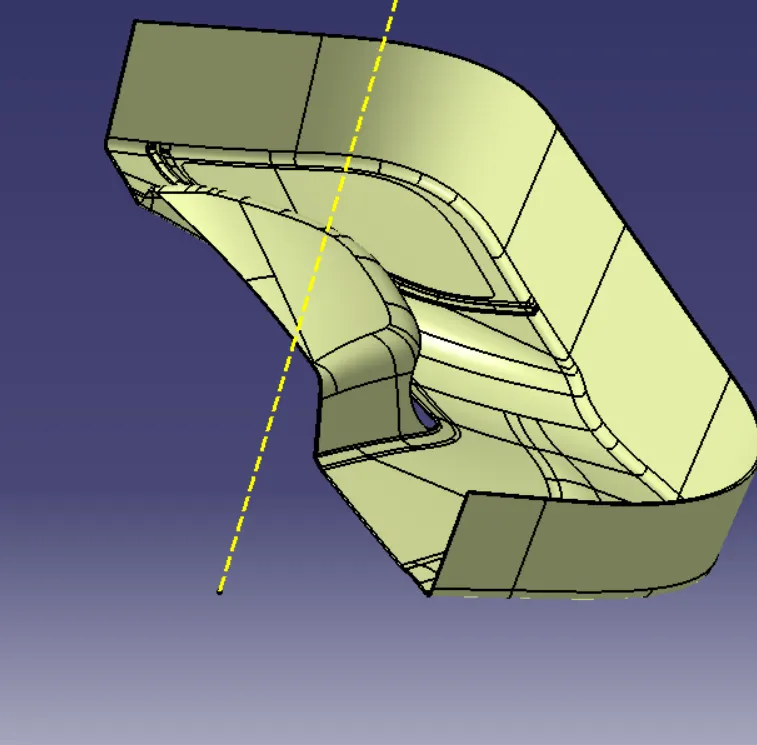

Use the closed surface command to get the solid in the part design.

Create the Heat Stakes and the locators considering the design rules for the door applique.
