Week 9 - Project 1 - Door Applique Design with Engineering Features

Design of Door Applique

Objective:

• To design door applique CLASS A, B and C surface
• Making a solid part from the surface
• Adding locators to arrest the movment of the door applique
• Adding heat stakes to attach the door to base panel

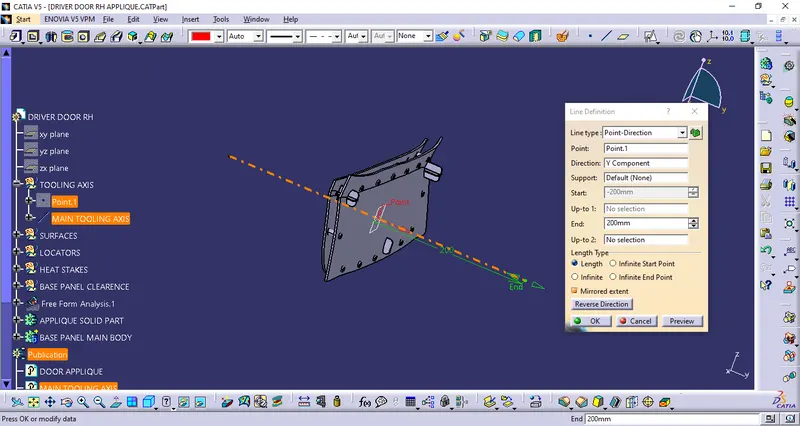

Creating tooling axis:

The main tooling axis made on a point on perpendicular to a plane.

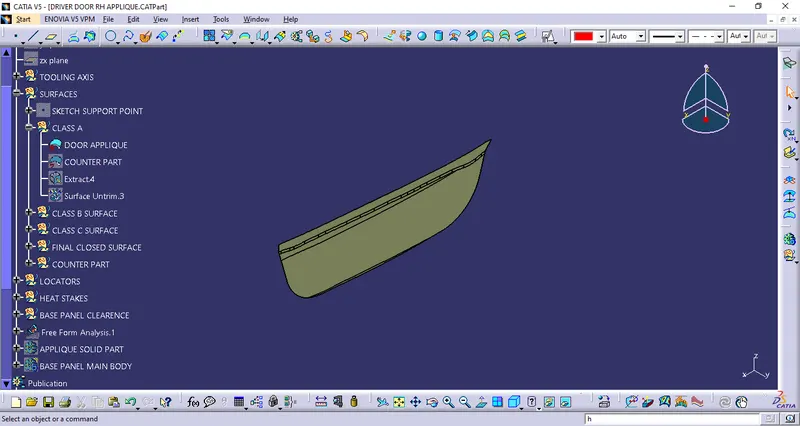

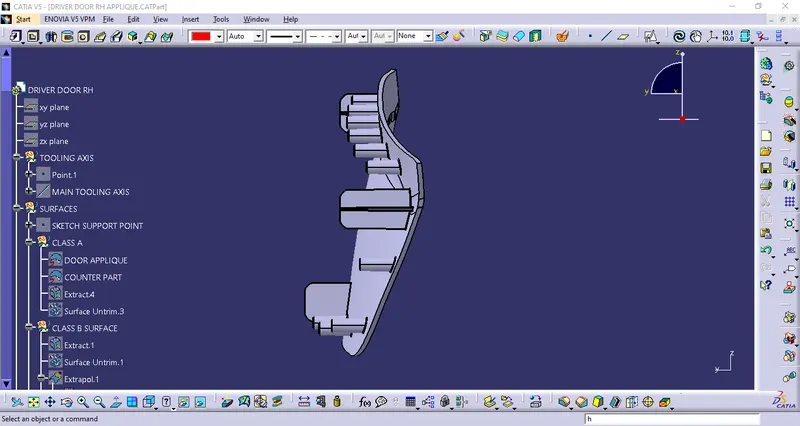

Given door appliqe- Class A surface

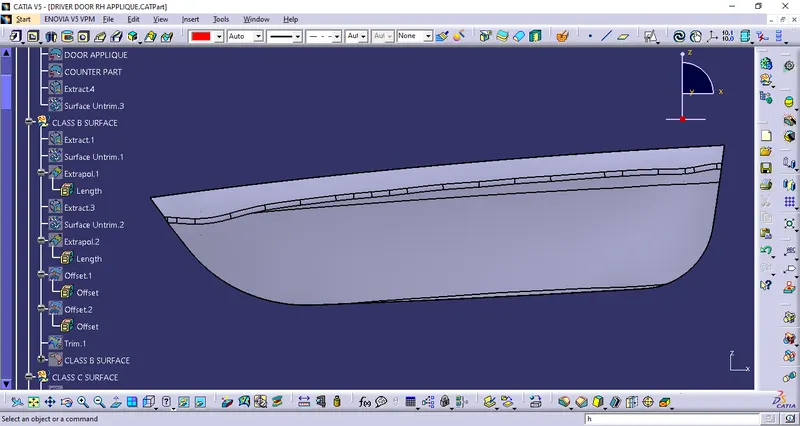

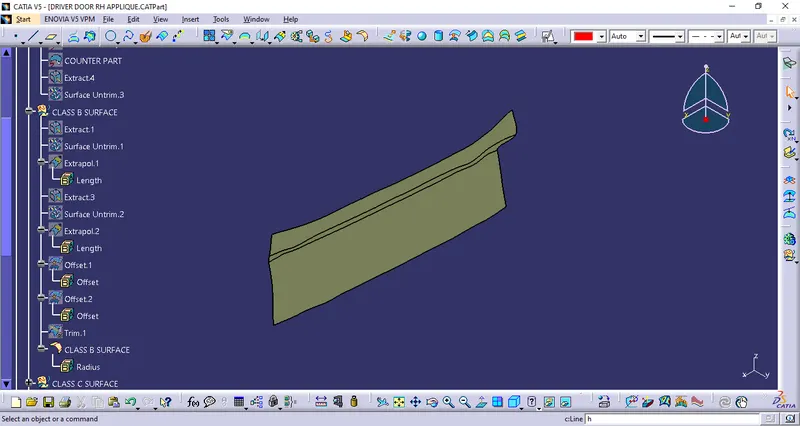

Class B surface:

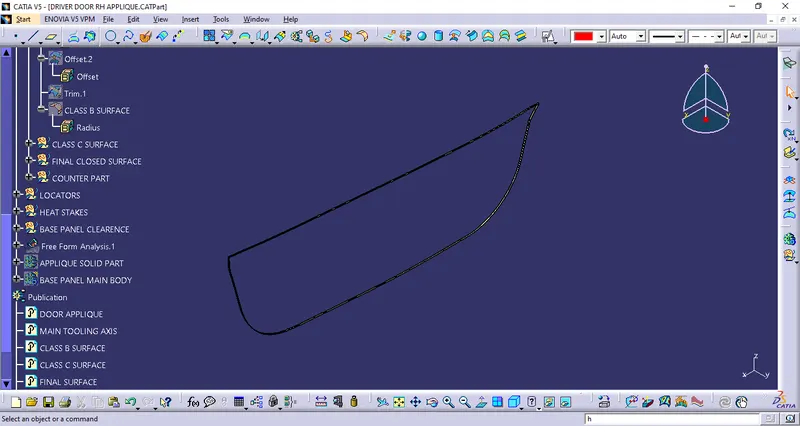

Class C surface:

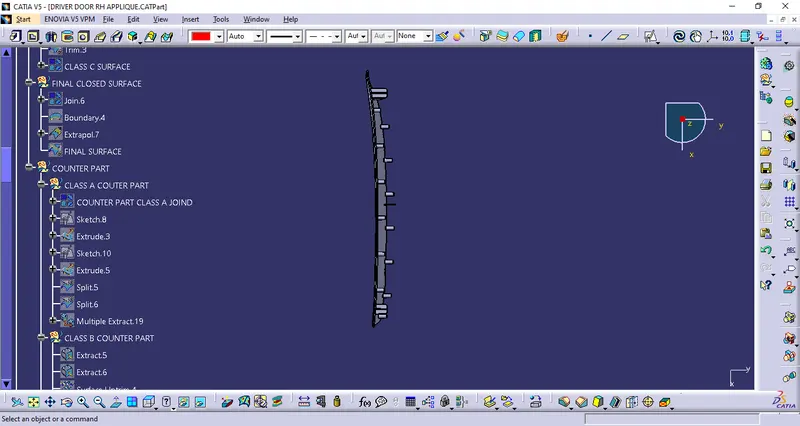

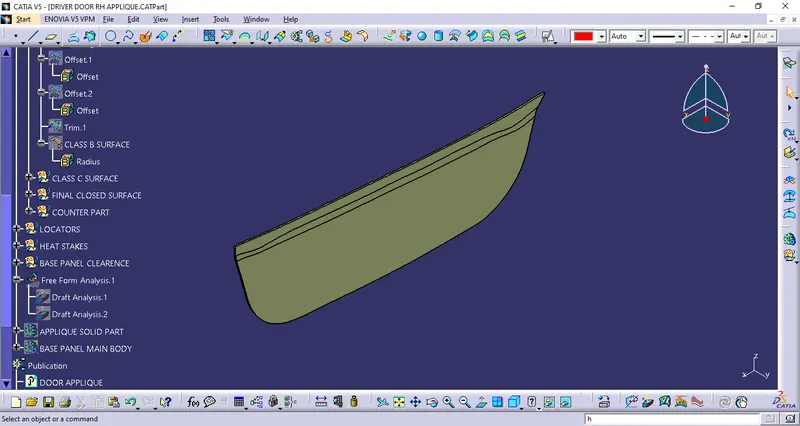

Final door applique:

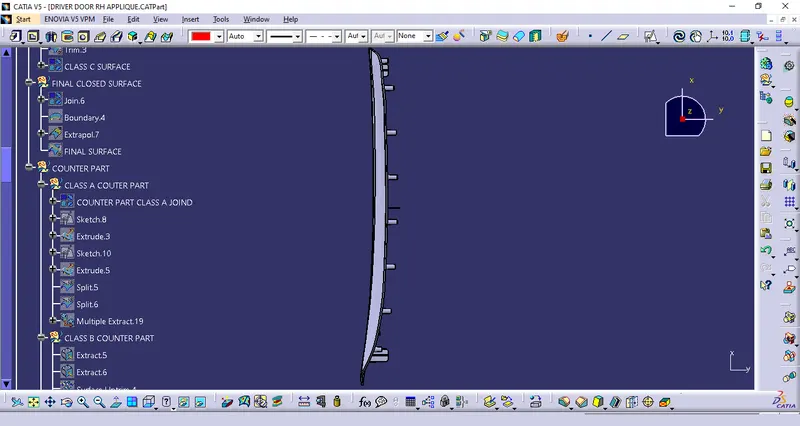

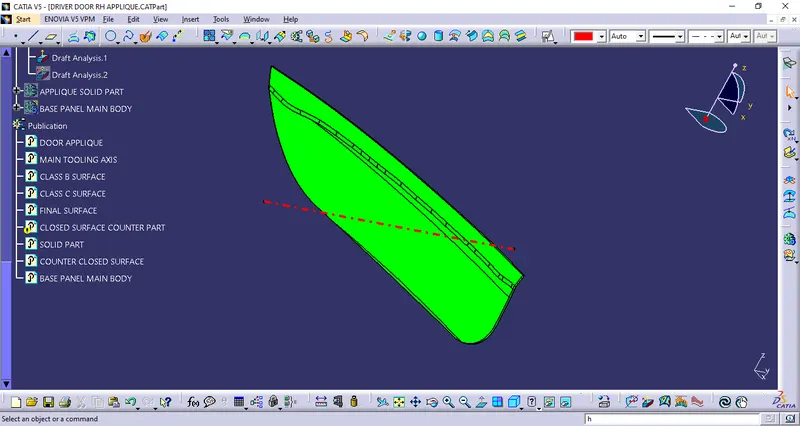

Draft analysis:

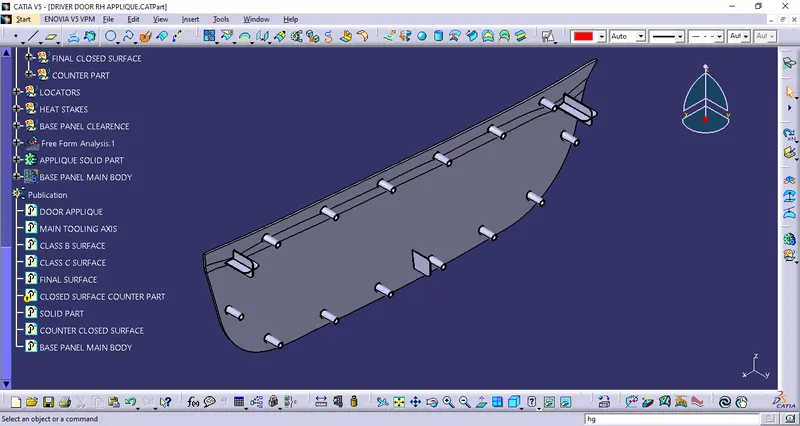

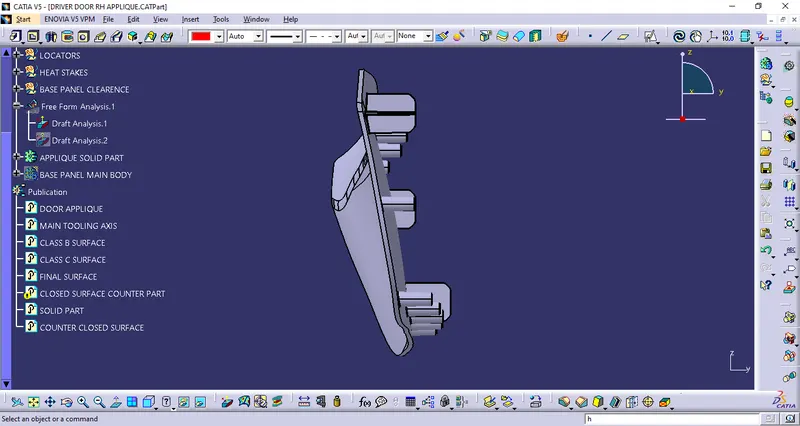

Door applique with heat stakes and Four/Two way locators:

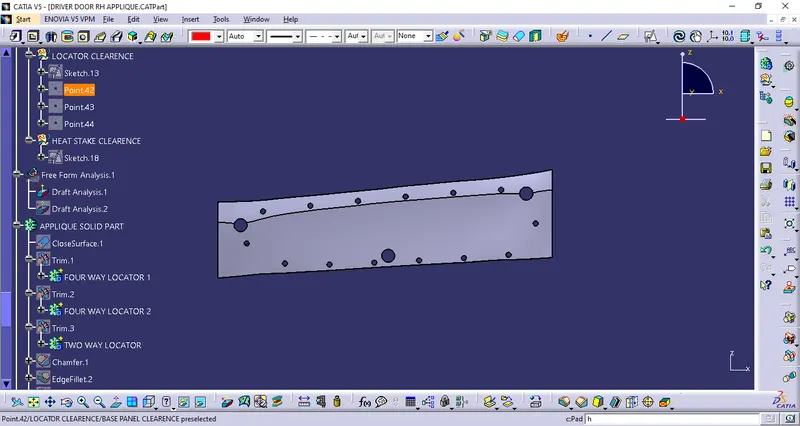

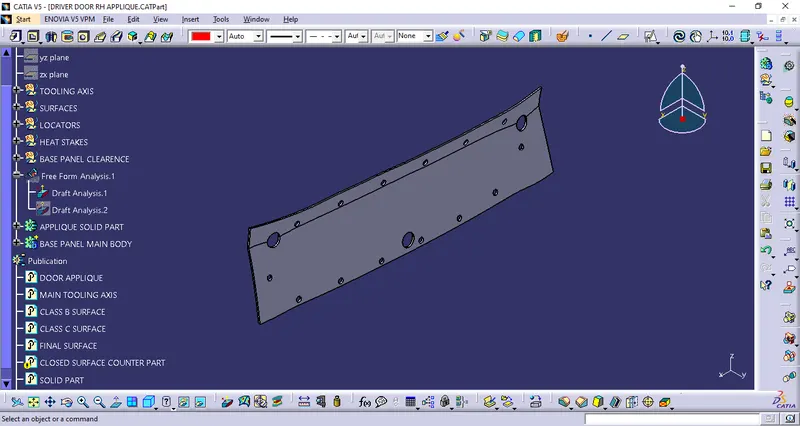

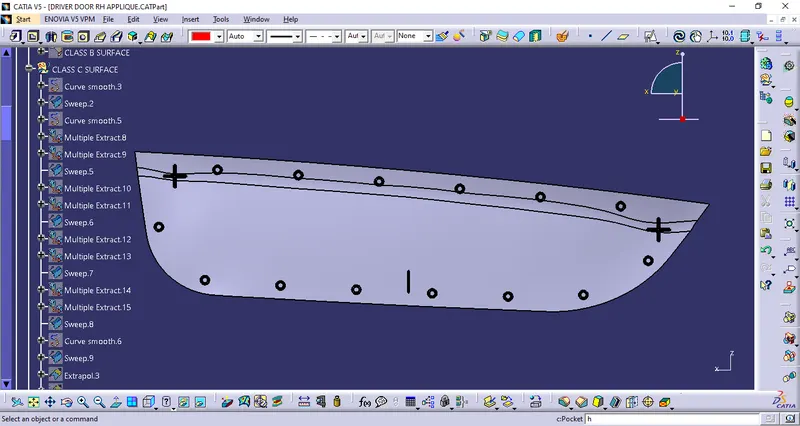

Base panel with cut out for the locators and the heat stakes:

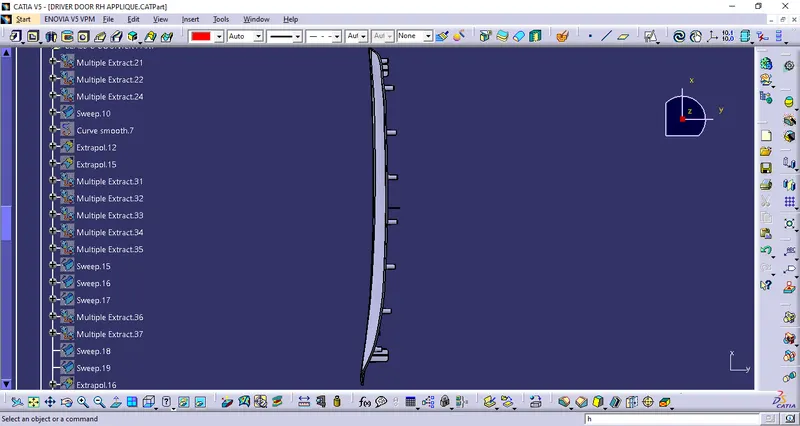

Part images and feature tree:

• All the heat stakes and the four/two way locators have 1 degress of draft
• The locators are longer than the stakes
• The minimum clearene of 1.5 mm is given for the locators and the stakes in the base panel
