Week 9 - Project 1 - Door Applique Design with Engineering Features
AIM:Create the Door Applique Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
procedures:
- import the catpart model to catia

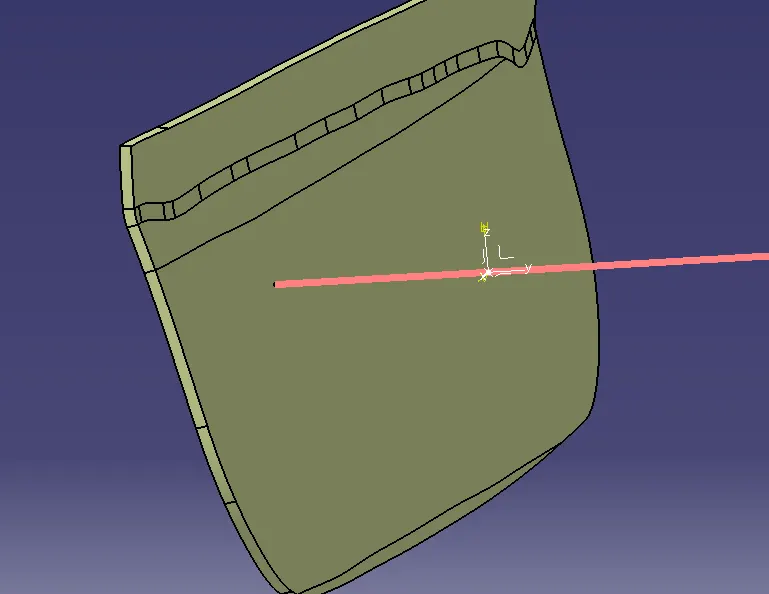

- create a point on surface and create tooling axis on ot

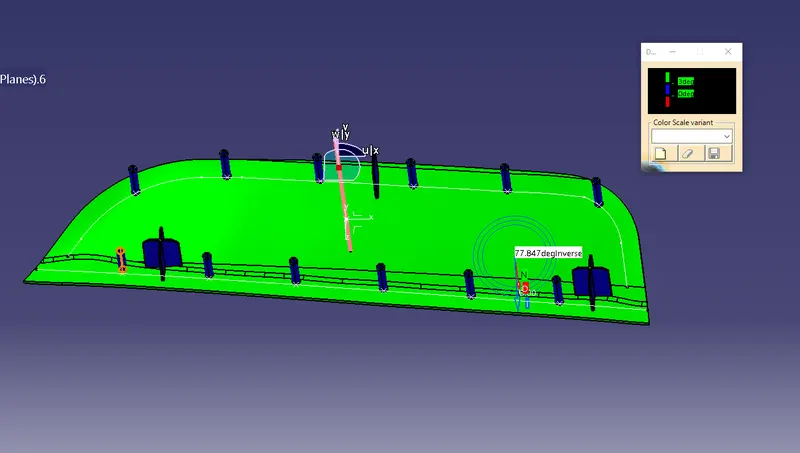

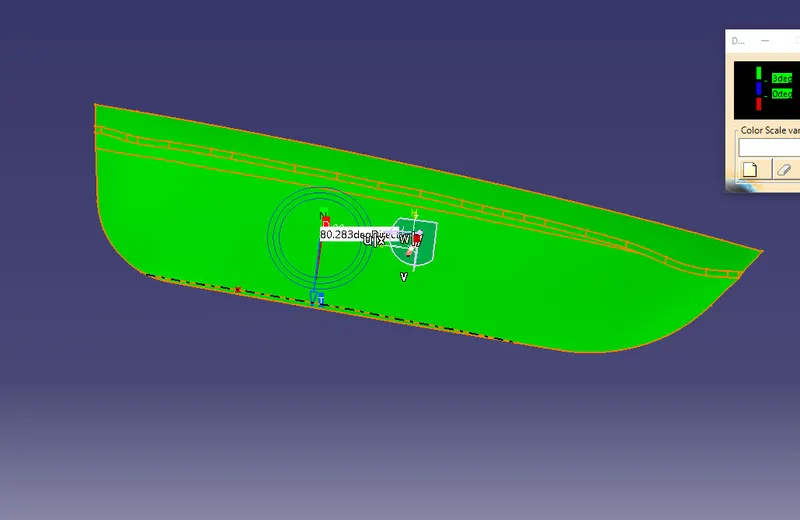

- do draft analysis on class A surface
- create class B surface

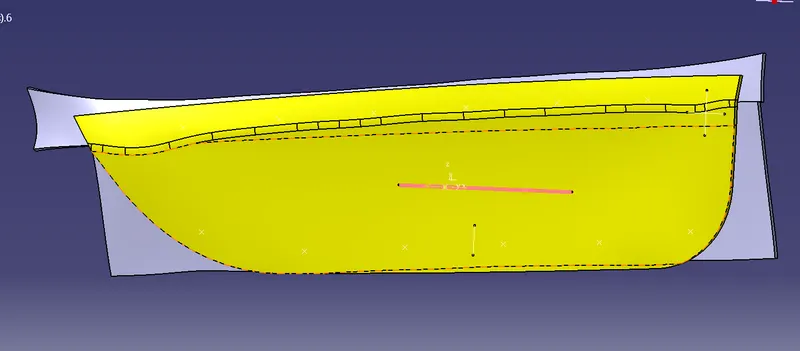

- extract from class A and offset it
- extrapolite it
- then create class C
- by sweeping methode do class c
- trim all surface and make it a solid body

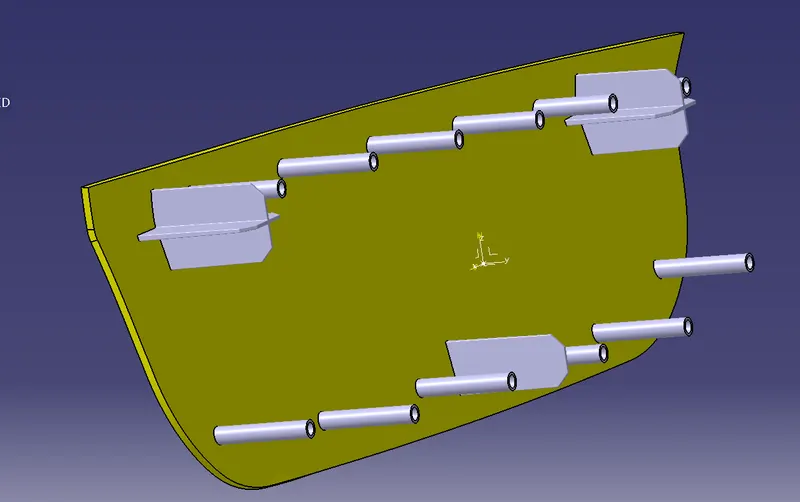

- then we want to create 4 way locator on the door applique
- draw figure and pad it with nessesary thickness
- make campher and edge filllet on it
- then copy locator and translate into otherside also
- assumble and do union trim on base body
- make 2 way locator on base bottom
- follow above procedures
- then make heat steak by extracting lines on outerboundary and make parallel line and make instances on to make heatsteaks
- draw it and pad it
- translate into nessesary points

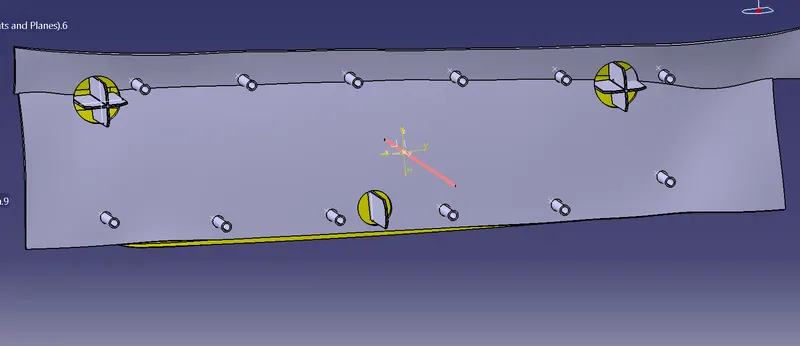

- then we want to make counter holes for locators and heat steak on attachment surface
- create circles with nessesary clearance and pad it then do remove boolien operation
- do it for all and we can optain final model
- final draft analysis
