Challenge

Week 6-Meshing of Hood Challenge

In this challenge we need to extract mid surfaces of different parts separately

Parts are:

Latch

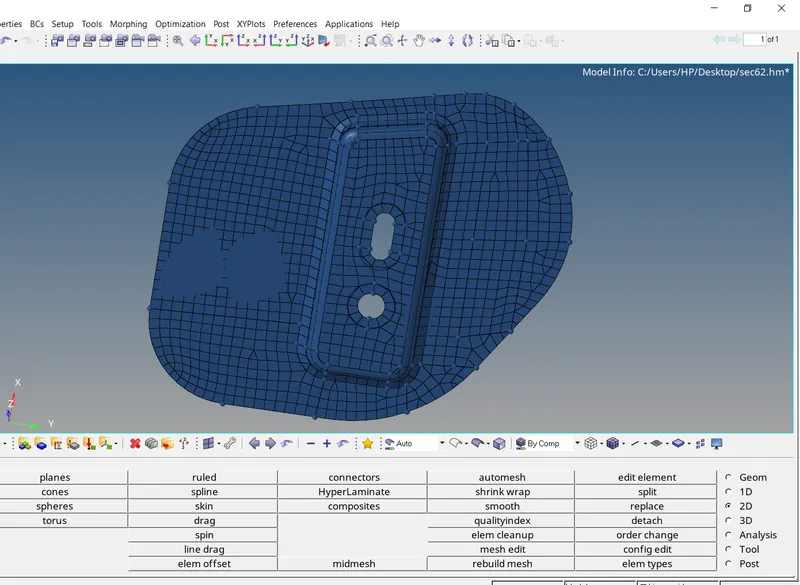

Fig: Latch

Hinge

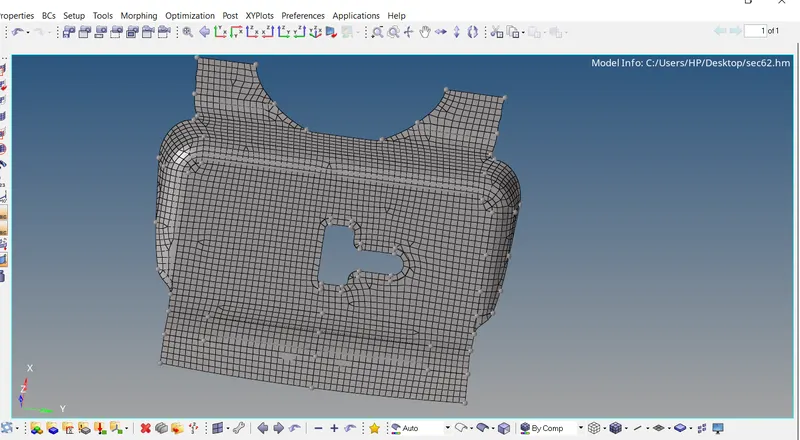

Fig: hinge

outer surface

For outer surface we only need to do mesh in half of the body because it is an symmetrical body
Remove solid body
Do nessesary clean-ups
Remove unnessasry points
Washer slpit
Extract the midsurface
Divide body into small for better mesh quality
Automesh the body wich have element size 5
Configure the mesh by reconstructuing and we have to optimize the mesh
Check quality index for failure of materials
Use drag tria option for removing opposite trias and touching trias
Element optimization for optimizing elements
Use smooth option for smoothing the mesh
At last reflect the mesh on other side by reflect in tools option

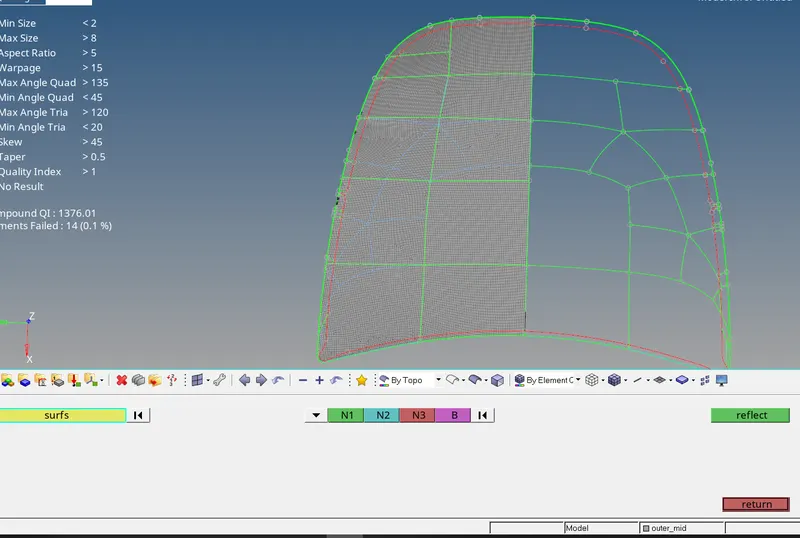

Fig: outersurface

Inner surface

For outer surface we only need to do mesh in half of the body because it is an symmetrical body
Remove solid body
Do nessesary clean-ups
Remove unnessasry points
Washer slpit
Extract the midsurface
Divide body into small for better mesh quality
Automesh the body wich have element size 5
Configure the mesh by reconstructuing and we have to optimize the mesh
Check quality index for failure of materials
Use drag tria option for removing opposite trias and touching trias
Element optimization for optimizing elements
Use smooth option for smoothing the mesh
Use place node and split and collapse option
Use translate option to minimize the warpage
Repeate quality manual cleaup process for eliminating different failures
At last reflect the mesh on other side by reflect in tools option

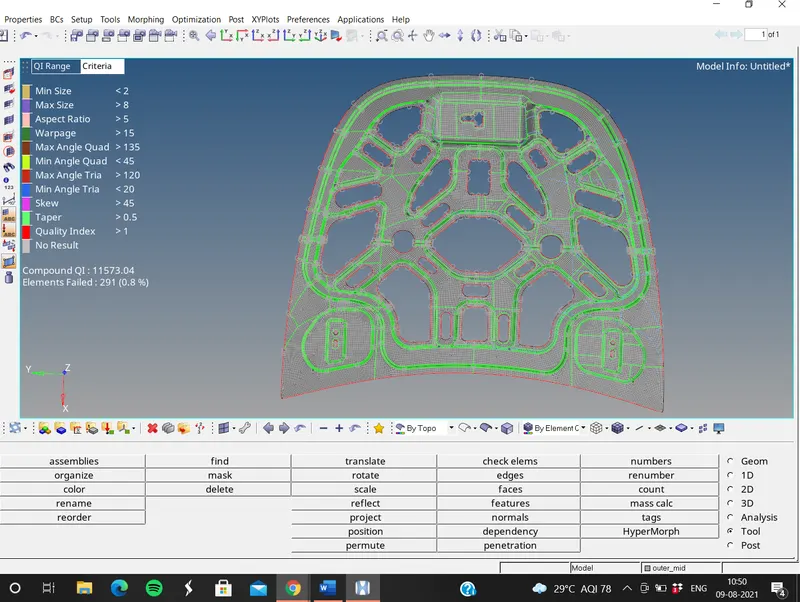

Fig : inner surface
