Week 9 - Project 1 - Door Applique Design with Engineering Features

DOOR APPLIQUE:

• class A Surface as provided.

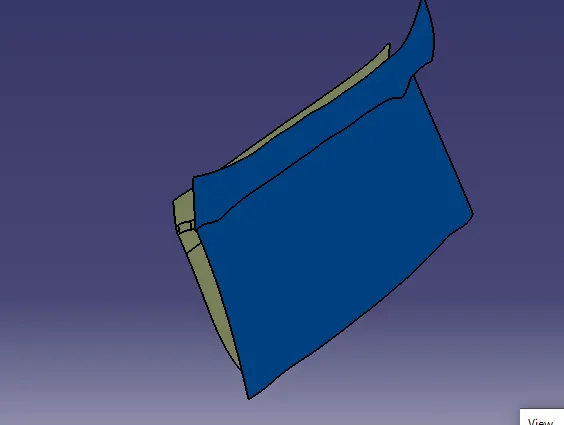

• class A surface as converted into solid by using the thick surface at the required length of 2.5mm.

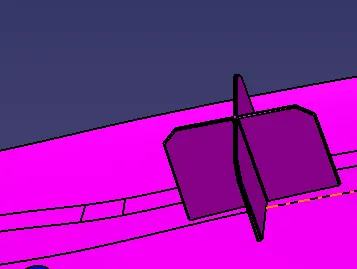

• select the surface to create a four-wall locater.

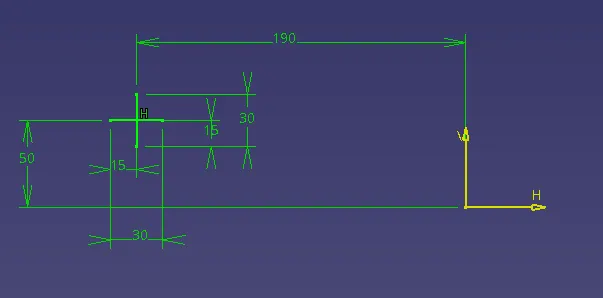

• create the sketch of four wall locater length of 30mm on both sides.
• make sure lines are isolated.
•
• make sure in pad operation is in support part body.
•
• fillet at the radius is 2.5mm.
• the chamfer is 3mm in length and angle of 45 degrees.
• draft the angle of 0.5 degrees pulling direction is tooling axis.
• after completing the four-wall located copy select the door and right-click and select the paste special after paste result link then create a new part body.
•
• select As a result with the link.
• the part body is transfer required length.
• it is called 3-2-1 in the automotive industry.

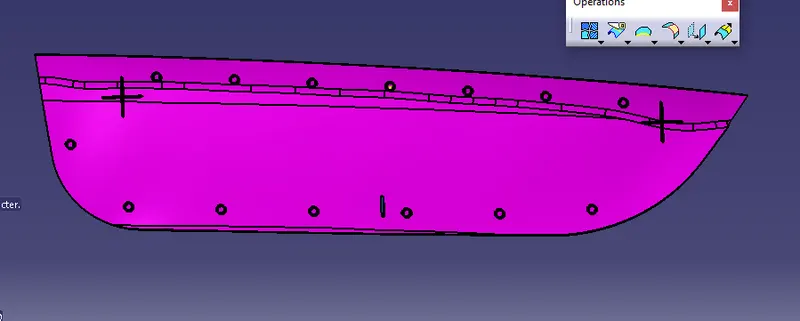

HEAT STAKES.

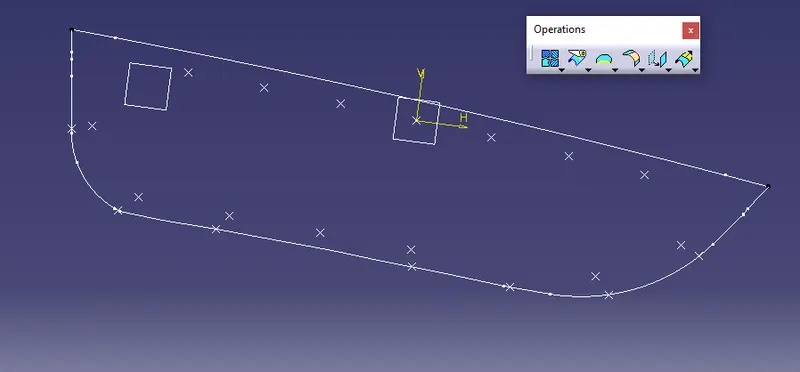

• EXTRACT the class A surface door and select the parallel curve at the length of 15mm and similarly to another surface also.
• create the points by using the command of point and planes repetition.
•

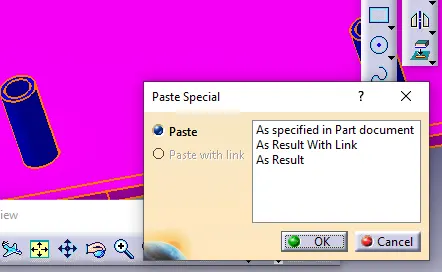

• by using the transfer command to move the circle by using the paste special.
• added into the main body.
• remaining elements removed by using union trim.
•
• door attachment similar.
• take reference to the previous sketches.
•

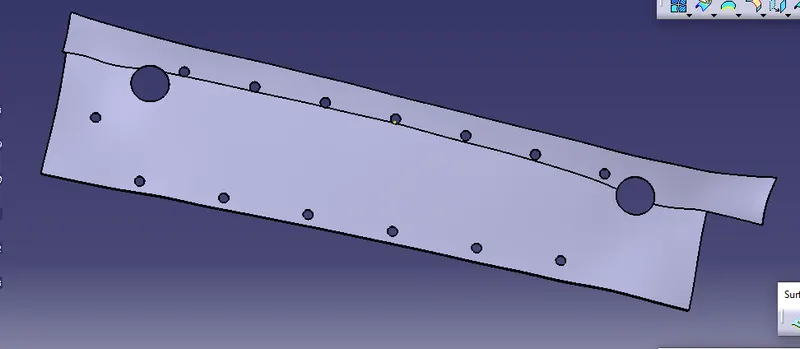

• holes made by using the boolean operation using the remove.
• space between the hole and four walls locater should be 0.5mm.

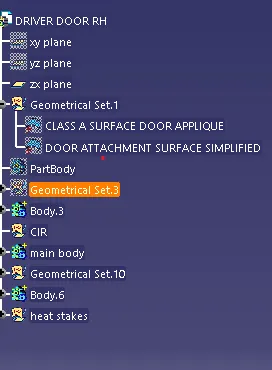

TREE STRUCTURE :

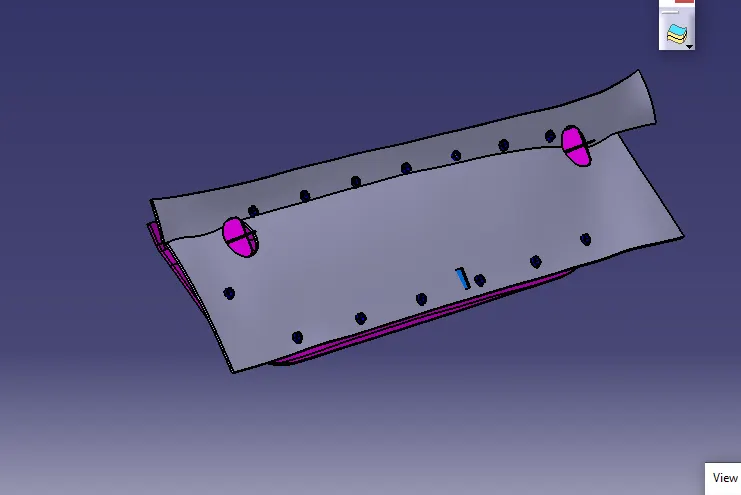

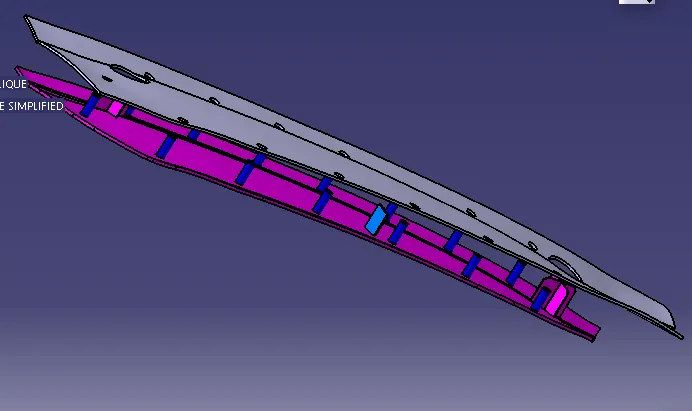

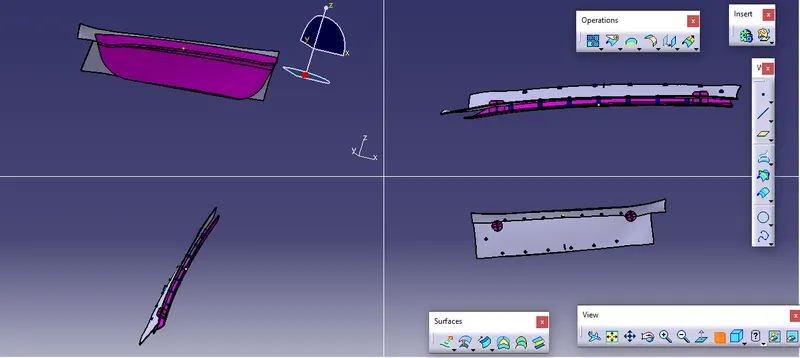

FINAL OUTPUT;

THANKYOU.....
