Week 9 - Parametric study on Gate valve.

10%

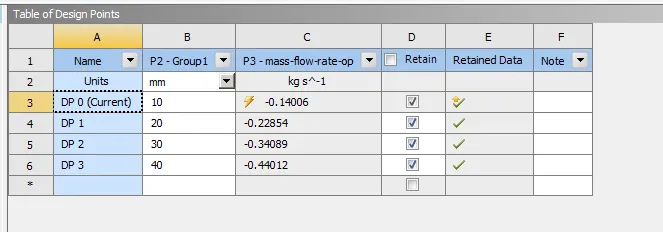

Obtained mass flow rate = -0.14006 kg/s = 0.504216 m3/h

flow factor = 50.4216 m3/h

flow coefficient = 58.29 m3/h

20%

Obtained mass flow rate = -0.22854 kg/s = 0.822744 m3/h

flow factor = 82.2744 m3/h

flow coefficient = 95.1149 m3/h

30%

Obtained mass flow rate = -0.34089 kg/s = 1.227204 m3/h

flow factor = 122.7204 m3/h

flow coefficient = 141.87 m3/h

40%

Obtained mass flow rate = -0.44012 kg/s = 1.584432 m3/h

flow factor = 158.443 m3/h

flow coefficient = 183.1713 m3/h
