Week 9 Machining with Planer Challenge

AIM:

You will have to perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. You need to perform this for 2 cases. One will be with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s.

Case 1:

One will be with a cutting velocity of 20000mm/s

Procedure:

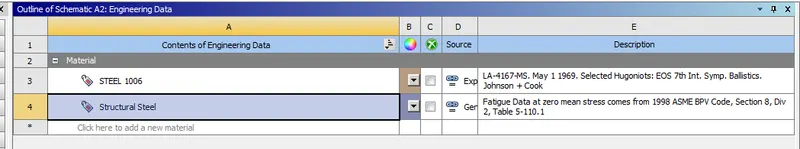

• Open the Ansys work Bench and edit the engineering Material.Add the steel 1006 material to the engineering Data.
•
•

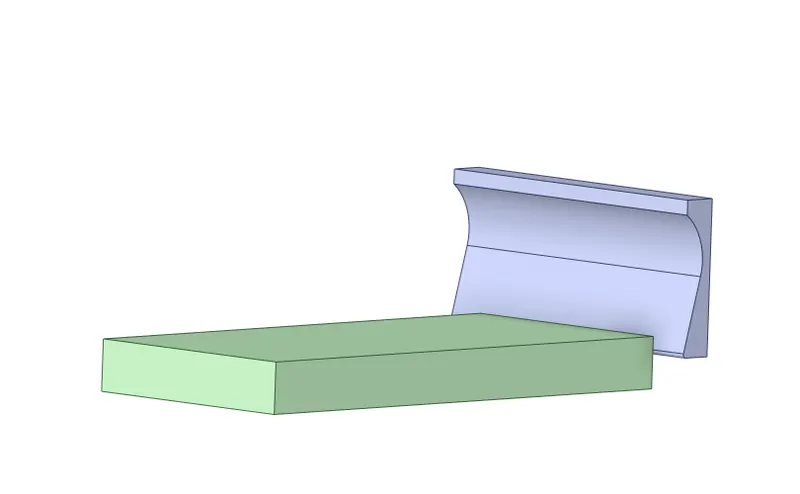

• Open the model in the space claim and edit the model if any surfaces are missing in the surfaces.
•
• We should edit the model in the geomentry and delete the contacts which are unnessary in the model.

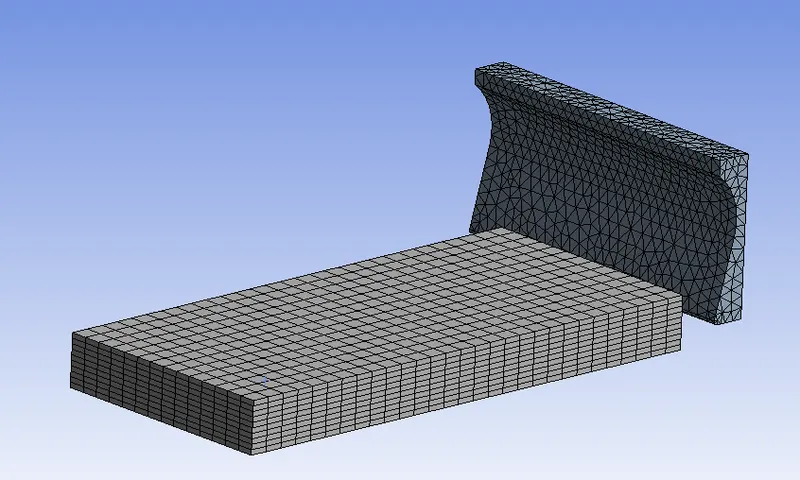

• we should generate the mesh for the given model having the sizing and mesh flow by the model.
•

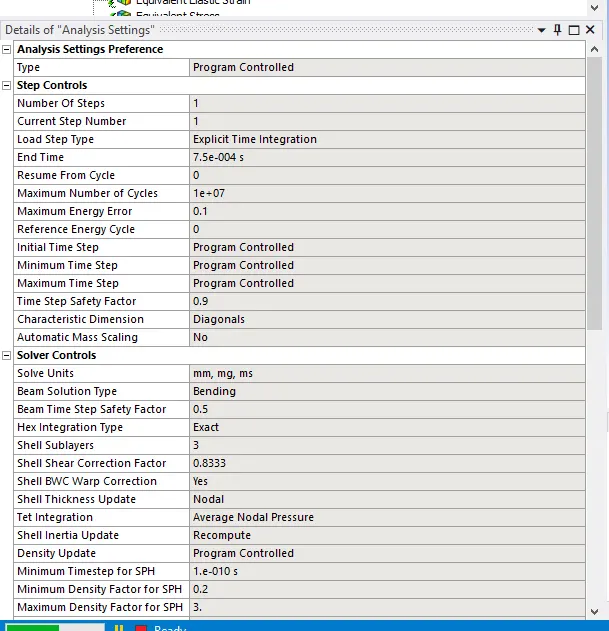

• we should give the analysis setting ofthe time step for the given model.
•

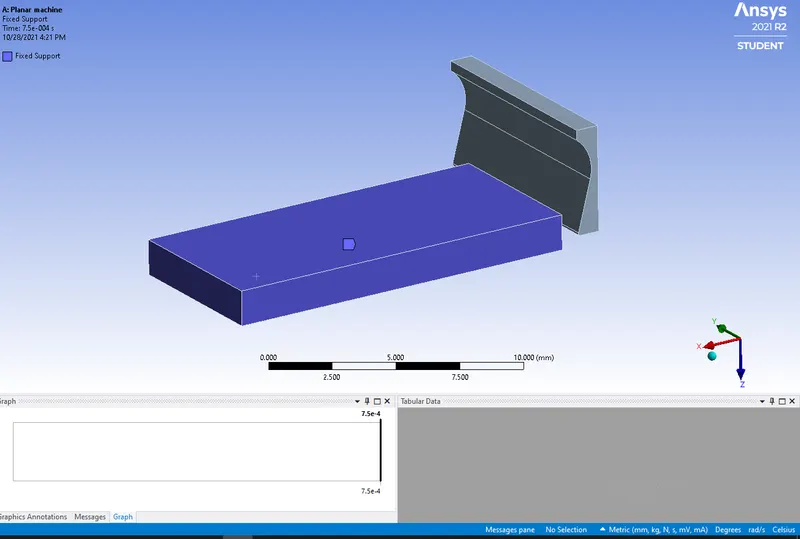

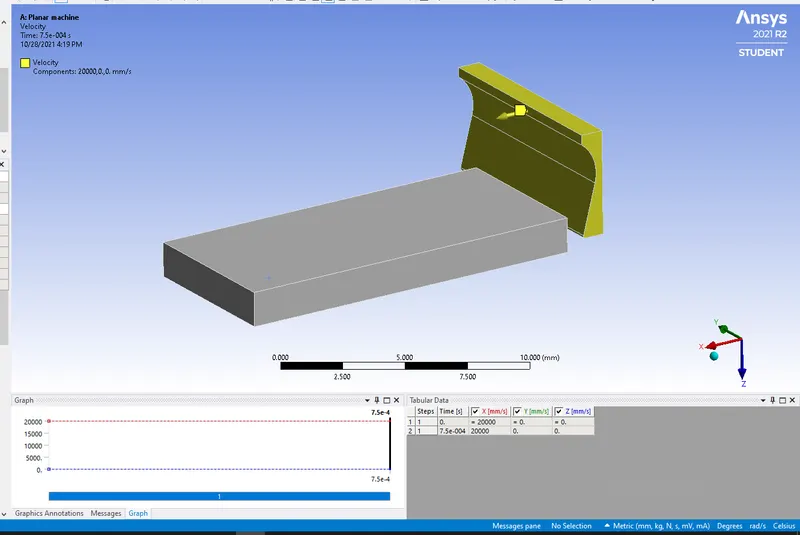

• We should give the velocity for the cutting tool.
•
•

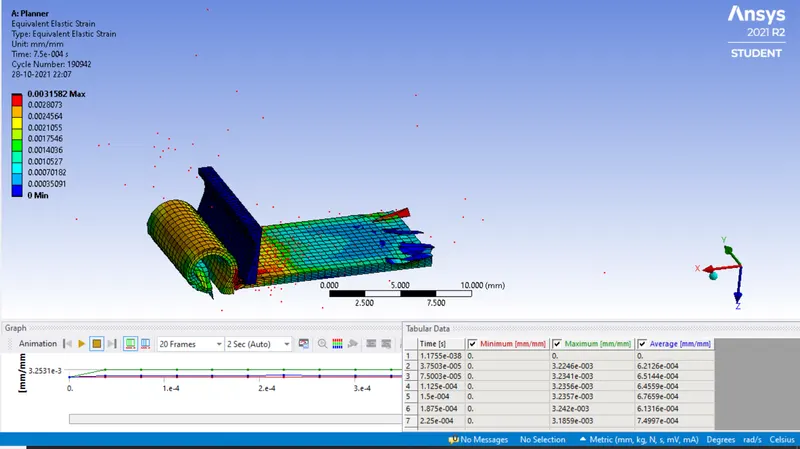

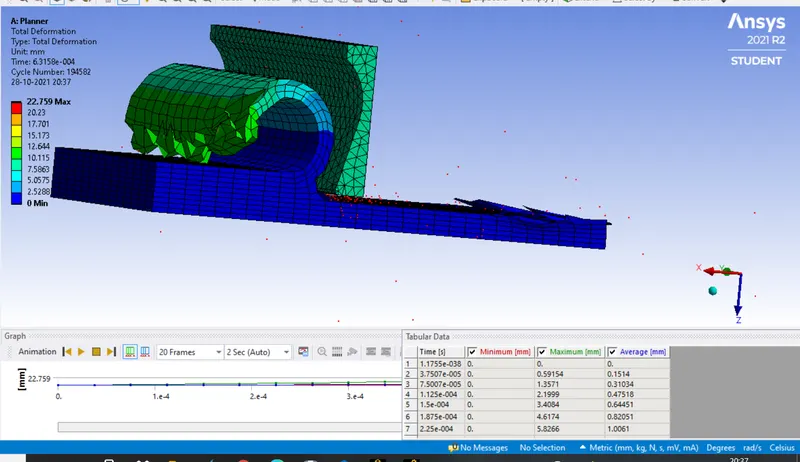

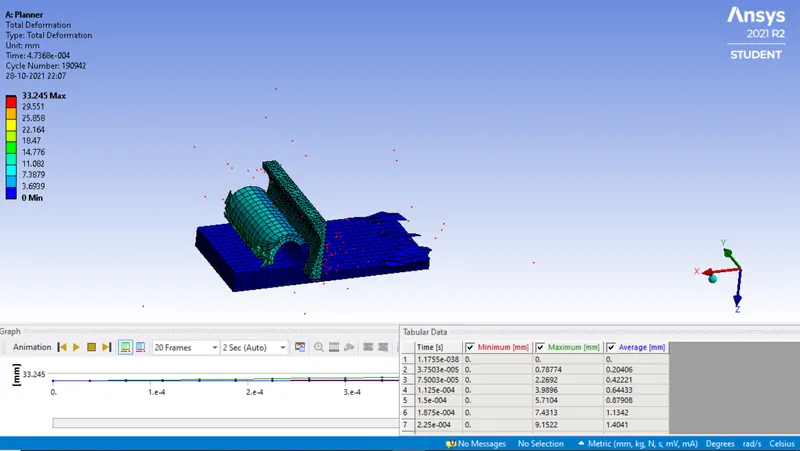

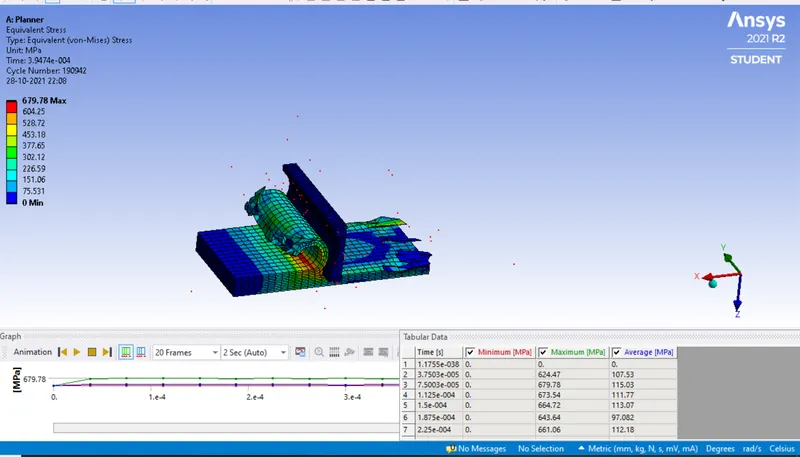

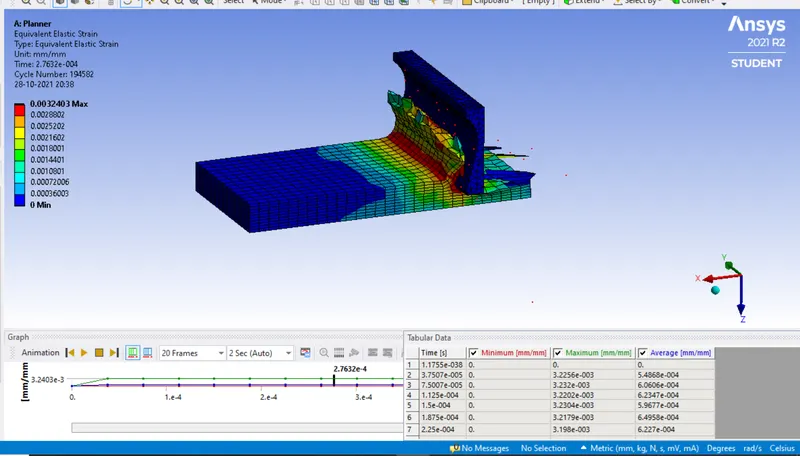

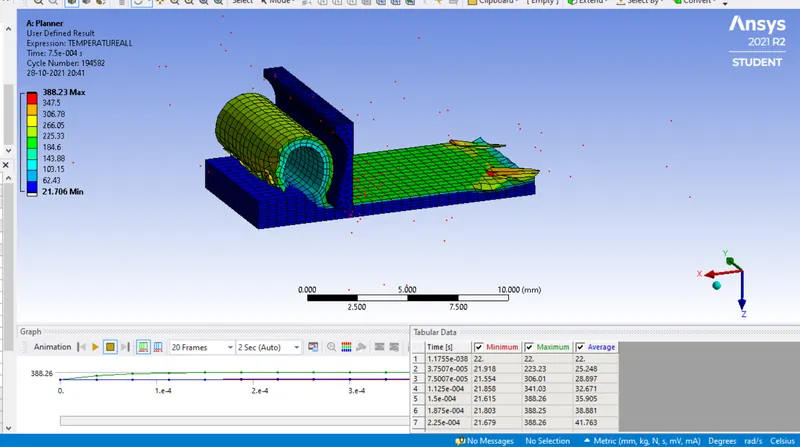

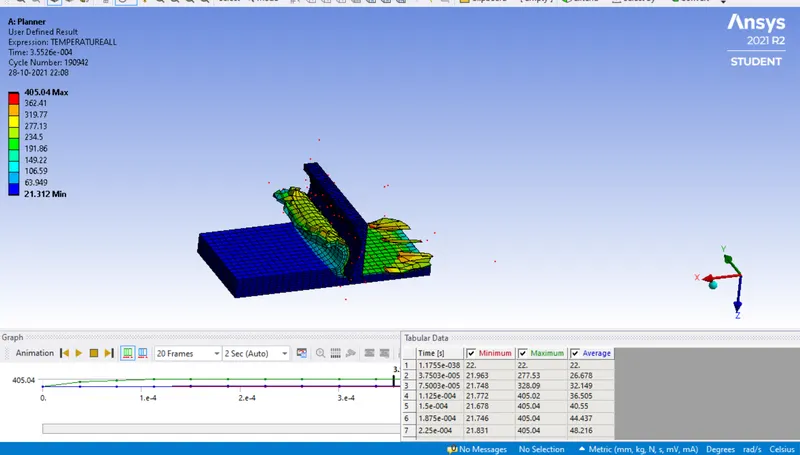

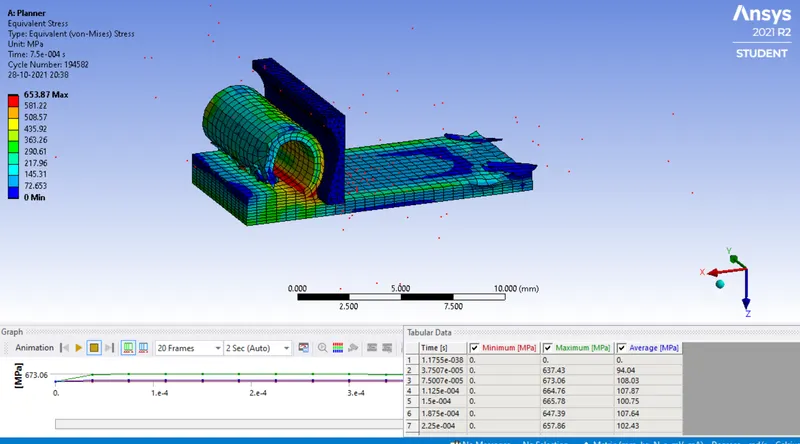

• we should solve Total Deformation,stress,strain,Temeprature for the model.

Velocity=15000
