Week 6-Meshing of Hood Challenge
OBJECTIVE:Meshing the given component and giving the mid surface and cheching the quality parameters of the model.
CAD MODEL:

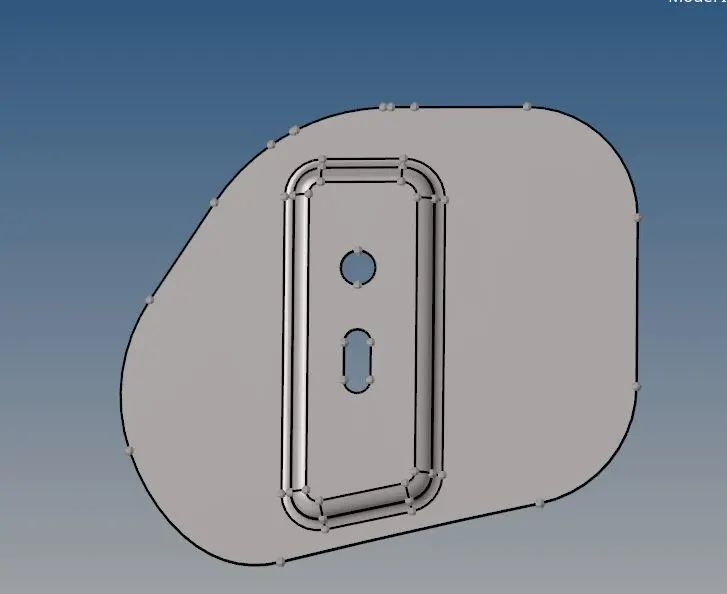

A)Latch Reinforcement.

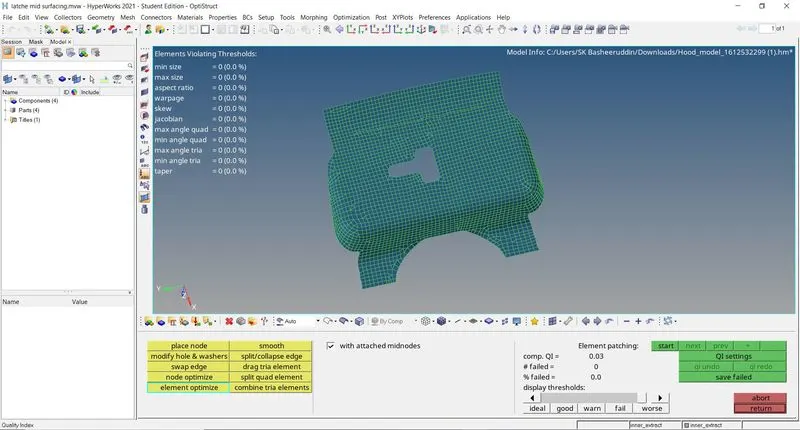

1.Importing the CAD model in the given gemoentry.

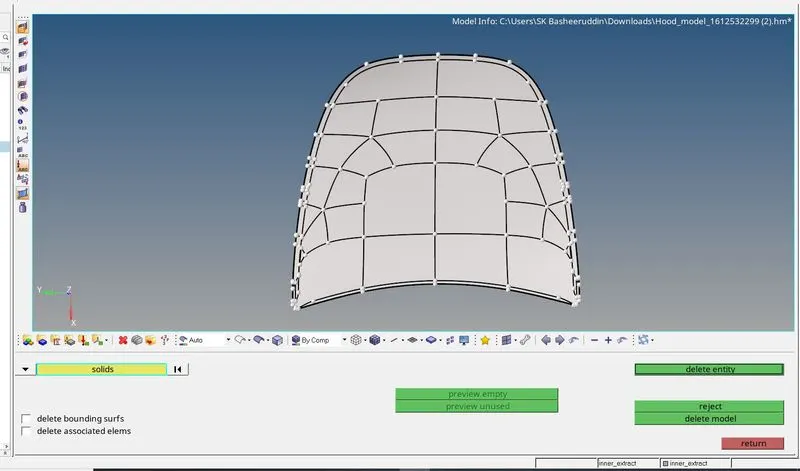

2.Deleting the solid surfaces in the model .
3.Creating the Mid surface of the model.
4.Creating the geomentrical clean up of the model.

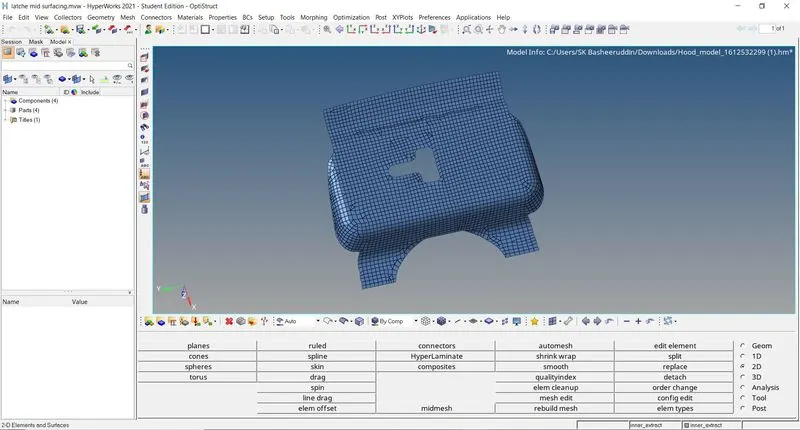

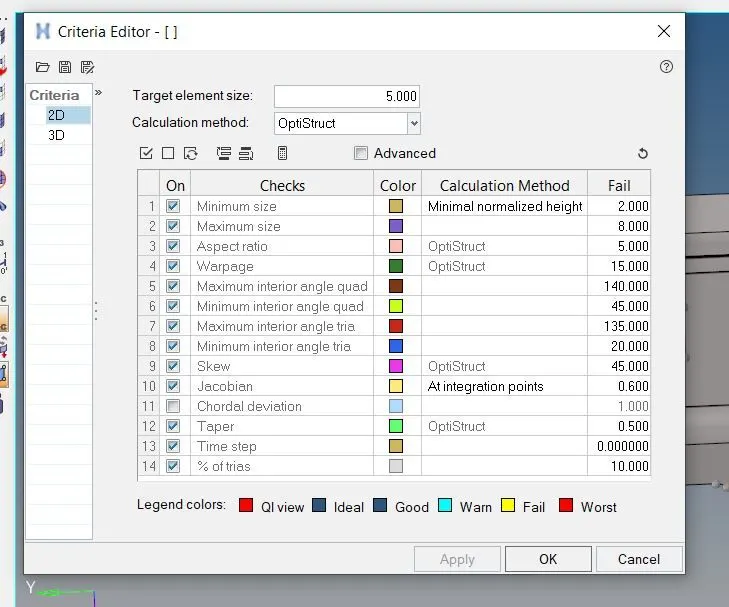

5.Creating the mesh with the mesh size of Target element 5.Updating of the element quality.
6.Checking all the quality parameters and element clean up.
B)HINGE
1.Importing the CAD model in the given gemoentry.

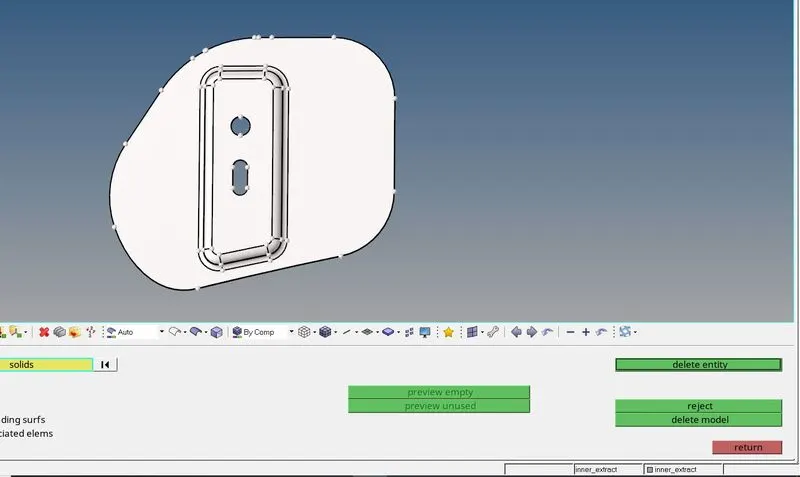

2.Deleting the solid surfaces in the model .

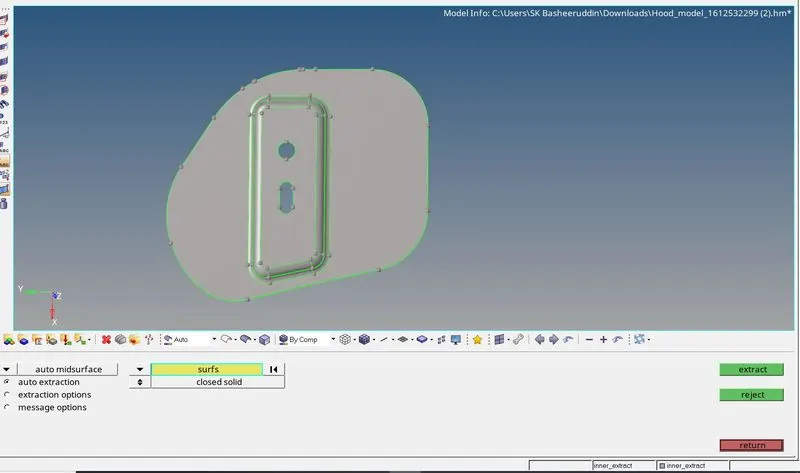

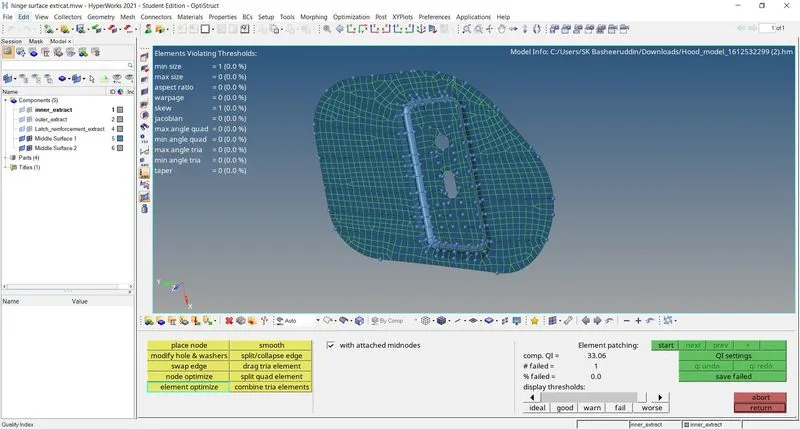

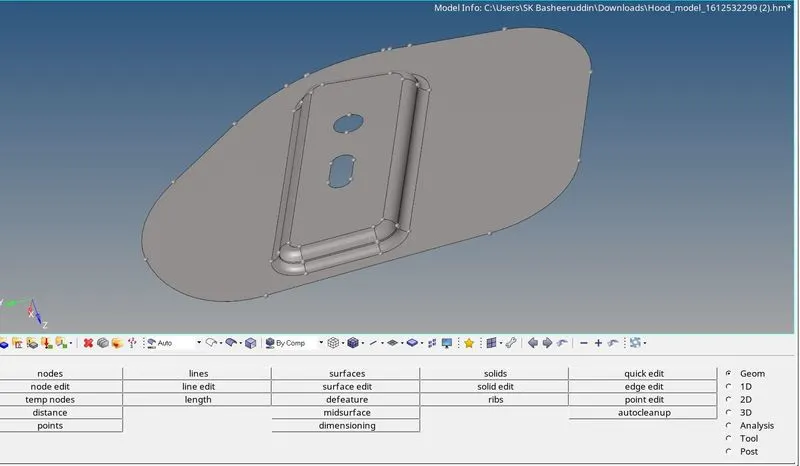

3.Creating the Mid surface of the model.
4.Creating the geomentrical clean up of the model.
5.Creating the mesh with the mesh size of Target element 5.Updating of the element quality.
6.Checking all the quality parameters and element clean up.
C)OUTER EXTRACT:
1.Importing the CAD model in the given gemoentry.
2.Deleting the solid surfaces in the model .

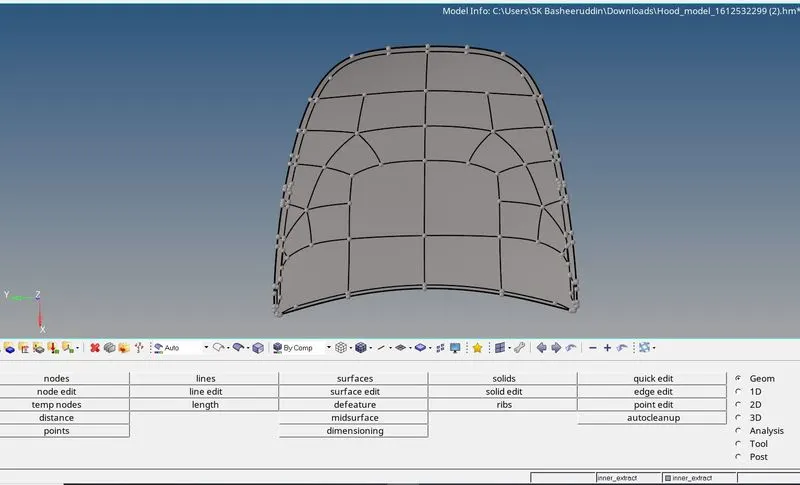

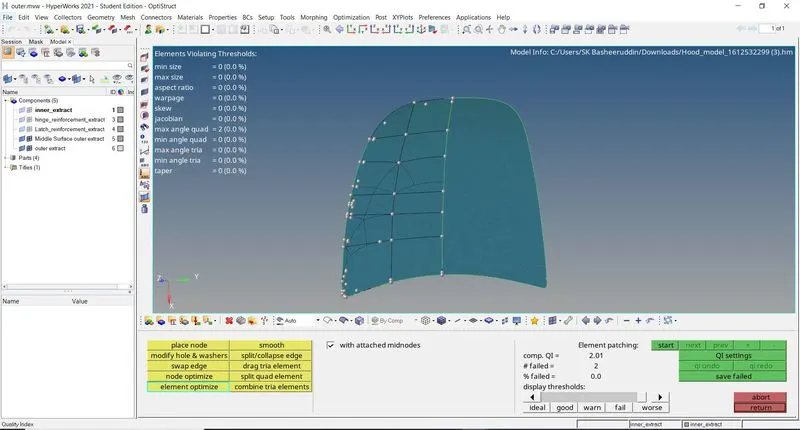

3.Creating the Mid surface of the model.
4.Creating the geomentrical clean up of the model.
5.Creating the mesh with the mesh size of Target element 5.Updating of the element quality.
6.Checking all the quality parameters and element clean up.
INNER EXTRACT:
1.Importing the CAD model in the given gemoentry.
2.Deleting the solid surfaces in the model .
3.Creating the Mid surface of the model.
4.Creating the geomentrical clean up of the model.
5.Creating the mesh with the mesh size of Target element 5.Updating of the element quality.
6.Checking all the quality parameters and element clean up.
