Week 9-Creation of 1D Connectors Challenge
CREATION OF 1D CONNECTORS
AIM:
To Mesh the given geometry and to create connectors for various parts with respective connection type
GIVEN:
QUALITY PARAMETERS:-
Target Element size - 5 Units
|
S.N |
Quality Criteria |
Value |
|
1 |
Aspect Ratio |
5 |
|
2 |
Skewness |
45 |
|
3 |
Warping |
15 |
|
4 |
Taper |
0.5 |
|
5 |
Min. Length |
2 Units |
|
6 |
Max. Length |
8 Units |
|
7 |
Min angle Quad |
45 |
|
8 |
Max angle Quad |
135 |
|
9 |
Min angle Tria |
30 |
|
10 |
Max angle Tria |
110 |
|
10 |
Tria % |
15 |
To create various type of connectors for the given below parts:
1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)
2. Left_Rail_2 & Front_truss_1:- Quad elements
3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter
4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)
5. Rear_truss_2 & Right_Rail_2:- Bolt Connector
6. Rear_truss_2 & Left_Rail_2:- Bolt Connector
7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements
8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements
PROCEDURE:
STEP 1: To mesh the given component with the target element 5 units

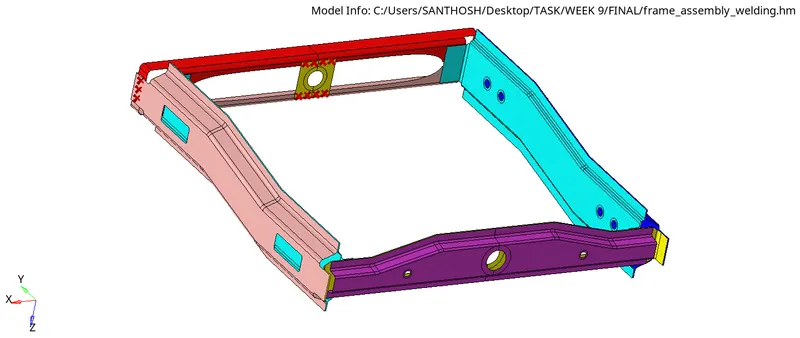

GIVEN MODEL:
AFTER 2D AUTOMESH:
STEP 2: To connect various type of connectors in this component

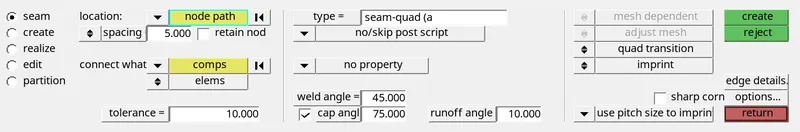

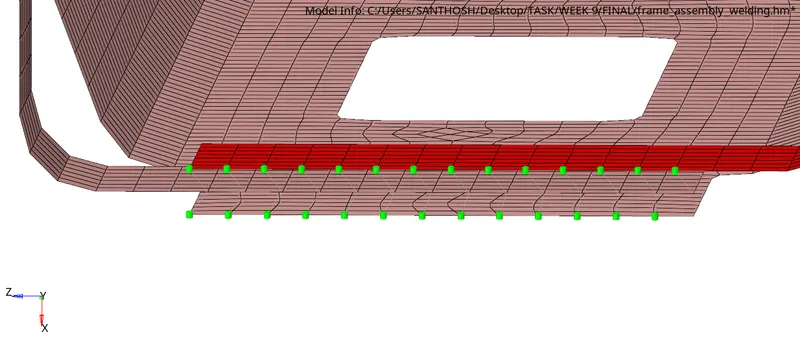

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

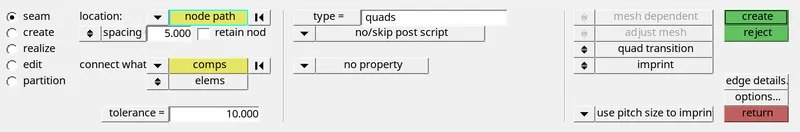

2. Left_Rail_2 & Front_truss_1:- Quad elements:

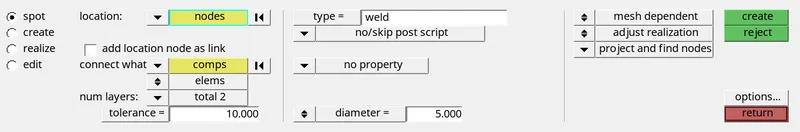

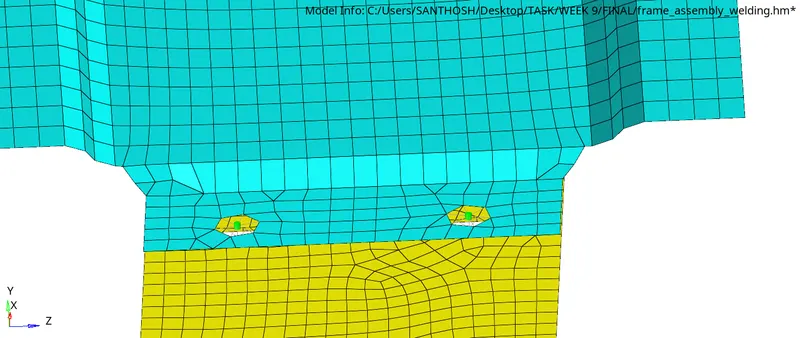

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter:

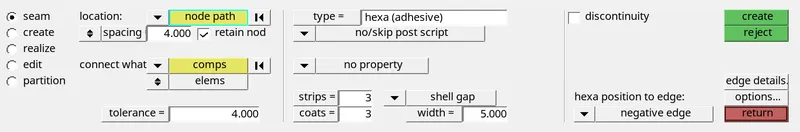

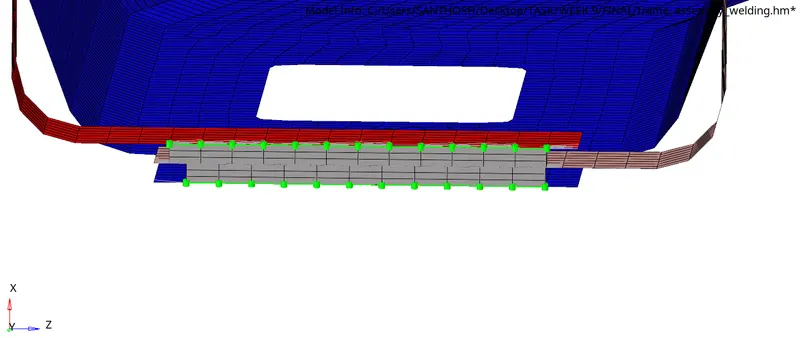

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive):

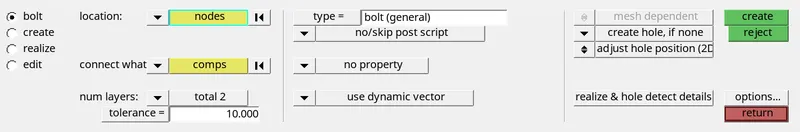

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector:

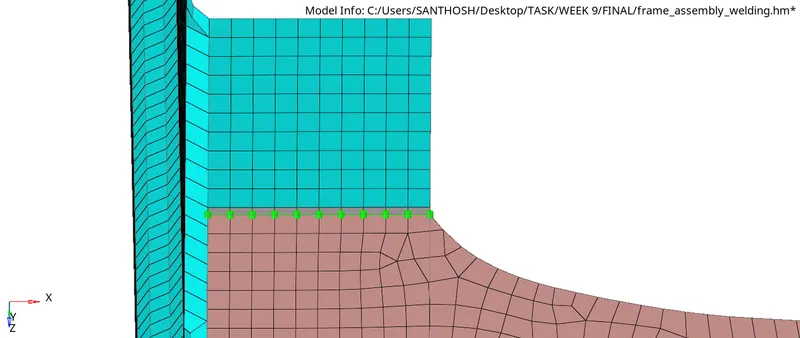

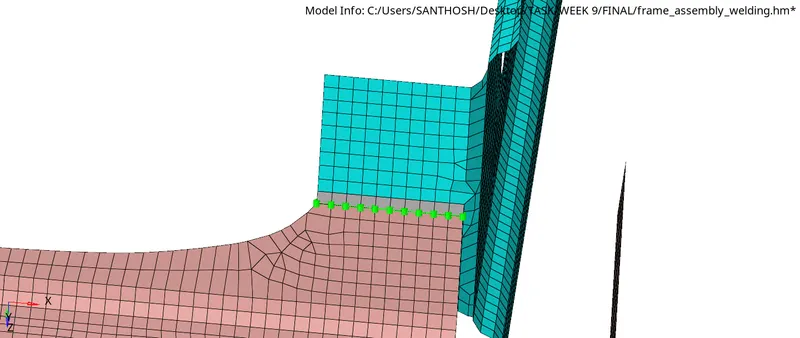

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements:

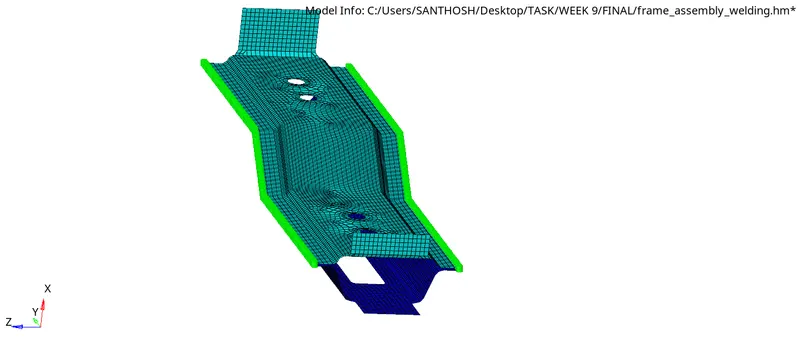

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements:

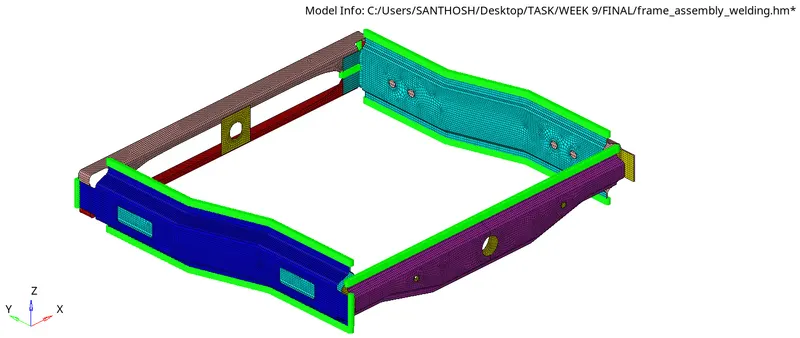

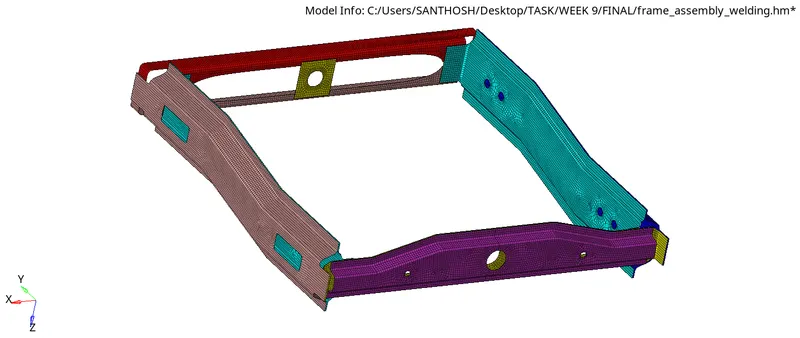

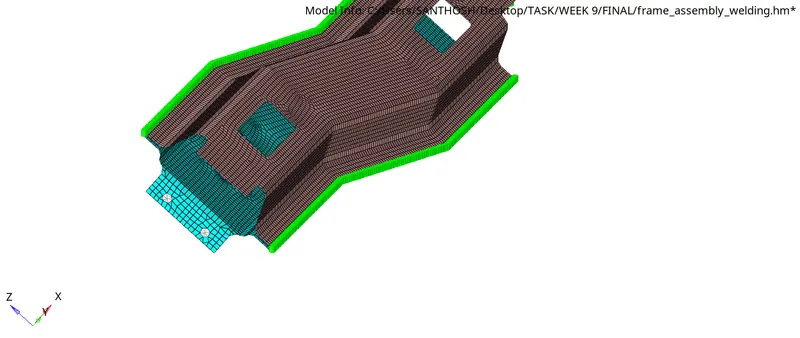

FINAL OUTPUT:
CONCLUSION:
The given model has been meshed with the targeted element and the creation of connector in various parts of the given model are updated.
