Week 9-Creation of 1D Connectors Challenge

REPORT

AIM:TO GIVE THE CONNECTIONS OF WELDS IN THE MODEL AS PER THE GIVEN CHALLENGE.

PROCEDURE:

1.IMPORT THE MODEL FROM TO THE SOFTWARE.

2.CREATE A MID SURFACE OF THE MODEL.

3.BEFORE THE MID SURFACE CREATE AN ASSEMBLY OF ALL THE COMPONENTS.

4.FOR CREATION OF THE ASSEMBLY GOTO TOOLS>ASSEMBLY>SELECT THE COMPONENTS>CLICK ASSEMBLE.

5.CREATE A MATERIAL ID AND GIVE THE MATERIAL AS STEEL,THEN CREATE A PROPERTY ID GIVE THE PROPERTY AS 2MM.

6.THEN CREATE A MID SURFACE,HIDE THE COMPONENTS.

7.AUTOMESH THE MIDSURFACE ACCORDING THE GIVEN CRITERIA.

8.SELCT THE DEFINITE CONNECTORS ACCORDING TO THE SPECIFICATION GIVEN AND CONNECT THEM USING SPOT,BOLD,SEAM WELD

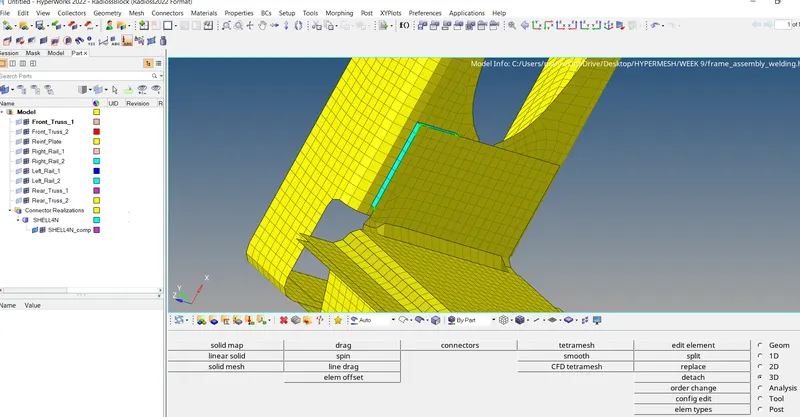

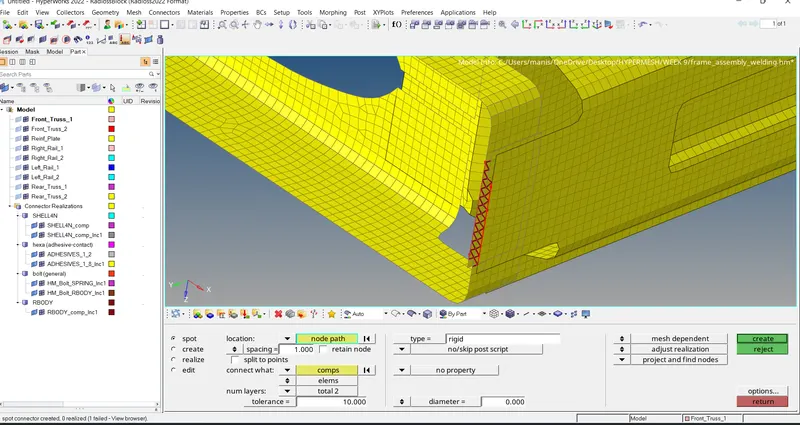

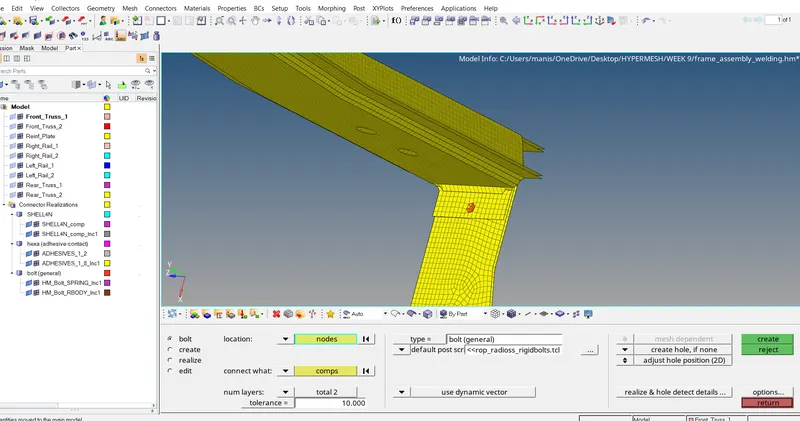

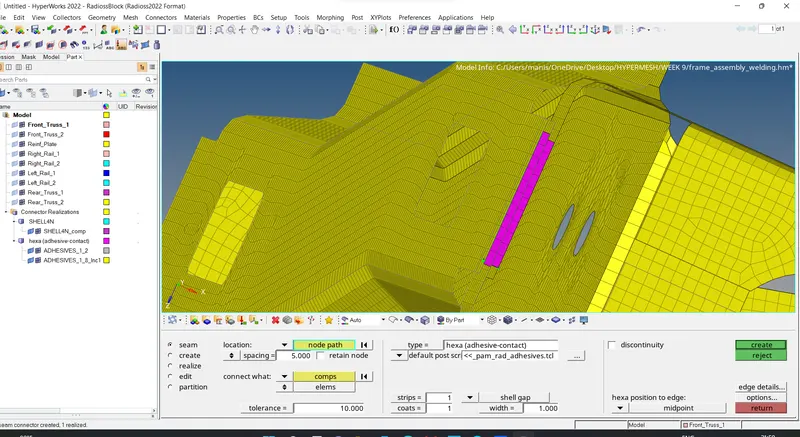

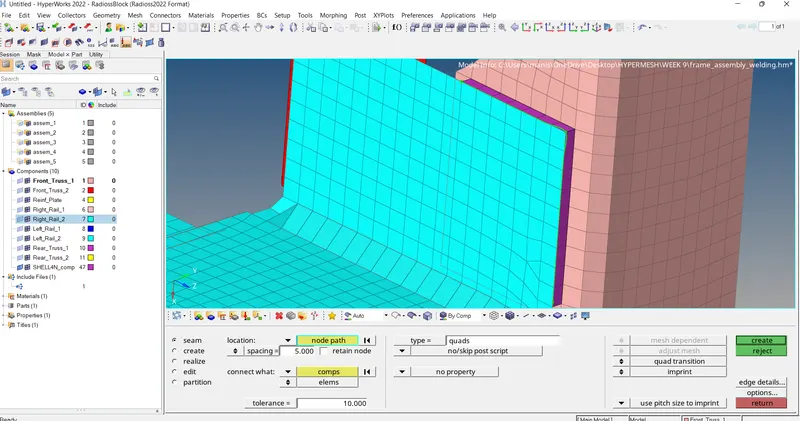

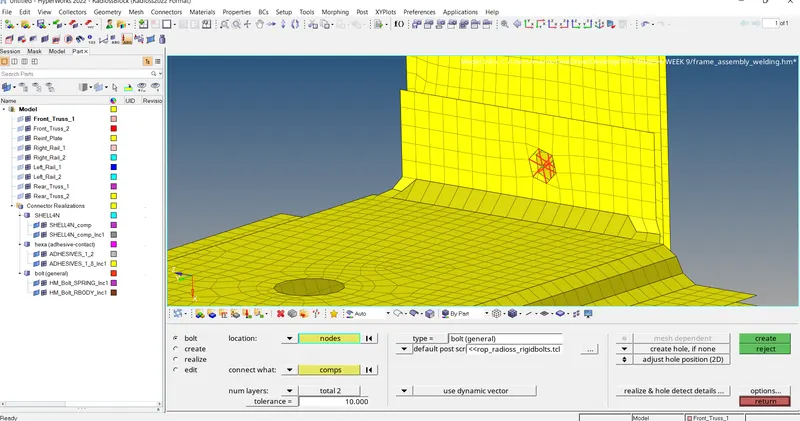

.9.USE 3D PANEL TO SELECT THE SEAM,SPOT AND BOLT OPTIONS,FIRST OF ALL SELECT SEAM>THEN CLICK ON THE POINT OR NODE WHERE THERE IS A NEED FOR THE WELD >SELCT THE COMPONENTS>EXECUTE THE WELD.

10.IF THE WELD IS NOT REALIZED THEN REALIZE THE WELD EITHER USING THE SAME PANEL OR GO TO VIEW>HYPERMESH AND THEN CONNECTORS IN THAT OPTION ONLY.

11.AFTER DISPLAY PF THE CONNECTORS USE RIGHT CLICK AND THEN REALIZE THE CONNECTORS.

12.AFTER REALIZATION YOU WILL SEE A CLEAR PICTURE OF THE WELD THAT IS BUILT.

CONCLUSION:

1.NEARLY ALL THE WELDS WERE REALIZED AND EXECUTED AS PER THE GIVEN STANDARDS.
