Week 9-Creation of 1D Connectors Challenge

Objective:

To attach the parts of given model using specific connectors after cleanup and meshing said parts.

Requirements:

Create connector and Attach the various parts of the given model

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

2. Left_Rail_2 & Front_truss_1:- Quad elements

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

9. Rest all the component left Join them with suitable connectors

Cad model image:

Procedure:

• The model is cleaned up and meshed with proper mesh flow.The mesh type is mixed and element size is taken as 5mm.It is a 2D mesh since the entire model comprises of extracted midsurface.

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

For this ,we can isolate the right_rail_2 and Front_truss_1 surfaces and find the region of possible connection to add connectors.

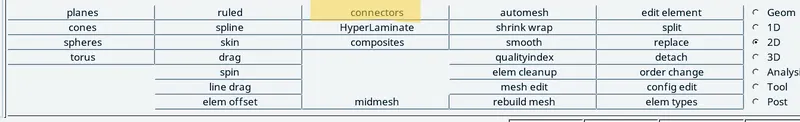

The connectors option can be acessed from 2D menu as seen here..

This is a seam connector so the seam option is selected(2D>connectors>seam)

Then we reach the following menu:

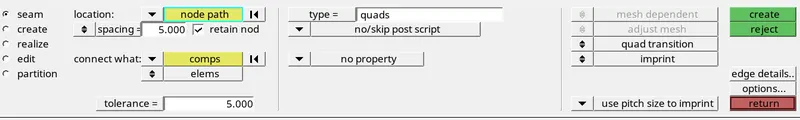

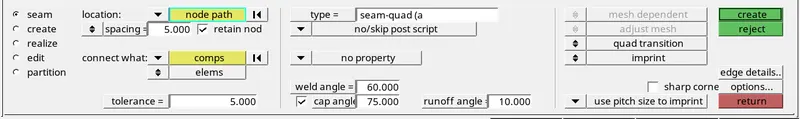

The loication option let us select which nodes will involve the connectors and the connect what lets us select the components that needed connecting.Furthermore, we need to specify the time of seam connector through "type" where we can select Seam-Quad(angled+capped+L).If specified ,we can alter other options like weld angle,cap angle and roundoff angle .The tolerance needs to be varied accordingly so the connector option can find the next part to connect and ensure realization.

2. Left_Rail_2 & Front_truss_1:- Quad elements

The same process is followed in isolating and picking the nodes to be connected .The quad connectors is under the same seam options.It just needs to be selected from the "type"menu.

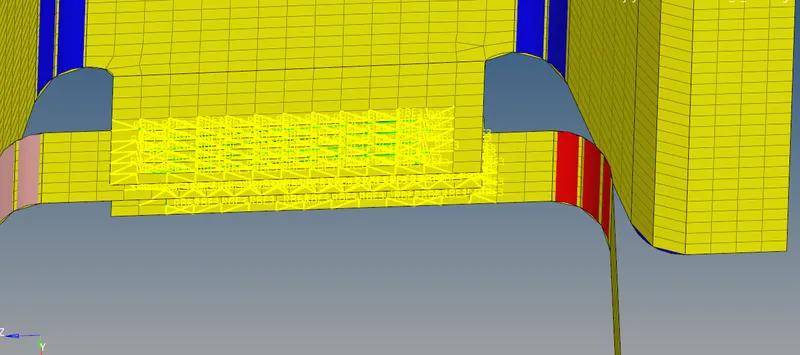

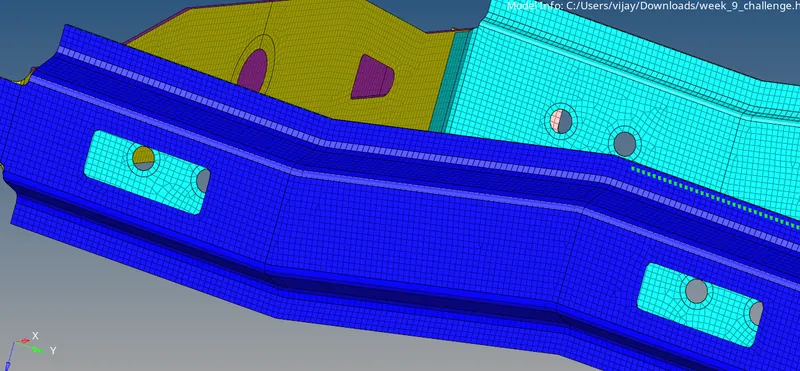

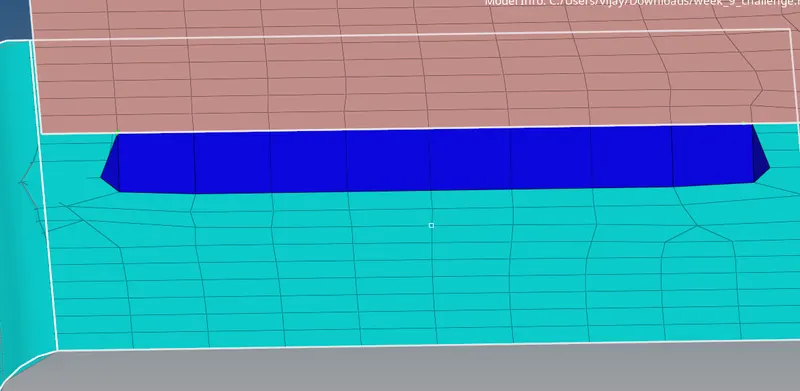

It's the same procedure again with picking the nodes and selecting the components and assingnig the tolerance.Here's what it looks like when realized.

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

Again,the particular components are isolated.This connector will involve 3 layers.

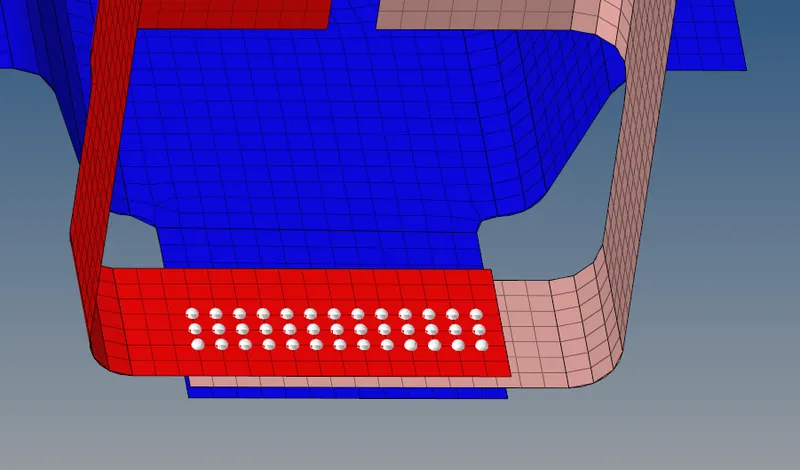

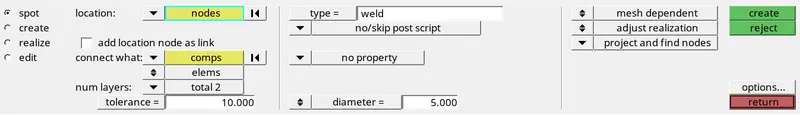

The elements are selected along with the 3 layers.And the tollerance is assinged along with the diameter.The process is again,pretty straigthforward.

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

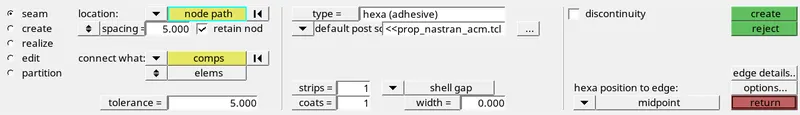

To acess the adhesive connector,it is under the seam connector option.2D>connector>seam and the type needs to be Hexa(adhessive).We again get to input the criteria and select the nodes and components.All this is done after isolating the three components of course.

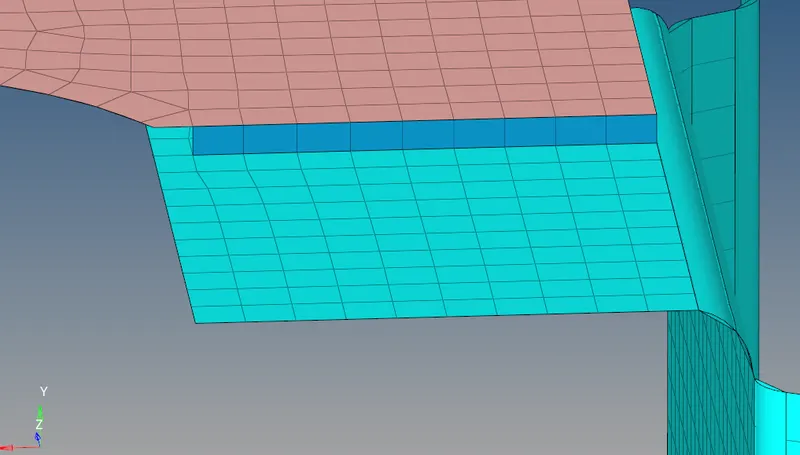

And this is what it will look like after it is realized.

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector,6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

Simillar process again.The two components to be connected are isolated and we pick the nodes through which the connectors will be placed.Since this is a bolt connector ,two should be adequate .the bolt option can be acessed from the connector menu(2D>connector>bolt).

We can assign the tollerance ,select the nodes and components .Also,the 'create hole,if none'option is selected.for type,i have gone for bolt(CBAR).

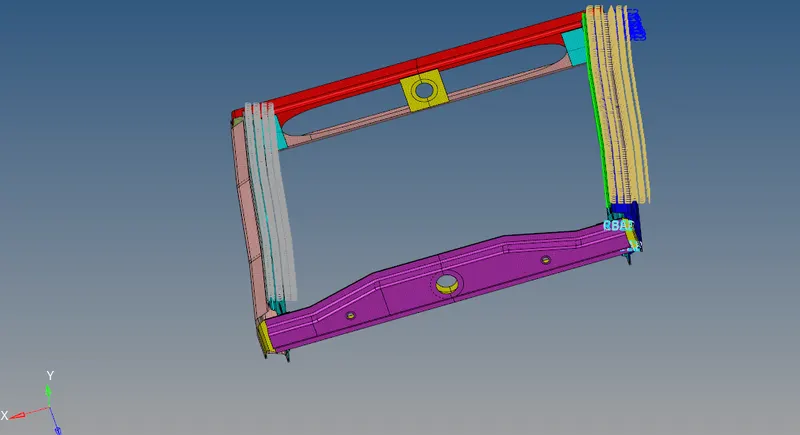

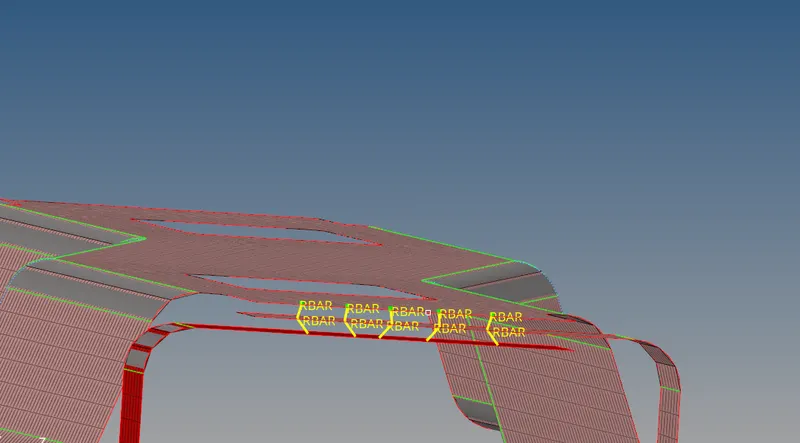

This is what it will look likje after adding (The mesh has also been cleaned up after bolts were added.)

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements, 8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

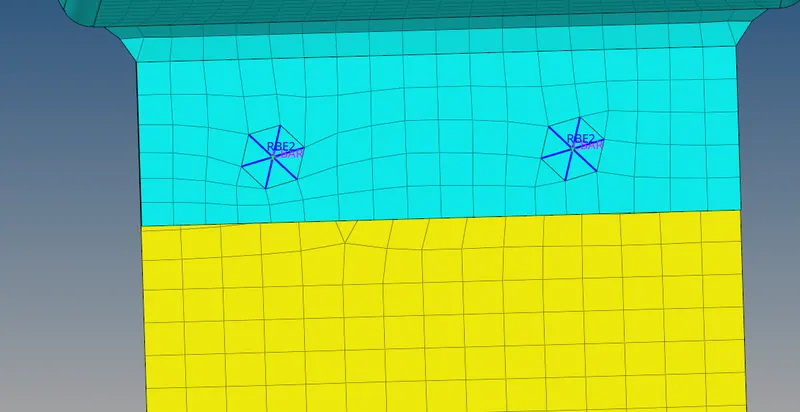

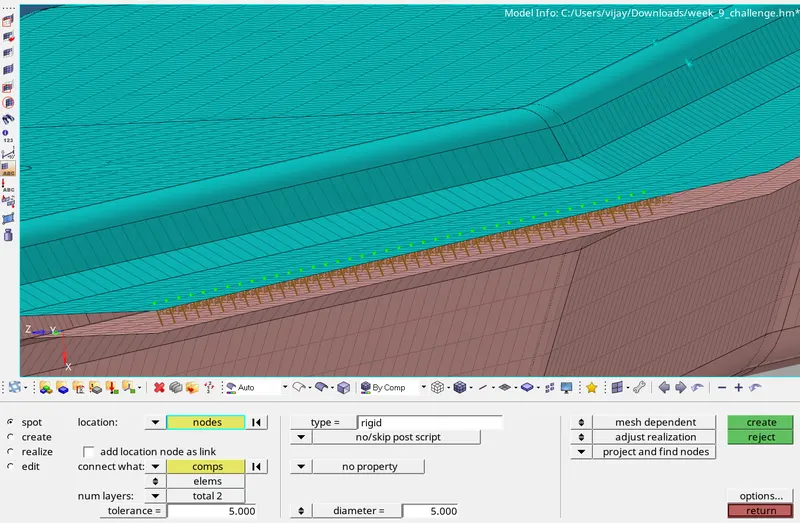

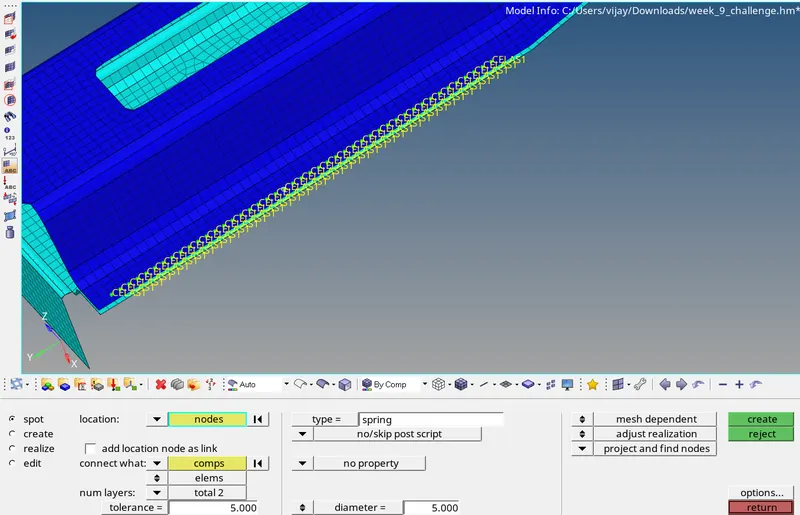

The elements are isolated and all the nodes along a single line of the entire components are selected for spot welding .The only difference being the type in these case.The first case will have 'rigid'for type and the second will have 'spring'.

The rest of the components are joined using suitable connectors based off information from previous connectors used in similar regions of other components.

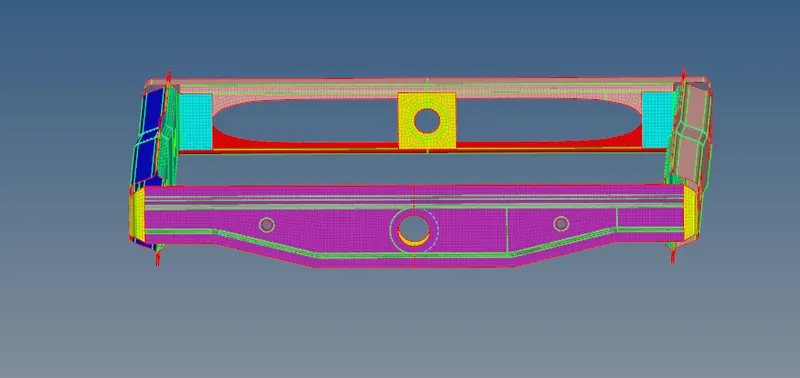

Final model image:

Result :

The given model was meshed and after meshing ,the component included were connected using specified connectors and were realized .Accordingly,appropriate connectors were used on other components of same model.
